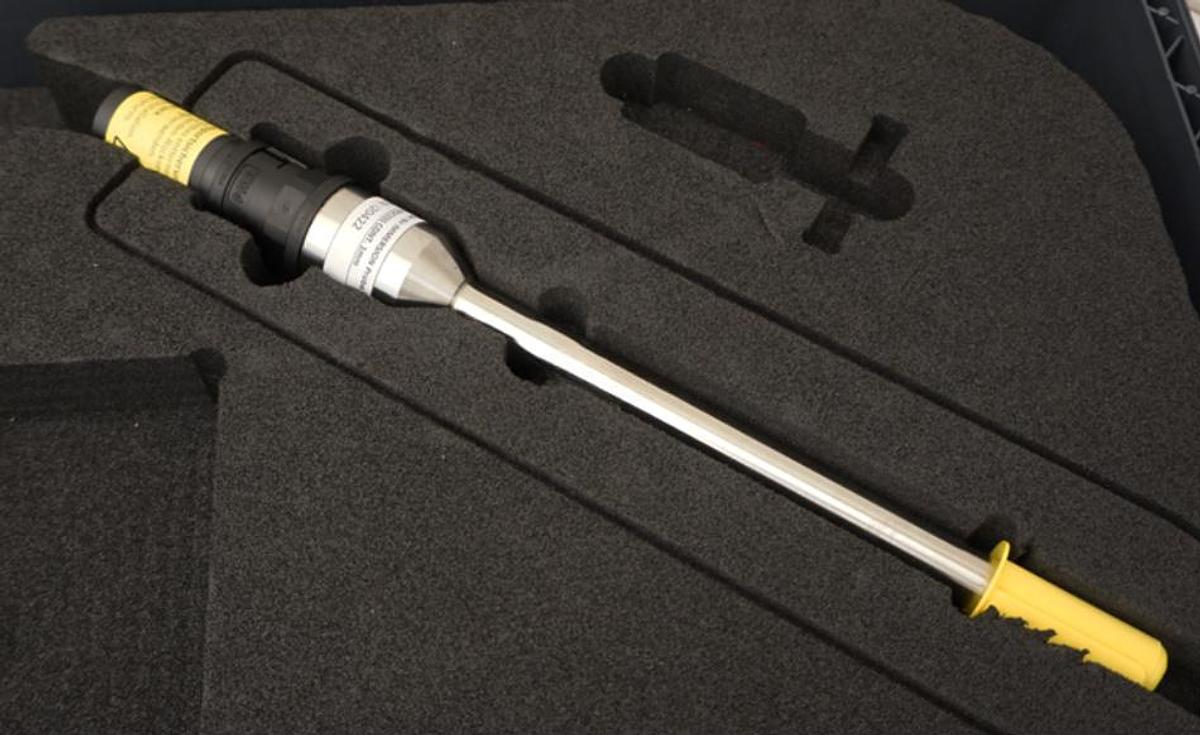

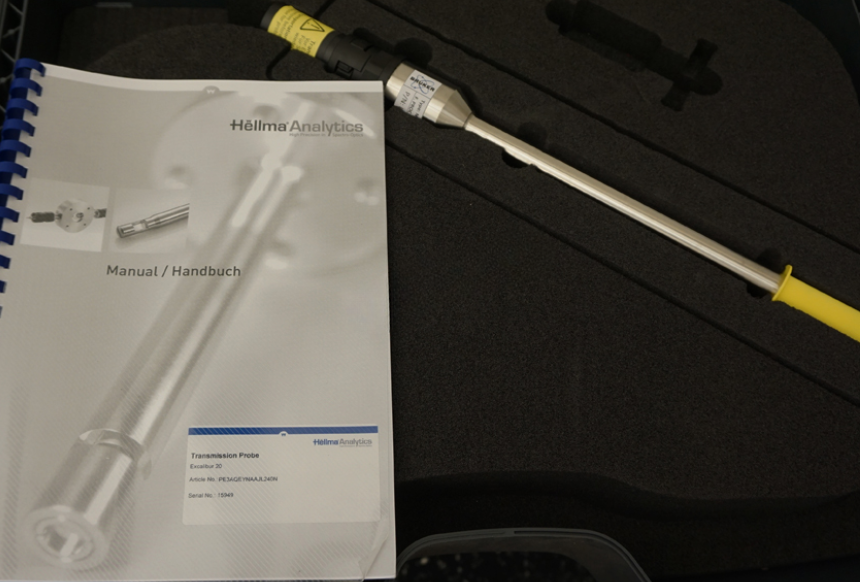

Bruker IN237P1 immersion probe for Matrix F NIR spectrometer

IN237P1 Imersion probe for process control

3 probes available

Type of measurement: transmission (NIR)

Specifications:

Optical pathlength: 1mm±0.01mm

Material (surfaces in contact with medium):

- Quartz glass

- Kalrez® 7075 (please check the compatibility between the sealing material and chemicals of

your process)

- Stainless steel 1.4571 (316Ti)

Probe dimensions:

- Outer diameter: 20mm

- Barrel length: 250mm

- Min. immersion depth: 30mm + optical pathlength

- Max. immersion depth: 240mm

Temperature range: 5°C to 260°C

Max. temperature at the end of the SMA connectors: 110°C

Pressure range: -1bar to 35bar

Fiber optic cable connectors: 2 SMA type 905

Included in delivery:

- Connector for protection conduit

Recommended accessories:

- 2x Fiber optical cables IN220 or IN229

- Protective S180
