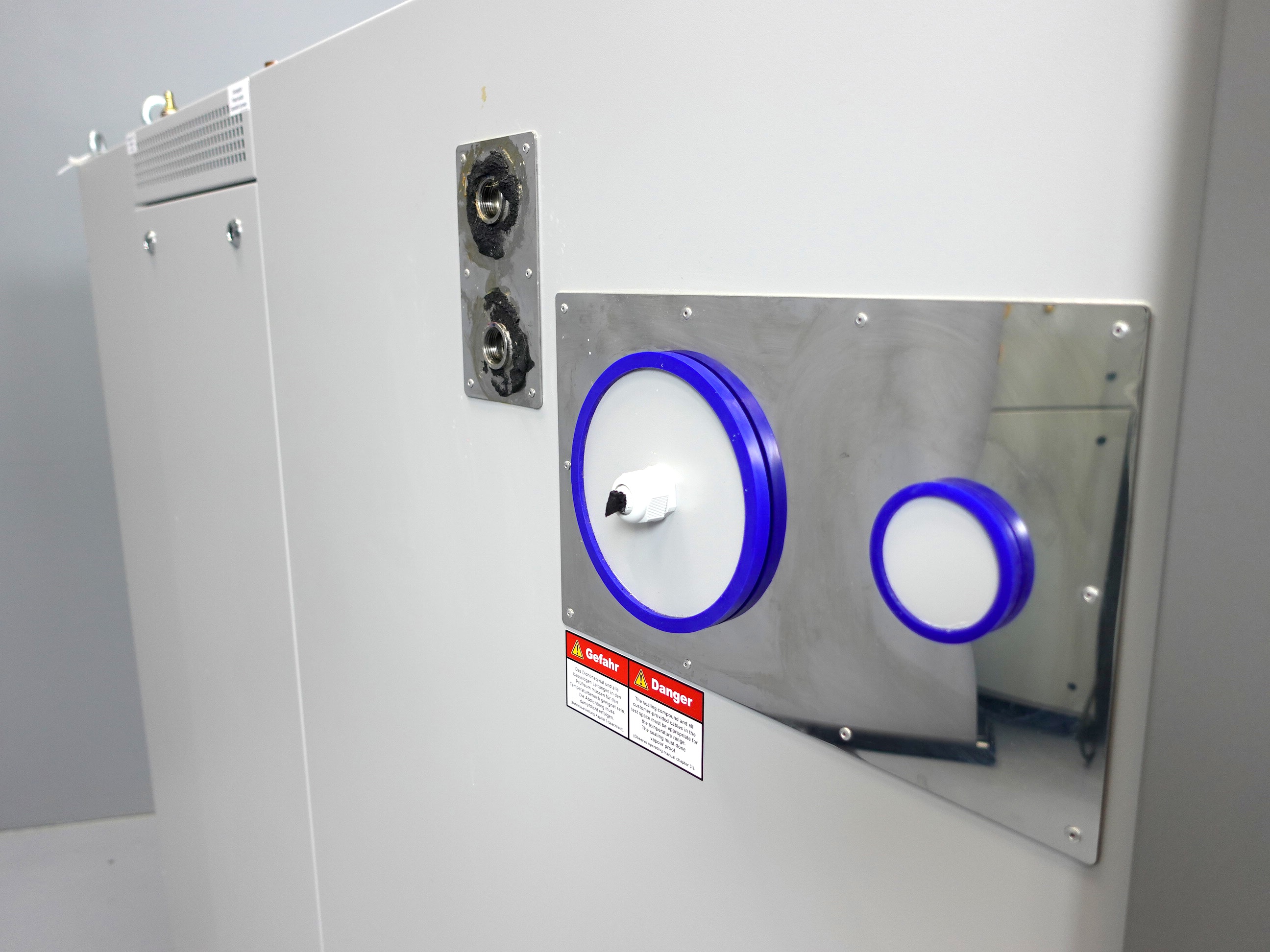

CTS C-40/350 Climate Chamber

Type: C-40/350 Ex/l

Climatic Test Chamber, Water-Cooled

The Ex/l designation indicates that this climatic test chamber is suitable for use in explosive atmospheres, Zone 1.

This means it is designed for environments where explosive atmospheres may occur.

Such equipment is specially constructed and certified to ensure safety in these hazardous areas.

Temperature Tests:

• Temperature range: –40 °C to +180 °C
• Temperature deviation: ≤ ±0.3 K over time
• Temperature change rate according to IEC 60068-3-5:
• Heating: 3.5 K/min
• Cooling: 4 K/min
• Heat compensation:
• approx. 3500 W at +20 °C
• approx. 2000 W at –20 °C

Climatic Tests:

• Temperature range: +10 °C to +90 °C
• Humidity range: 10% to 95% relative humidity
• Dew point range: +5 °C to 78 °C
• Temperature deviation: ≤ ±1.0 K over time
• Humidity deviation: ≤ ±3.0% r.h. over time

The technical data refer to an ambient temperature of +25 °C, rated voltage 400 V, without test specimen, without heat compensation, and without additional equipment.

Options may influence performance data.

Technical Design:

• Refrigeration unit:

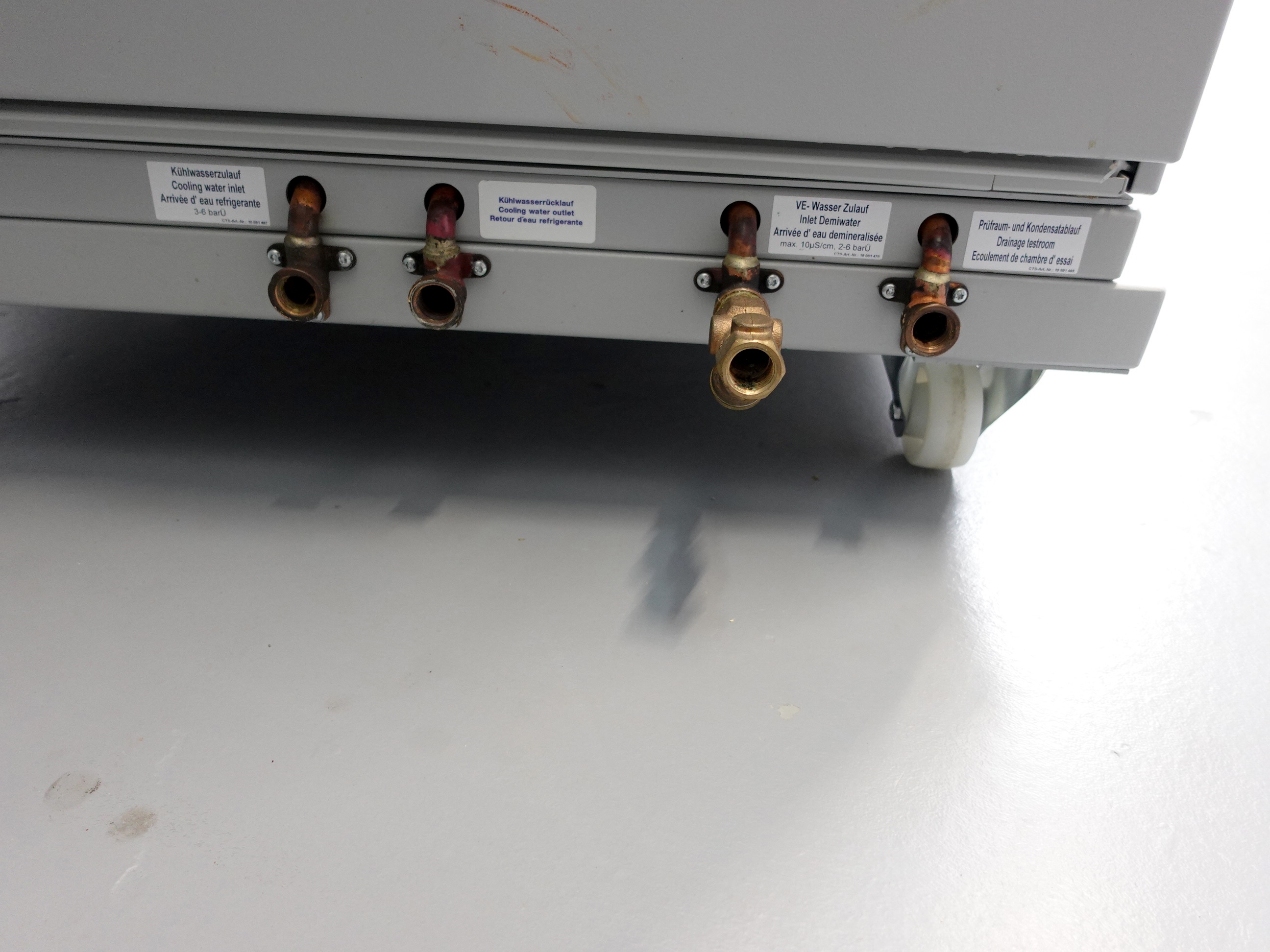

• water-cooled, low noise, fully hermetic, infinitely variable power adjustment
• via electronic monitoring and control system
• environmentally friendly refrigerant R404A

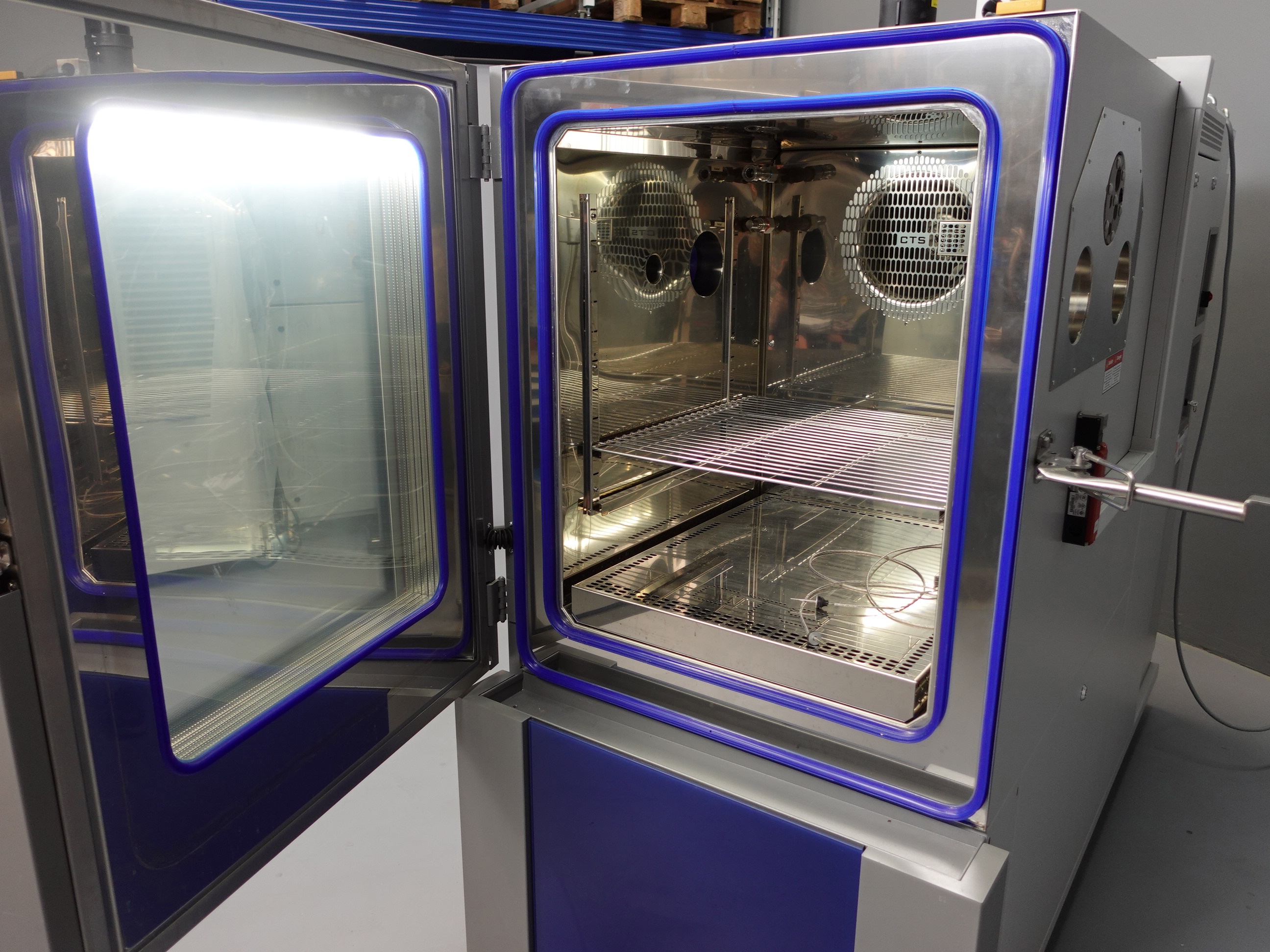

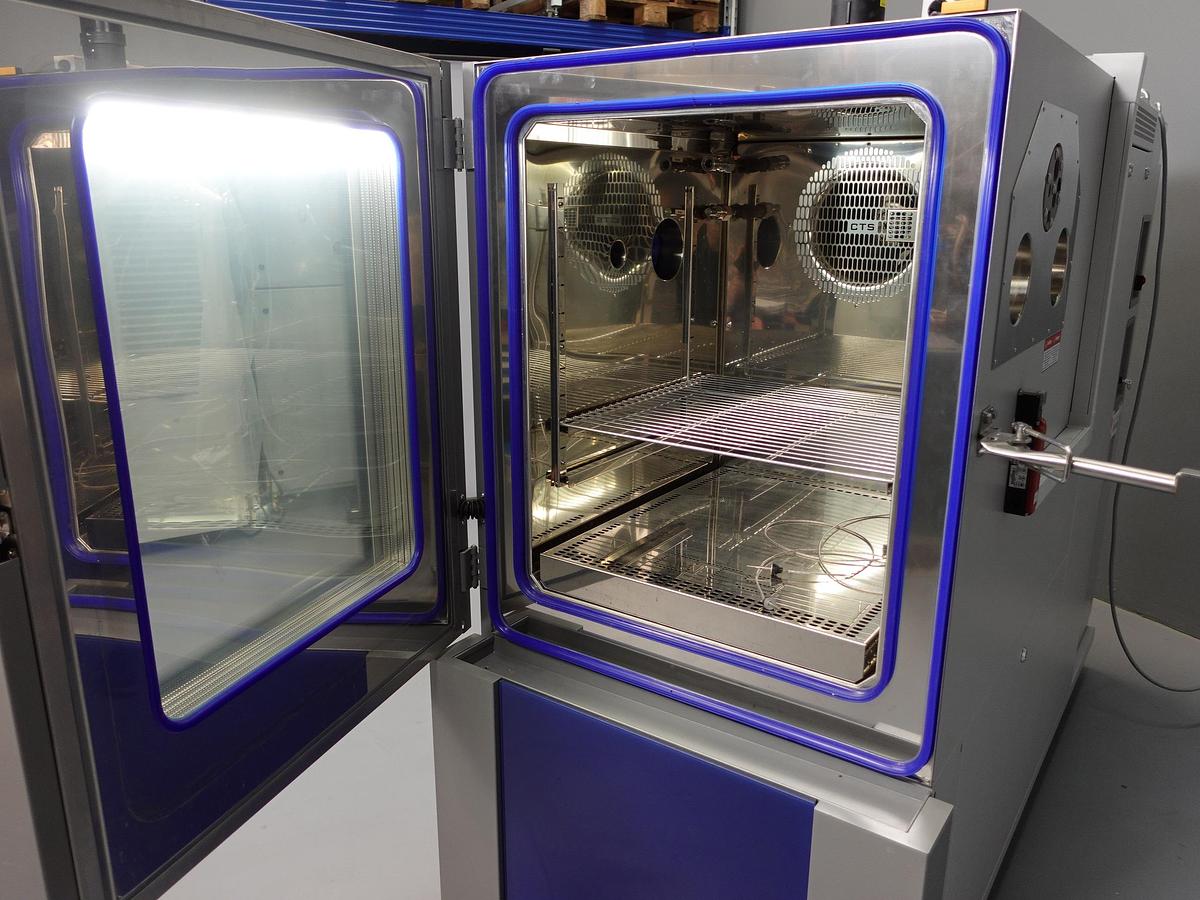

• Test chamber:
• floor load capacity 150 kg/m²
• support rack: stainless steel
• support surface: 620 × 600 mm
• max. load per rack: 35 kg
• total load with maximum number of racks: 100 kg

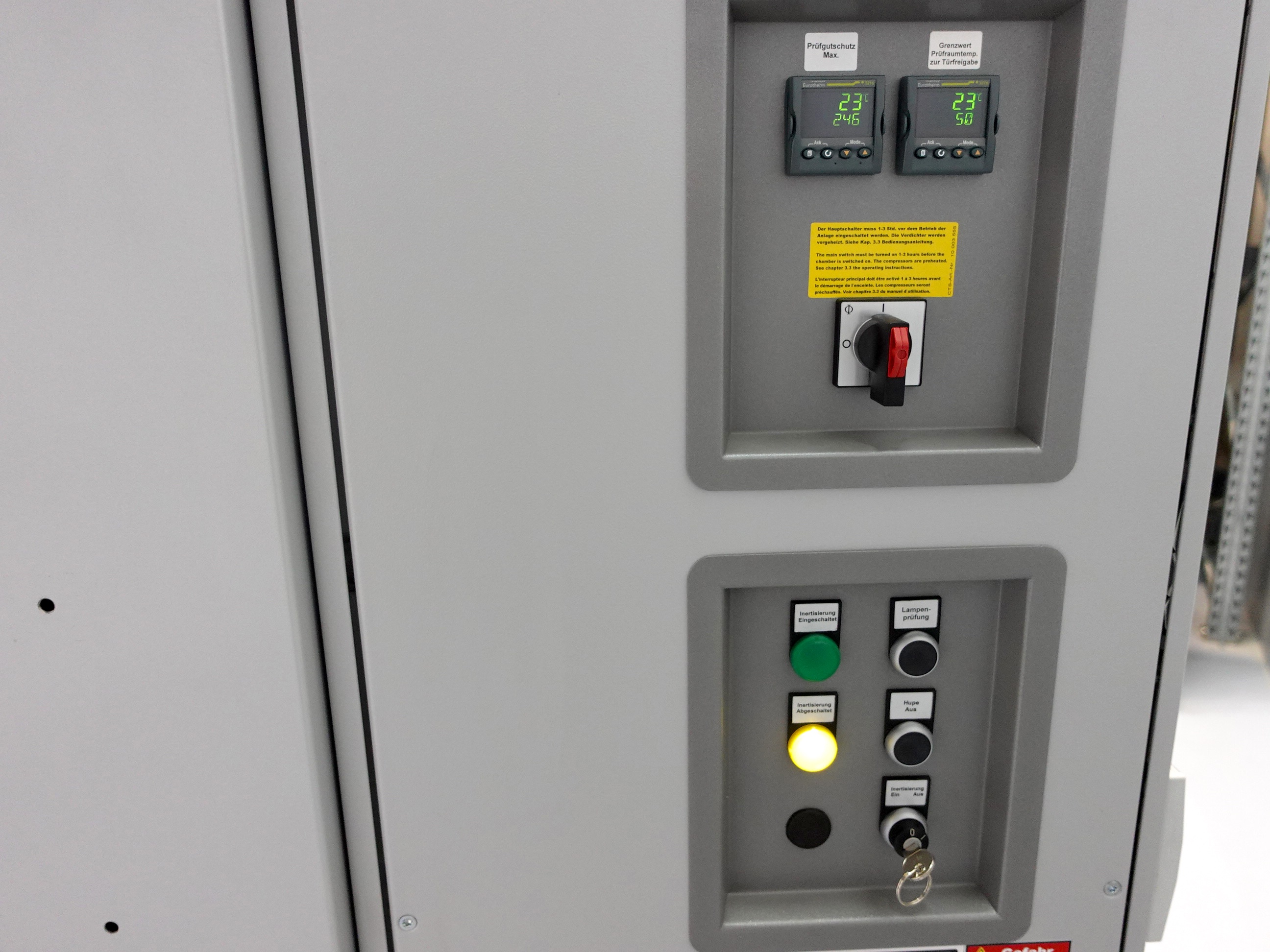

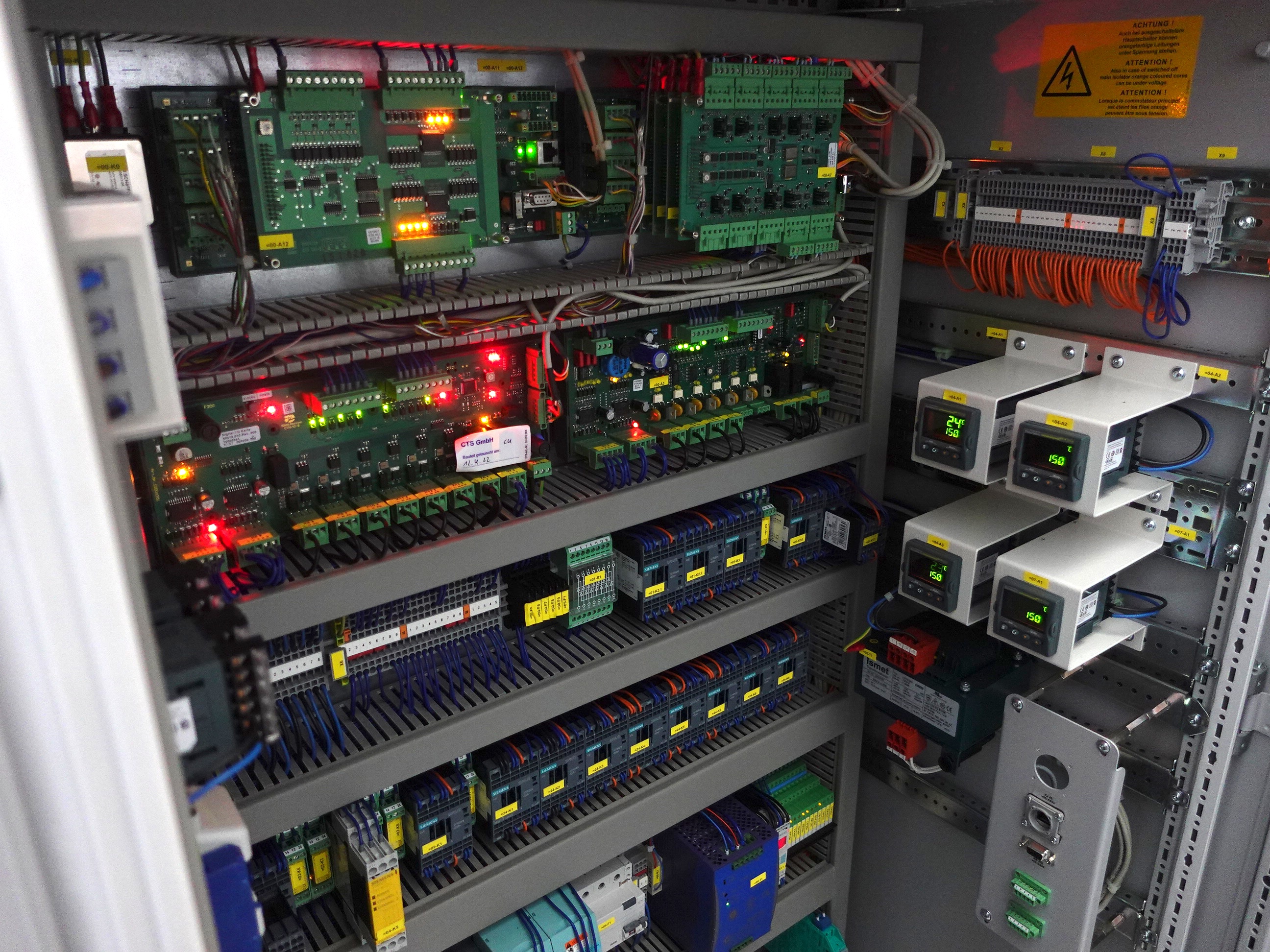

Control System:

• 32-bit controller
• LCD operating panel
• Digital display of set and actual values
• Numerical input of set values
• Error messages in plain text
• Interfaces: RS 232, Ethernet
• Free switching channels for customer-side specimen control

Dimensions:

• Test volume: 350 liters
• Internal dimensions: Height 750 mm × Width 650 mm × Depth 720 mm
• External dimensions: Height 1800 mm × Width 850 mm × Depth 1640 mm

Operating Data:

• Electrical connection: 400 V +6/–10 %, 3/N, 50 Hz
• Rated power: 7.15 kW
• Rated current: 14.3 A
• Protection class: IP 54
• Sound pressure level: <55 dB(A)
• Weight: approx. 500 kg

The chamber is tested and fully functional.
