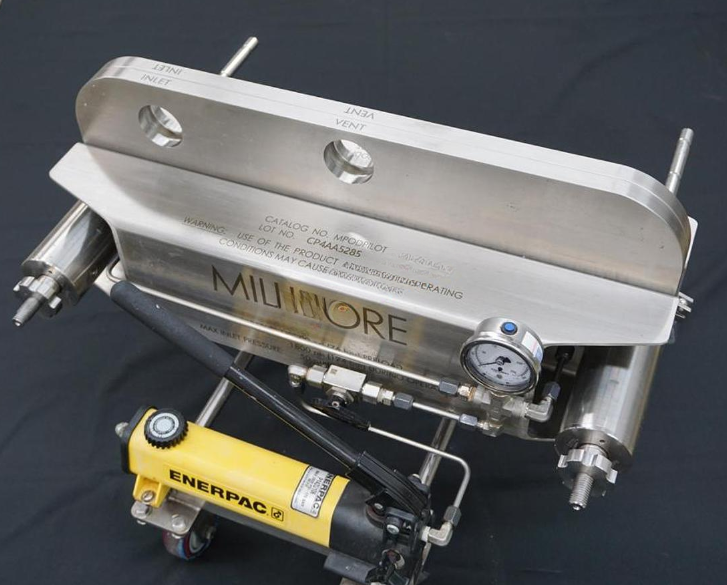

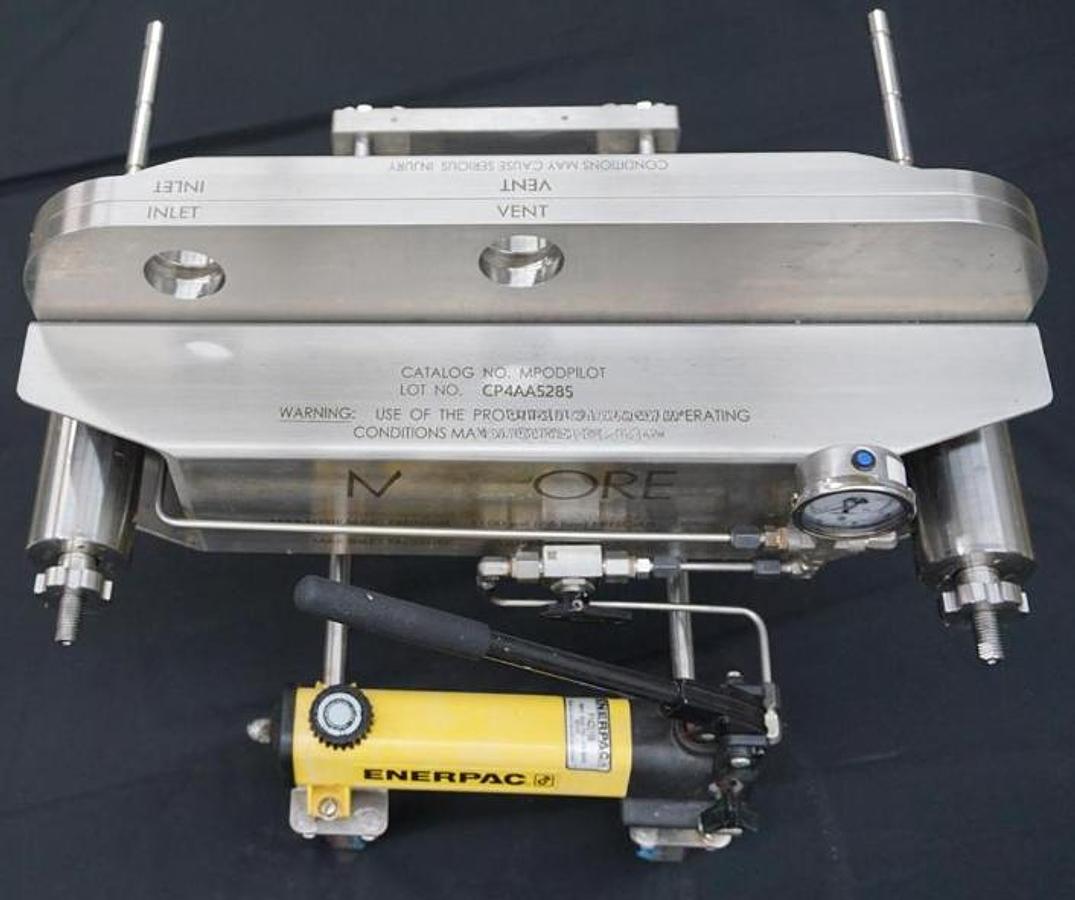

Millipore MPODPILOT Pilot Scale Holder

Millistak + POD MPODPILOT Pilot Holder, for 1 to 2 Filters

Application: For Pod configurations up to 2.2 m2

Accommodates: 2 full size pods

Capable of supporting and sealing pod filters up to 50 psig maximum operating pressure at 25 °C. Inlet and outlet connection to the pods and vents are via disposable adapters.

Maximum Differential Pressure Forward: 50 psid (3.5 bar) at 25 °C; 15 psid (1.0 bar) at 80 °C

Maximum Differential Pressure Reverse: 30 psid (2.1 bar) at 25 °C

Max. Operating Pressure: 50 psi (3.4 bar)

Hot Water Sanitization: 1 cycle of 80 °C for 30 minutes

Toxicity: Component materials comply with the requirements of USP <88> biological reactivity tests for Class IV plastics

2 MPODPILOT UNITS AVAILABLE

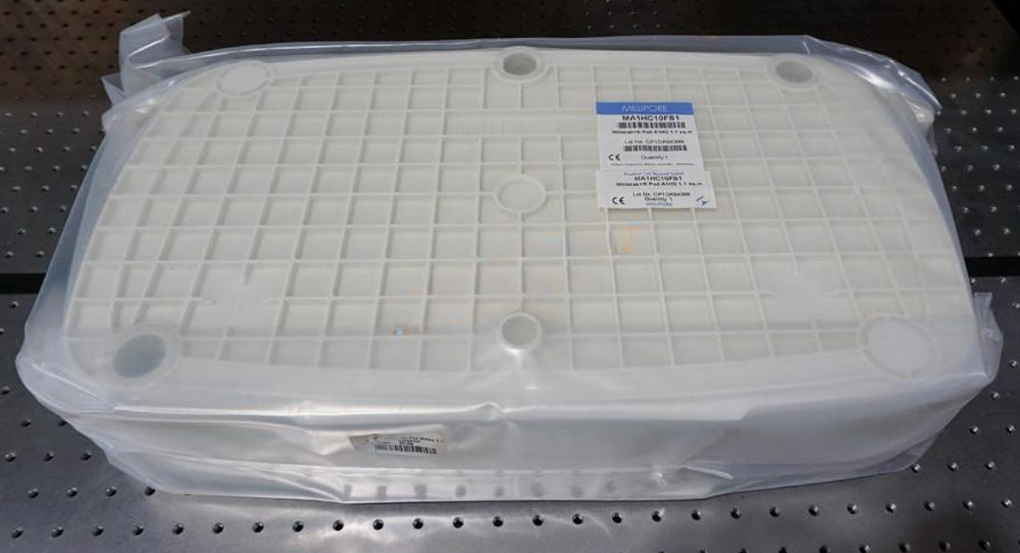

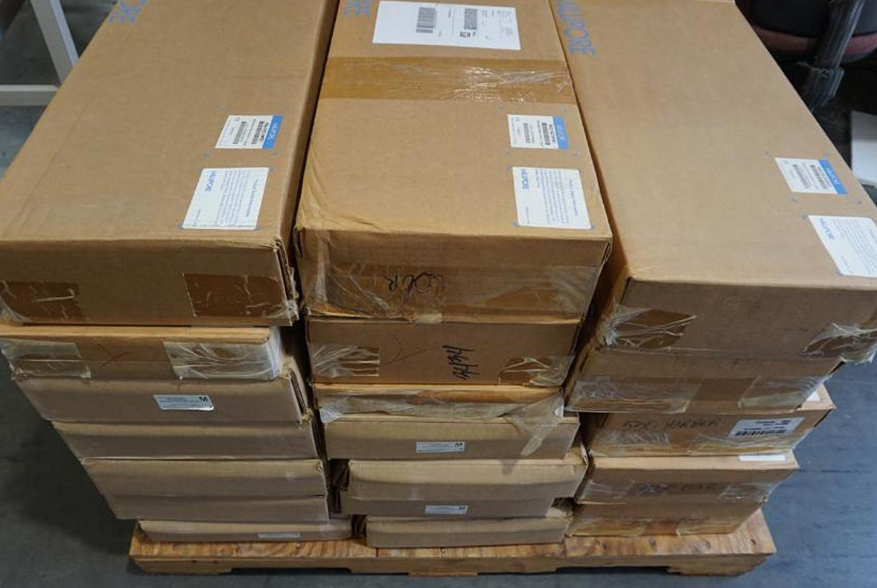

Available Filter PODS (not included)

Type MA1HC05FS1         5 available

Type MA1HC10FS1         9 available

Type MC0HC01FS1         5 available

Type MX0HC05FS1         1 available
