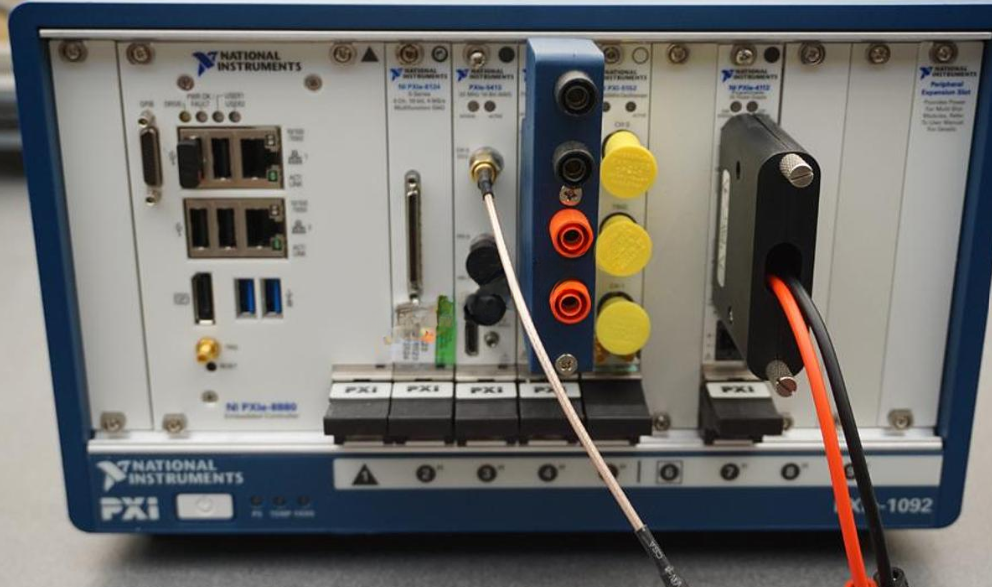

National Instruments NI PXIe-1092 10-Slot (7 Hybrid Slots), 1 PXI Express Timing slot, 1 peipheral Expansion Slot

PXIe-1092, 10-Slot (7 Hybrid Slots, 1 PXI Express System Timing Slot, 1 Peripheral Expansion Slot), Up to 24 GB/s PXI Chassis

Features a high-bandwidth backplane and up to 82 W of power and cooling in every slot to meet a wide range of high-performance test and measurement application requirements. The all-hybrid backplane enables excellent flexibility for instrumentation module placement by accepting PXI Express modules in every slot and PXI hybrid-compatible modules in up to seven slots. It also offers a Timing and Synchronization

PLUG IN MODULES AVAILABLE

PXIe-6124 S Series 4Ch., 16-bit, 4 MS/s Multifunction DAQ including 153721D-01L I/O connector block and cable

PXIe-5413 20 MHz 16-bit AWG 20 MHz arbitrary waveform generator capable of generating user-defined, arbitrary waveforms and standard functions.

PXIe-8880 Embedded Controller  Intel Xeon 8-Core embedded controller for PXI Express systems

PXI-5152 2GS/s 300MHz high-speed PXI oscilloscope has two channels with flexible settings for coupling, impedance, voltage range, and filtering.

PXIe-4112 Programmable DC Power Supply with isolated outputs

Peripheral Expansion slot
