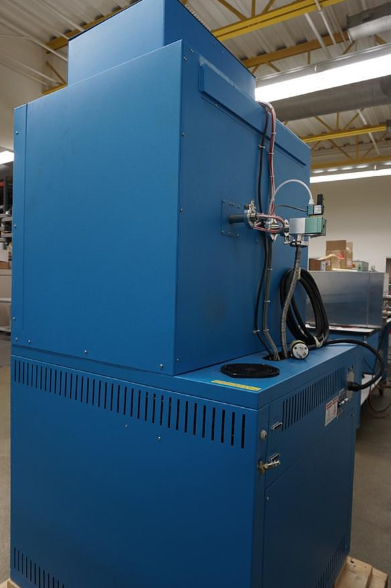

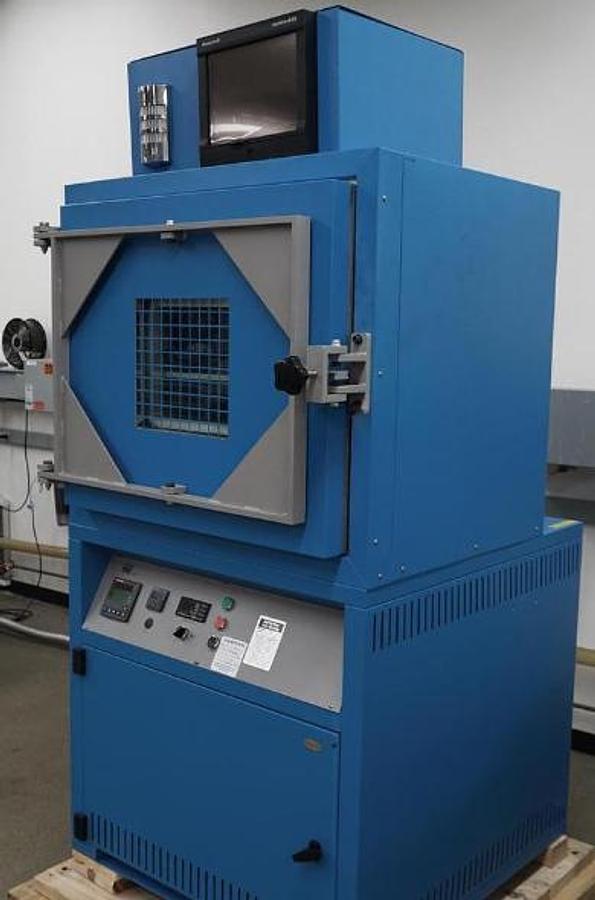

Cascade Tek SVO9- 9 cuft vacuum oven with Honeywell Multitrend SX, Watlow F4, Edwards E2M18 vacuum pump, and cold trap

Model SVO-9 Chamber Capacity 9.0 Cubic Ft. (255 Cubic Liters)

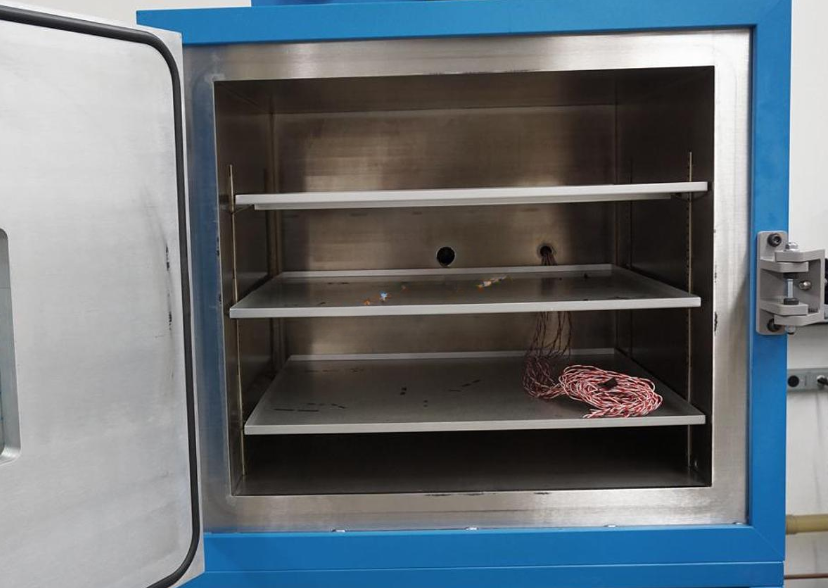

Interior Dimensions W x D x H (cm) 28 x 24 x 24” (71 x 61 x 61)

Exterior Dimensions W x D x H (cm) 36.25 x 45 x 62” (92 x 114 x 158)

Temperature Range Ambient +5° C to 260° C

Temperature Uniformity +/- 7° C

Heat Up Time to 150° C 70 Minutes

Heat Up Time to 300° C 150 Minutes

Vacuum Level Tested to < 10 Microns at 150° C (Vacuum Pump Dependent)

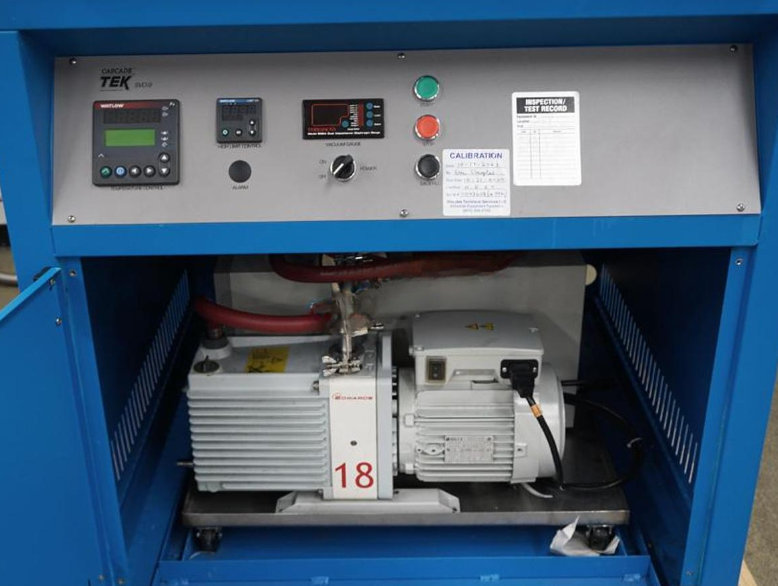

Vacuum Pump (Included) Edwards E2M18 Rotary Vane

Vacuum Transducer with Terranova 908A dual capacitance diaphram gauge

Vacuum Seals & Gasket Material Viton

Vacuum Fittings Standard KF

Temperature Controller Watlow F4 - Ramp & Soak Programmable.

Watlow independent Over temp.

Honeywell Multitrend SX data logger

SP Industries VT-490 cold trap

Protection Electrical Requirements 230V- 1Ph- 50/60HZ- 20AMP (30 AMP Service)

Heater Wattage 3000W

Shipping Weight (Net Weight) 1007 lbs (680 lbs)
