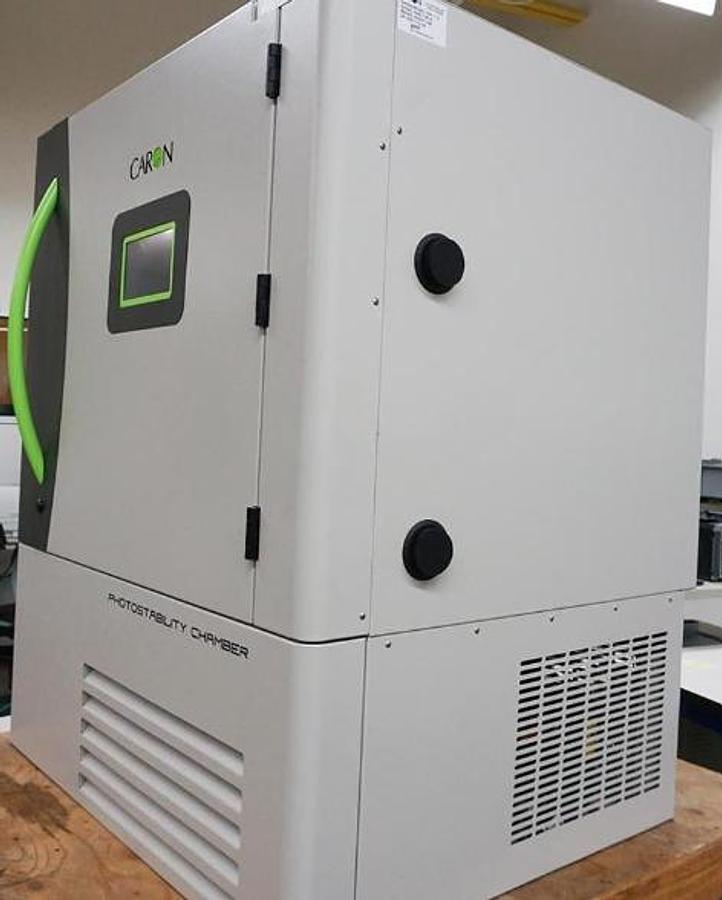

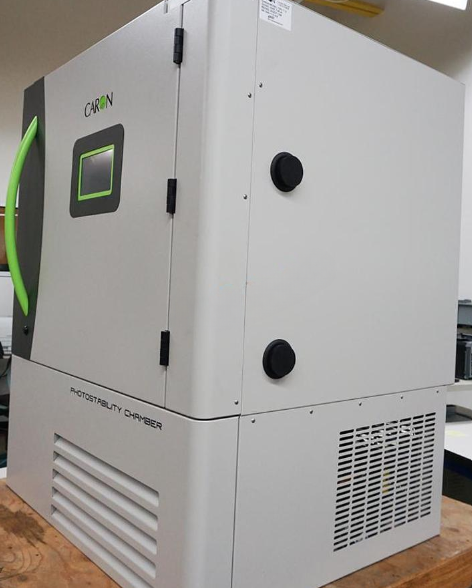

Caron 7545-11-2 photostability chamber with CRSY-102 condensate recirculator

Power req. 230VAC, 60HZ, 7.8FLA

SPECIFICATIONS

7545-1  Lamp Type / UVA Fluorescent / Near UV (Black Lamp) Lamp Type / VIS Fluorescent / Cool White (ISO 10977 Compliant)

Light Detectors UVA and Visual /Calibrated

UVA Intensity 20 W/m2

VIS Intensity 20 klux

Lamps Dimming N/A

Time Required to Reach ICH of 200 Whr/m2 10 hrs

Time Required to Reach ICH of 1.2 million lux-hr 60 hrs

Light Uniformity UVA:±10% VIS:±15%

Temperature Range 10°C to 35°C (Lights On)**

Temperature Control ± 0.2°C

Temperature Uniformity ± 2.5°C (Lights On)

Humidity Range  40-70% RH

Humidity Control  ±3%

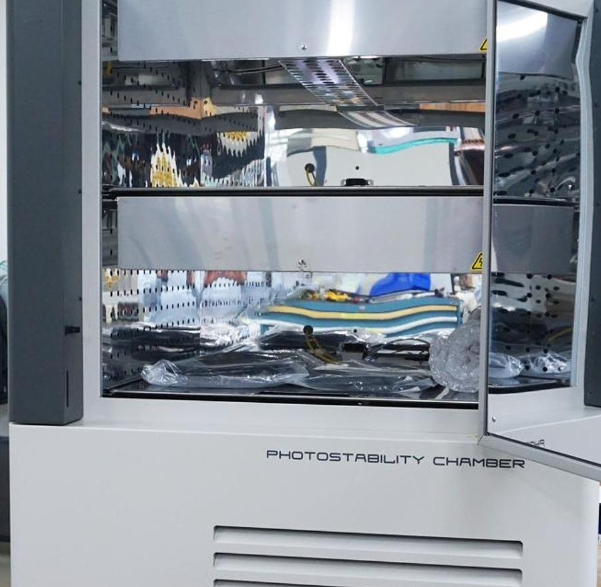

Shelf Count Two (2) Sliding / 26.0”W x 23.1"D x 8"H Each (660mm W x 587mm D x 203mm H)

Usable Shelf Area / Each 19.0”W x 23.0"FB (483mm x 584mm)

Usable Shelf Area / Total 6.1in. 2 ft.2 (0.56m2) / 76% of Total Shelf Maximum

Weight 22 lbs. Per Shelf (10 kg)

Interior Surfaces Reflective Specular Aluminum

Interior Construction Stainless Steel

Internal Volume 11cu.ft. (311L) /Includes Lamp Space

Exterior Dimensions 37.7”W x 30.8"D x 45.7"H (958mm W x 782mm D x 1161mm H)

Interior Dimensions 26.9”W x 24.0"D x 28.0"H (683mm W x 610mm D x 711mm H)

Access Ports Two (2) / 2”W x 1.8"H Each (51mm W x 46mm H)

Shipping Weight 580 lbs.

* Specifications are subject to change without notice. Specifications were established with lights fully ‘on’ at 25°C, 50% RH and RH levels limited by a 5°C minimum dewpoint. 50 Hz units are CE Marked and contain readily available European components.

**When calibrated to the median average temperature.

**Includes export shipping crate Specifications are subject to change without notice.

Environmental Conditions: Temperature 15ºC to 25ºC, Humidity non-condensing

*See graph for details

*7540, 7545 Series units have forced internal air flow of 440 cfm (12459 LPM)

* Model 7540-11 7545-11 -1 -2 -3 -1 -2 -3 Shipping Weight 580 lbs. (263 kg.) 700 lbs. (317 kg.)** 580 lbs. (263 kg.) 700lbs. (3 kg.)

** Electrical 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz, 10A 115V, 60Hz, 15A 230V, 60Hz, 10A 230V, 50Hz 10A
