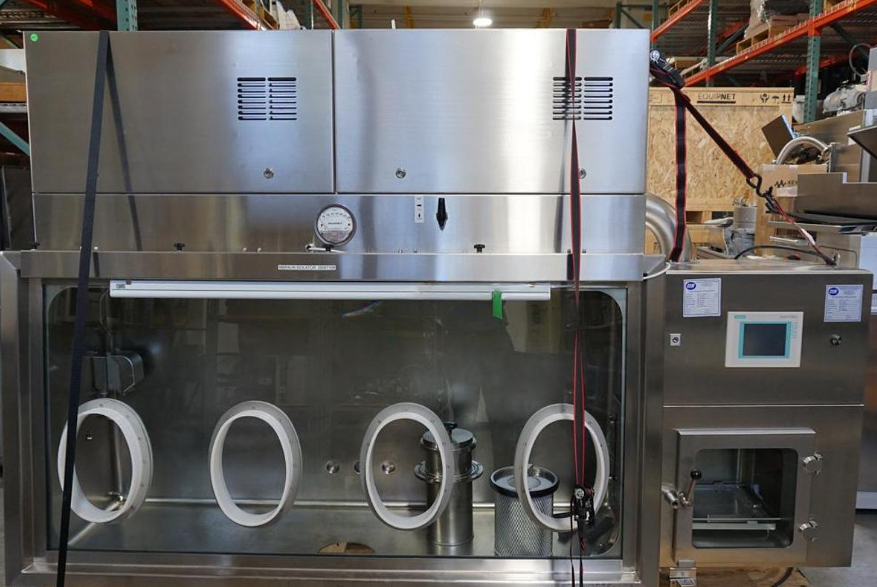

Mbraun 4 port IsoPro Containment Isolator with transfer Chamber and HEPA filtration

ISO PRO 1000 ADVANCED CONTAINMENT ISOLATOR

PREVIOUS USAGE: CLEANROOM PRODUCTION ENVIRNOMENT BY WL GORE

INTERNAL WORKSPACE DIMENSIONS (mm)1800W X 594D X 925H (71"w x 23"d x 36.4"h)

INSIDE SURFACE Ra 0.8, OUTSIDE SURFACT Ra < 1.0

STAND 304SS WITH 4 WHEELS AND LEVELING FEET

HOUSING 316l SS WELDED CONSTRUCTION,3mm WITH RADIUM (12mm) AND BALL CORNERS.

PRESSURE MONITORING MAGNAHELIC GAUGE

PRESSURE REGULATION ANALOG PRESSURE SENSOR

WINDOWS LAMINATED SAFETY GLASS ANGLED 5 DEGREES FROM BOTTOM TO TOP

INCLUDES 316L SS FRAME AND EPDM. WINDOW SEAL

GLOVE PORT FEEDTHROUGHS 4 PIECES, OVAL MADE OF HDPE

INCLUDES GLOVES EPDM WITH FDA CERTIFICATE. 1 PIECE

TRANSFER CHAMBER W - 414mm, D-351mm, H=300mm (16.3"w x 13.8"d x 12"h)

DOOR OPENING W=300mm, H=300mm, 316SS WITH RADIUS AND BALL CORNERS. (12" x 12")

ACRYLIC DOORS AND INTERNAL TRAY

INLET FILTER HEPA H13 SCREW TYPE WITH MANUAL SHUT OFF

OUTLET FILTER HEPA H13 PUSH-PUSH

DOUBLE FILTER SYSTEM: EXHAUST OUTLET IS LOCATED ON TOP OF THE ISOLATOR HOUSING WITH OUTSIDE FLANGE TO CONNECT TO AN EXISTING HVAC SYSTEM.

ELECTRICAL FEEDTHROUGH CABLE FEEDTHROUGH WITH CABLE (1m INSIDE)

FEEDTHROUGH 3 PIECES 316L SS TTC ISO DN 40

FLANGES IN THE BACK WALL WITH BLIND COVERS OUTSIDE AMD TEFLON

PLUGS

INCLUDES FLOOR DRAIN PORT.

1 EACH 1100 1699999 BLOWER UPGRADE / EXPLOSION PROOF

1 EACH 1200 1699999 PLC FOR MONITORING PRESSURE, CIRCULATION & POWER

1 EACH 1300 1699999 AUDIBLE ALARM FOR PRESSURE ALARM

1 EACH 2000 1699999 GULLWING WINDOW

1 EACH 3000 1699999 BAG IN/BAG OUT RING INCLUDING ACCESSORIES, BAG&TIES

1 EACH 4000 1699999 WASH IN PLACE (WIP) ASSEMBLY TO CONSIST OF 1 SPRAY

GUN WITH TEFLON TUBE AND WALL FEED THROUGH AND OUTSIDE BALL VALVE

PLUS THE DRAIN EXIT WITH AN OUTSIDE BALL VALVE AND MANUAL VALVE AT

INLET AND OUTLET.

1 EACH 5000 1699999 N2 BULKHEAD FITTING WITH BLANK CAP

1 EACH 6000 1699999 TRANSFER CHAMBER MODIFICATION TO UPGRADE TRANSFER

DOOR MATERIAL FROM ACRYLIC TO GLASS INCLUDING SS FRAMES AND INTERLOCKS.

1 EACH 8000 1699999 FLANGE CONNECTION FOR ROTARY/LINEAR MOTION MOTOR

(MOTOR COMPONENT NOT INCLUDED.)

**

NOTE: WINDOW SEAL IS A SPECIALLY DESIGNED EPDM SEAL WITH CERTIFICATE.
