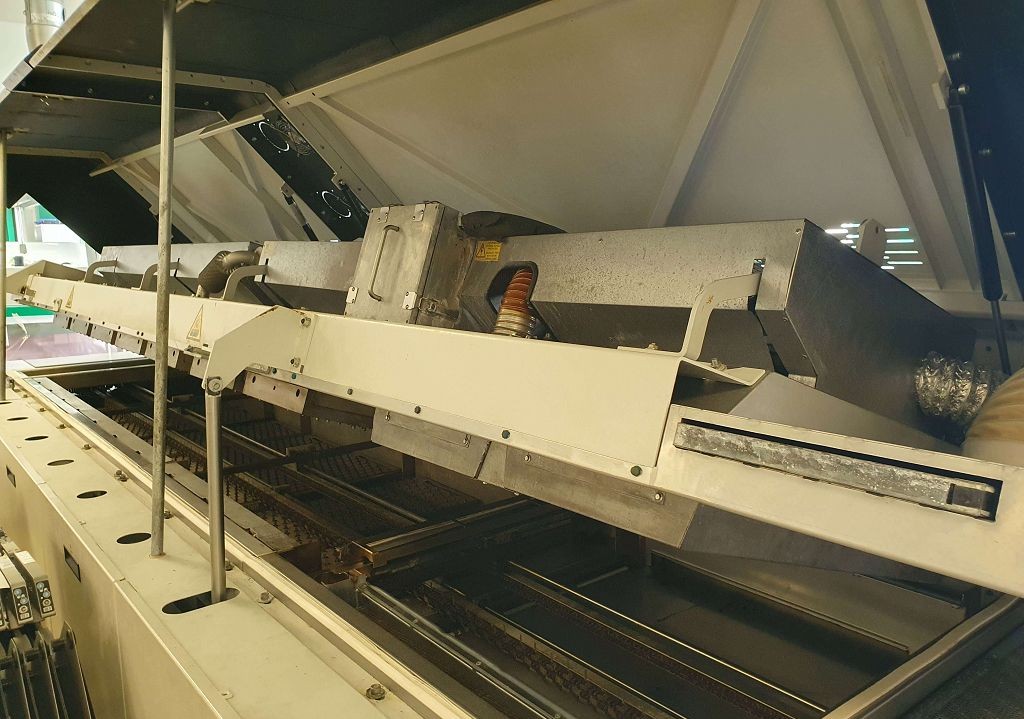

2008 ERSA Hotflow 2 PCB Reflow oven

2008

As-is, where-is

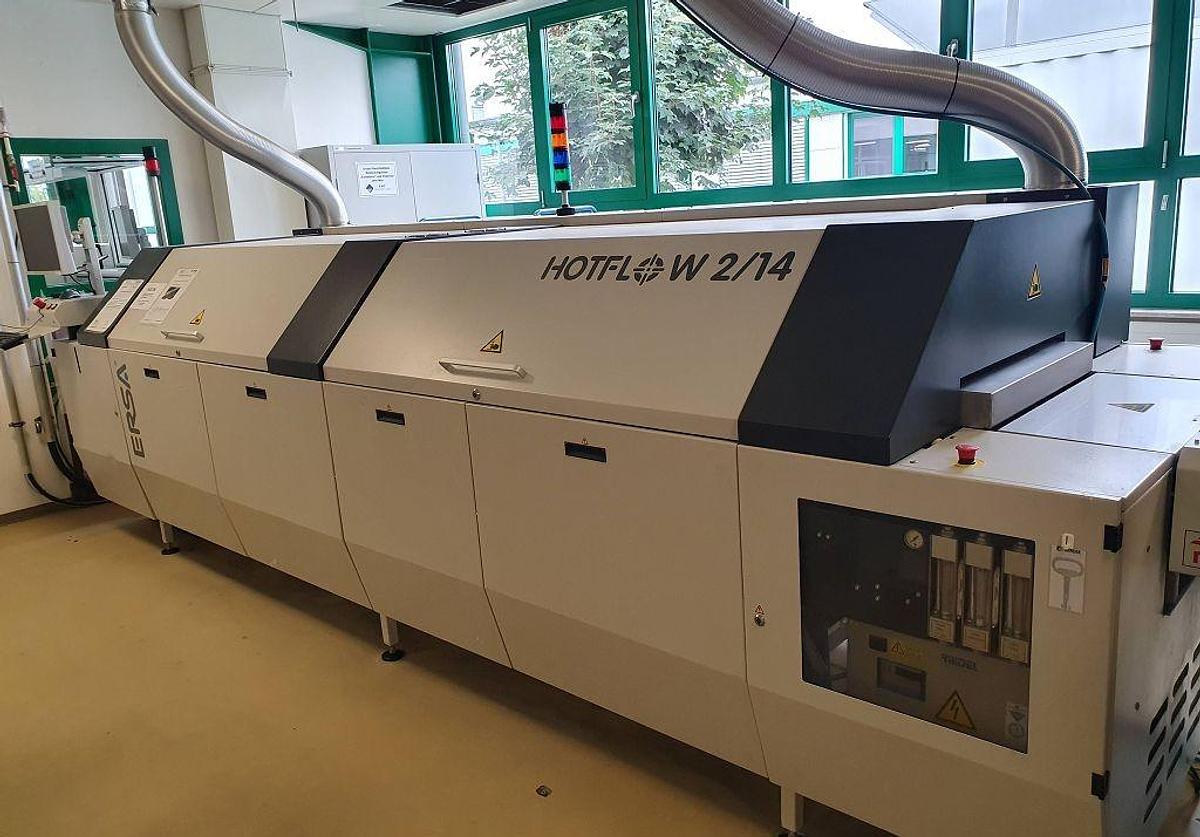

Reflow oven Hotflow 2/14

Heating system convection

Preheating 5 top / 5 bottom

Soldering zone 2 top / 2 bottom

Board clearance +35 / -20mm

Working width 50 - 500mm (2 - 20")

Conveyor speed 20 - 200 cm/min (8 - 79")

Prozess zone lenght 3.440mm (135")

Heating zone 2.570mm (101")

Cooling zone 870mm (34")

Infeed / Outfeed zone 700mm (28")

Pin- and cain conveyor

PSB center support

Ambient temperature 10 -35°C

SW Version: Ersa Soft 3.010.001
