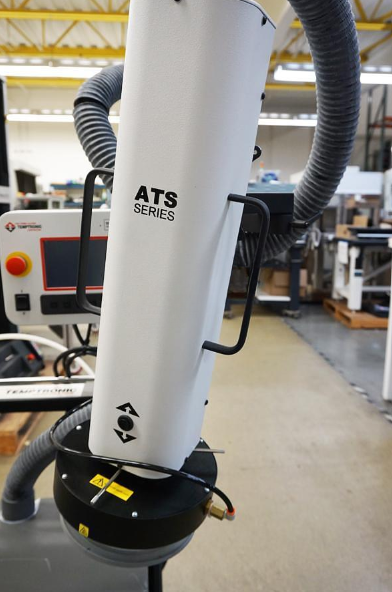

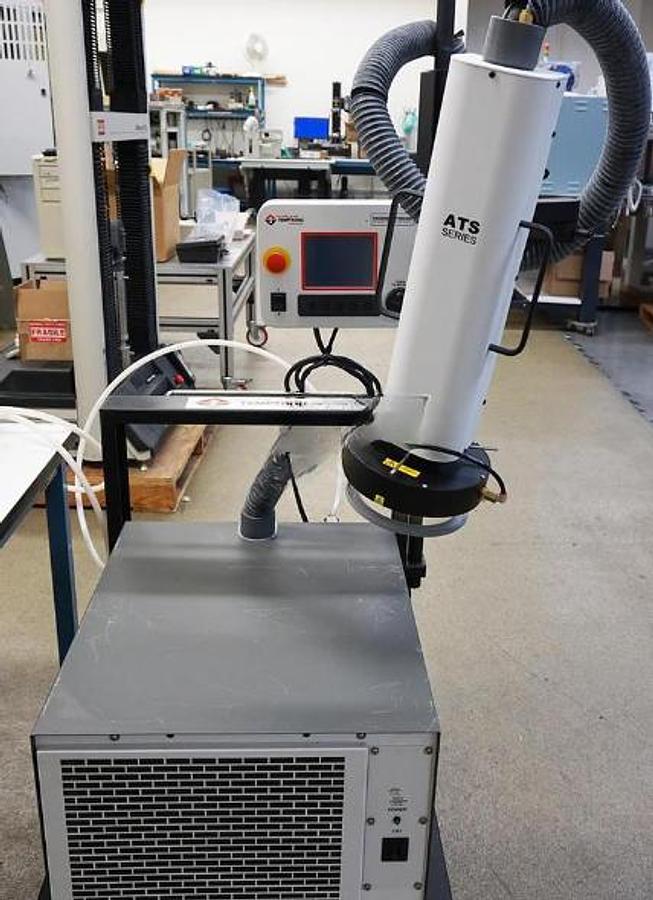

2013 Intest thermal (Temptronics) ATS625 temperature forcing system with air dryer

Temptronic ATS-625 Thermostream -60° to +225°C with AIR DRYER

Description

Designed for 60Hz operation only, this advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, sub-assemblies, and printed circuit boards. Capable of ultra-low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2).

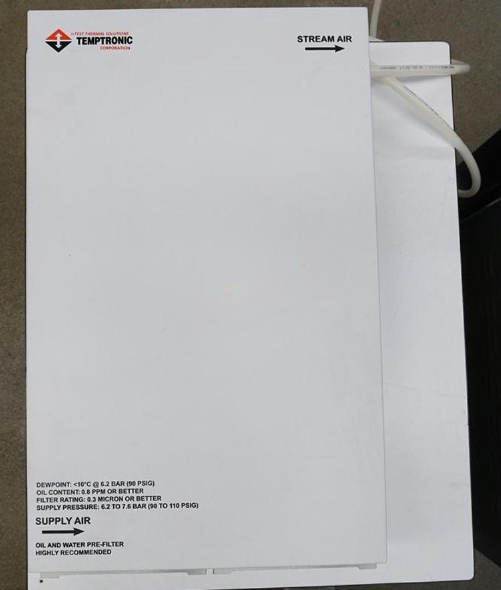

AIR DRYER provides 20SCFM air cooled to -70C dew point

Features

• Transition Rates: -40°C to +125°C, < 12 seconds      +125°C to -40°C, < 40 seconds
• System Airflow Output: 5 scfm ( 2.4.7 l/s) Fixed Flow
• Temperature  Display & Resolution: ±1°C
• Temperature Accuracy: ±1°C
• Directly Control the device under test (DUT)
• DUT Control Sensors: Type T or Type K Thermocouples
• Remote interfaces: IEEE.488, RS232
• 5.5"ID Thermal Cap provides a localized thermal test environment protects from moisture and condensation at the DUT site
• Compact, portable system, easily integrates to  benchtop
• CE Compliant and CFC-free
• Model no. ATS-625-K-4
• Manufacture date Dec 2013
• Type SA187706
• Power req. 115v 60hz
• max operating pressure 110psi

Specifications

Facility Requirements

Power

60Hz only, system does not operate at 50Hz

115 ±10% VAC, 60Hz, 20amp

220 ±10% VAC, 60Hz, 20amp

Compressed Air

Clean, Dry Air (CDA)

Filtered to 5 micron particulate contamination.

Oil Content: <0.1 ppm="" by="" weight="" filtered="" to="" 0="" 01="" micron="" oil="" contaminant="" p="">

Dew point: <-70°C @ 6.2 BAR (90PSI)

Air Supply Pressure

5.5 to 7.6 BAR (90 to 110 PSIG)

Total Air Flow Rate Required

5.7 l/s (12 scfm)

2.8 l/s (6 scfm) minimum

Air Supply Temperature

+20° to +25°C; +22°C nominal

Operating Environment

Operating Temperature

+20° to +28°C; +23°C nominal

Humidity

0 to 60%; 45% nominal

Service and Safety

Refrigerants

HCFC and CFC-free, non-toxic, non-flammable

Serviceability

Auto-diagnostics and field replaceable modules

Over Temperature Protection

+230°C (factory set): Operator can set high and low air temperature limits

Weight and Dimensions

Dimensions

Controller

26.7cm (10.5 inches) wide X 20.7cm (8.13 inches) high X 9.8cm (3.8 inches) deep

Chiller

51.3cm (20.2 inches) wide X 41.4cm (16.3 inches) high X 74.9cm (29.5 inches) deep

Weight

System

112.0kg (247lbs.)

Chiller

74.5kg (157lbs)

Chiller with Cart

100.8kg (215lbs)

Noise Level

<60dBA
