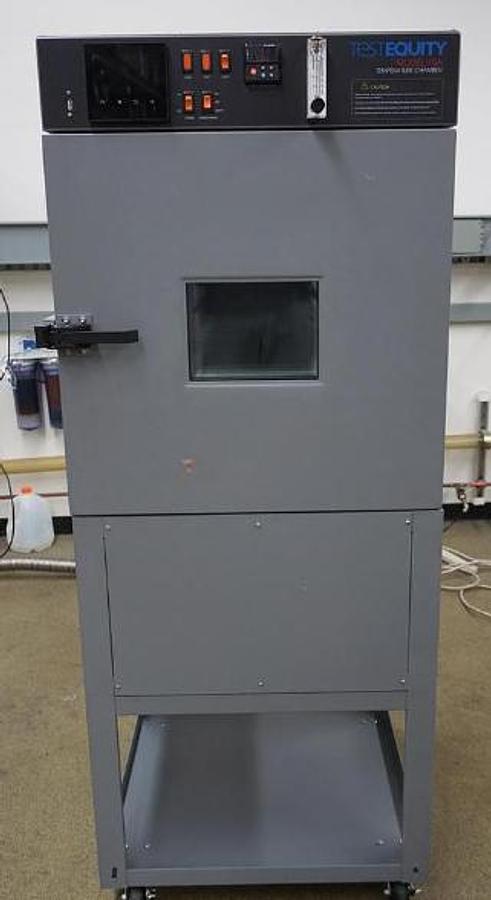

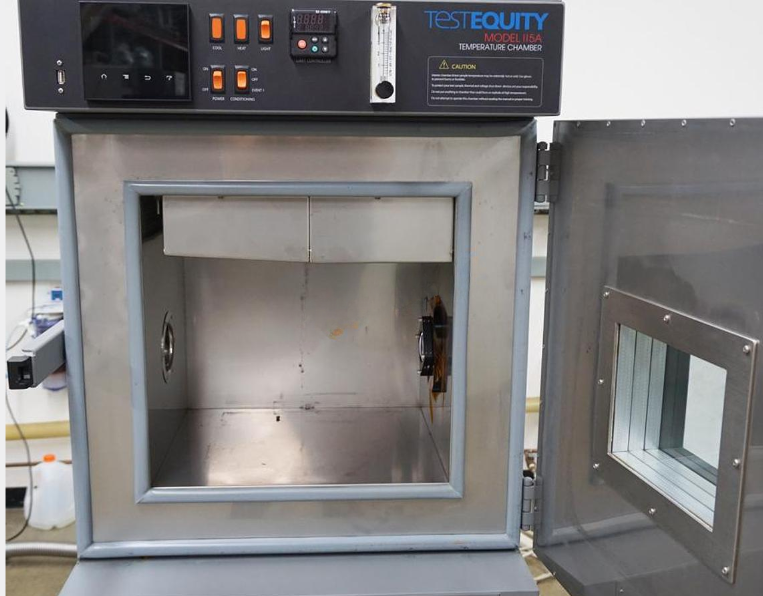

Test Equity 115A Temperature Chamber with Watlow F4T

• Temperature Range

-73°C to +175°C

• Control Tolerance

±0.5°C (±0.2°C Typical) (Short-term variations measured at the control sensor after stabilization)

• Uniformity

±1.0°C (Variations throughout the chamber after stabilization)

• Heat Up Rate of Change*

5°C/minute typical

• Cool Down Rate of Change*

2.8°C/minute from +85°C to -40°C (standard 60 Hz models)

2.1°C/minute from +85°C to -40°C (115A-EX 50 Hz export models)

• Cool Down Transition Times*

Start Temp End Temp

+23°C 0°C -40°C -55°C -65°C -73°C

+23°C ---- 5 min 20 min 30 min 40min Ultimate

+85°C 16min 25min45min 57min 69min Ultimate

Rate Of Change

• To calculate rate of change for a particular condition, take the difference between the Start Temp and End Temp and divide by the Transition Time.
• Cool Down Example: From +85°C to -40°C = 125°C / 45 min = 2.8°C/min.
• *Note: Transition times are measured after a 1 hour soak at the respective start temperature with an empty chamber, as indicated on the temperature controller, 23°C ambient. Measured with setpoint beyond the start and end temperatures. Does not include the effect of proportional band when approaching setpoint. Measured at nominal line voltage of 120V, 60 Hz. Performance is reduced on 115A-EX 50 Hz export versions.

• Live Load Capacity

+23°C 0°C -40°C -55°C -65°C

300 Watts 255Watts 160Watts 110Watts 80 Watts

• Refrigeration and Heating System

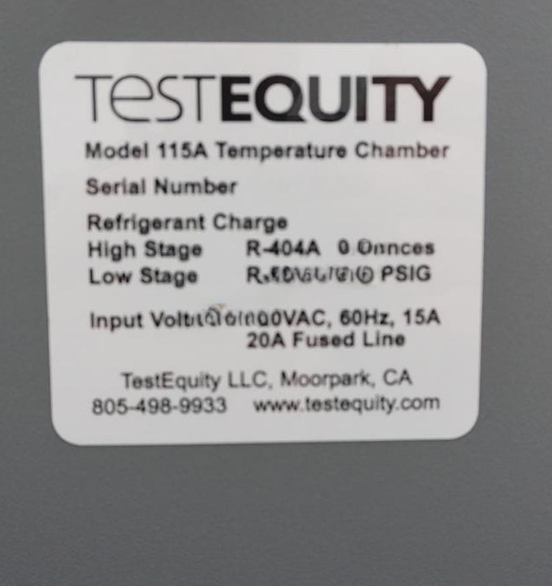

• High Stage RefrigerantR-404A (Dupont HP-62)
• Low Stage RefrigerantR-508B (Dupont SUVA-95)
• Compressors1/2 HP x 1/3 HP Tecumseh hermetic compressors in a cascade configuration.
• CondenserAir Cooled
• Heat of Rejection4,000 BTUH (maximum rated chamber load at maximum cooling rate from high temperature soak)
• Heater Power600 WattsAir Flow85 CFM

• Instrumentation
• Temperature ControllerWatlow F4T Touch Screen Controller with RS-232, Ethernet interface, 4.3" color graphic touch screen.
• Limit ControllerIndependent high and low temperature limits. Triggers an audible alarm and shuts down the chamber.

• Power Requirements
• Input Voltage120 V nominal (110 to 126 VAC), 60 Hz, 1 PH

Max Current Draw 15 A, Recommended Minimum Service 20 A

• Power Cord and Plug

6' Power cord supplied with a molded NEMA 5-20P plug.

• Plugs into a standard NEMA 5-20R receptacle.

Use of an extension cord is not recommended.

• Physical Characteristics and Safety
• Inside Dimensions16" W x 12" H x 14" D (1.55 Cubic feet)

406 mm W x 305 mm H x 353 mm D (44 liters)

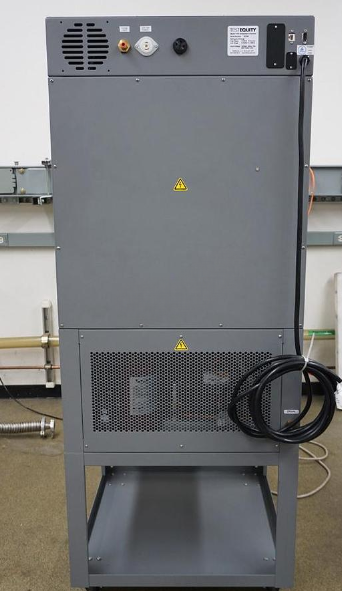

Outside Dimensions Floor Model 115A

24" W x 61" H x 26" D (nominal)

610 mm W x 1549 mm H x 660 mm D

• Minimum Installed Clearance6" from the left and right side

12" from the rear

• Window Viewing Area8" W x 6" H
• Access Ports3" (2.83" inside diameter) supplied on all Model 115A chambers. Port on left and right side (two total)

Supplied with silicone foam port plugs

• WeightBenchtop Model 115A-B
• Chamber Weight: 260 pounds
• Shipping Weight: 340 pounds
• Floor Model 115A-F
• Chamber Weight: 300 pounds
• Shipping Weight: 381 pounds
• Sound Level52 dBA in cooling mode (A-weighted, measured 36" from the front surface, 63" from the floor, in a free-standing environment)CE MarkExport version, Model 115A-EX is CE Marked
•
• NOTE: Performance is typical and based on operation at 23°C (73°F) ambient and nominal input voltage. Designed for use in a normal conditioned laboratory. Operation at higher ambient temperatures may result in decreased cooling performance. Additional ports and shelves will also affect performance. Operation above 30°C (85°F) or below 16°C (60°F) ambient is not recommended.
• Due to continuous product development, specifications are subject to change without notice.
