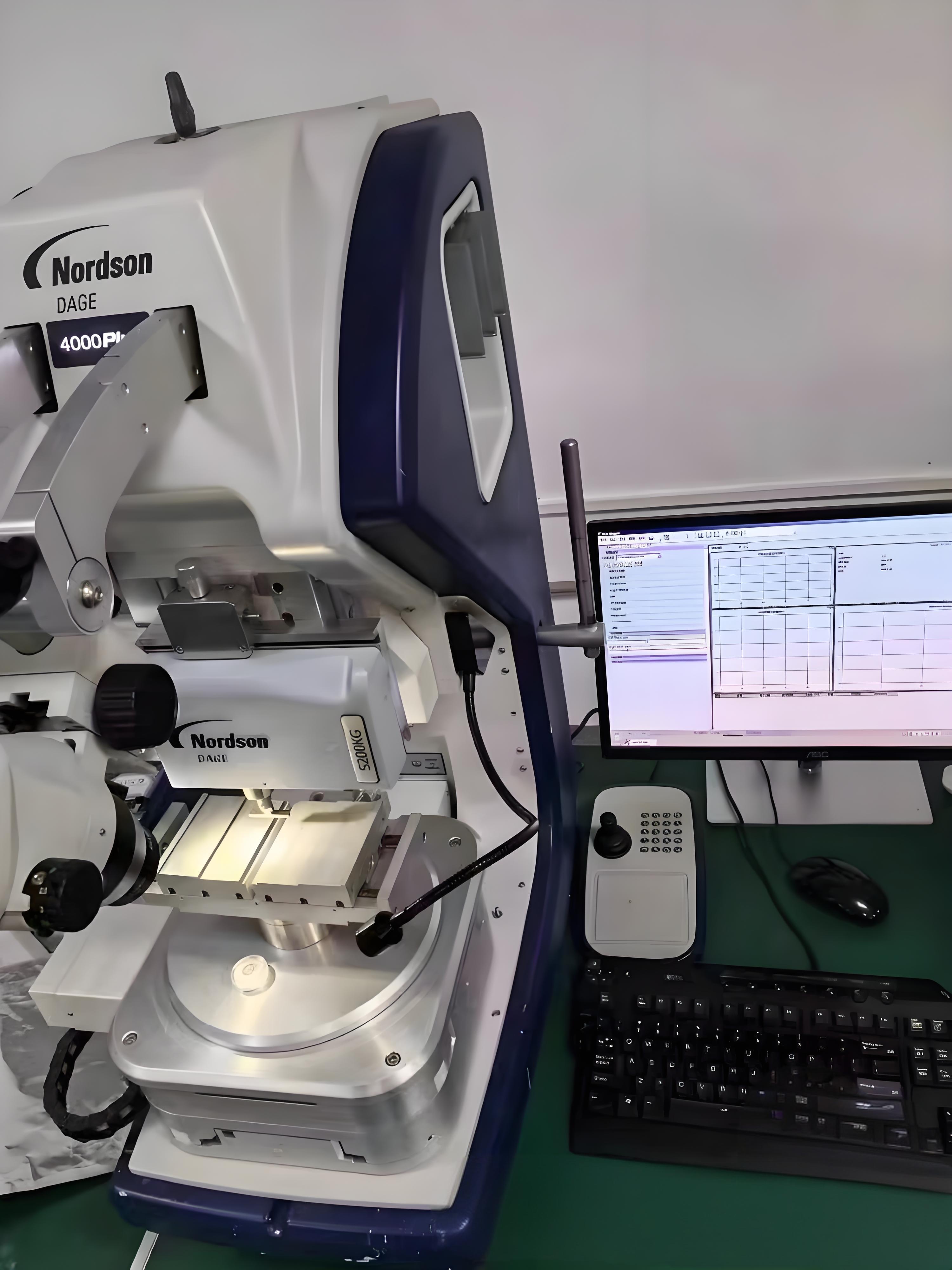

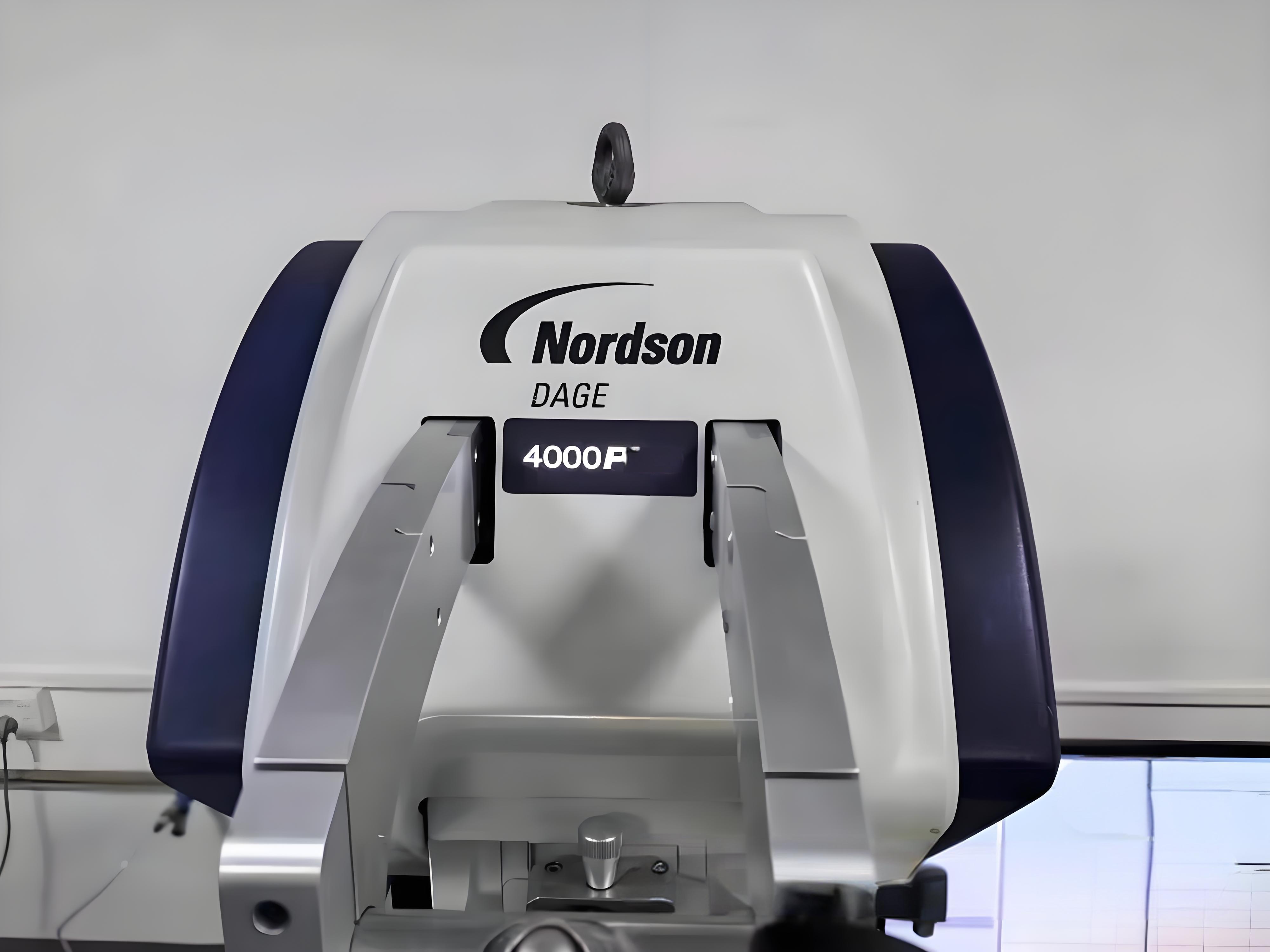

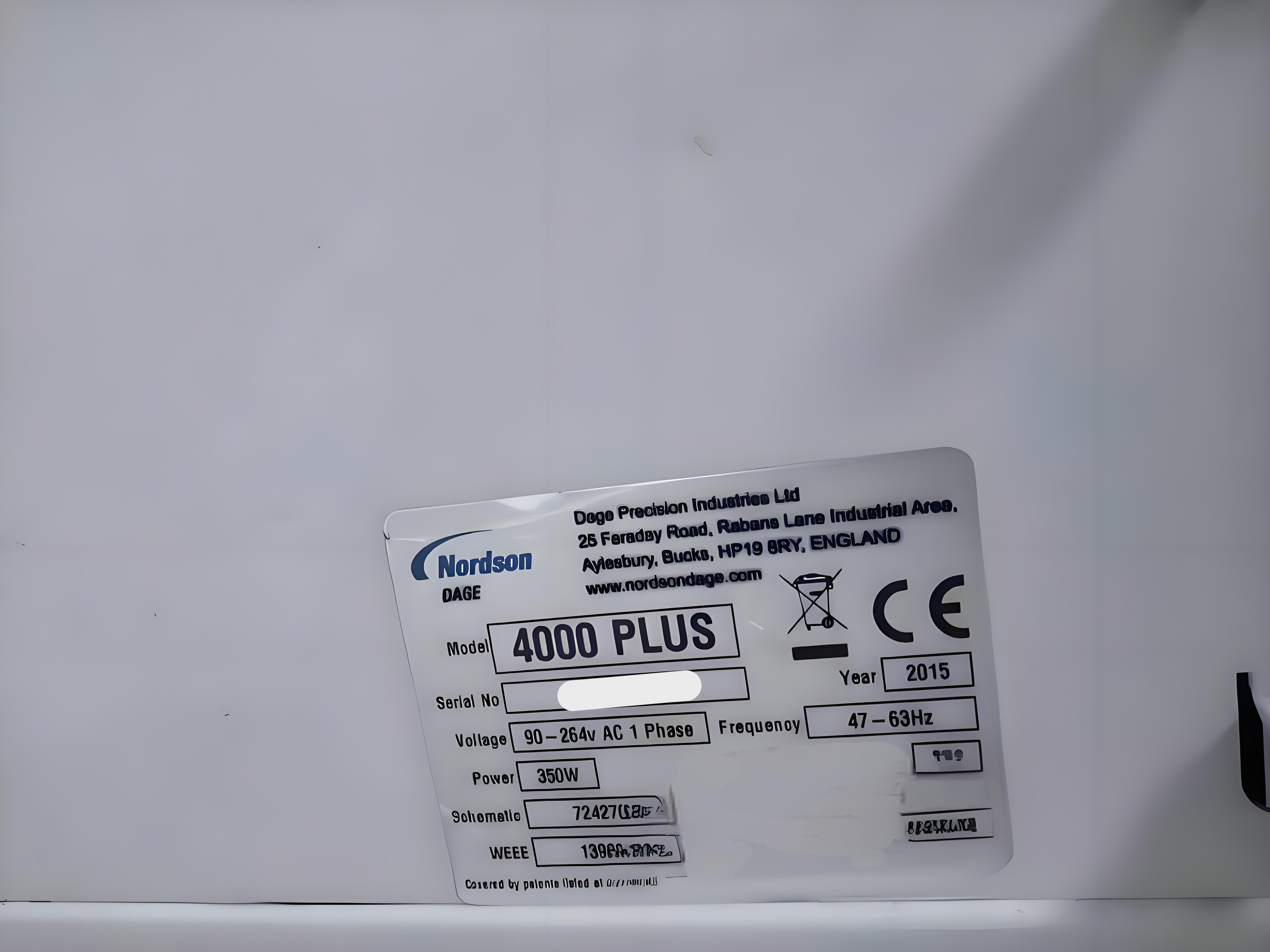

DAGE 4000 PLUS Push/Pull Tester

Core Parameters

Instrument Type: Electronic Tensile Testing Machine

Maximum Test Force: 500 kN (tensile test module up to 100 kg, shear test module up to 200 kg, special fixtures extendable to 500 kg)

Force Accuracy: Overall system accuracy ±0.1% of selected range

Test Range: 250 mg to 500 kg

Test Stroke: 1-500 mm (300 mm travel optional for XY stage)

Displacement Resolution: 1 mm

Vertical Working Area: Standard 120 mm

Functional Modules

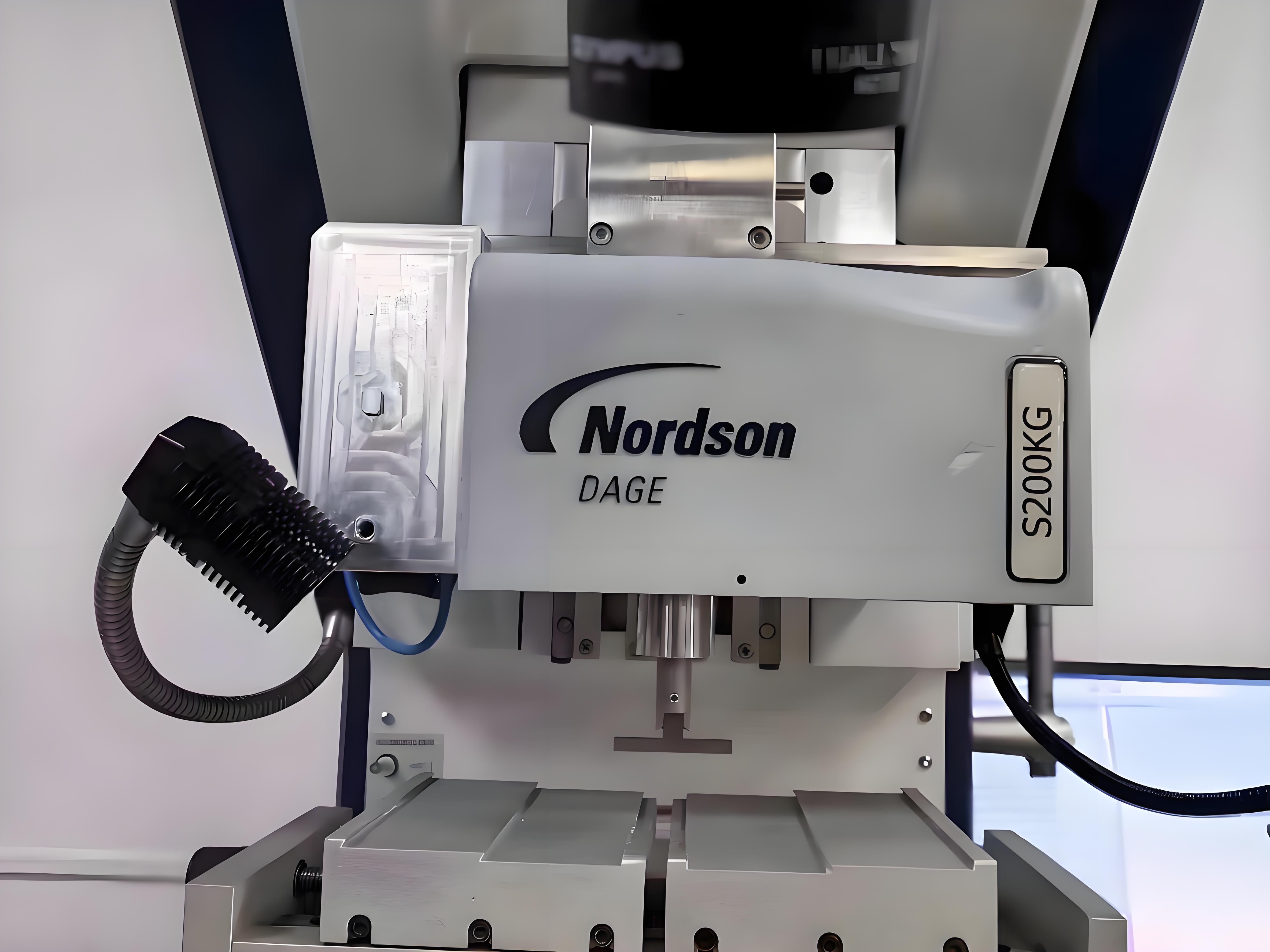

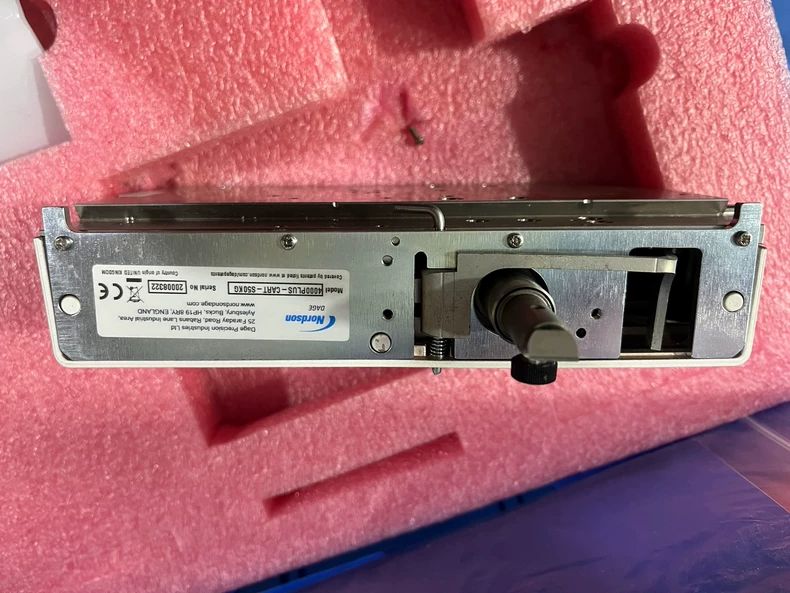

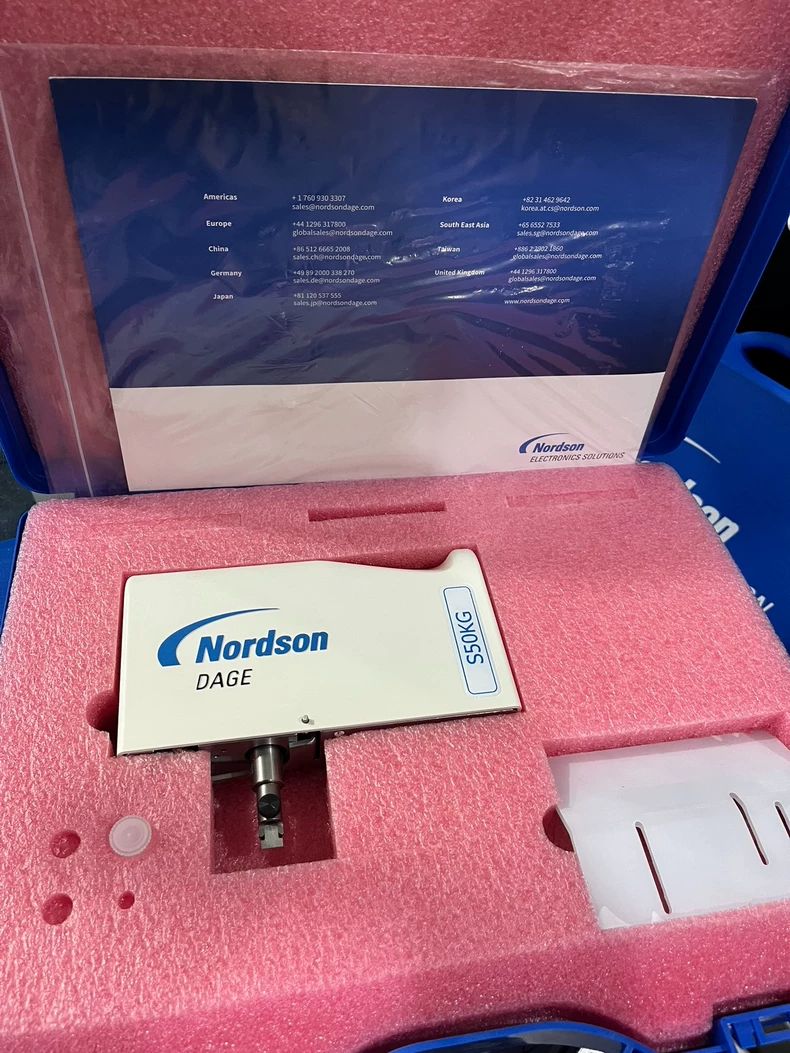

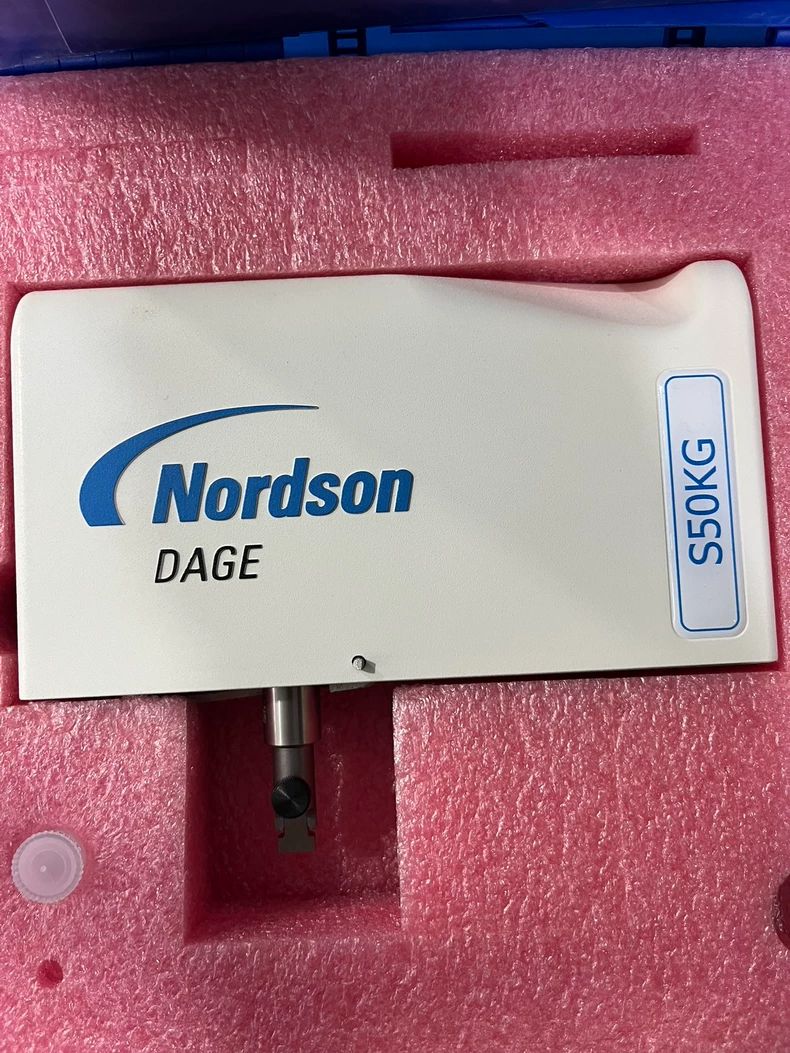

Test Types: Supports tension, push (up to 50 kg), and shear (up to 200 kg, special fixtures extendable to 500 kg)

Applications: Wire bonding, solder ball shearing, wafer bumping, copper pillar shearing, fatigue testing, etc.

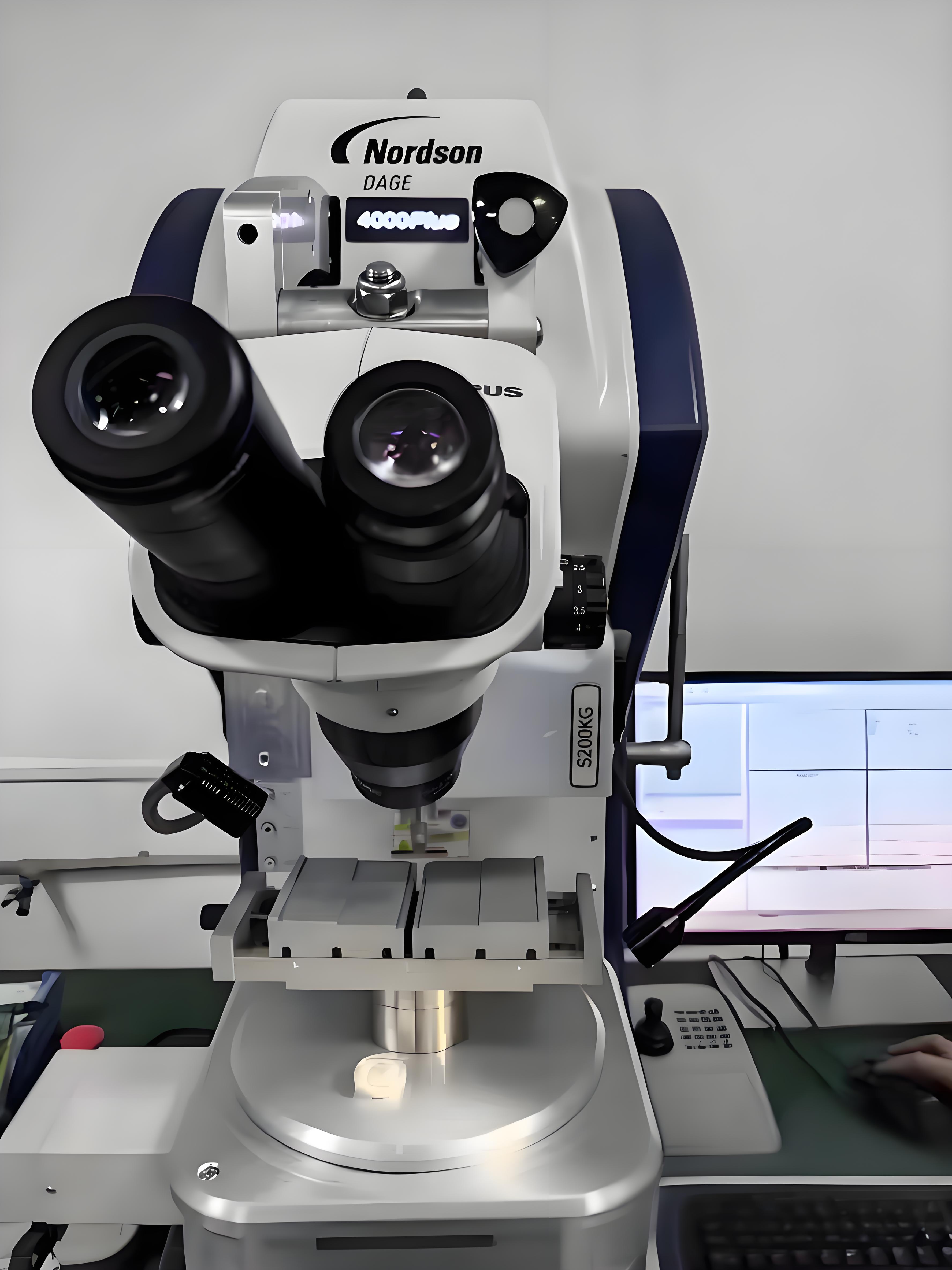

Optical System: High-resolution lens supports various imaging requirements

Other Features

Data Correlation: Based on DAGE 4000 design ensures data consistency between machines.

Anti-Backlash System: Patented technology improves test stability.

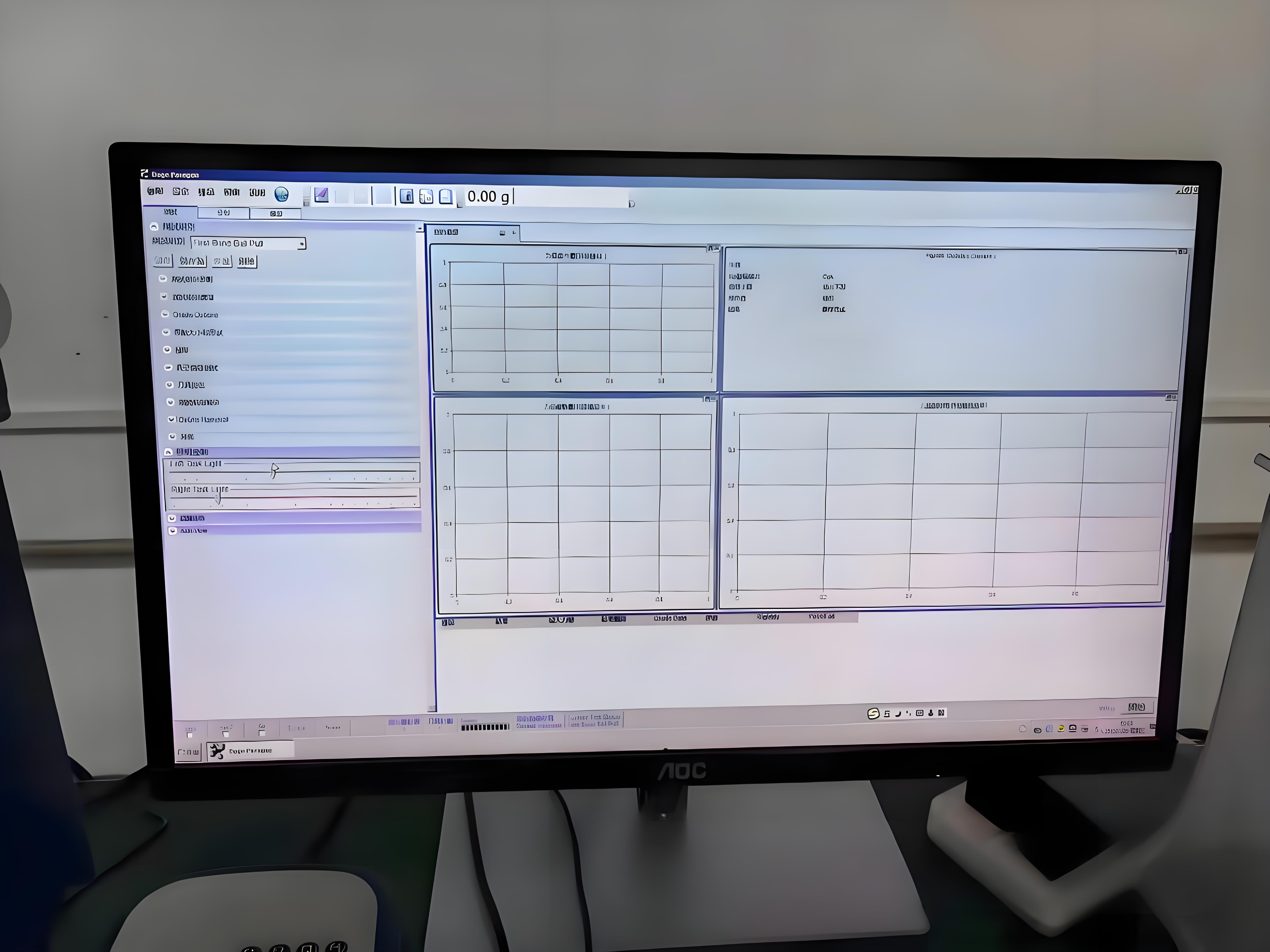

Software Support: Compatible with Paragon software, supports automated testing.

Product Specifications

Dimensions: W = 630mm (including left and right joysticks), D = 600mm, H = 830mm

Weight: 90kg (including XY table)

Air Source: Minimum 4 bar, 6mm OD plastic tubing. Note: Some specialized applications may require higher pressure, clean air.

Vacuum Supply: Minimum 500mmHg (67kPa), 6mm OD plastic tubing.

Power Requirements: 100–240 VAC (single phase), 50/60 Hz
