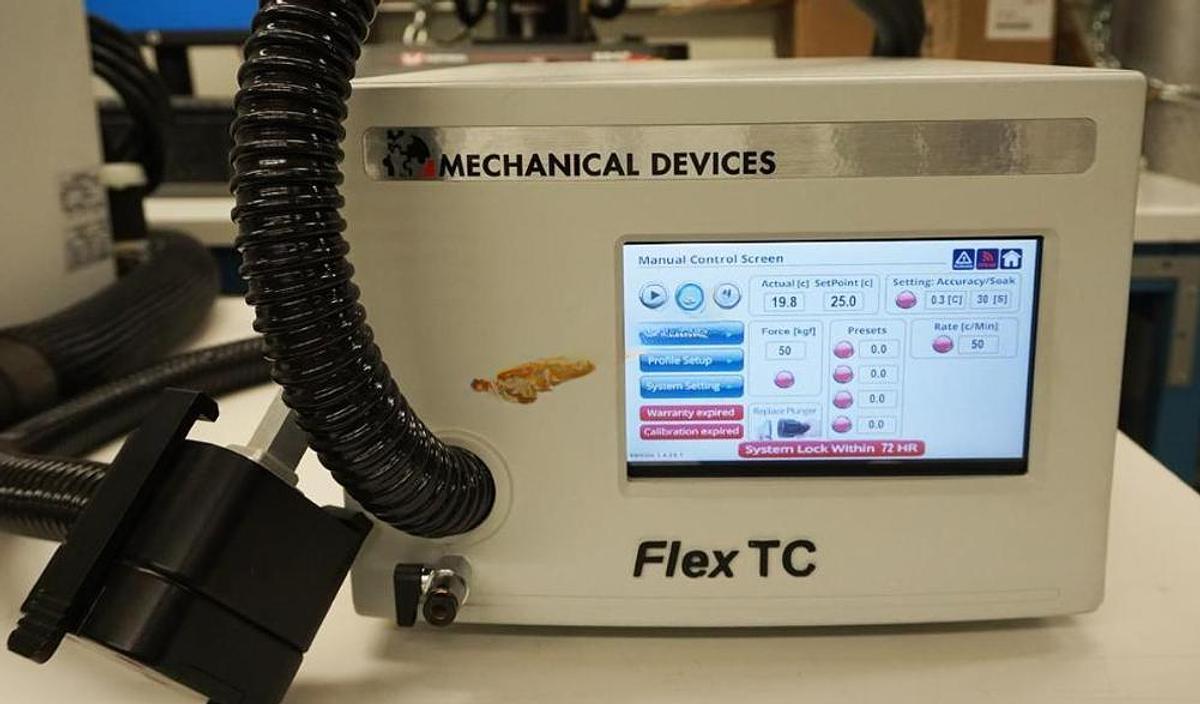

Mechanical Devices FLEX-TC thermal forcing system model MDTC-485-1

Tcase Temperature Range of - 55°C to +155°C*

Temperature accuracy < 0.2°C

Fluid Free Operation.

Compact & Portable Design.

Humidity and Frost Free Control.

Transition Rates: 50°C/Min max (not on the entire range).

Suitable for testing soldered devices and devices in sockets.

System Enclosure (inch) : 16.5 (L) x 12.5 (W) x 8.5 (H)

Data Logger and special curve profile.

Environmentally Friendly Operation.

ESD-SAFE

7" Full color touch screen menu driven panel display.

Ramp/Soak/Cycle profile programming, save & upload.

LAN interface. • XP/ Vista/Win 7 Operating system.

Ultra Quiet Operation 40dBA

Thermal head hose m/ (ft): 2.0 meter (6.5 ft)

MTBF 70,000hr

Electrical 110VAC, 60Hz..
