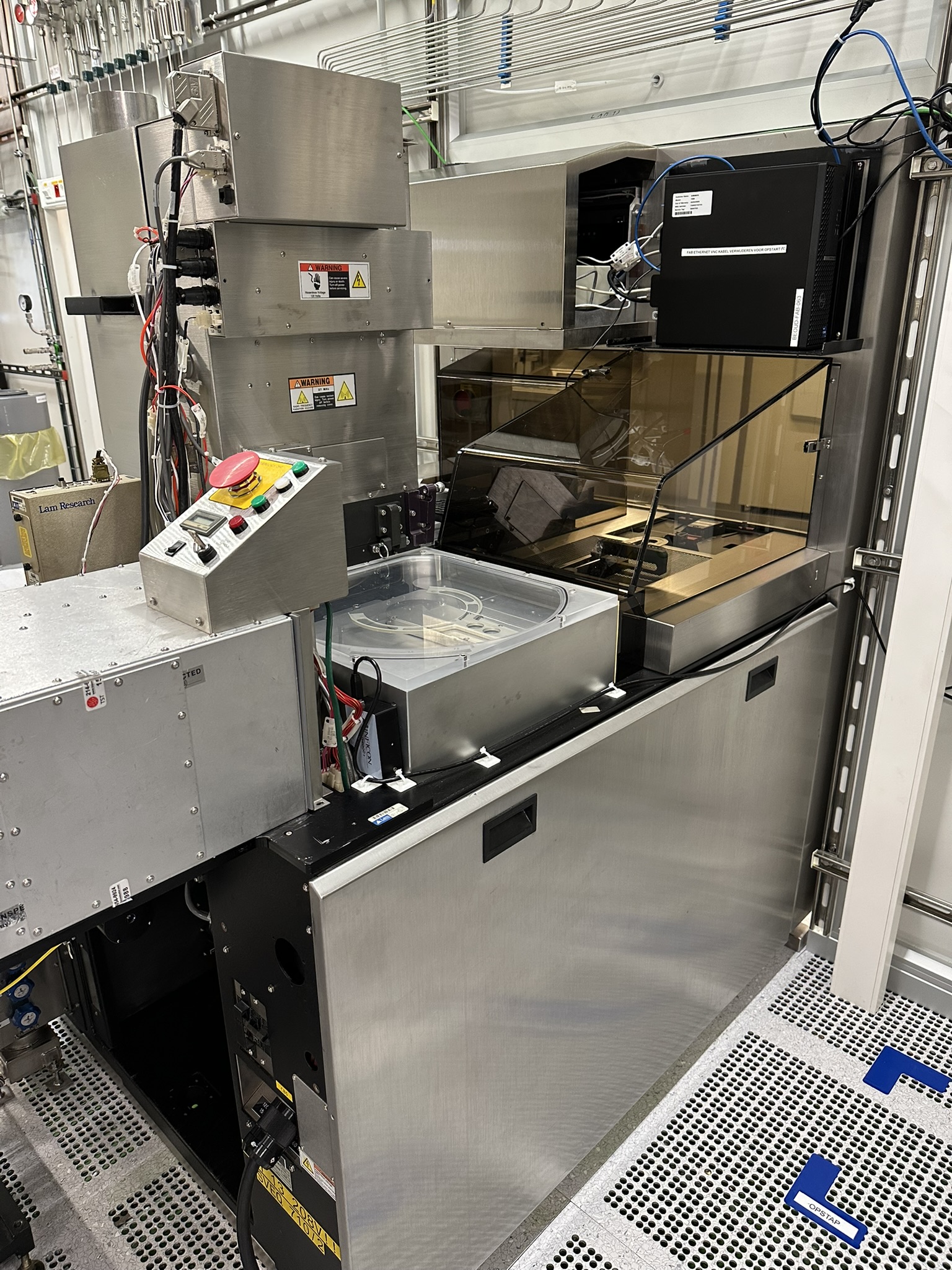

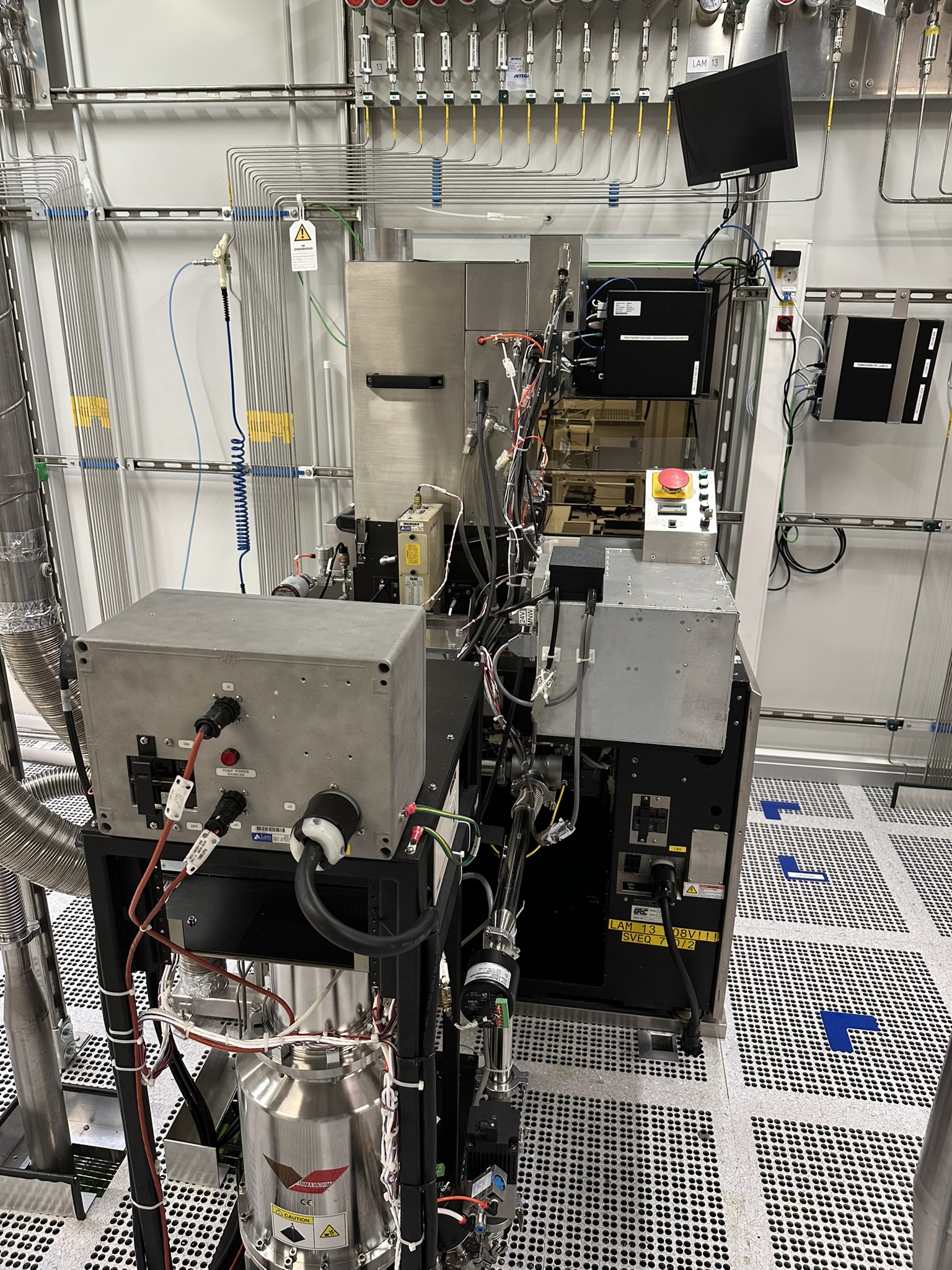

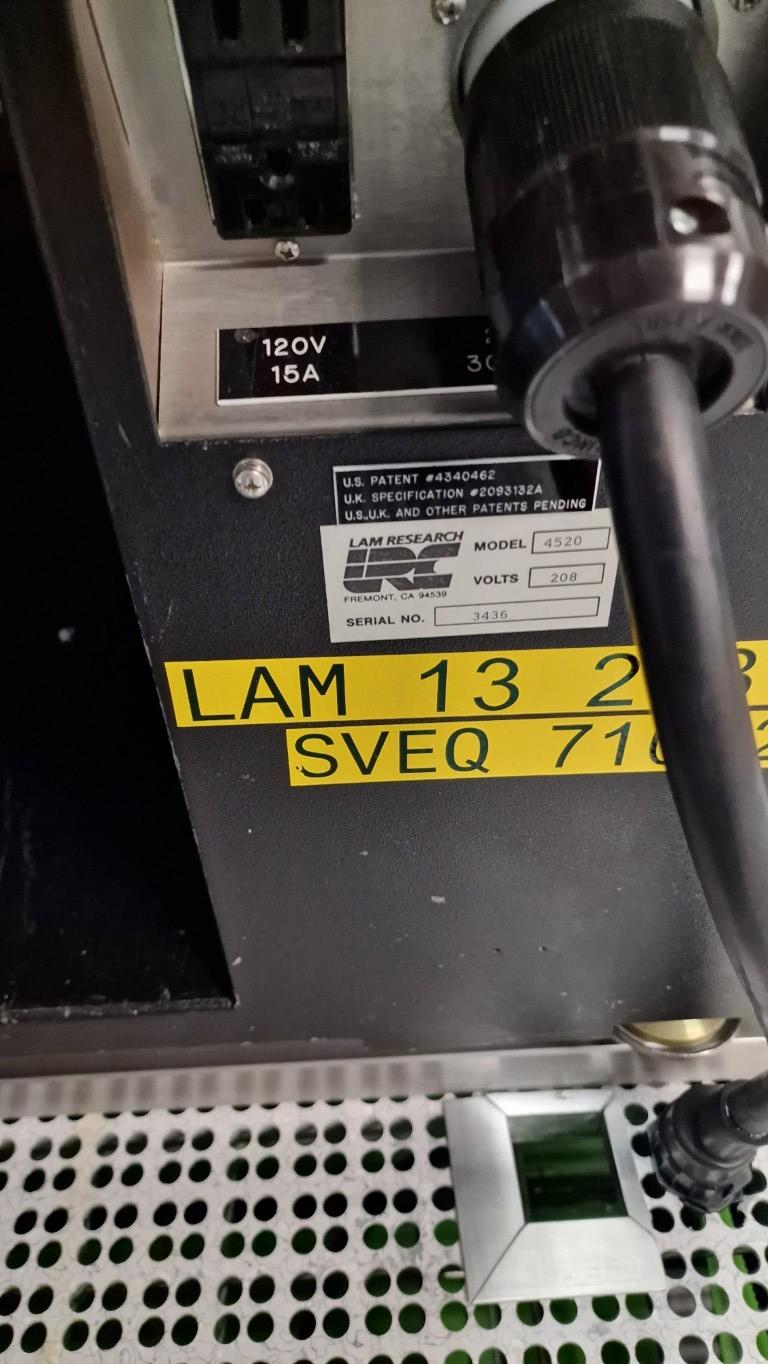

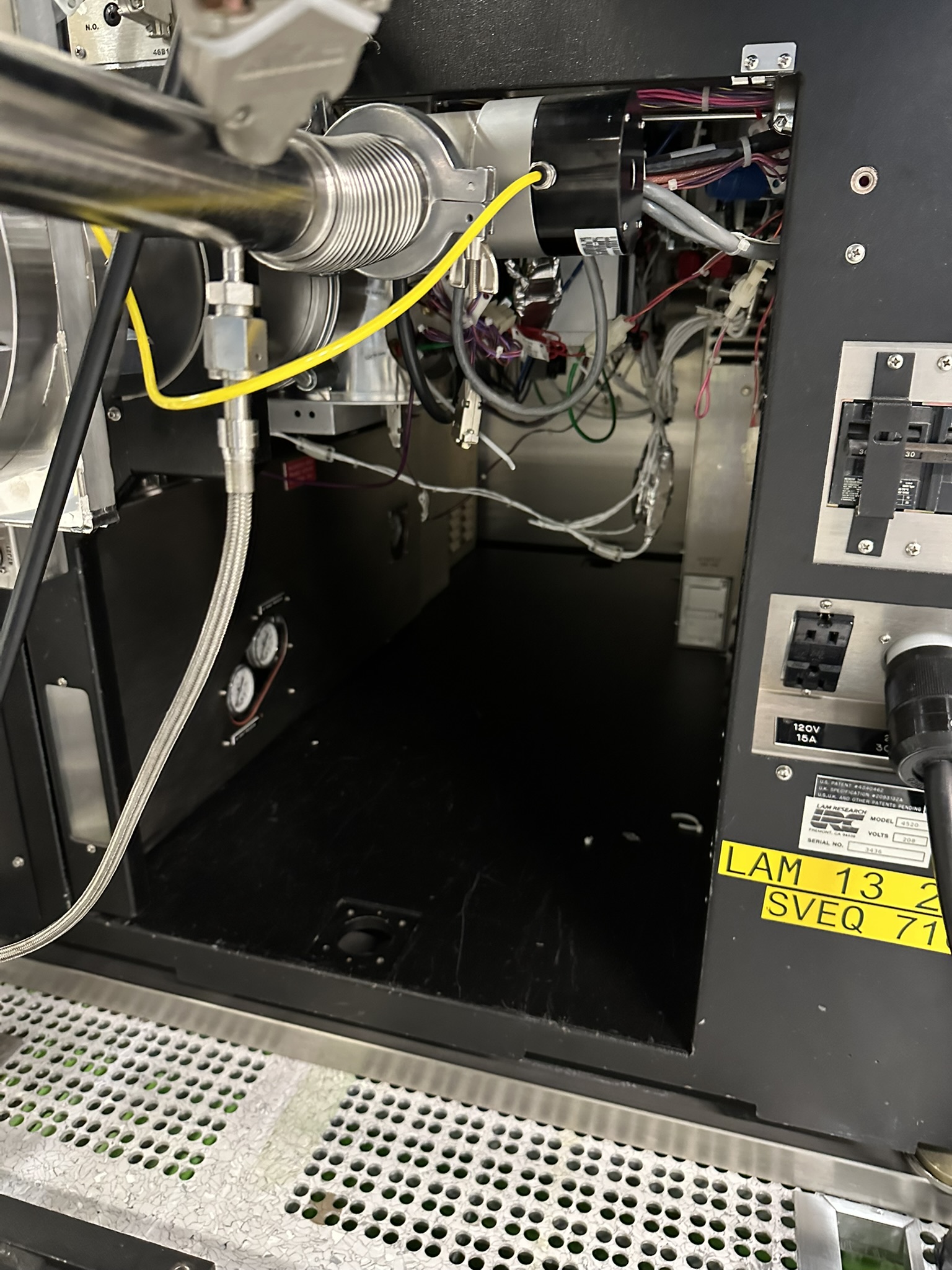

LAM Rainbow 4528XL

LAM Rainbow 4528XL - Plasma Etch

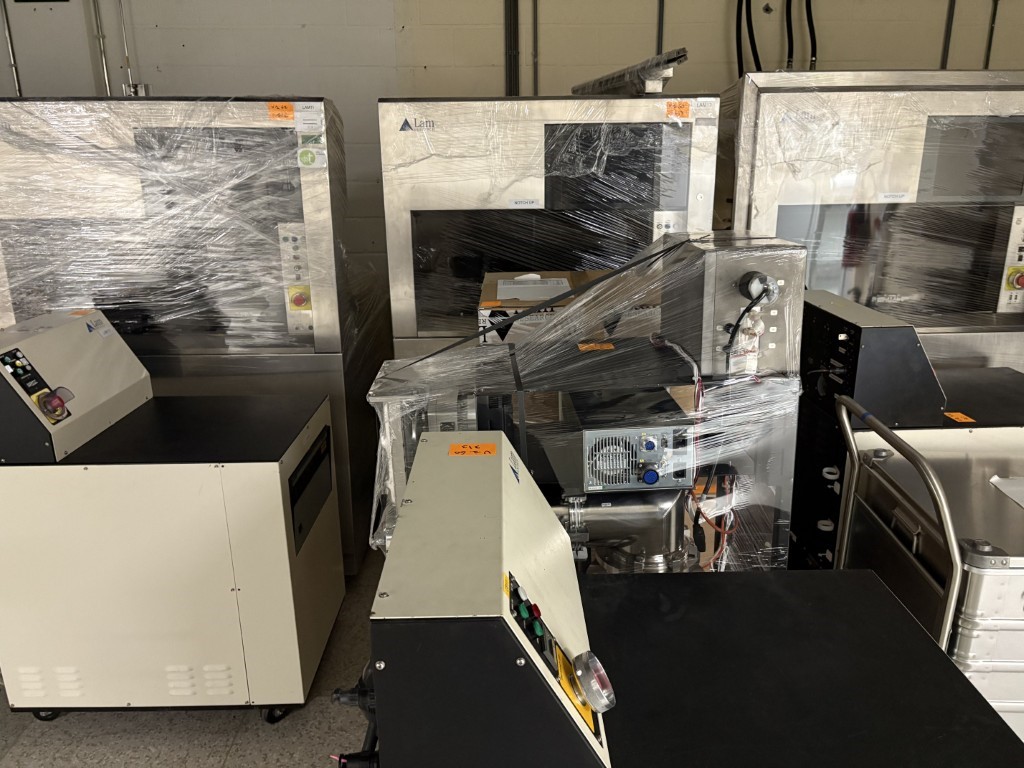

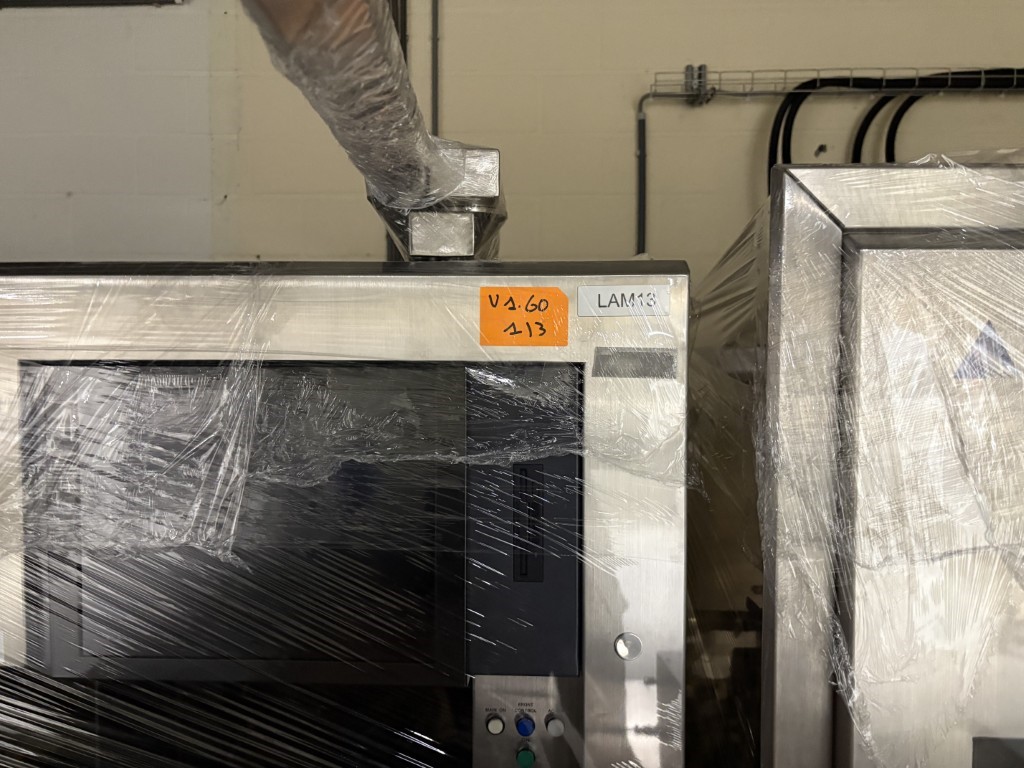

Current tool status: Deinstalled, foil wrapped and stored in warehouse, ready to load for packaging

Wafer size: 200mm

Former process: oxidepets

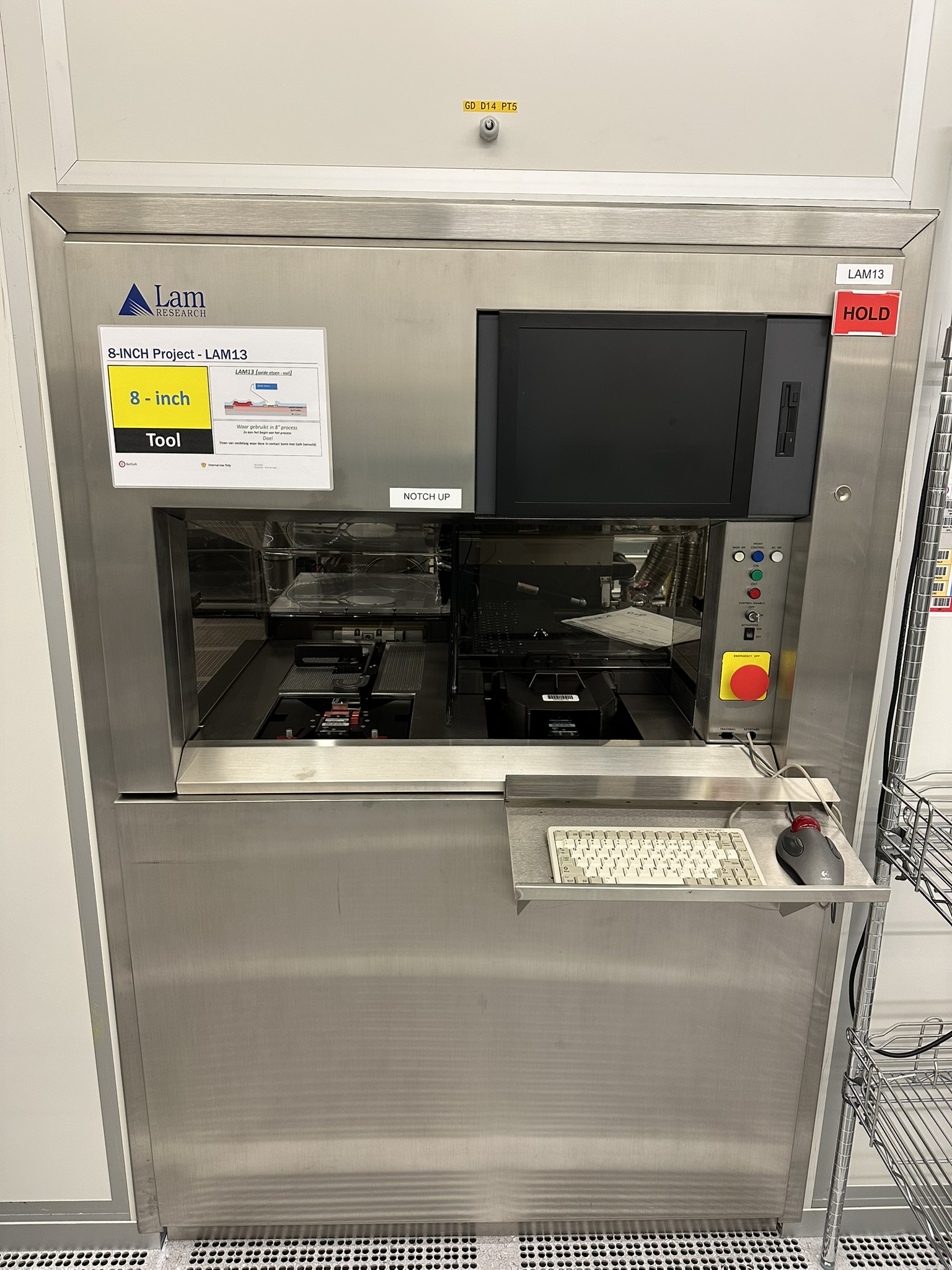

Former MES/ERP name: LAM13

Dimensions & weight estimates:

Mainframe dim (cm): 111.8 x 137.2 x 167.5

Mainframe weight (kg): 788

Bypack1 dim (cm): 55.9 x 81.3 x 110.5

Bypack1 weight (kg): 135

Bypack2 dim (cm): 55.9 x 22.9 x 76.2

Bypack2 weight (kg): 120

Bypack3 dim (cm): 47.5 x 93 x 126

Bypack3 weight (kg): 226.8

mainframe equipment tool

TECHNICAL SPEC FOR Etch tool

System Model: LAM RAINBOW XL

LAM Rainbow 45xx series

Specific model: 4528 XL

Process: Oxide Etch

Wafer size: 200 mm

Wafer type: Notch

Valve type: VAT65

ESC: Yes

Bulkhead:

Monochromator Endpoint: Yes

Software: Envision 1.6.1-005

RF: Paramount Plus VHF3027 Paramount Plus MF5002

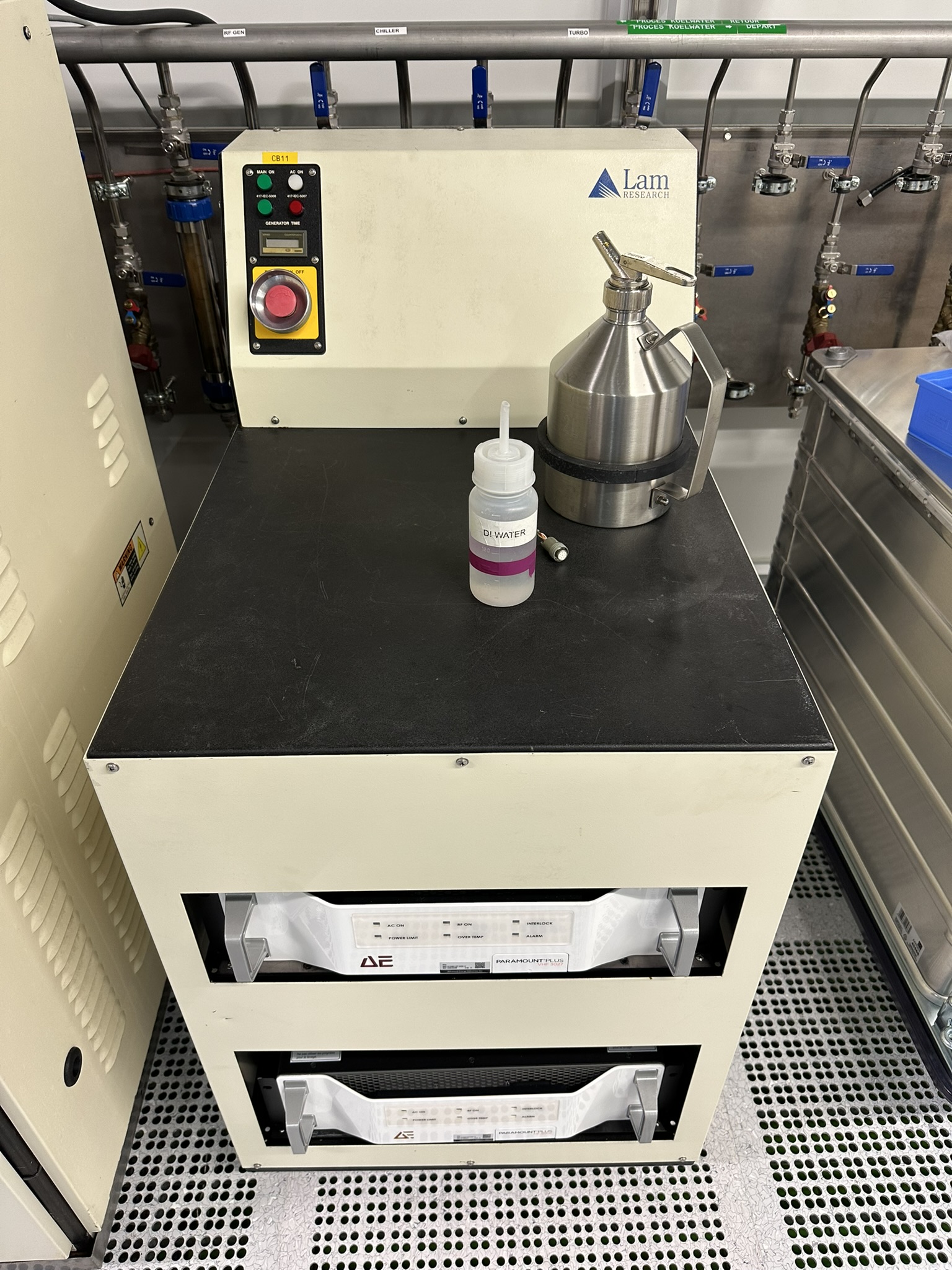

Cart: RF cart

Iso module: No

AC box: -002 (breakers)

Gas and process configuration for

- Chamber (1)

Robot type: Harmonic Drive

Loader type: Hine indexers 38A

Loadlock: Entrance and Exit LL

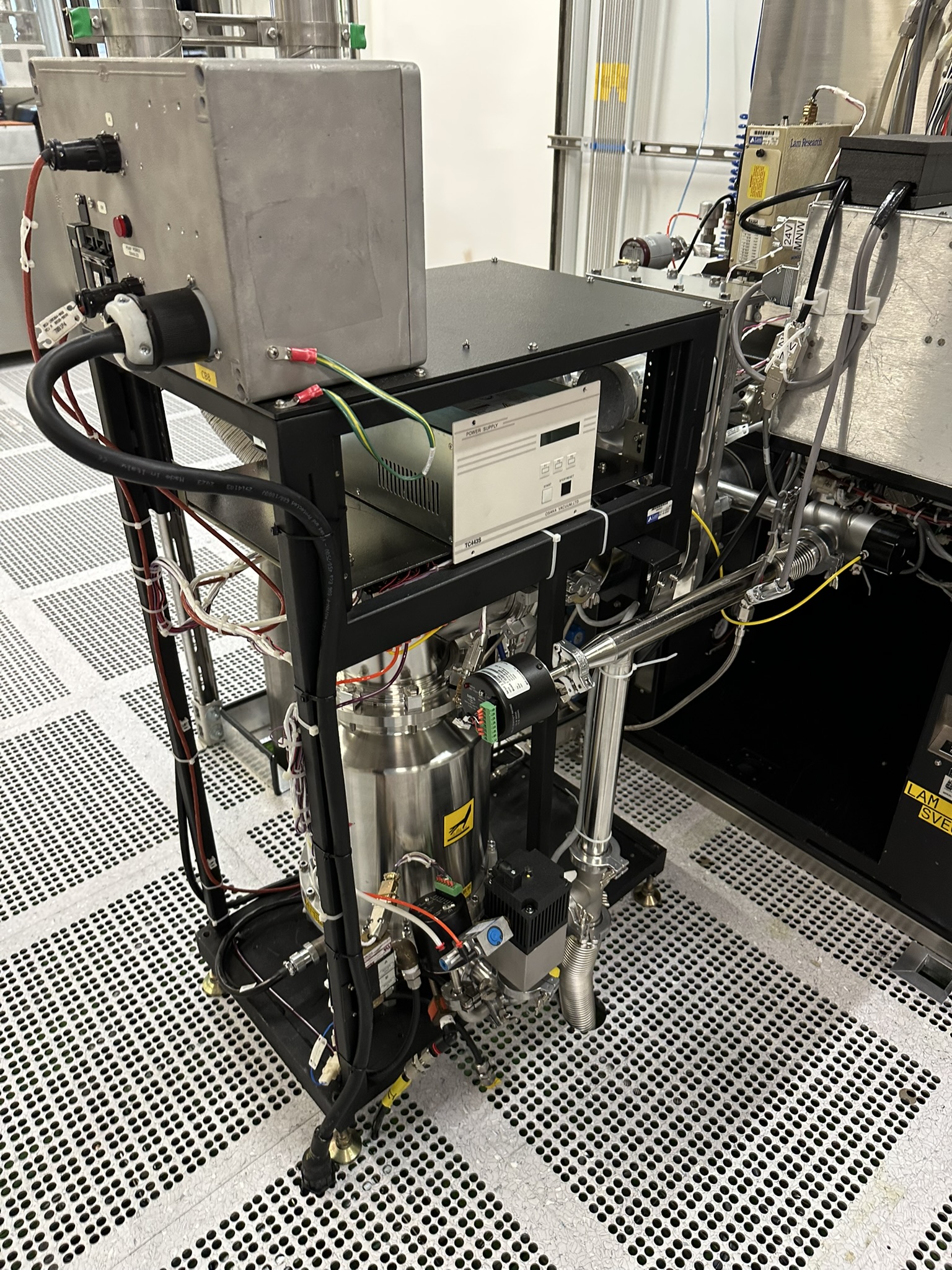

Turbo pumps: HGP pump

Controllers: HGP pump controller VAT 65 controller

Gas box:

AC Rack: Yes (Local power box) in basement

SW Version:

Vintage: rb3436

Missing/defective parts: None
