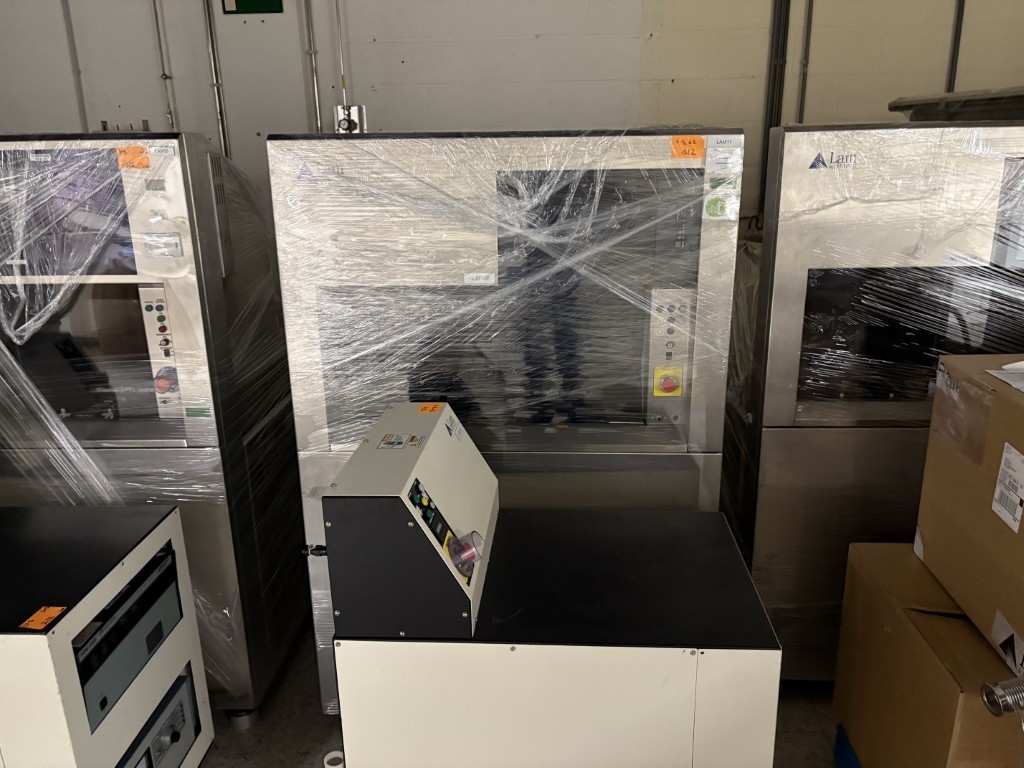

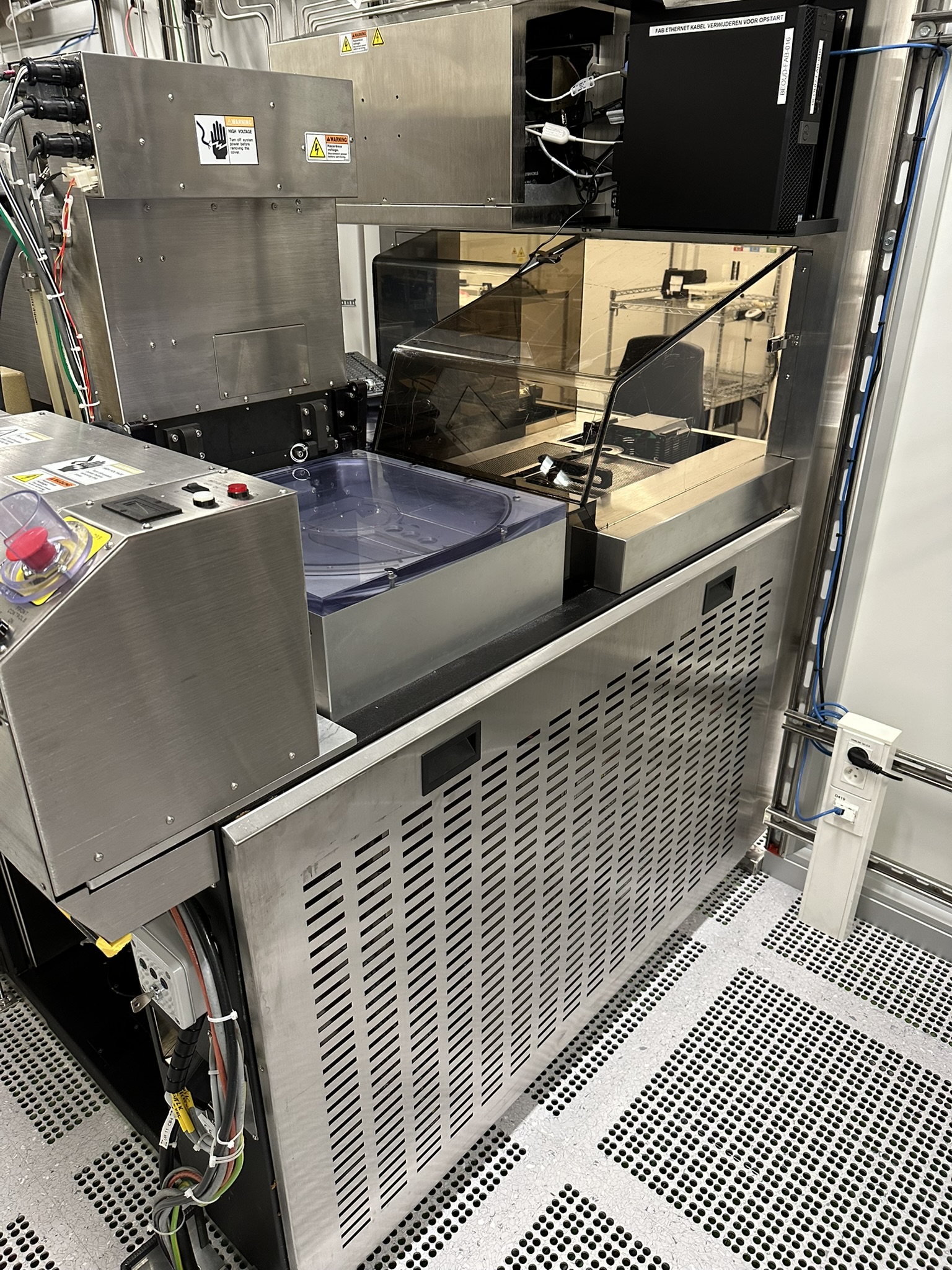

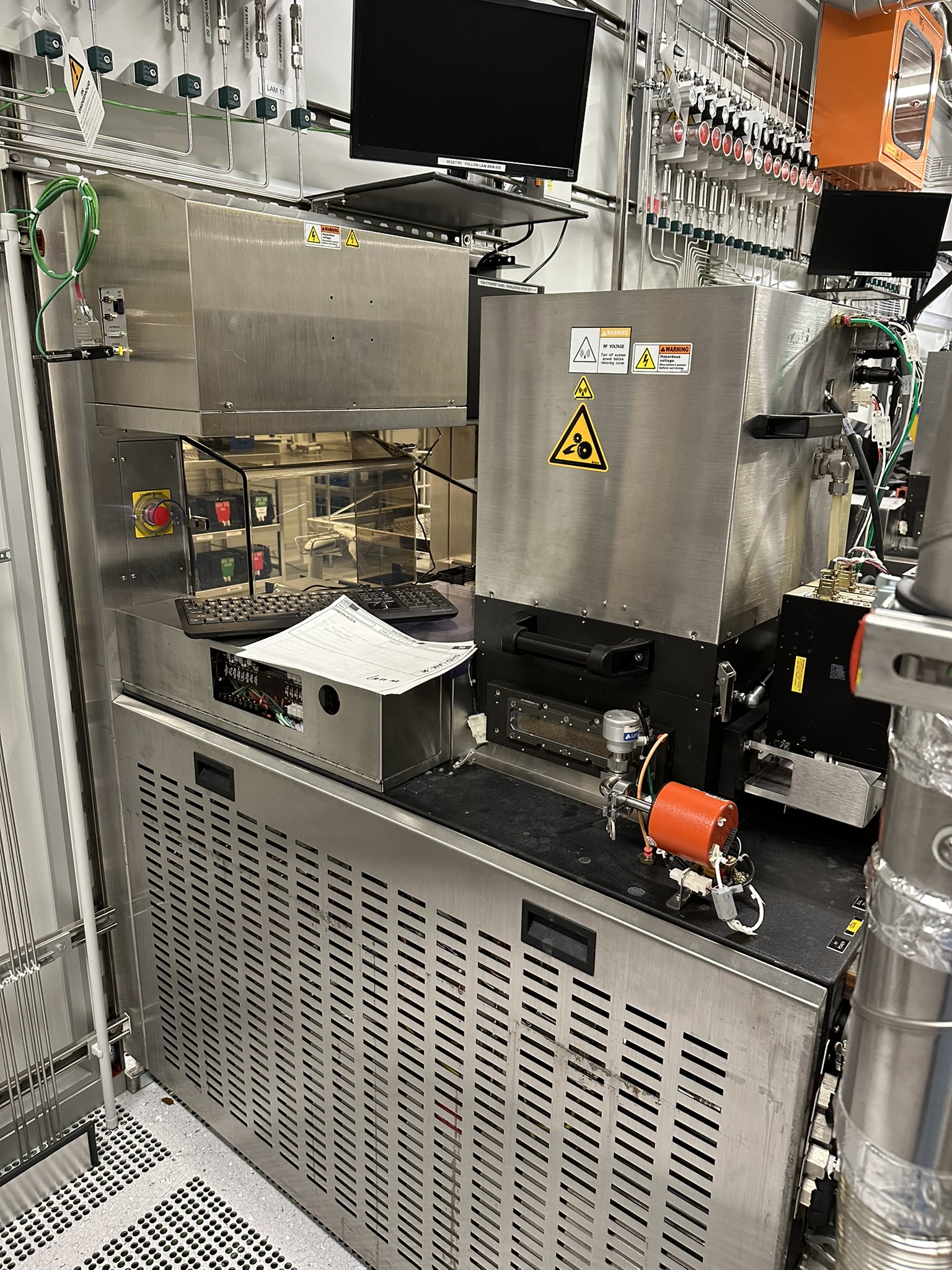

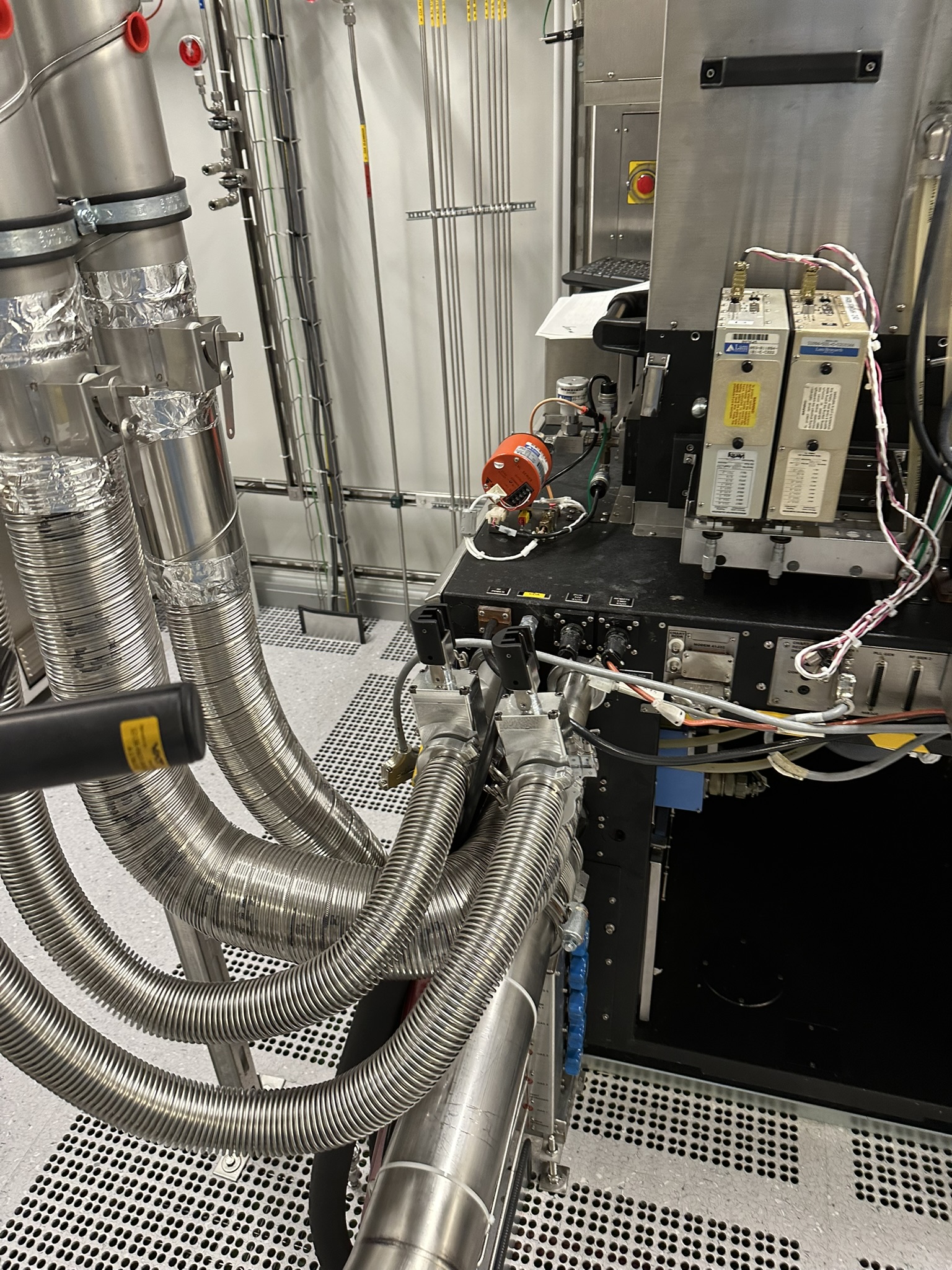

1995 LAM Rainbow 4526I

LAM Rainbow 4526I - Plasma Etch

Current tool status: Deinstalled, foil wrapped and stored in warehouse, ready to load for packaging

Vintage: 1995+/-3y

Wafersize: 150mm

200mm convertible: Yes

Former process: oxidepets

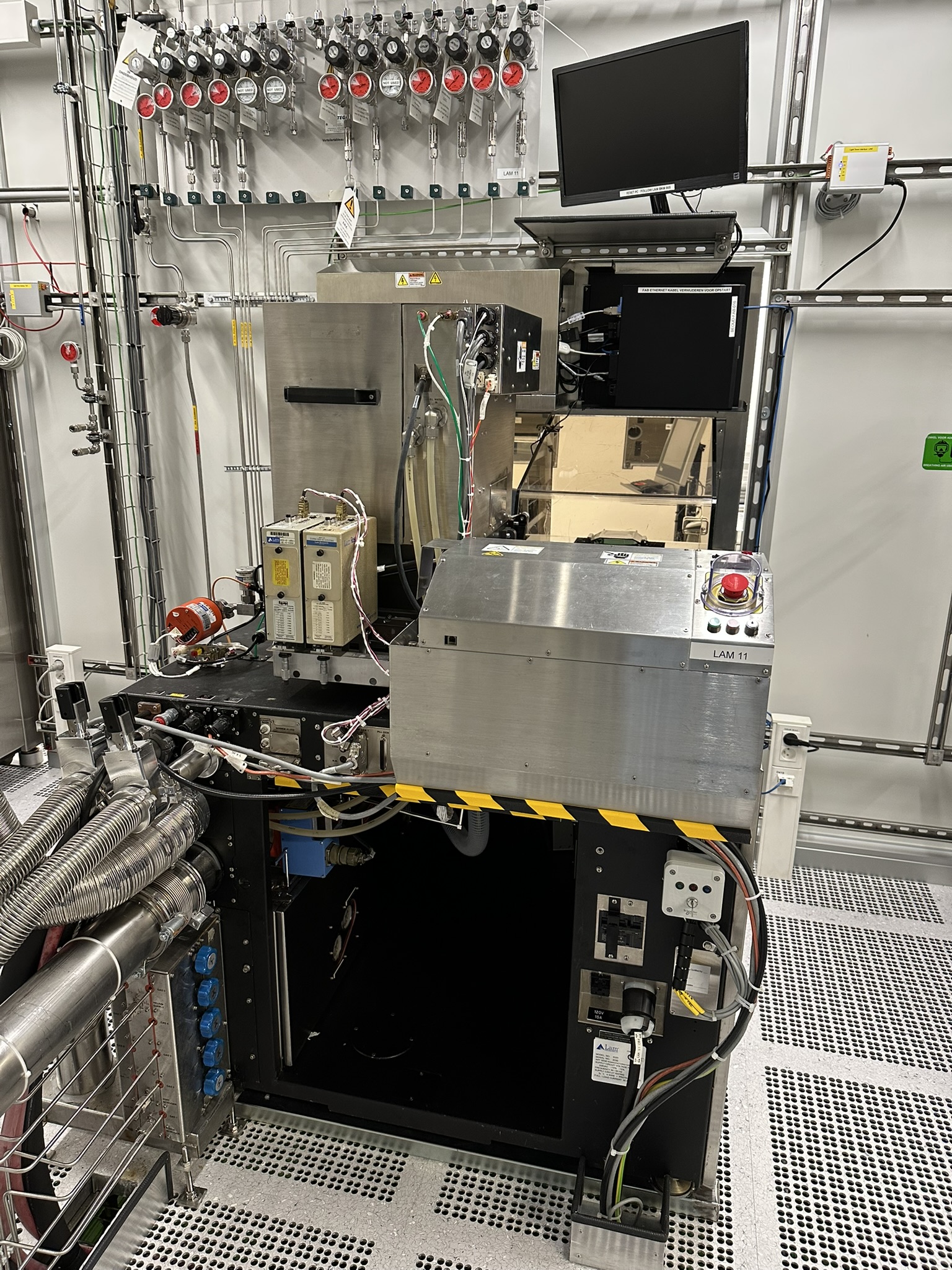

Former MES/ERP name: LAM11

Dimensions & weight estimates:

Mainframe dim (cm): 111.8 x 137.2 x 167.5

Mainframe weight (kg): 788

Bypack1 dim (cm): 55.9 x 81.3 x 110.5

Bypack1 weight (kg): 135

Bypack2 dim (cm): 55.9 x 22.9 x 76.2

Bypack2 weight (kg): 54

System Model: LAM RAINBOW

LAM Rainbow 45xx series

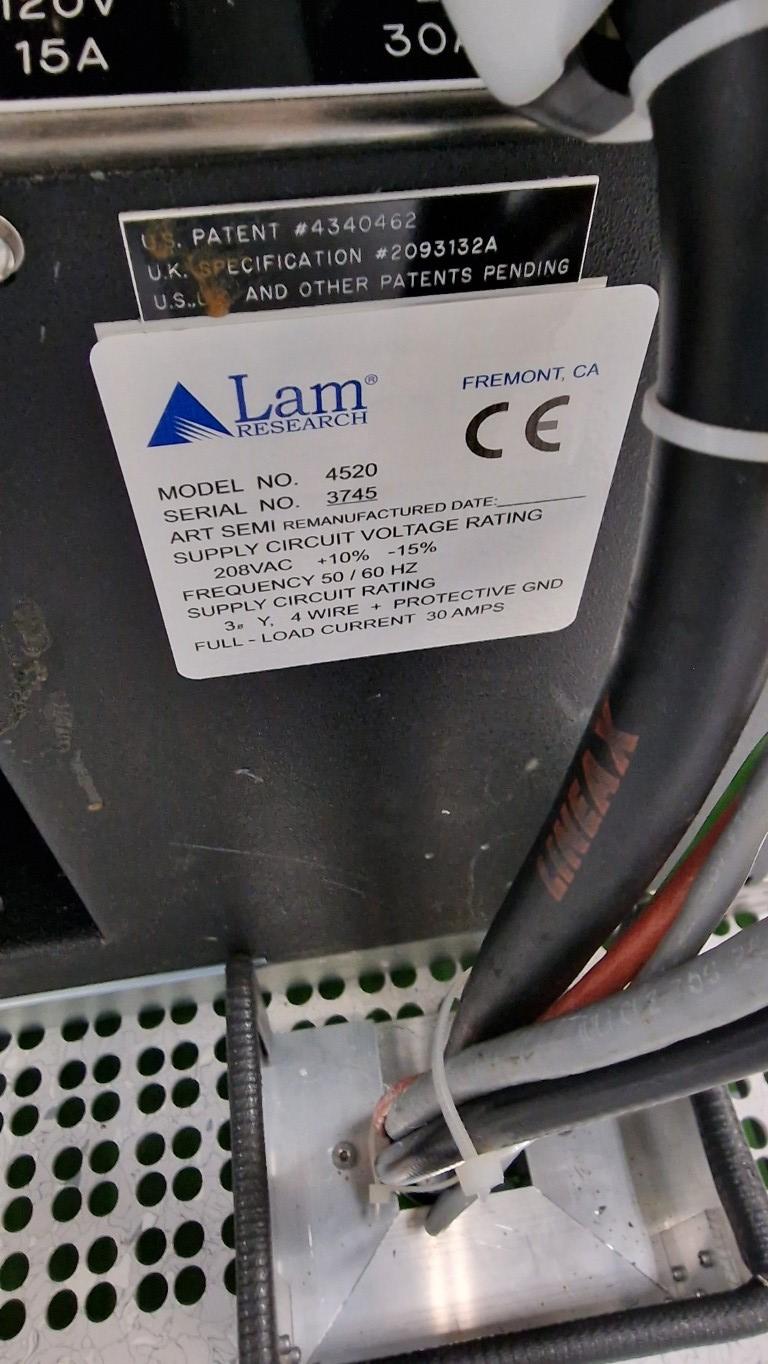

Specific model: 4526

Process: Oxide Etch

Wafer size: 150 mm

Wafer type: Jeida flat

Valve type: AC2 Throttle valve (main chamber)

ESC: No

Bulkhead: ??

Monochromator Endpoint: Yes

Software: Envision 1.6.1-005

RF: PDW2200 400Kc generator (main chamber)

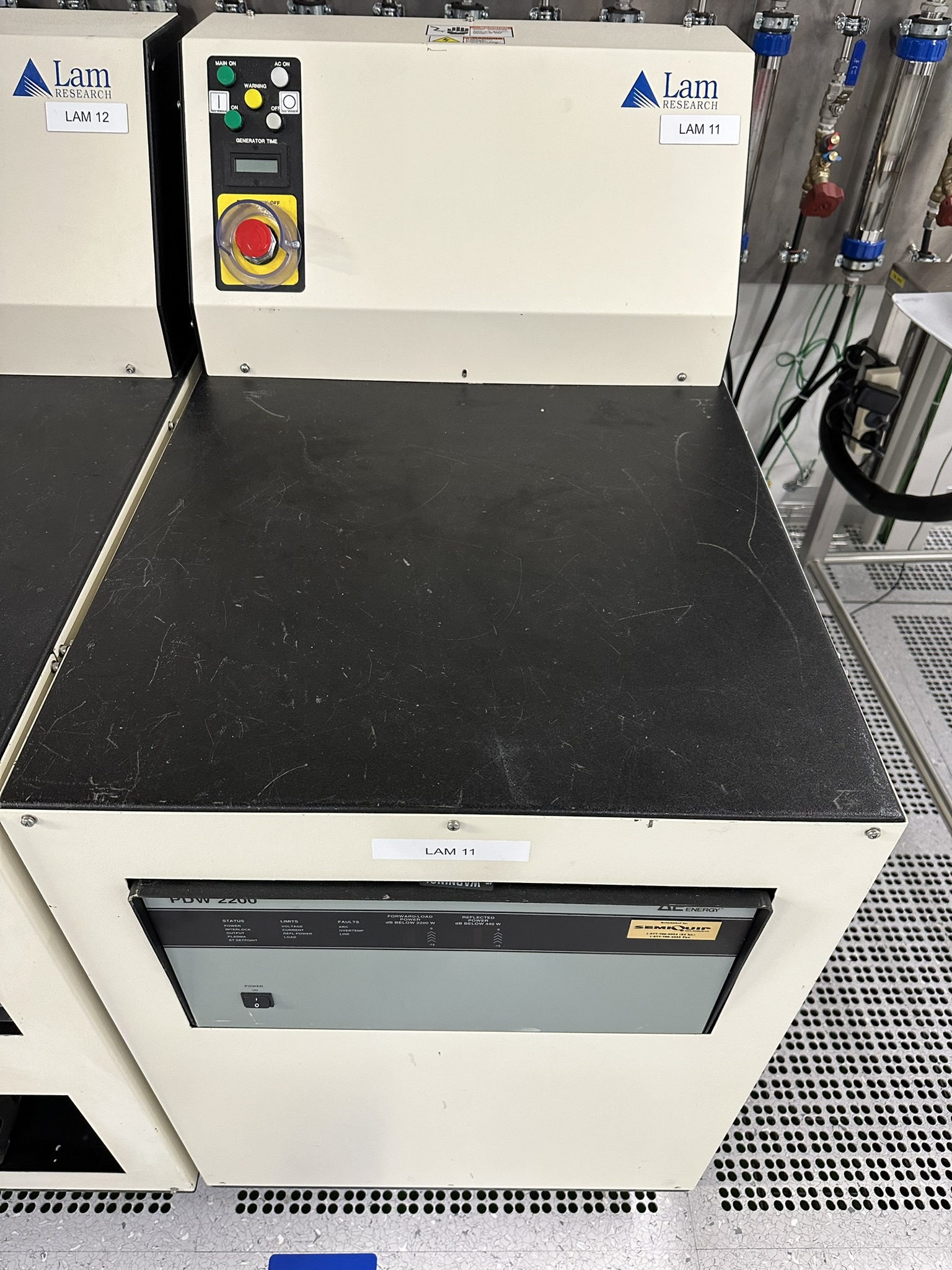

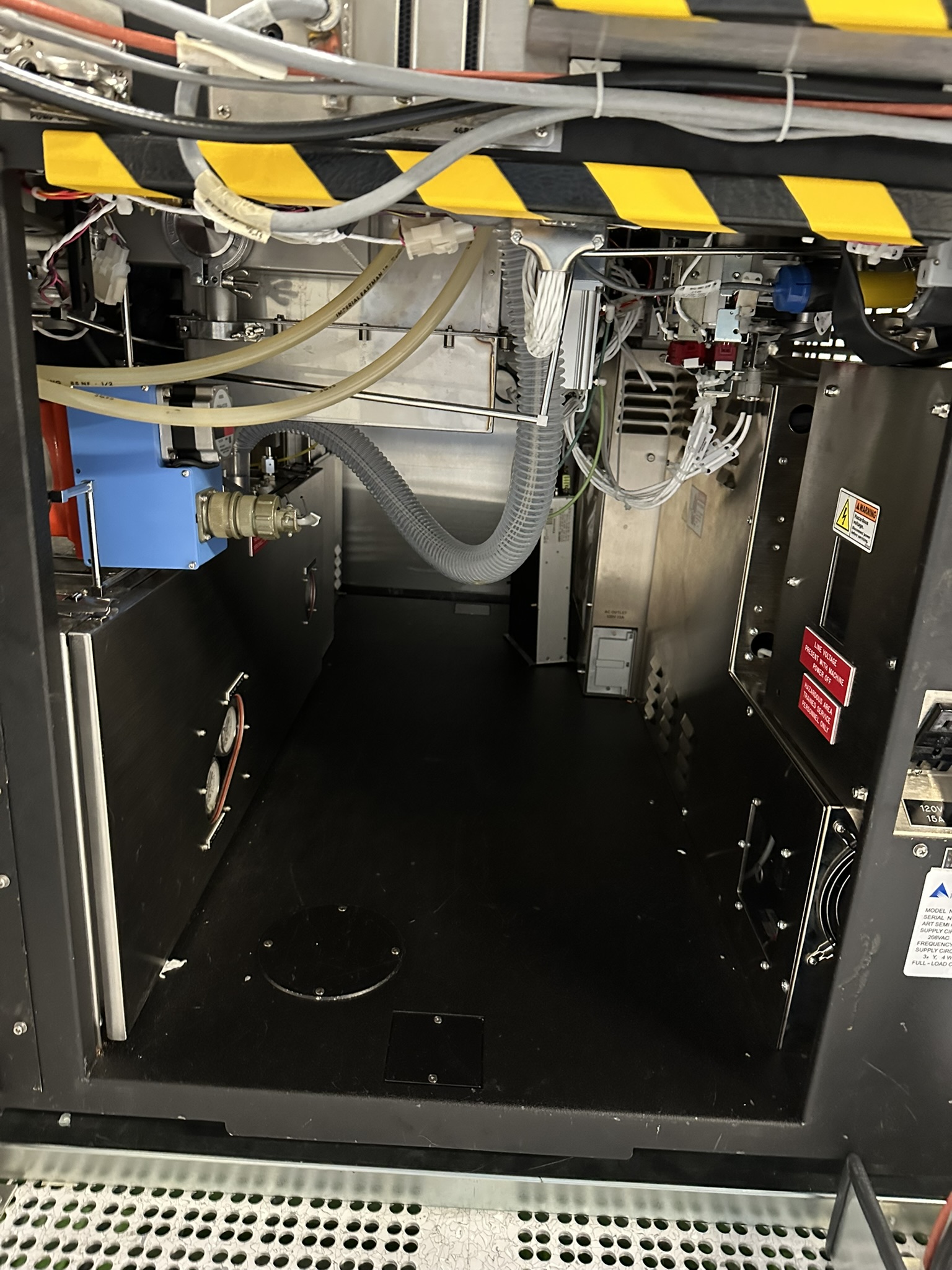

Cart: RF cart

Iso module: Yes

AC box: -002 (breakers)

Gas and process configuration for • Gas1-6 Main chamber

GAS 1 Ar 492 sccm

GAS 2 CF4 92 sccm

GAS 3 CHF3 47 sccm

GAS 4 He 1096 sccm

GAS 5 N2 97 sccm

GAS 6 O2 103 sccm

Robot type: Harmonic Drive

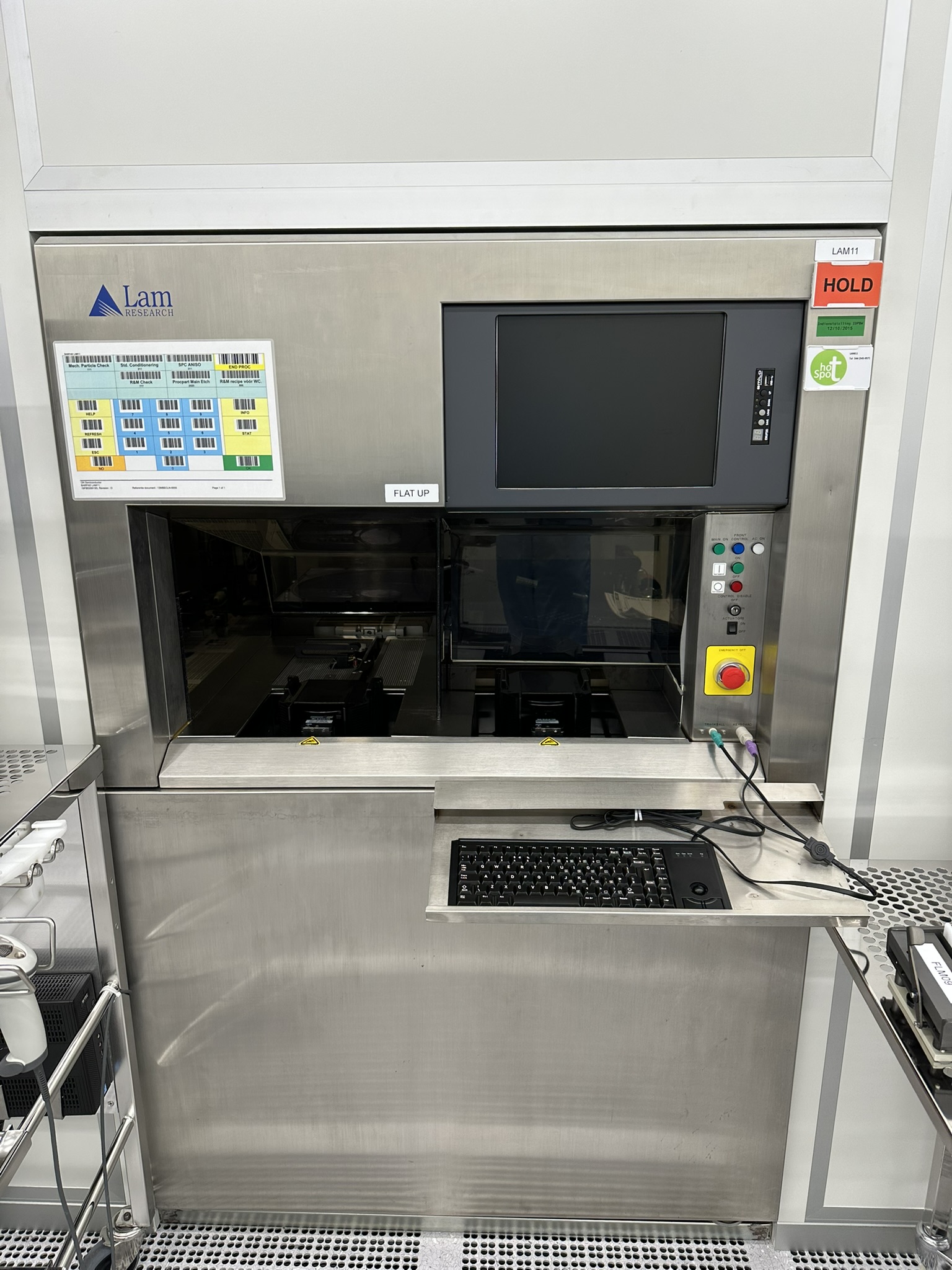

Loader type: Hine indexers 38A

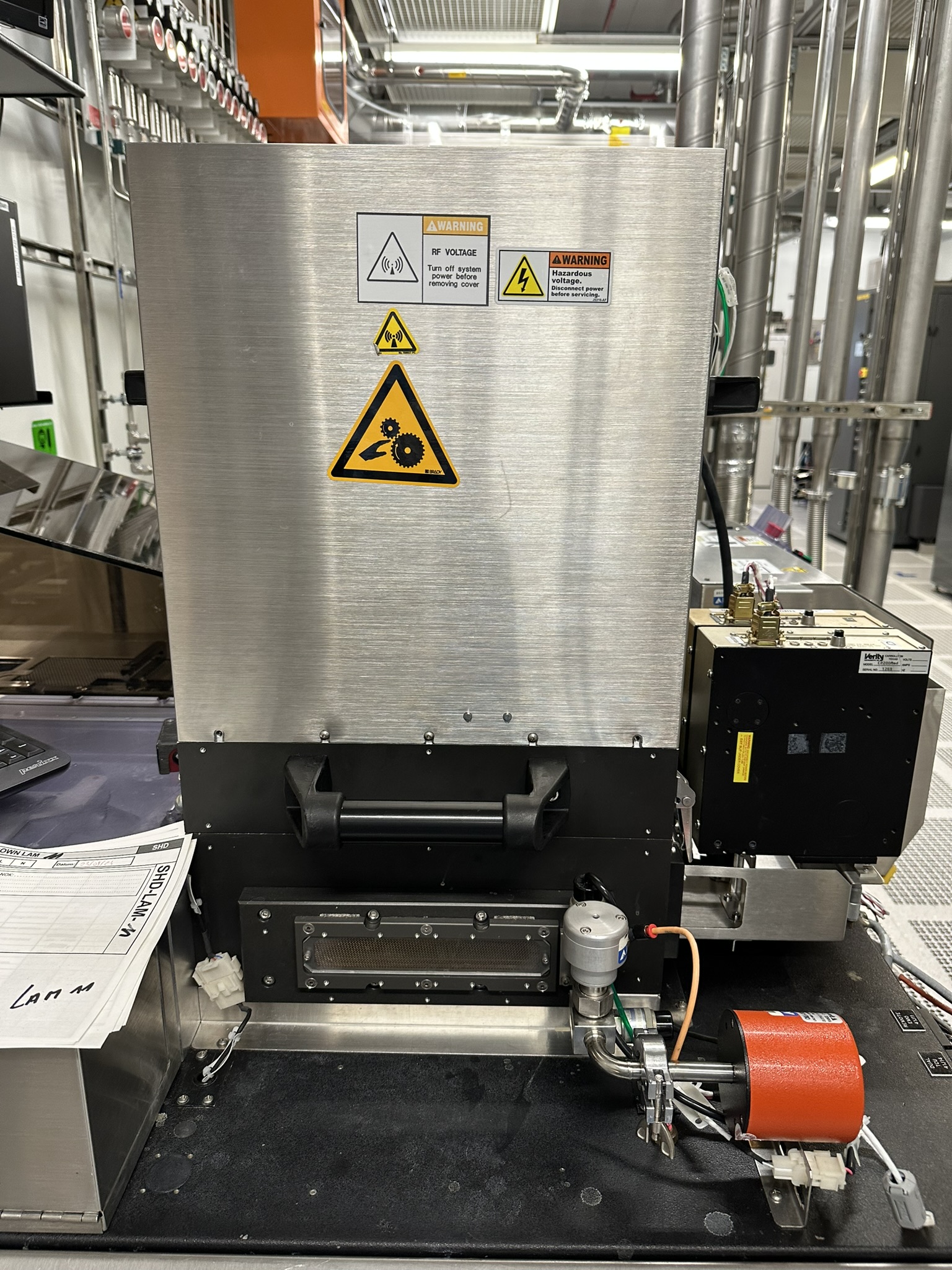

Loadlock: Entrance (ISO chmbr) and Exit LL

Turbo pumps: No

Controllers: AC2 controller main chamber THV

Gas box:

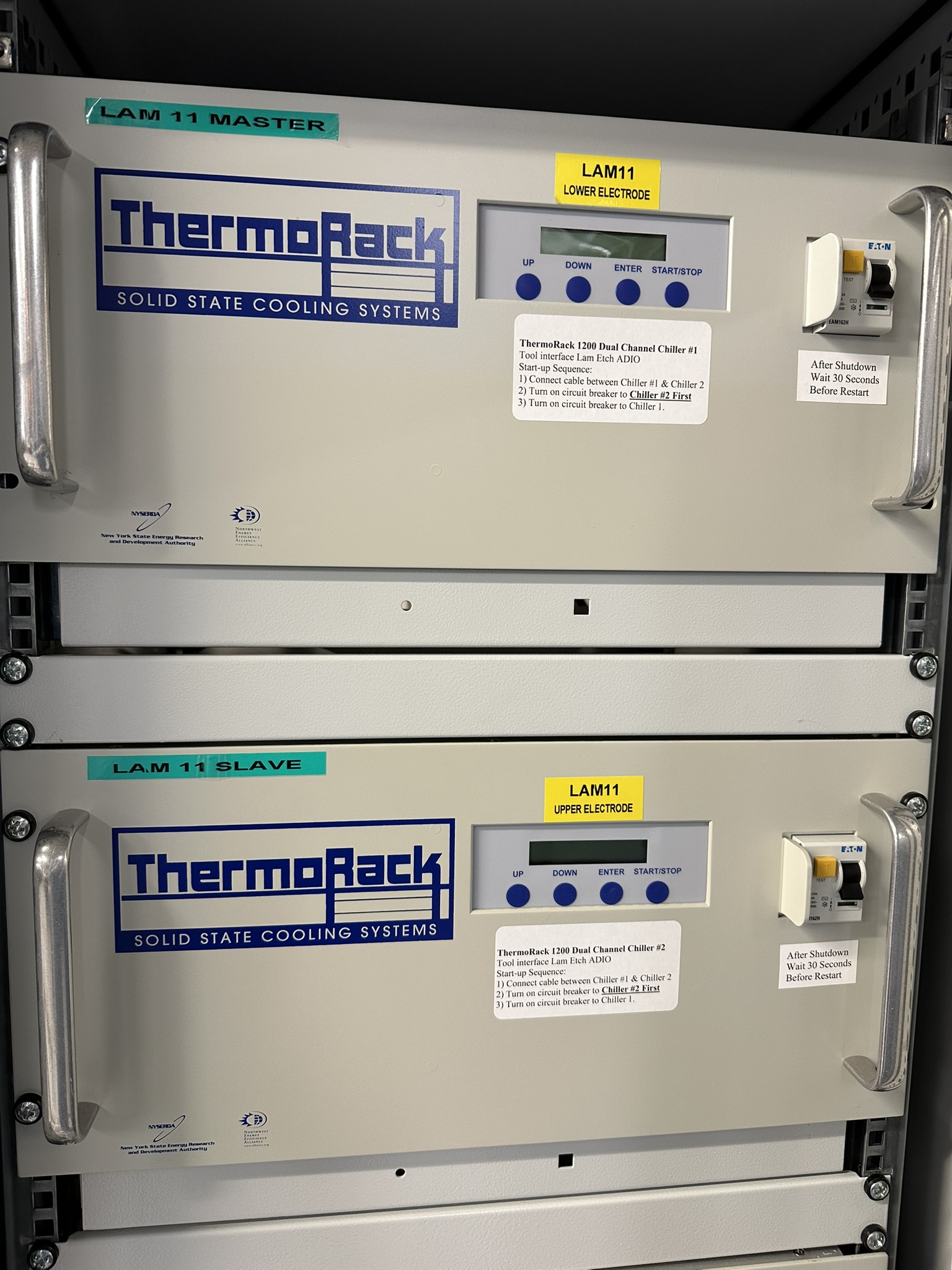

AC Rack: Yes (Local power box) on mezzanine

SW Version:

Vintage: rb3745

Missing/defective parts: None
