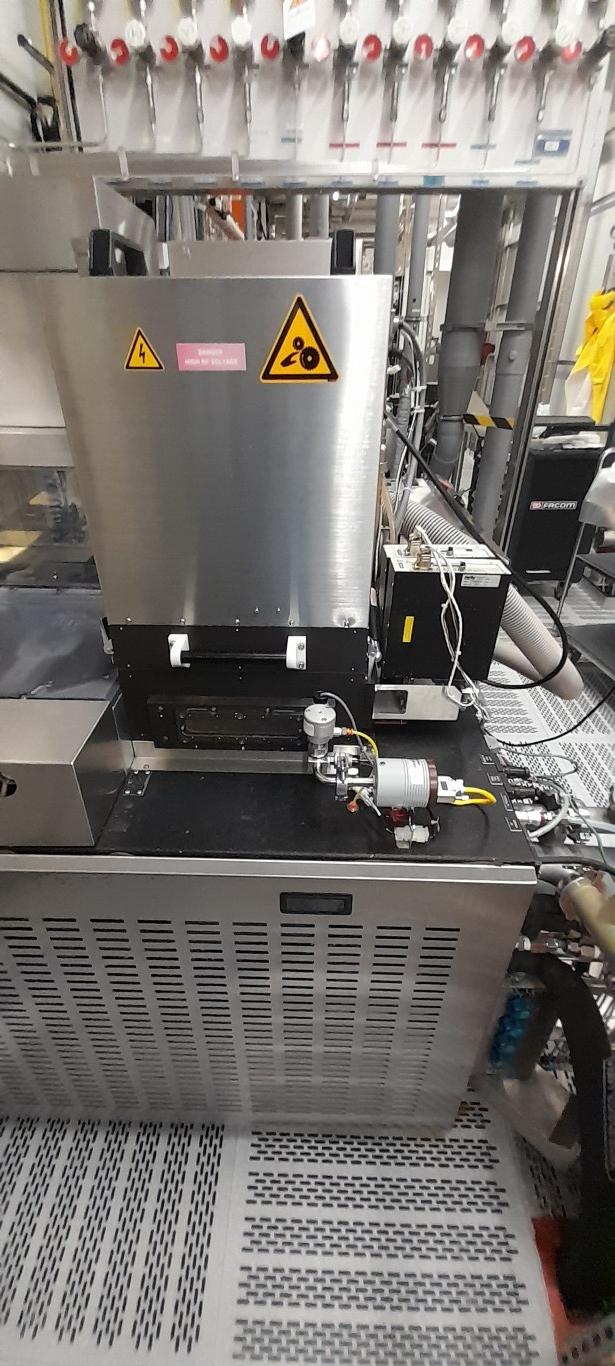

1995 LAM Rainbow 4506I

Current tool status: Deinstalled, foil wrapped and stored in warehouse, ready to to load for packaging

Vintage: 1995+/-3j

Wafersize: 150mm

200mm convertible: Yes

Former process: oxidepets

Former MES/ERP name: LAM2

Dimensions & weight estimates:

Mainframe dim (cm): 111.8 x 137.2 x 167.5

Mainframe weight (kg): 788

Bypack1 dim (cm): 55.9 x 81.3 x 110.5

Bypack1 weight (kg): 135

Bypack2 dim (cm): 55.9 x 22.9 x 76.2

Bypack2 weight (kg): 54

System Model: LAM RAINBOW

LAM Rainbow 45xx series

Specific model: 4506i

Process: Oxide Etch

Wafer size: 150 mm

Wafer type: Jeida flat

Valve type: AC4 Throttle valve (main chamber) VAT Throttle valve (ISO chamber)

ESC: No

Bulkhead: ??

Monochromator Endpoint: Yes

Software: Classic 7.31-42

RF: PDW2200 400Kc generator (main chamber) RFG1250 13.56MHz (ISO chamber)

Cart: RF cart

Iso module: Yes

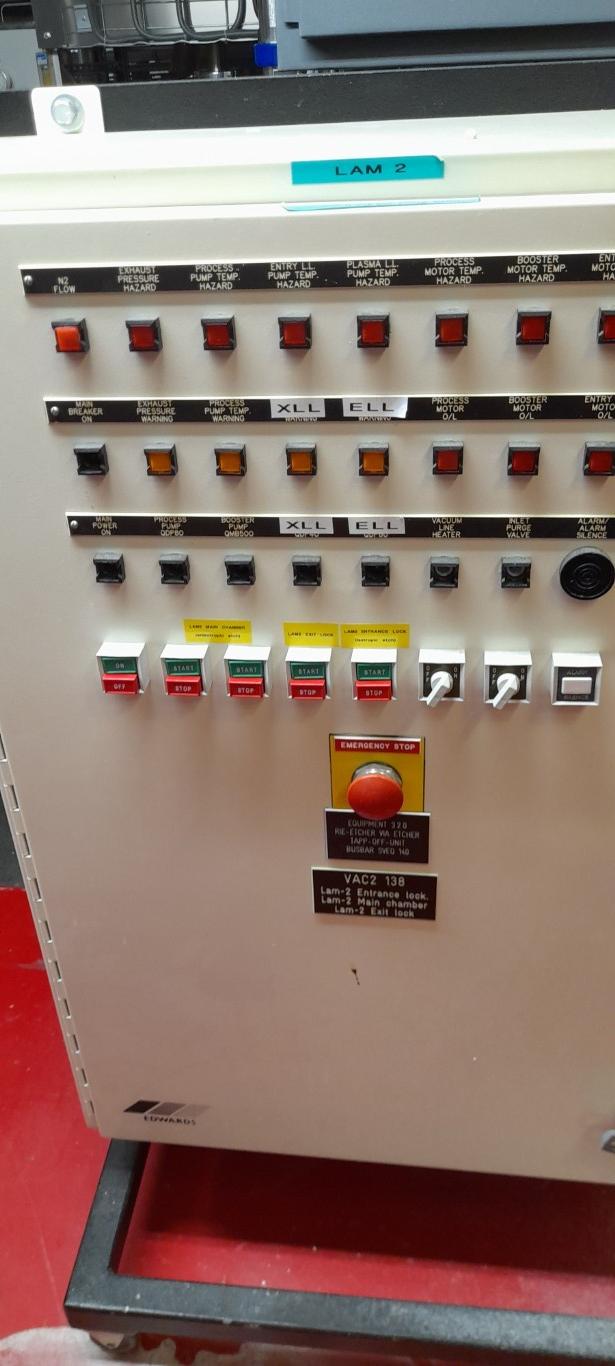

AC box: -001 (fuses)

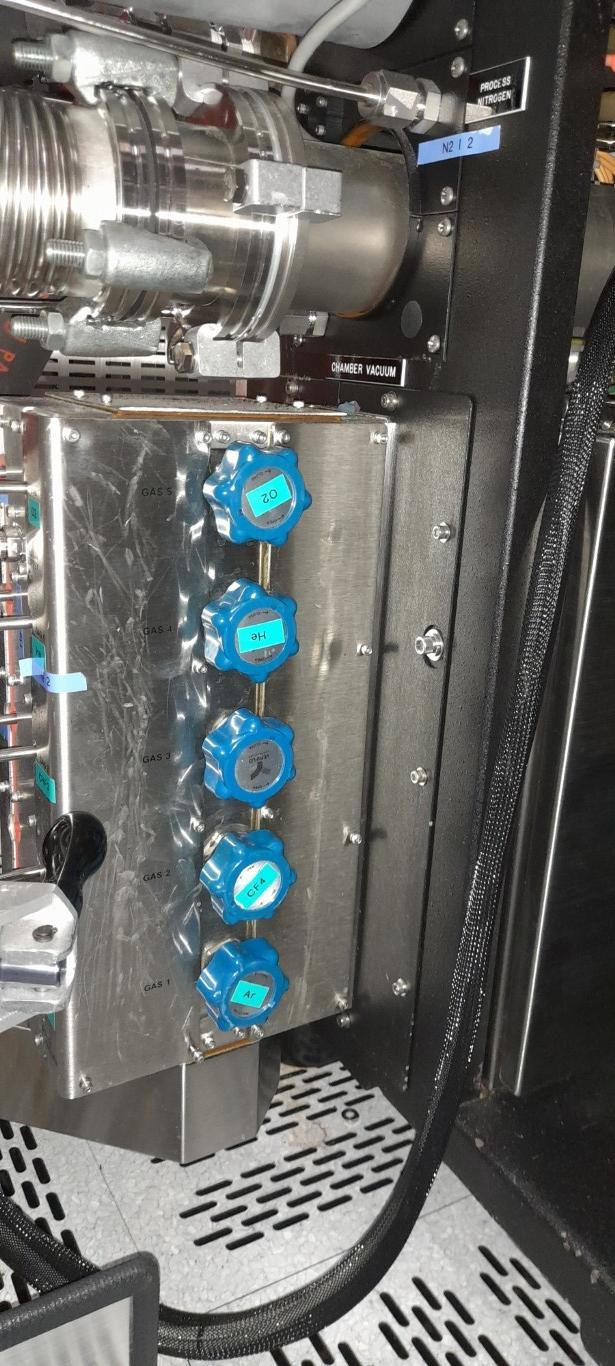

Gas and process configuration for • Gas1-6 Main chamber • Gas7-8 ISO chamber

GAS 1 Ar 500 sccm

GAS 2 CF4 100 sccm

GAS 3 CHF3 50 sccm

GAS 4 He 1000 sccm

GAS 5 O2 20 sccm

GAS 6 N2 540 sccm

GAS 7 NF3 1150 sccm

GAS 8 He 480 sccm

Robot type: Harmonic Drive

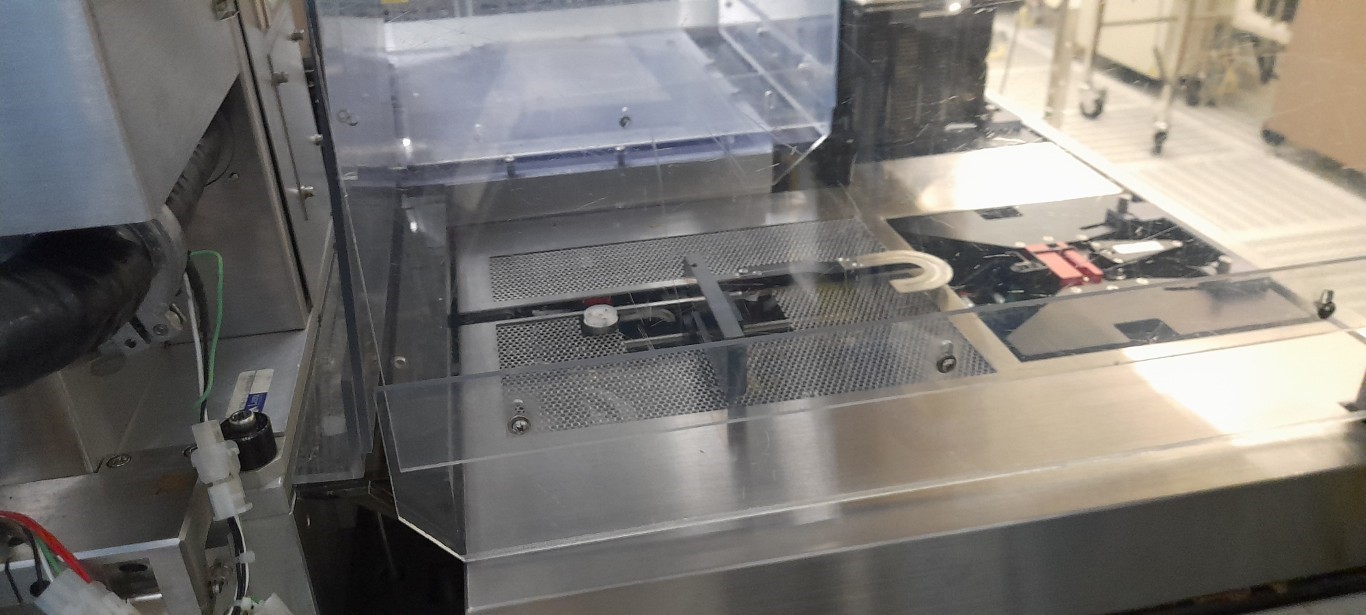

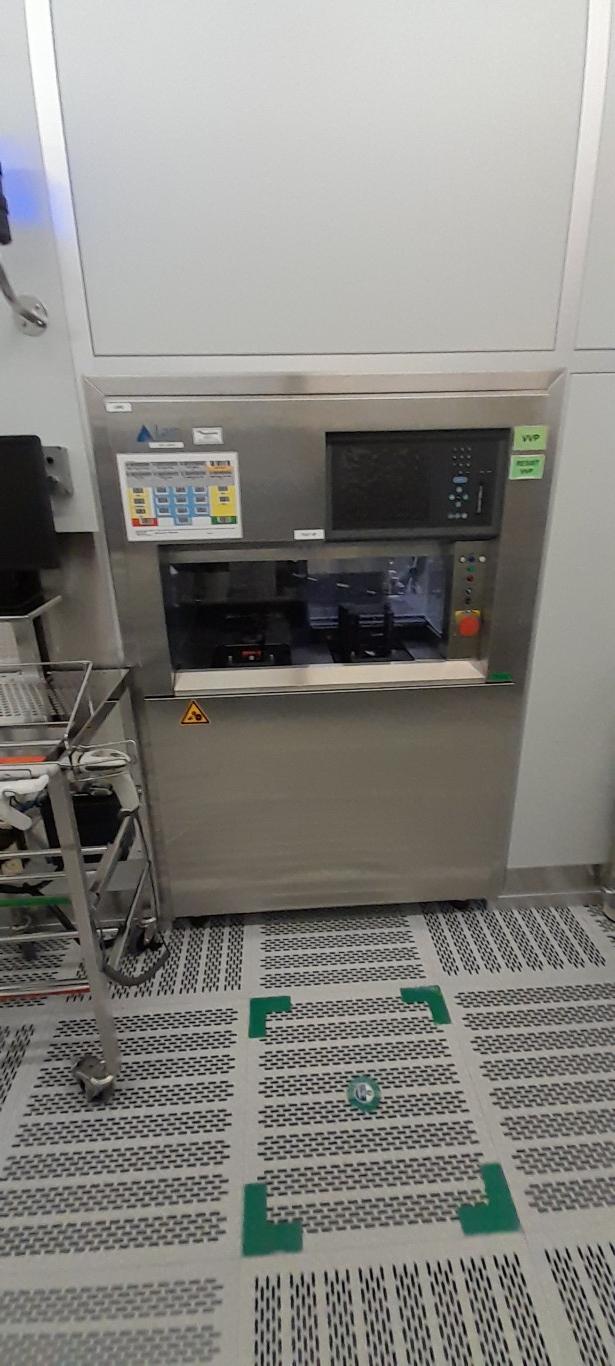

Loader type: Hine indexers 38A

Loadlock: Entrance (ISO chmbr) and Exit LL

Turbo pumps: No

Controllers: VAT controller ISO THV AC4 controller main chamber THV

Gas box:

AC Rack: (Local power box) Yes in basement

SW Version:

Vintage: rb2473

Missing/defective parts: None
