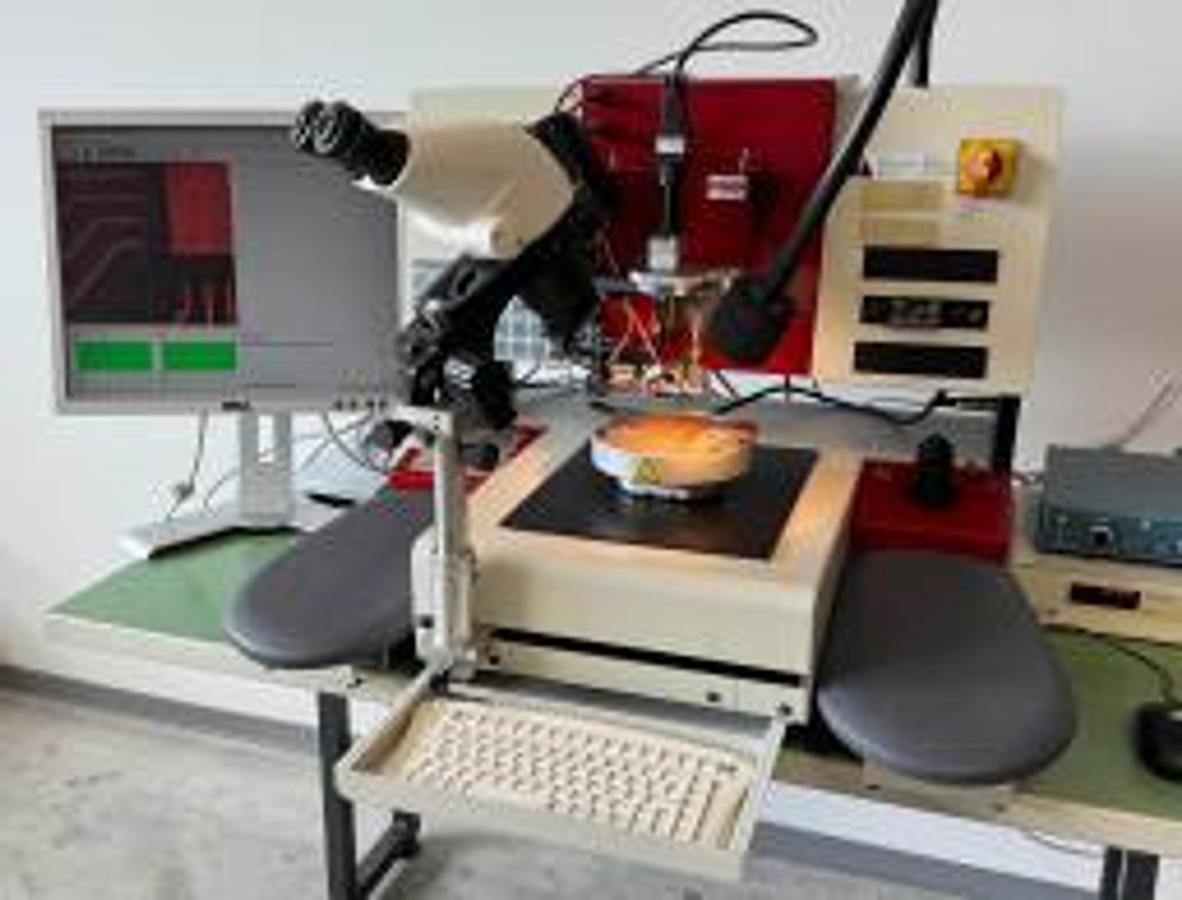

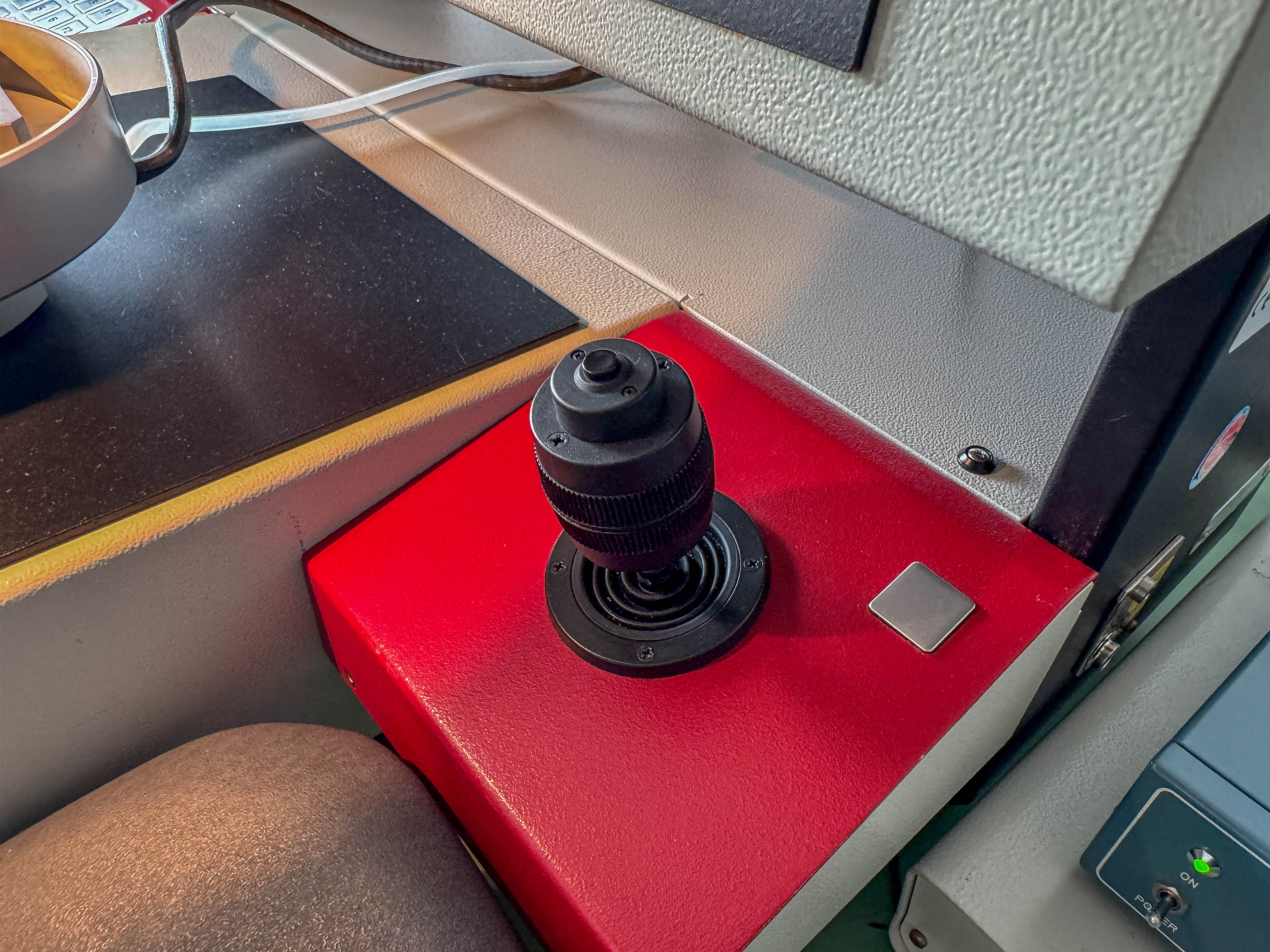

F&S Bondtec 5610, Wirebonder, incl. Pull & Shear heads

Semi-automatic gold-ball wirebonder with pull & shear heads.

Specifications:

Mechanics

X, Y table

Working area 100 x 115 mm

Resolution 0.25 μm, repeatability < 2 μm

Z-axis

60 mm

Speed

up to 20 wires / min.

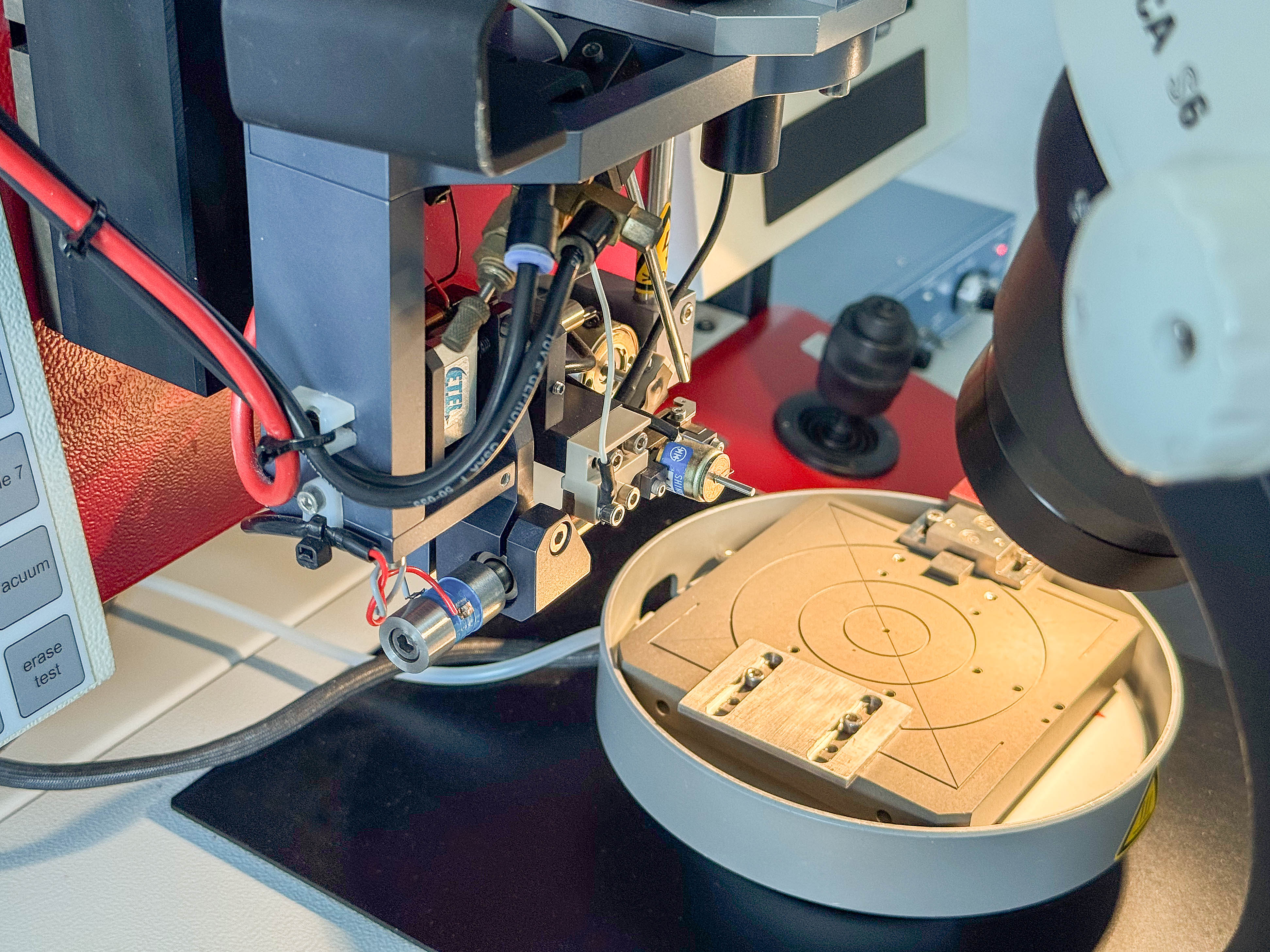

Bond head

Gold Ball-Wedge

Negative flame-off unit

F & K 67 kHz US standard, 120 kHz

or 140 kHz optional

Wire diameter 17.5 ... 50 μm

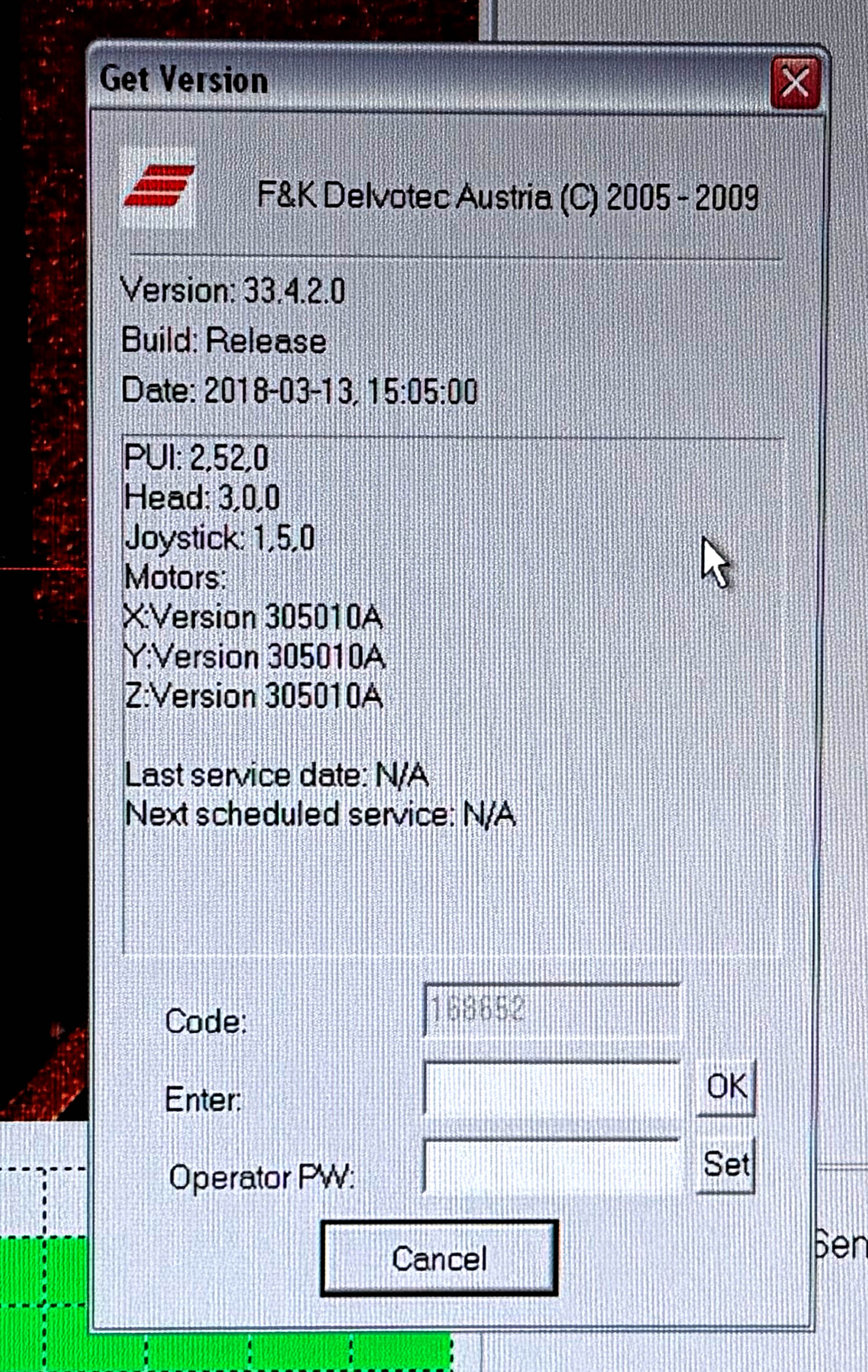

Control

OS: Windows XP

Heated work holder

Standard 4x4“ (200°C)

(optional: Ø 80mm and up to 250°C)

Head Parking System

For storing of temporary not required bondhead or pull- and shear-heads.

Can be mounted on the left or right side of the machine

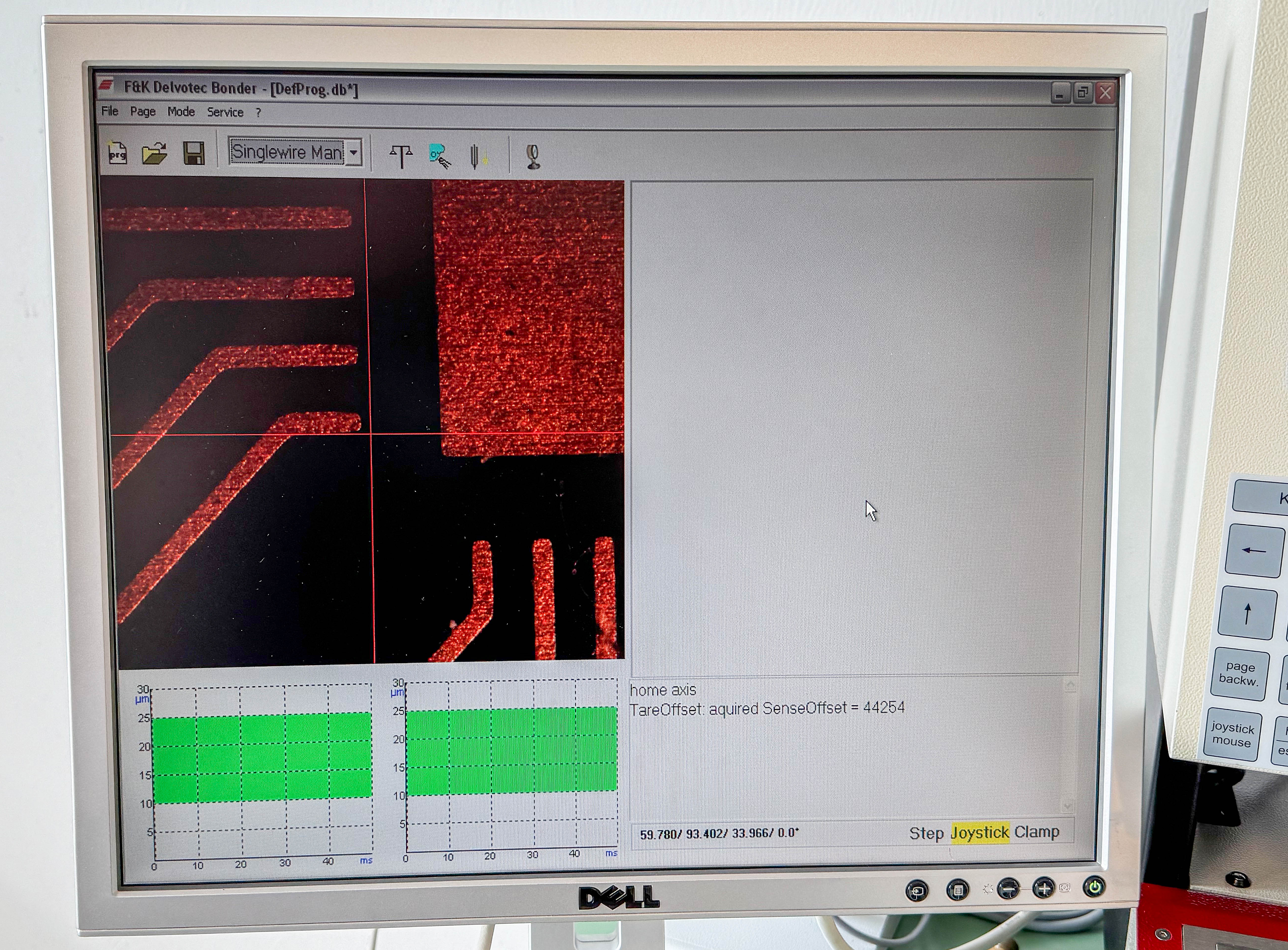

Camera

With cross hair targeting for positioning of bonds

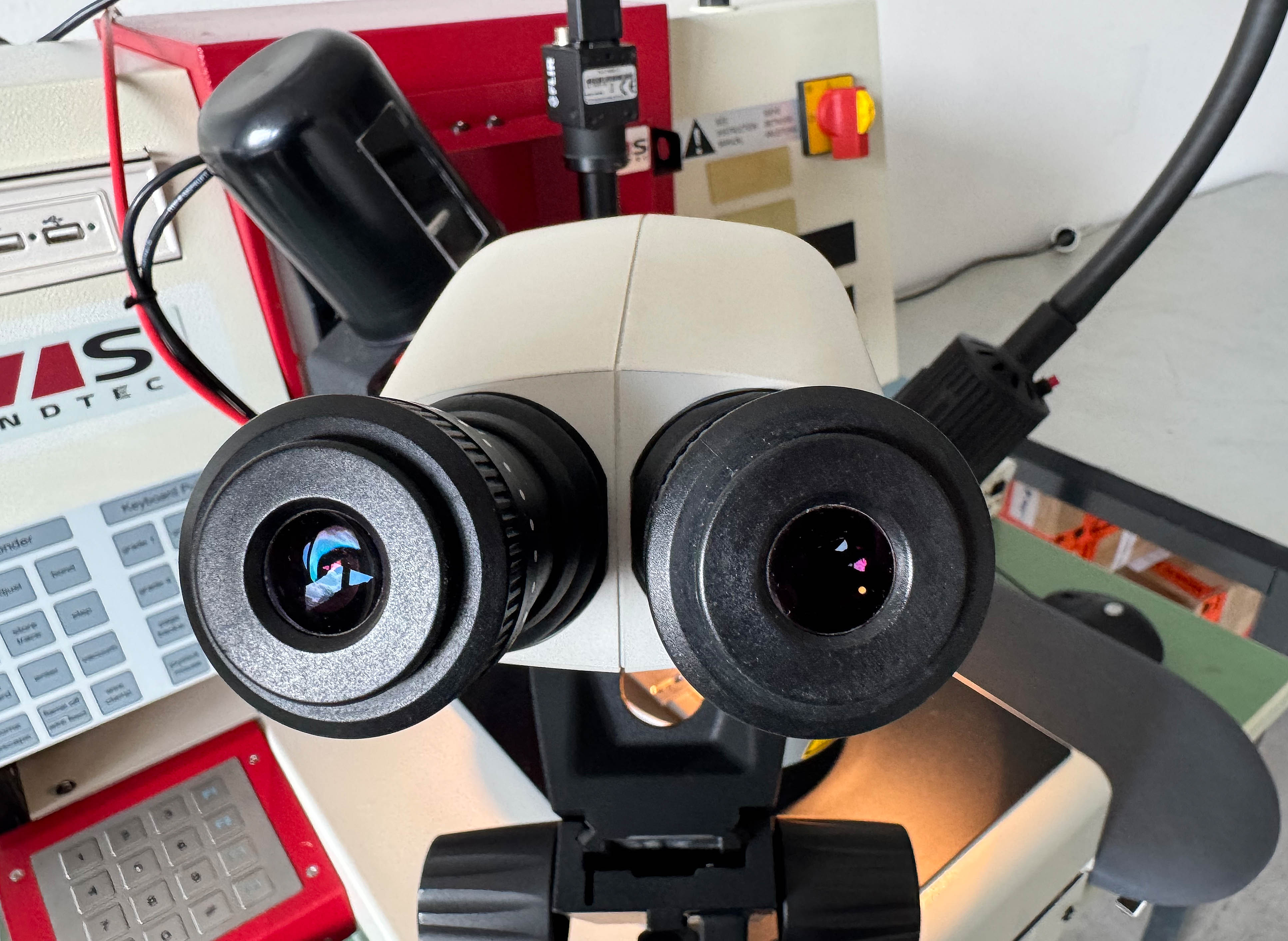

Microscope

Stereoskop Standard 40x

Lighting

20 W halogen spot light and LED direct light

Dimensions

Height 70 cm, width 70 cm, depth 65 cm; approx. 70 kg

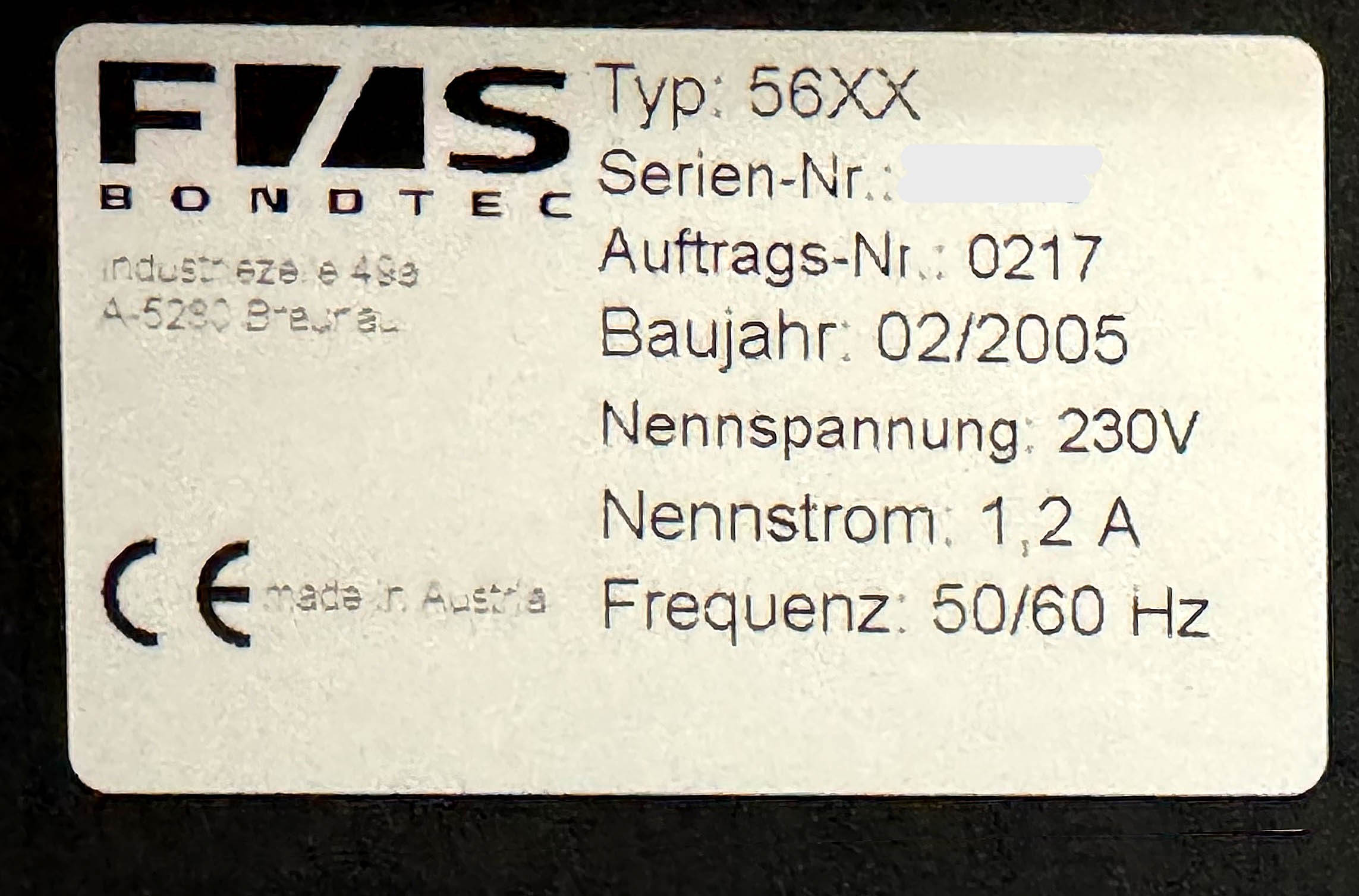

Supplies

100...240 VAC, single-phase, 50/60 Hz, max. 500 VA

Connections

Air 6 bar; vacuum 0,7 bar

Extra

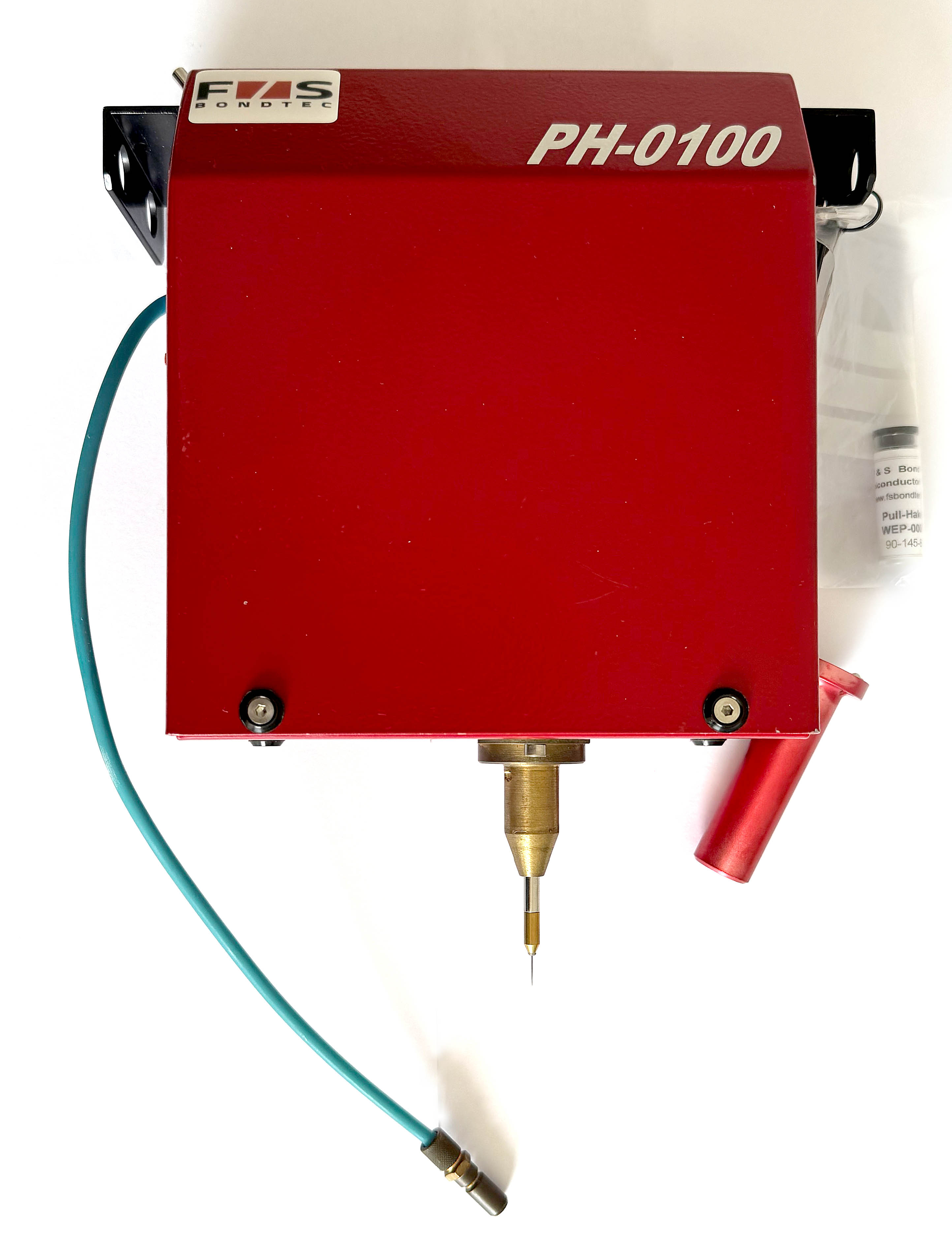

Pull head PH-0100

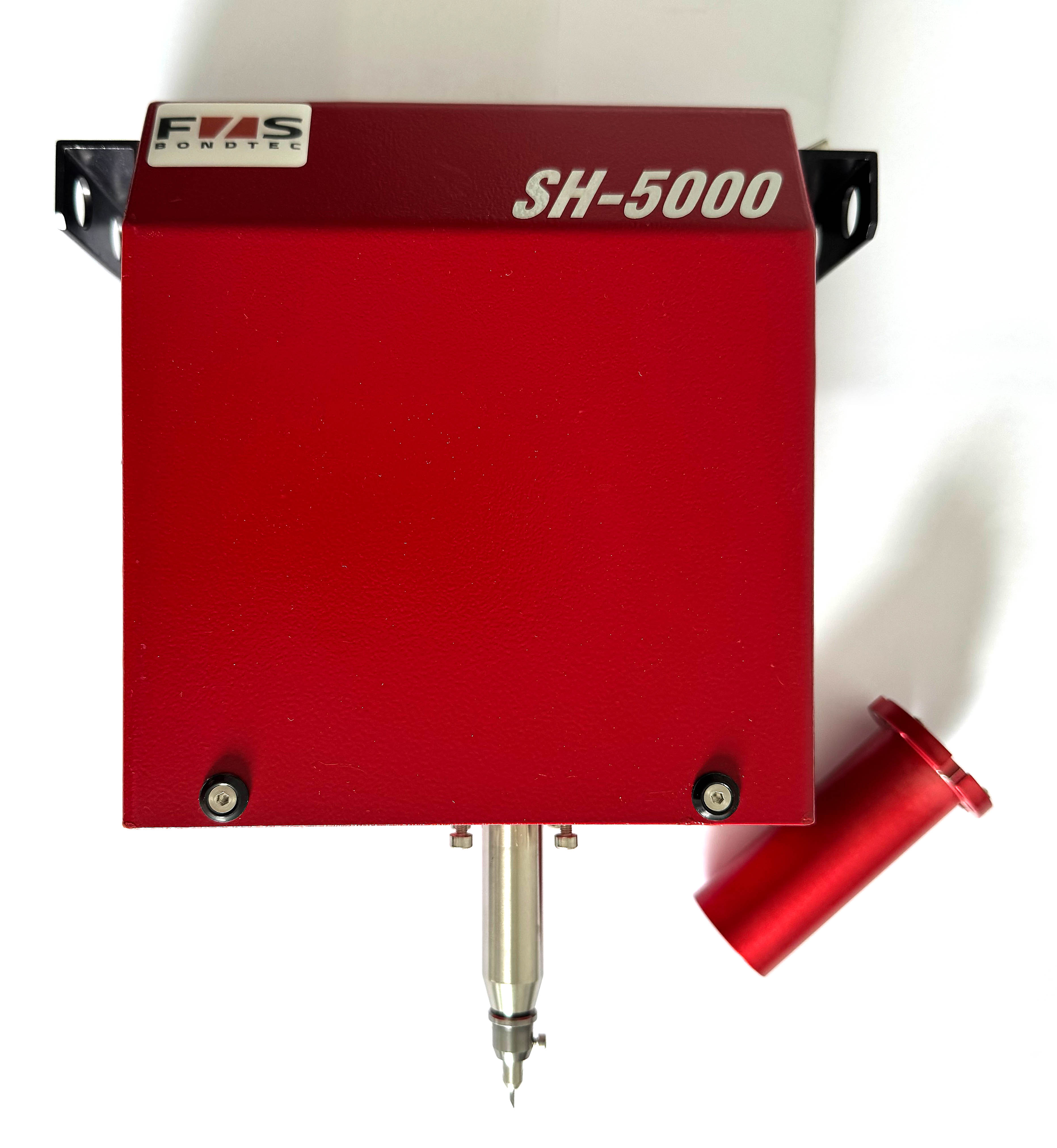

Shear head SH-5000

Condition:

Used, in good working condition
