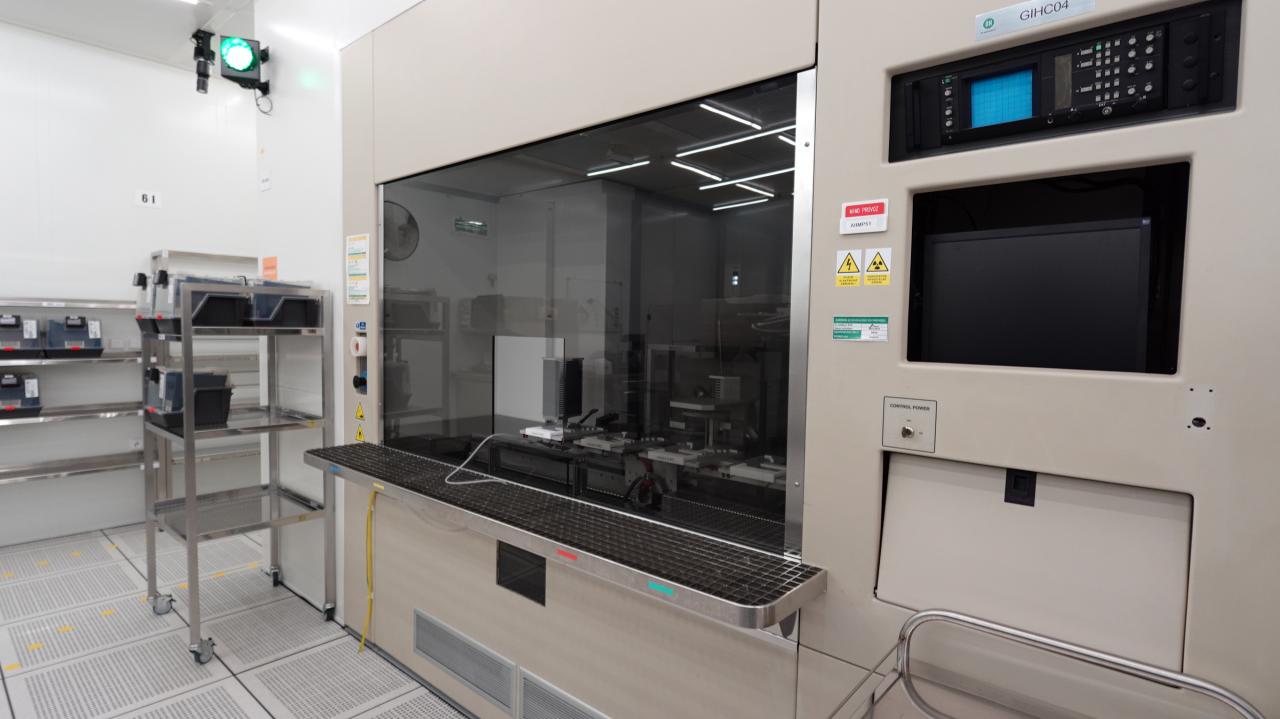

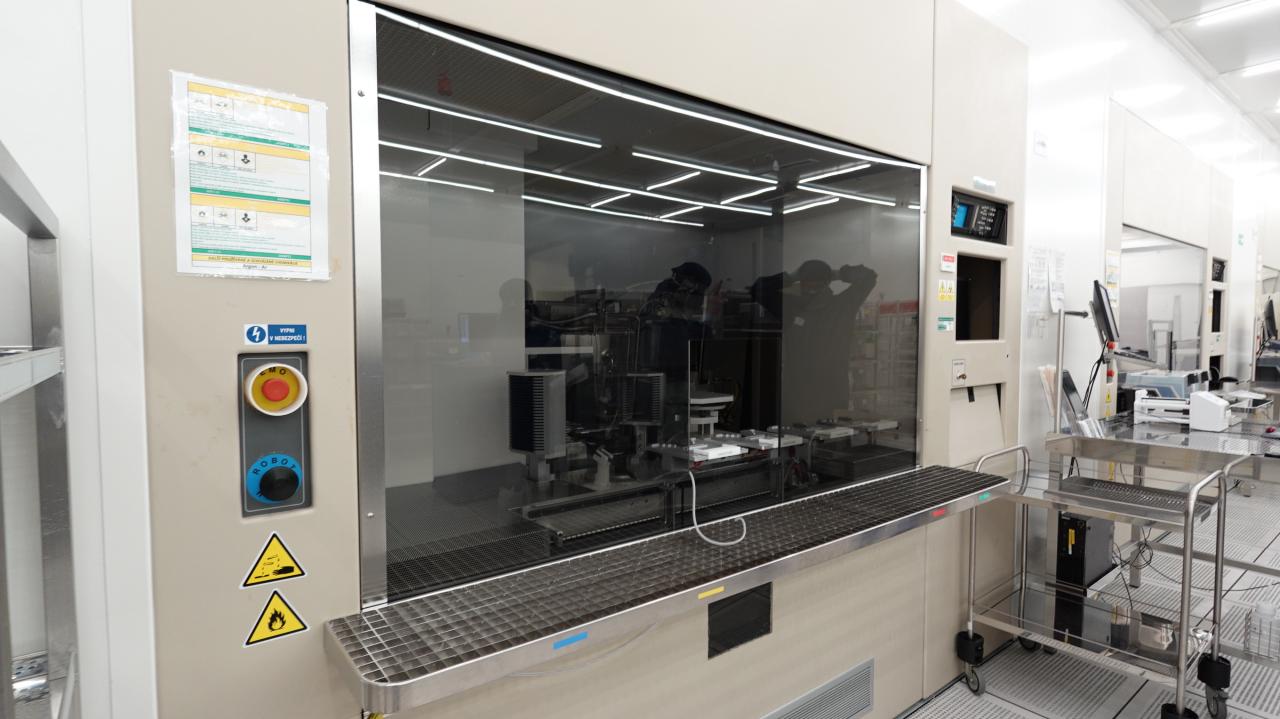

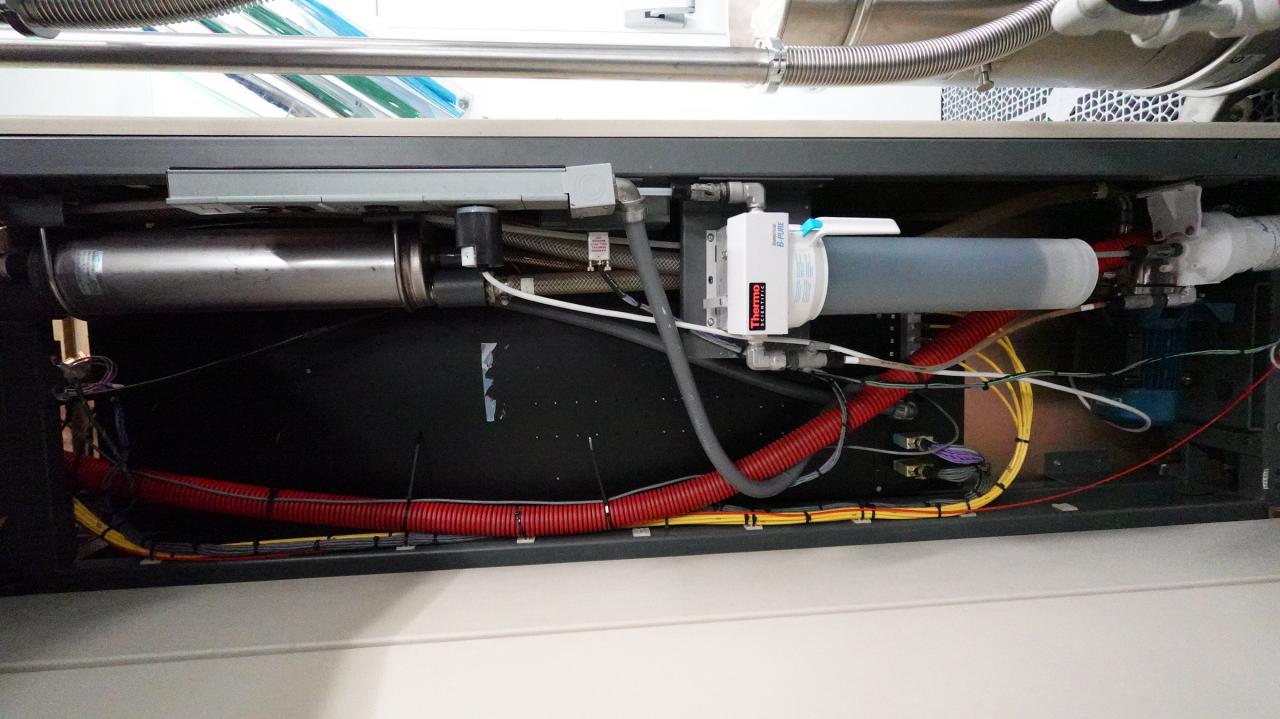

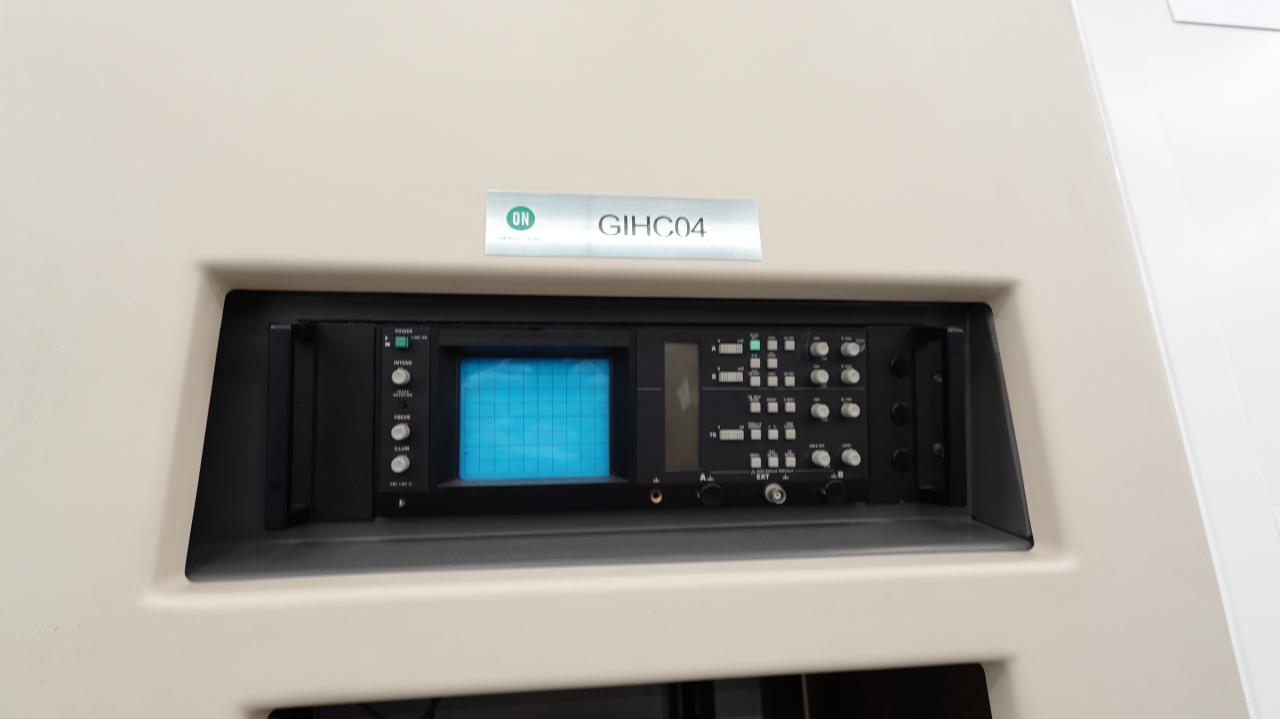

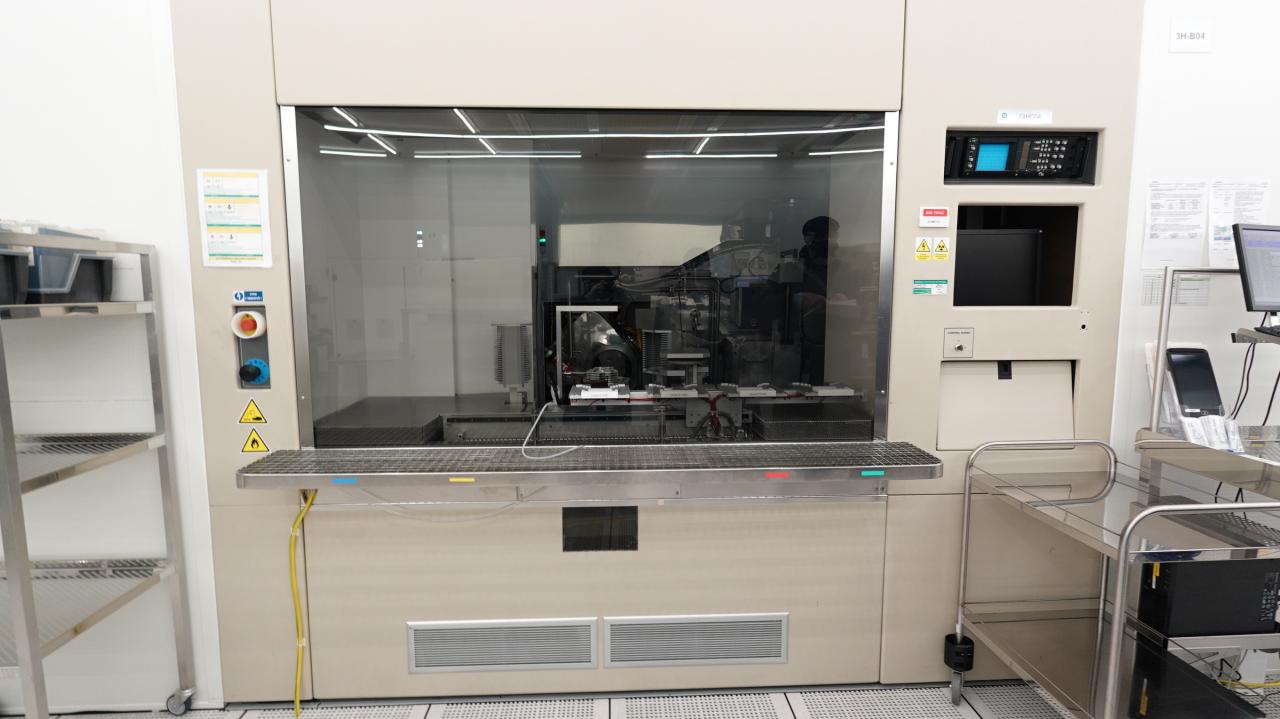

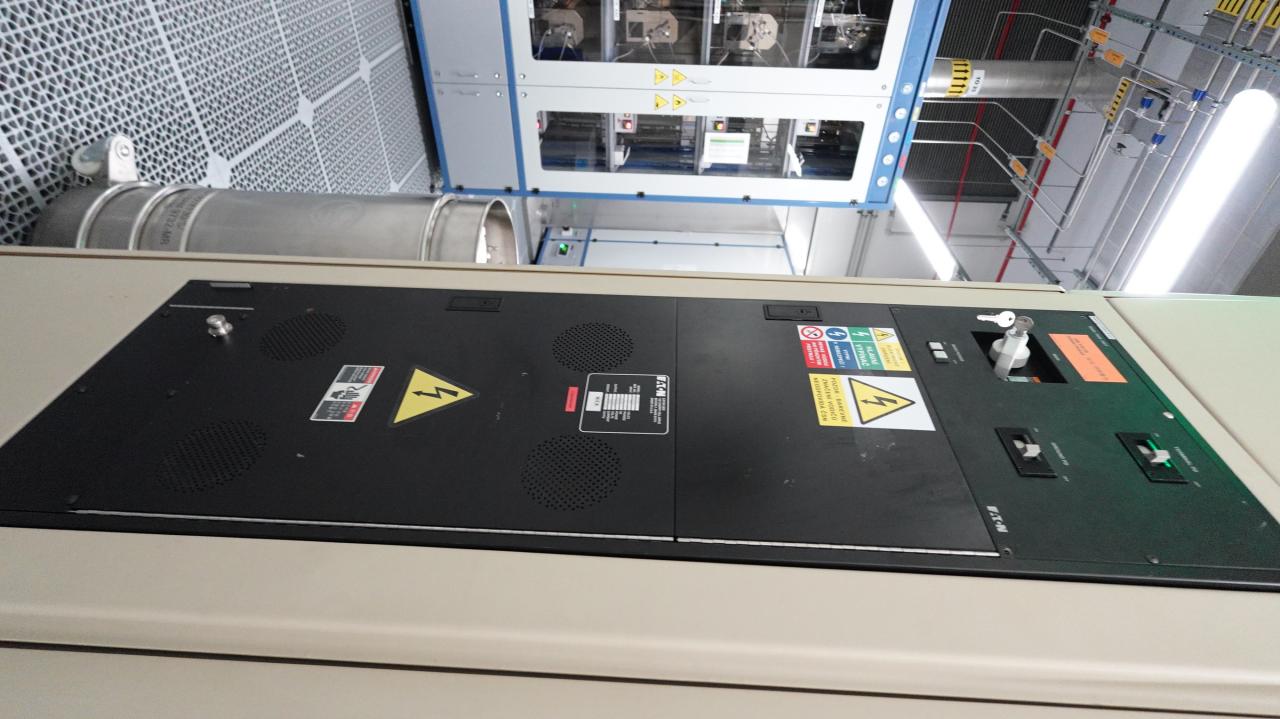

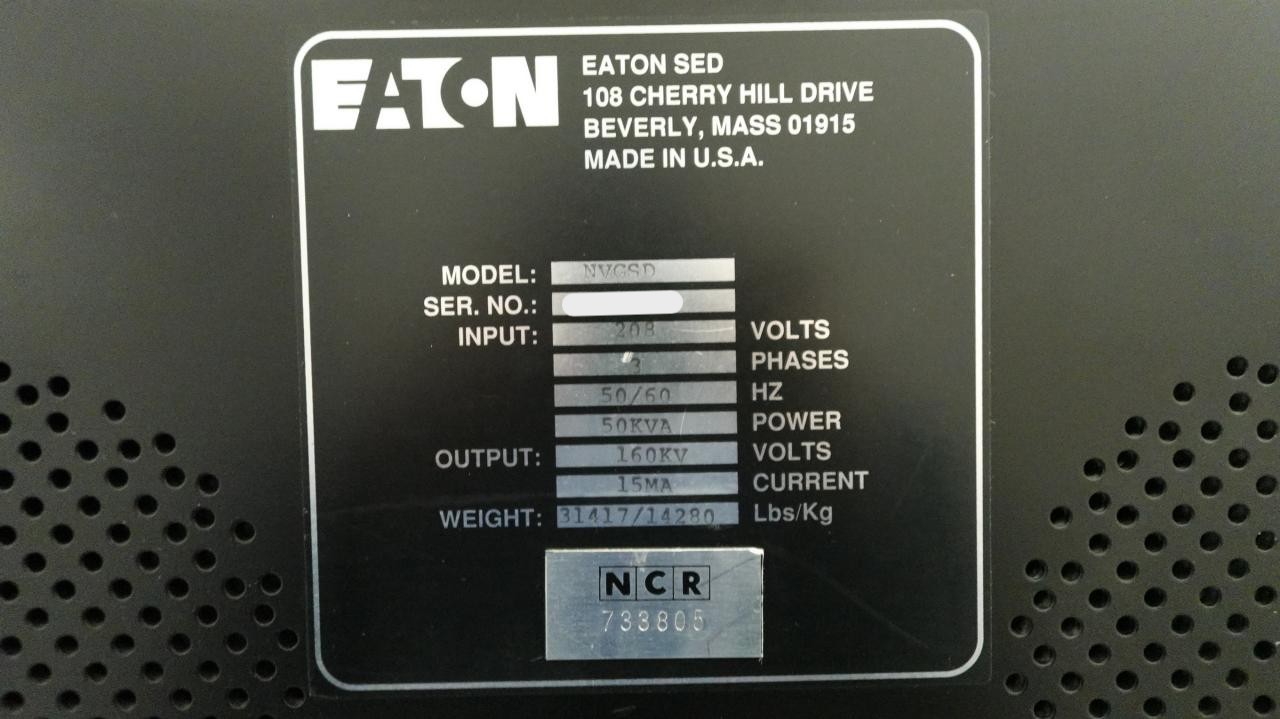

Axcelis Technologies Inc. / Eaton GSD 100

High Current Implanter

Ion Implanters

Currently Configured for: 150mm

In Fab - Disconnected, Decontaminated, Deinstalled

Date of Audit5-Aug-25

Wafer Size (inches)6

Loading ConfigurationOpen Cassette

Software Version6.12.4

Sun SPARCStation VersionNA

Automated Beam tuning and Set-Up w/Eaton AutotuneYes

Is System On-Line?No

Off-Line Date (if applicable)Never in production

CE Mark Certified? No

OEM Audit Available?NO

Can Produce Wafers AS IS? No

Any Known Field Modifications? No

All Cables Present?YES

GEM/SECS Interface Yes

SECS II Interface No

System ConfigurationModel Type

High CurrentGSD-200E

Beamline VersionSTANDARD

Block Upgrade

Energy Range160KeV

Key Common Options Included?

Clean Room ManualsNo

Standard ManualsYes

Fab Starter KitNo

Fast Maintenance KitNo

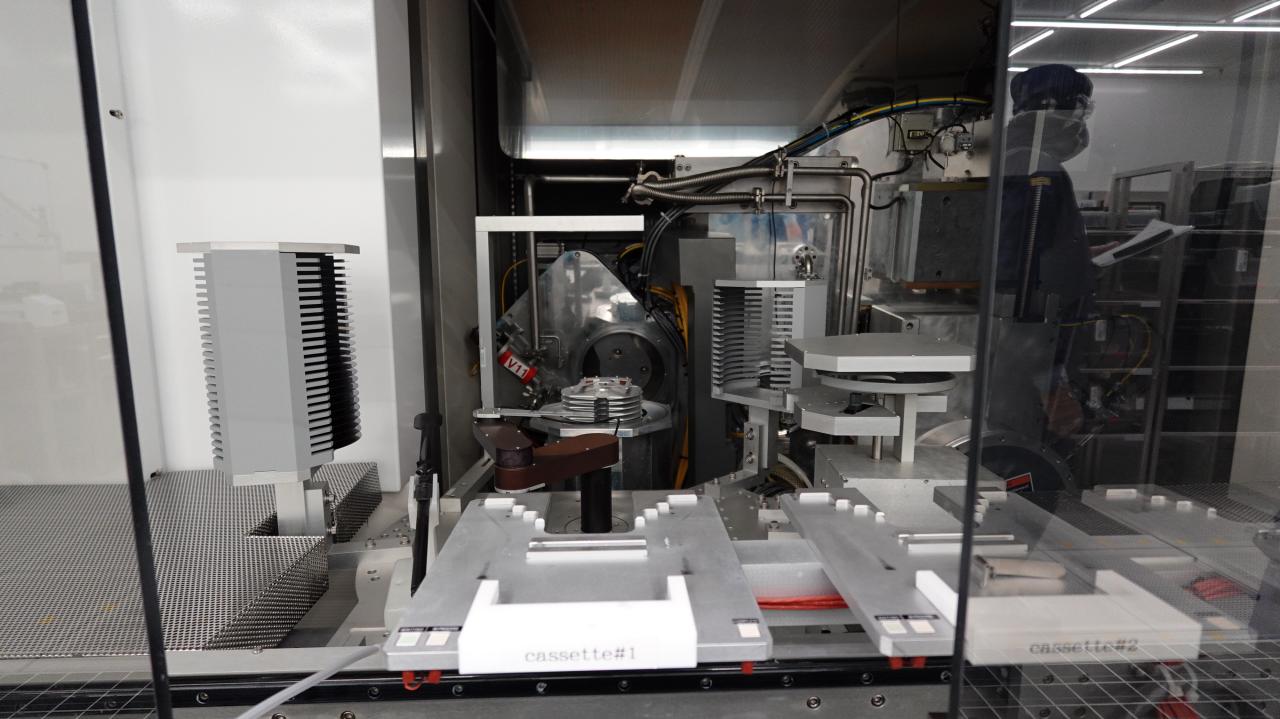

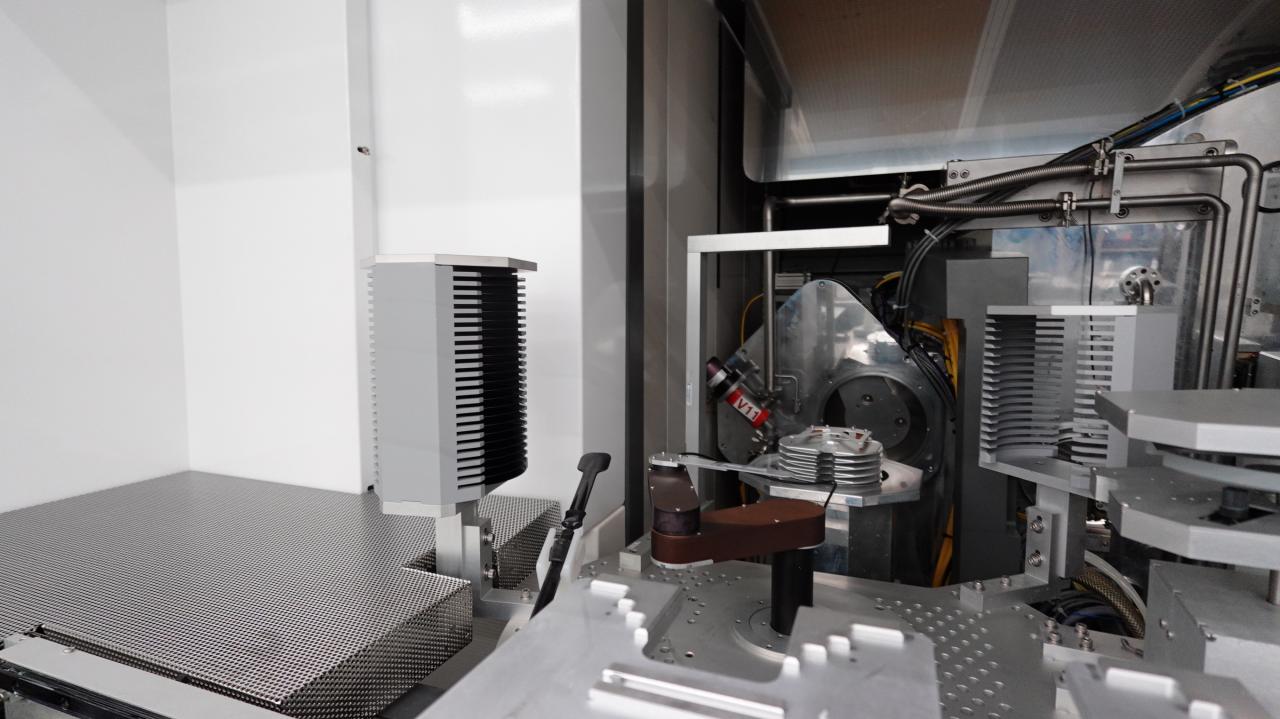

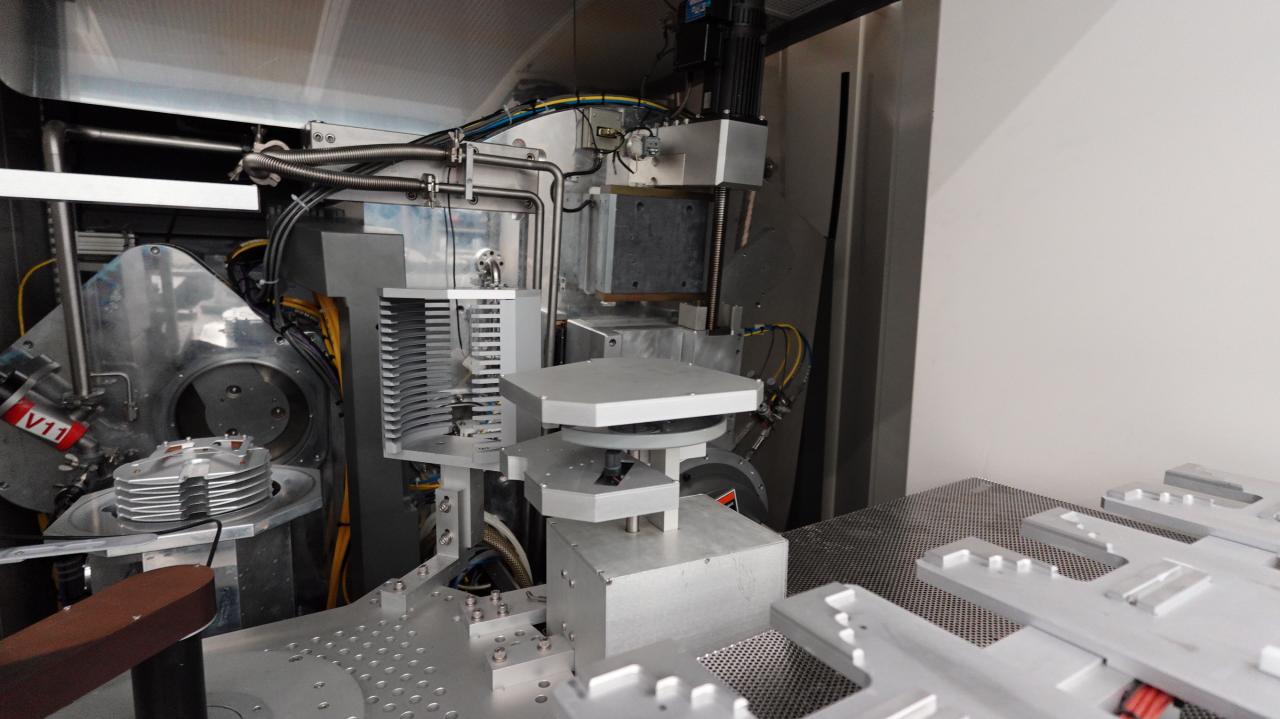

Wafer Handling  Wafer top-side Bar code reading system capability No

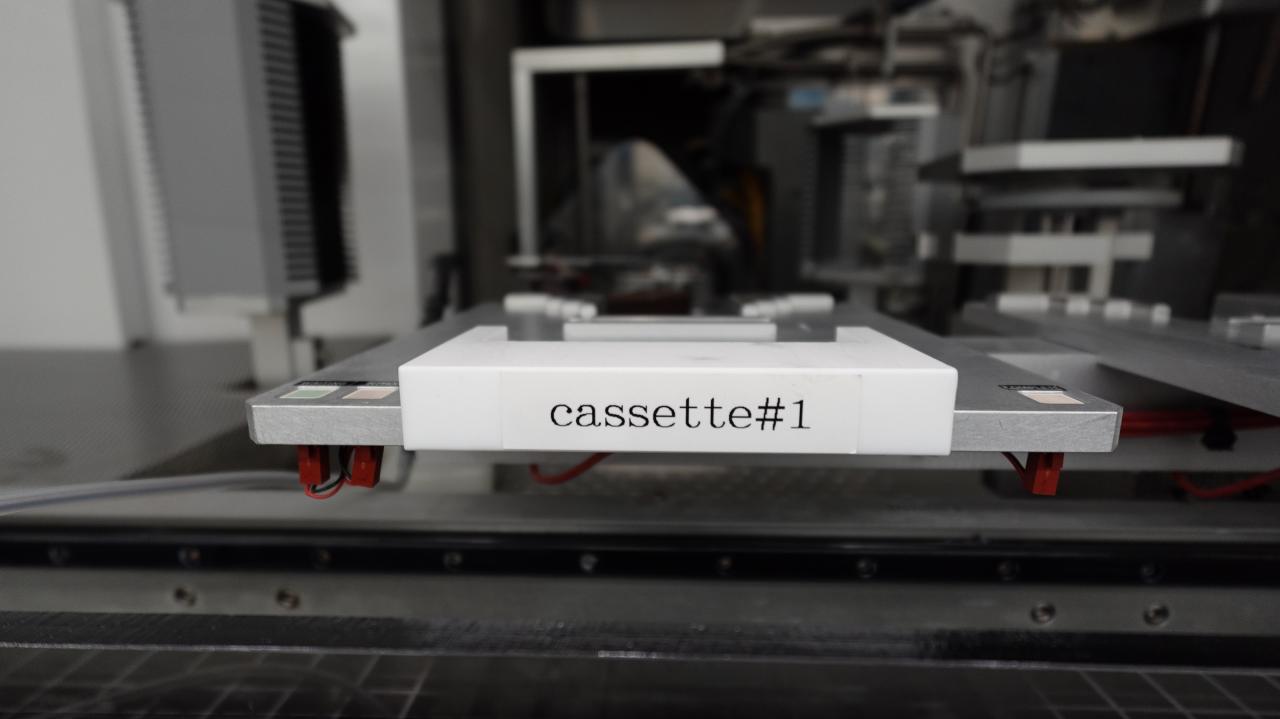

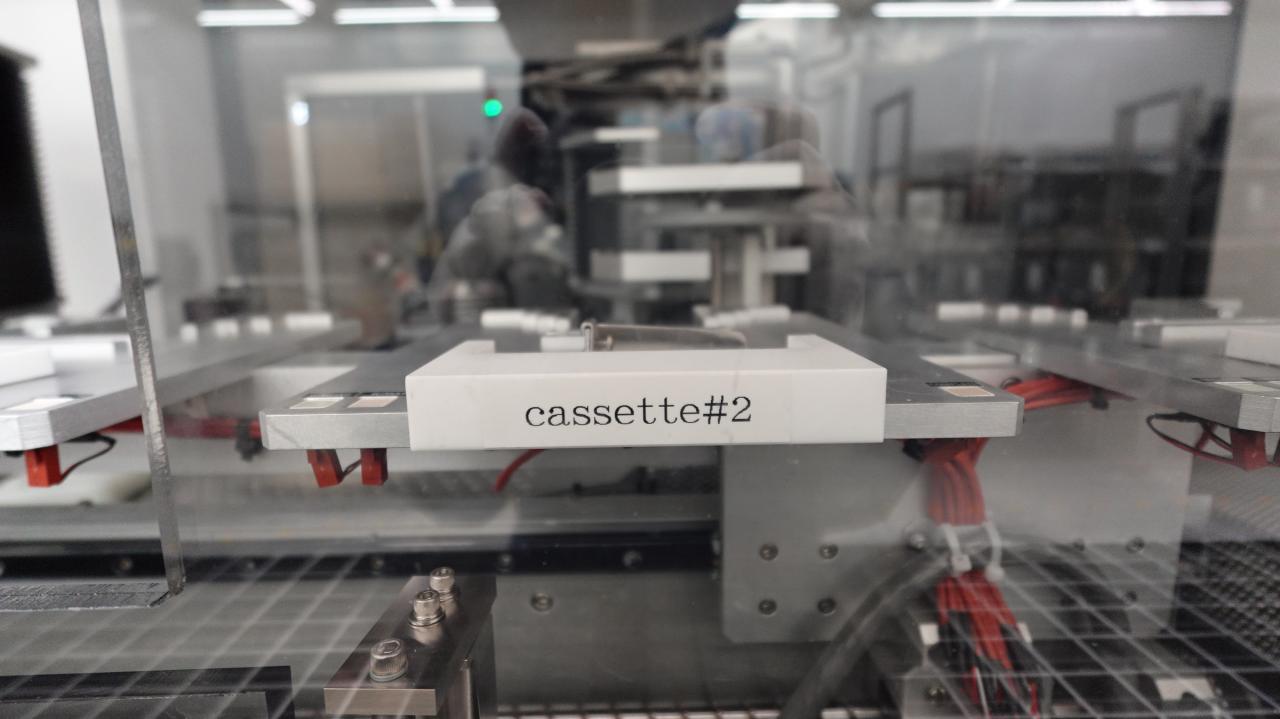

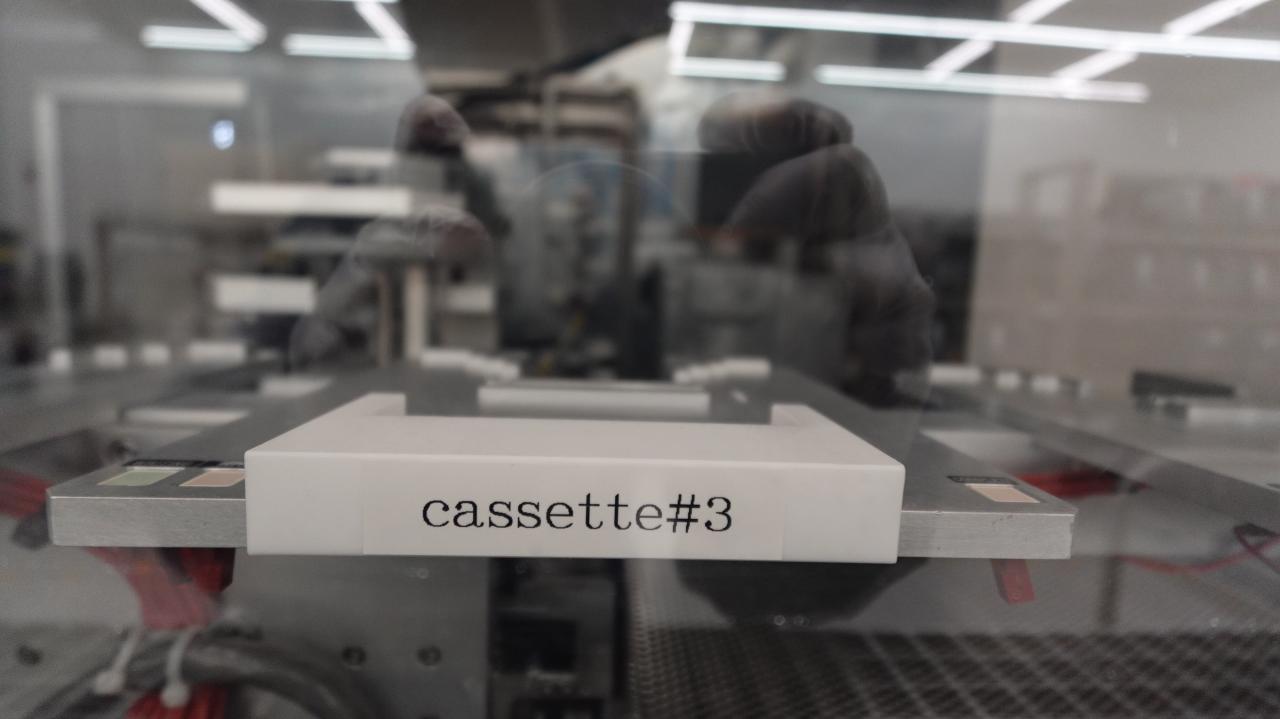

4-Cassette Capability Yes

Automatic Flat or Notch Alignment Capability w/buffer cassetteYES

Slot-to-Slot Wafer Integrity (200mm only) No

Direct Rotory DriveYES

Two Axis Variable Implant Angle (+/- 11 Degrees in two axis) (Quad Implant Capability)No

NV-GSD 200 Series Process Disk w/Active Cooling & ChillerYes

Real-Time Dose ControlNo

Real-Time Beam ProfilerNo

Electron Shower w/Gas Bleed and Closed Loop ControlNO

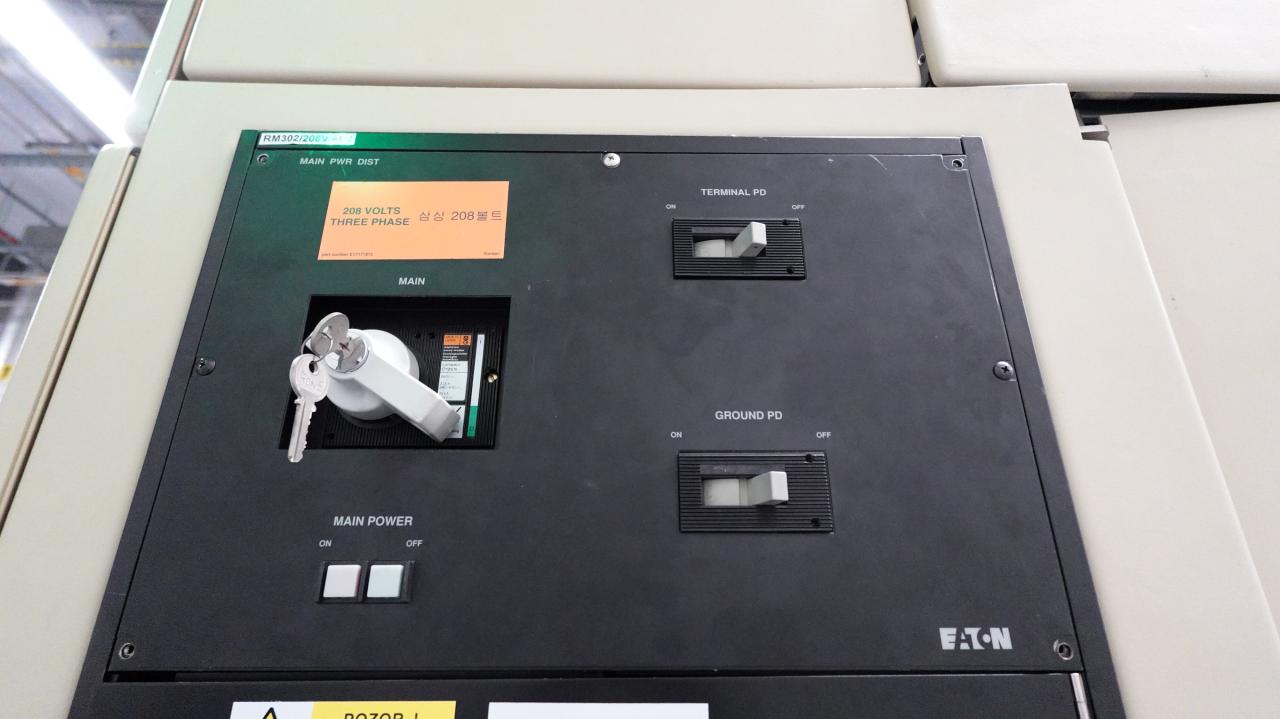

Machine Configuration UPSNo

Enhanced Low Energy BeamlineNO

Single Stage Extraction80keV

Triple Indexed Mass Analysis Magnet & Power Supply No

POST ACCEL ELECTRODE ASSY80keV-160kV ONLY

Ion Source TypeELS

Source Material TypeMoly

VaporizerNONE

Variable Aperture Extraction ElectrodeNo

Flag Faraday InjectorYes

Three Position Resolving Aperture (90keV only)No

In-Situ Wafer Charge MonitorNo

In-Situ Particle Detector HYTNo

Signal TowerYes

Lead Floor No

Beamline and Source Pumps

Source Turbo Pump (P1)STP A2203C2

Beam Line Cryo Pump (P3) CTI ONBOARD 10

End Station Cryo Pump (P2)CTI ONBOARD 8

Gas Type MFC Type and Model

ArTYLAN FC-2900MEP 5SSCMHP

BF3UNIT 1660 5SCCMSDS

AsH3UNIT 1660 5SCCMSDS

PH3UNIT 1660 5SCCMSDS

External Facilities ConnectionsAr | N2 | None

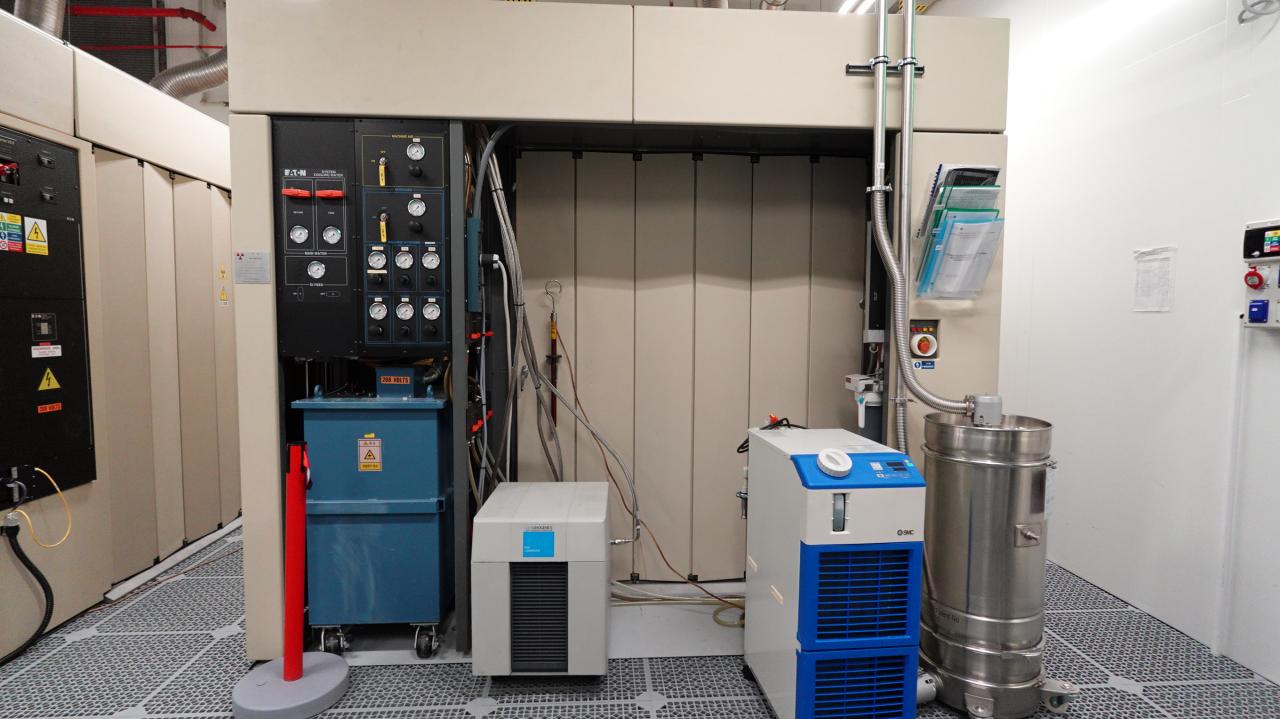

Support Equipment

Key Common Options

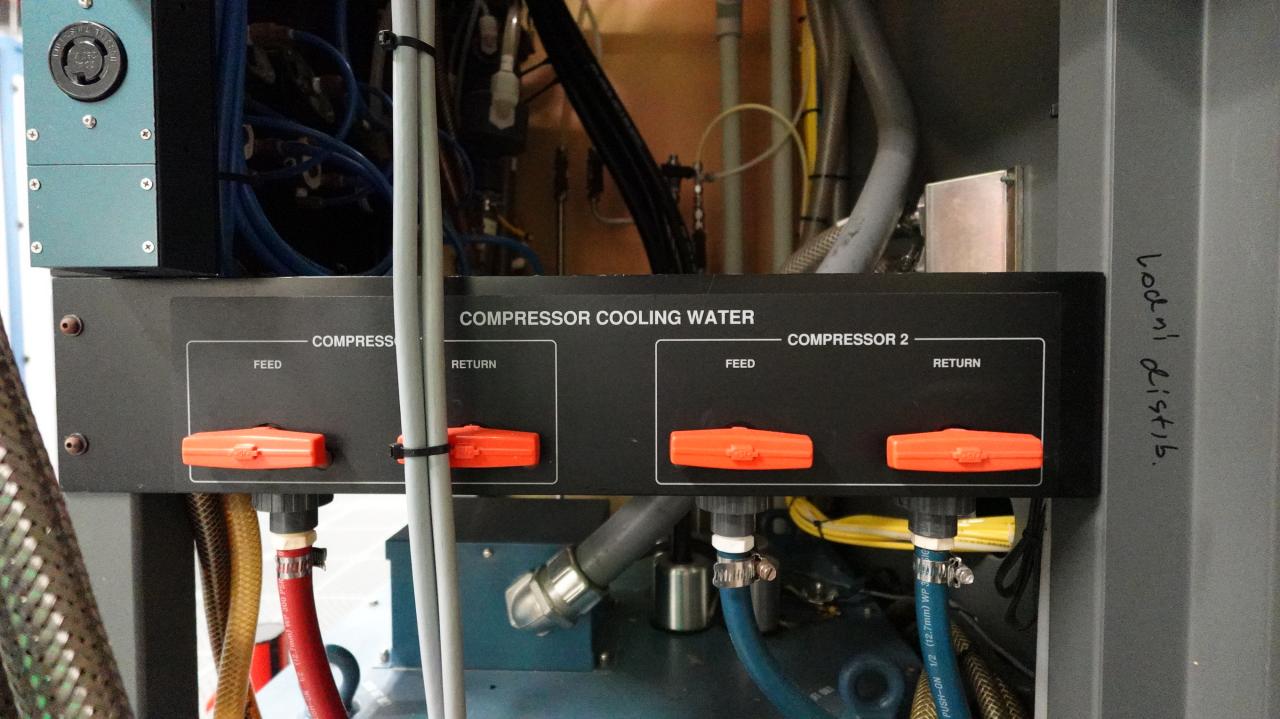

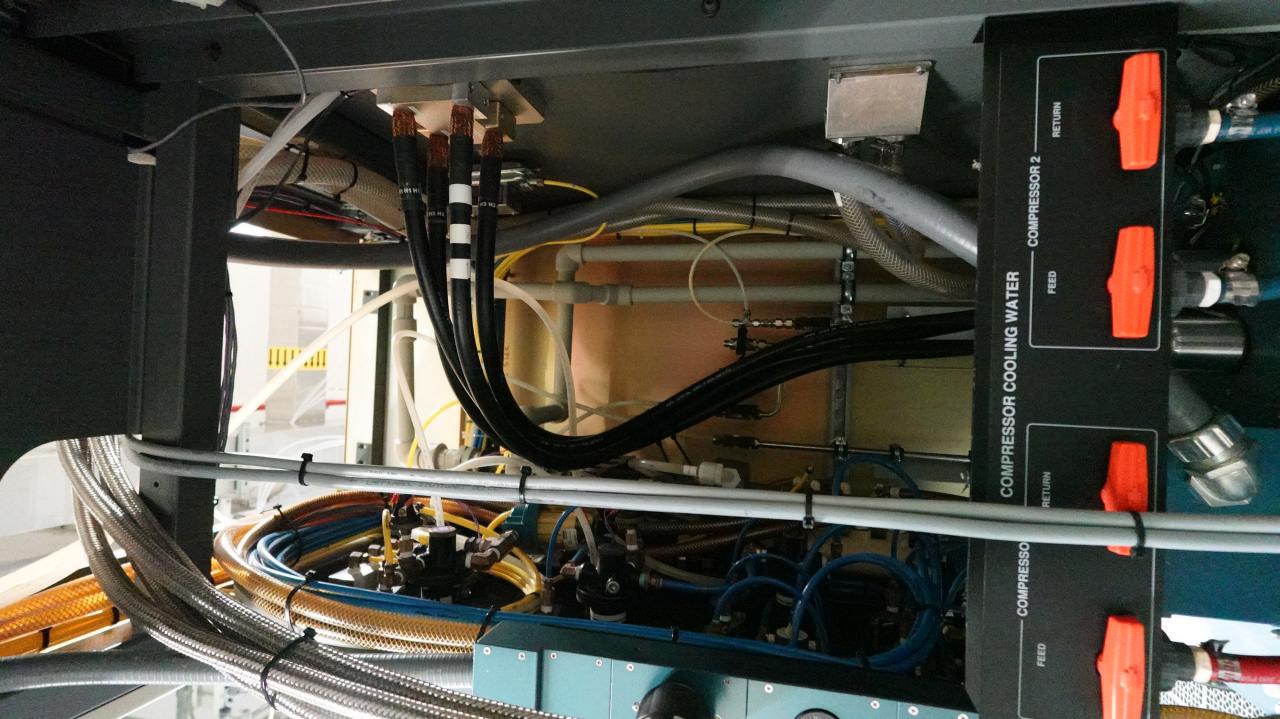

Cyro CompressorsYes

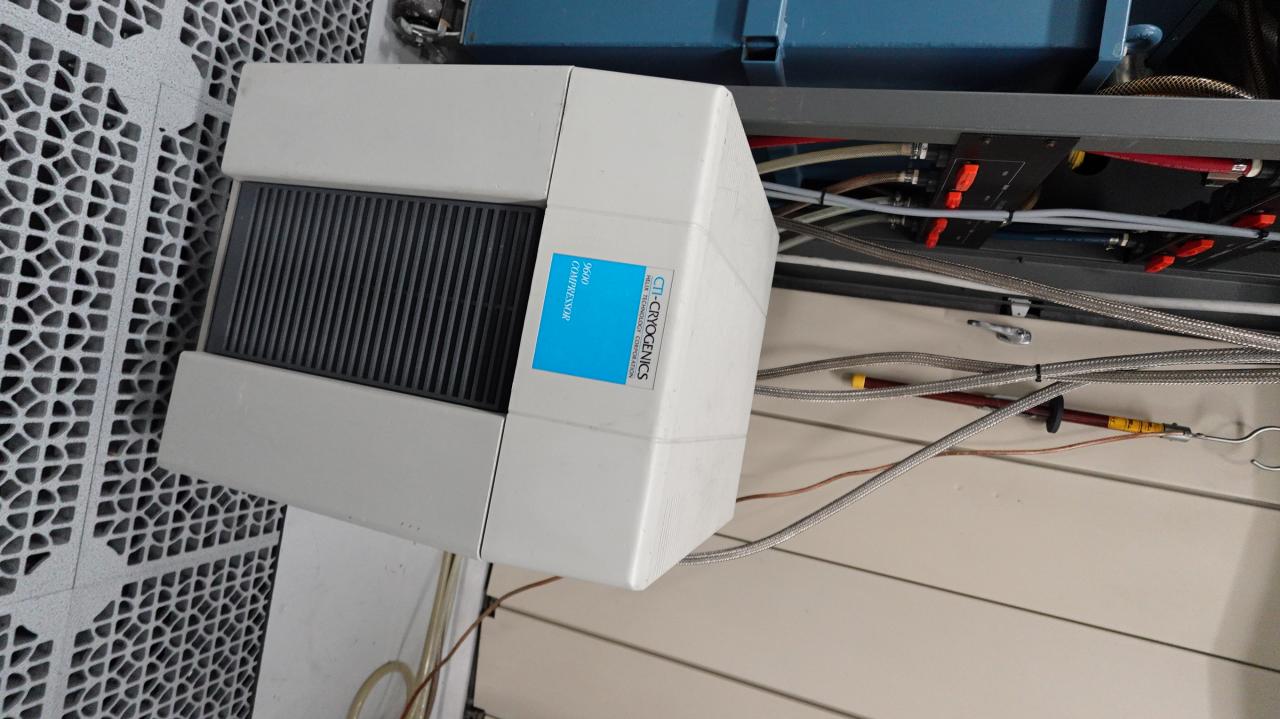

Manufacturer/ModelCTI 9600

Quantity1

Vacuum Pumps No

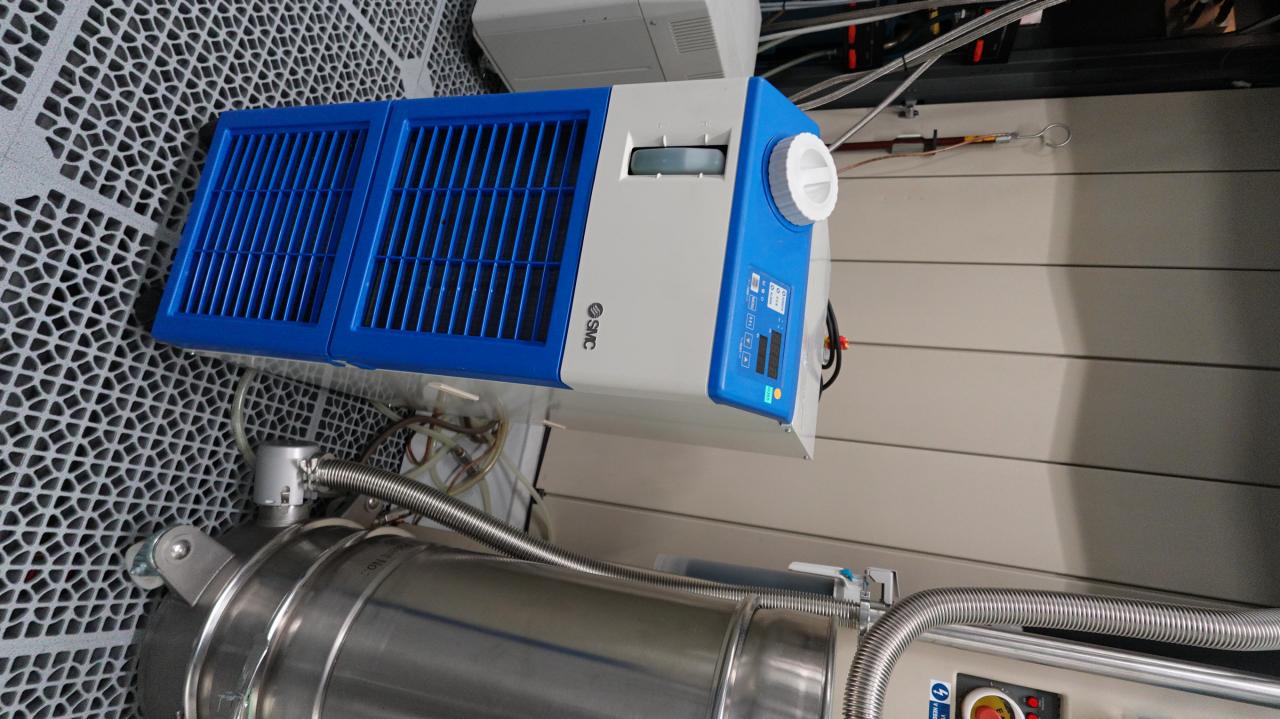

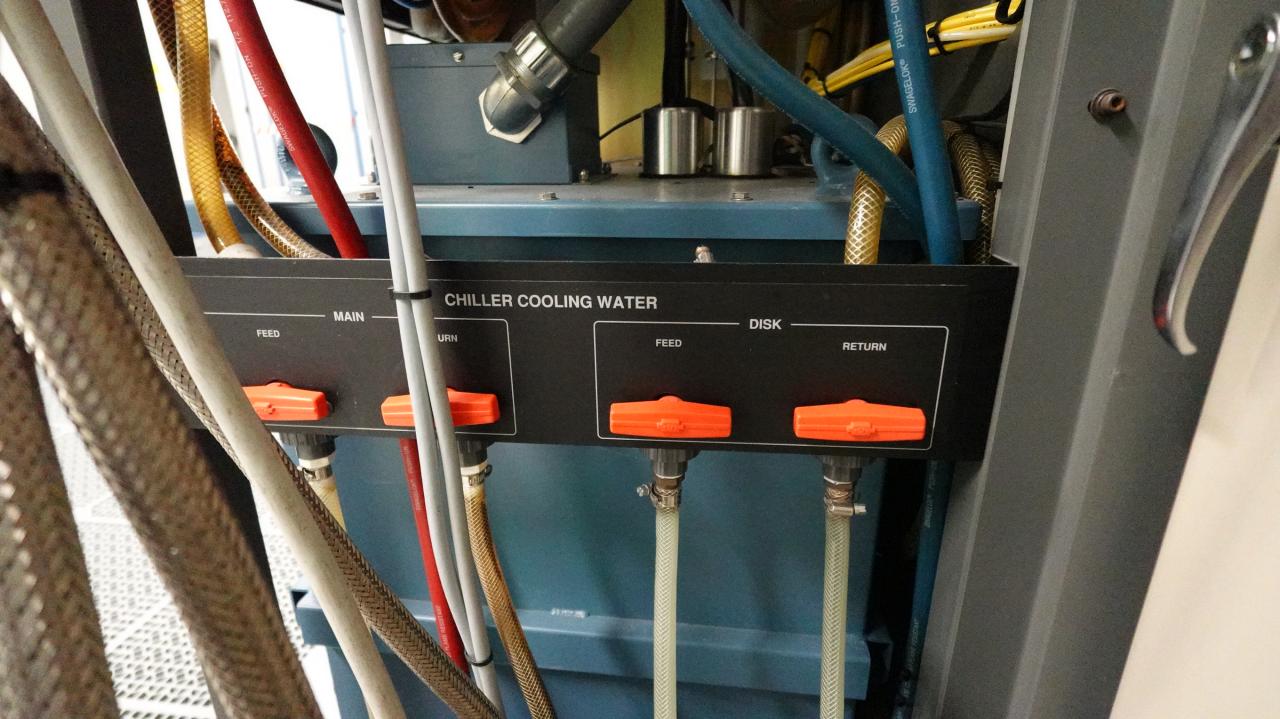

Remote Disk ChillerYes

Mfg and ModelSMC-HRS050-WF-20
