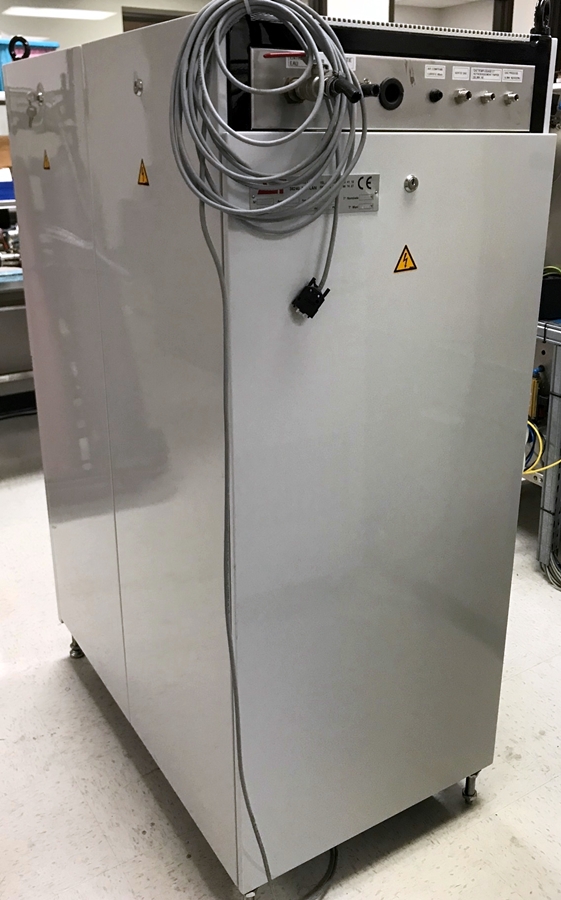

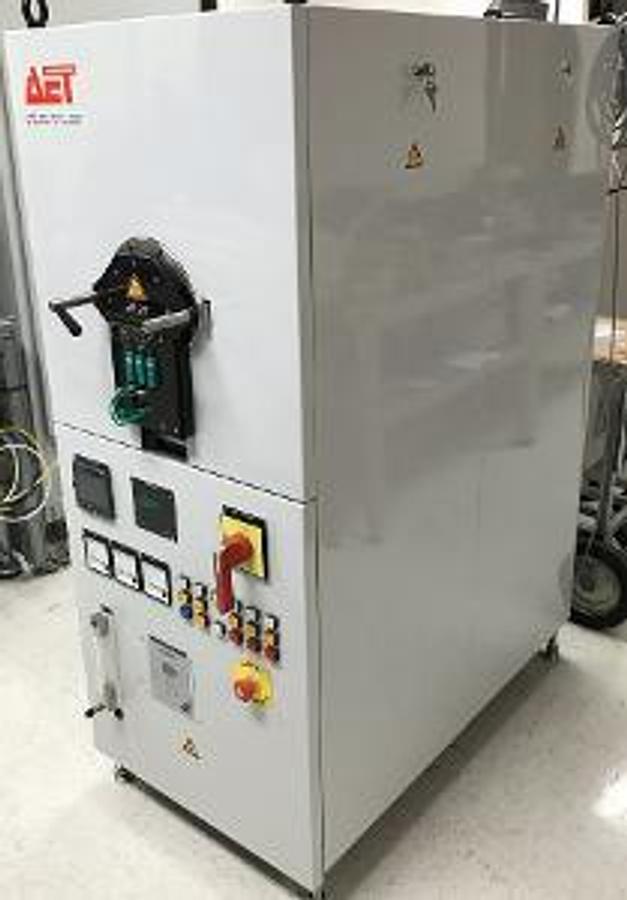

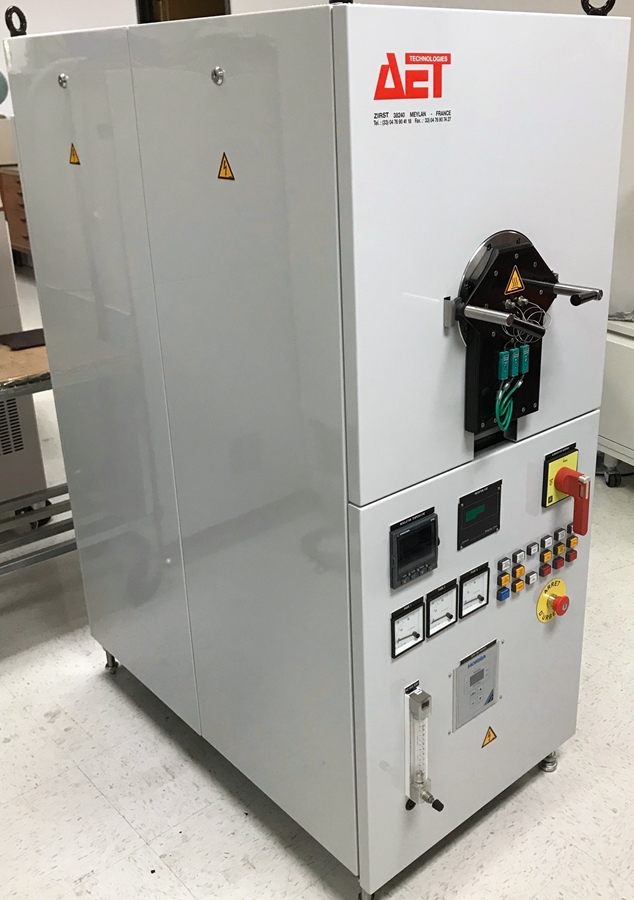

AET Technologies Rapid Annealing Furnace

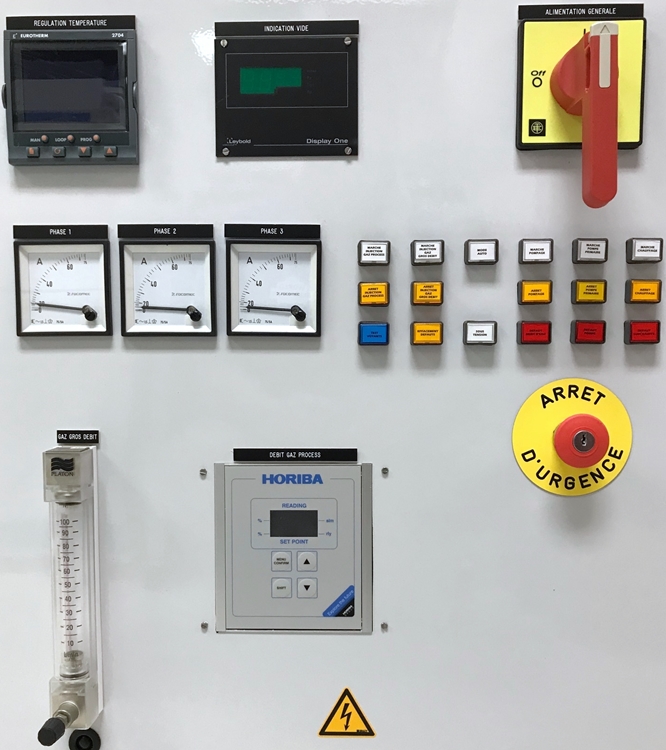

AET TECHNOLOGIES Rapid Annealing Furnace

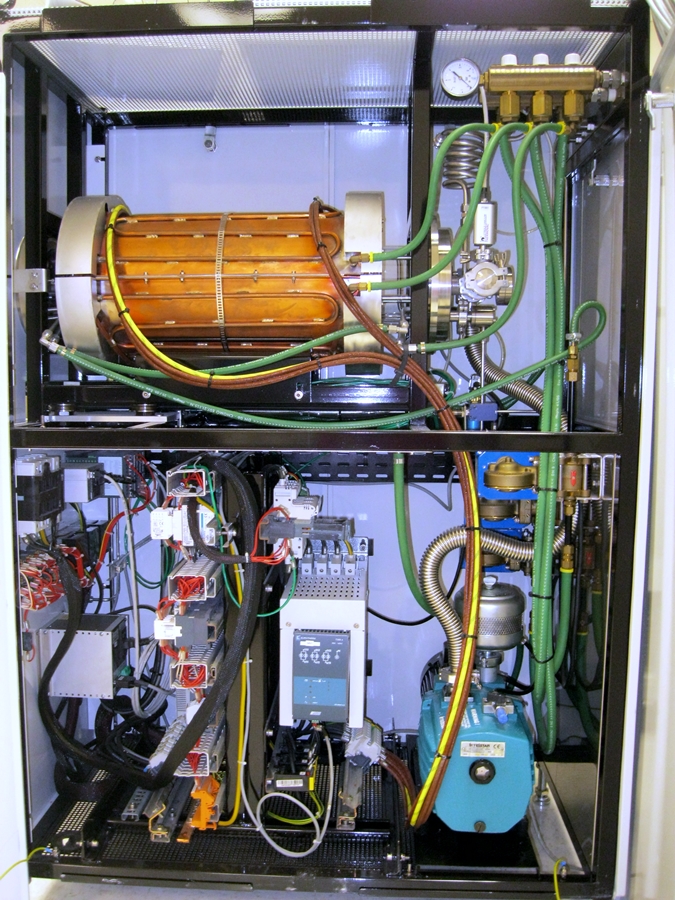

• 130mm (dia.) x 740mm (long) Quartz Annealing Chamber for 3” Wafers with 27ea IR Lamps

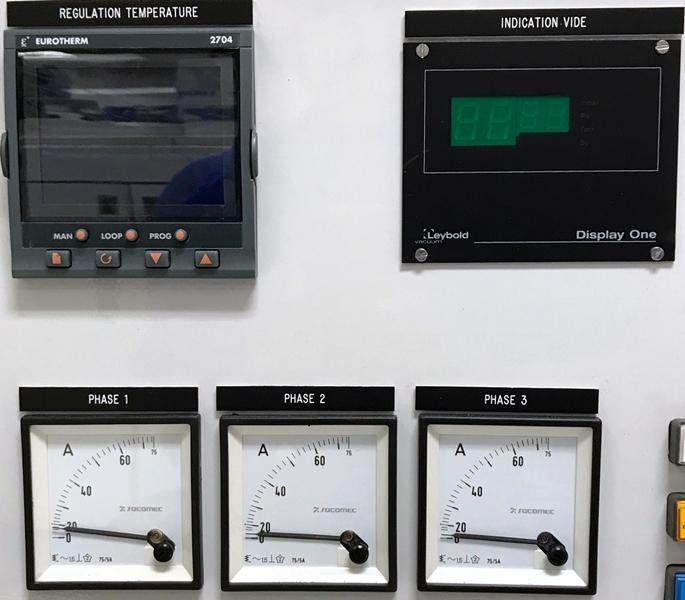

• EUROTHERM 2704 Advanced Multi-Loop Temperature Controller

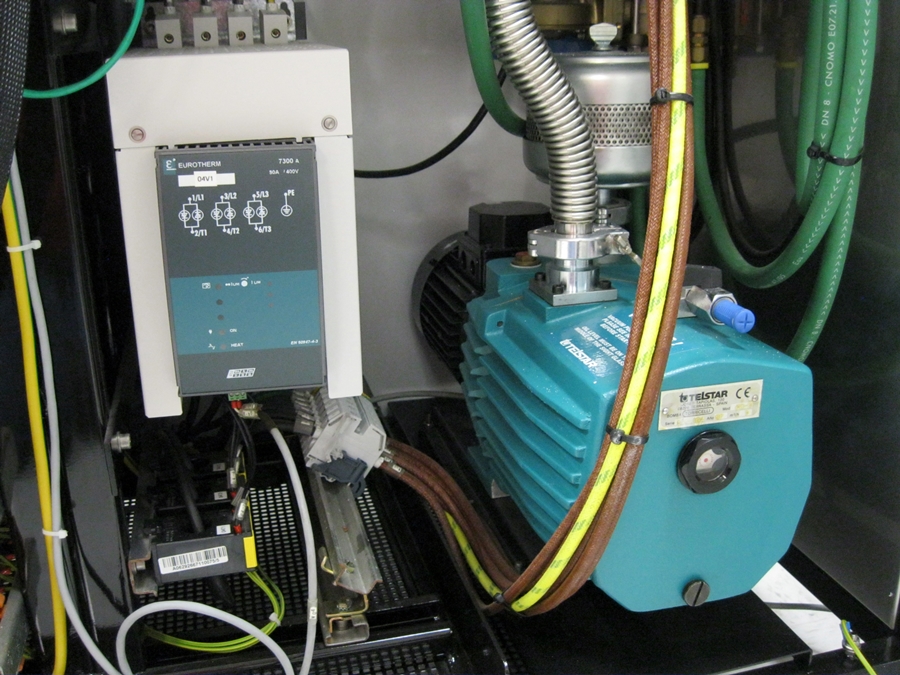

• EUROTHERM 7300A Three Phase Power Controller
• LEYBOLD TTR 91 S Thermovac Vacuum Sensor
• LEYBOLD Display One Single Channel Vacuum Gauge Display
• VAT 24428-KA31 Pneumatic HV Right Angle Valve
• TELSTAR RD-9 Vacuum Pump
• HORIBA SEC-E40 Mass Flow Meter

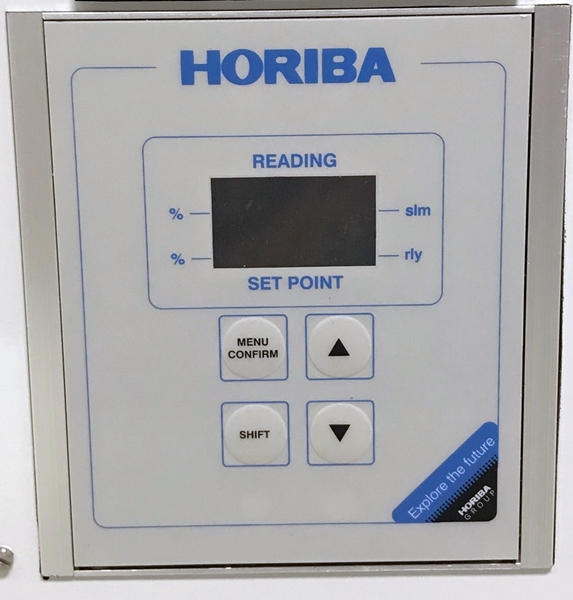

• HORIBA ROD-1 MB Modular Readout
• Type K Sheathed Alumina Thermocouples – System Control, Over-Temp Sense, User Sense
• Heating power: 50kW
• Input Power: 380-400VAC; 3Ph; 50Hz 125A

Accessories SiC Coated Graphite Susceptors

Manual

Other Information On consignment from IET

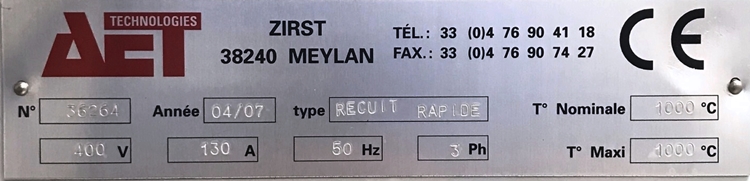

Power Requirements 380 V   125.0 A   50 Hz   3 Phase

CE Marked YES

Year of Manufacture 2007

Condition Excellent
