2018 ACI Automated Wet Processing System

OVERVIEW:

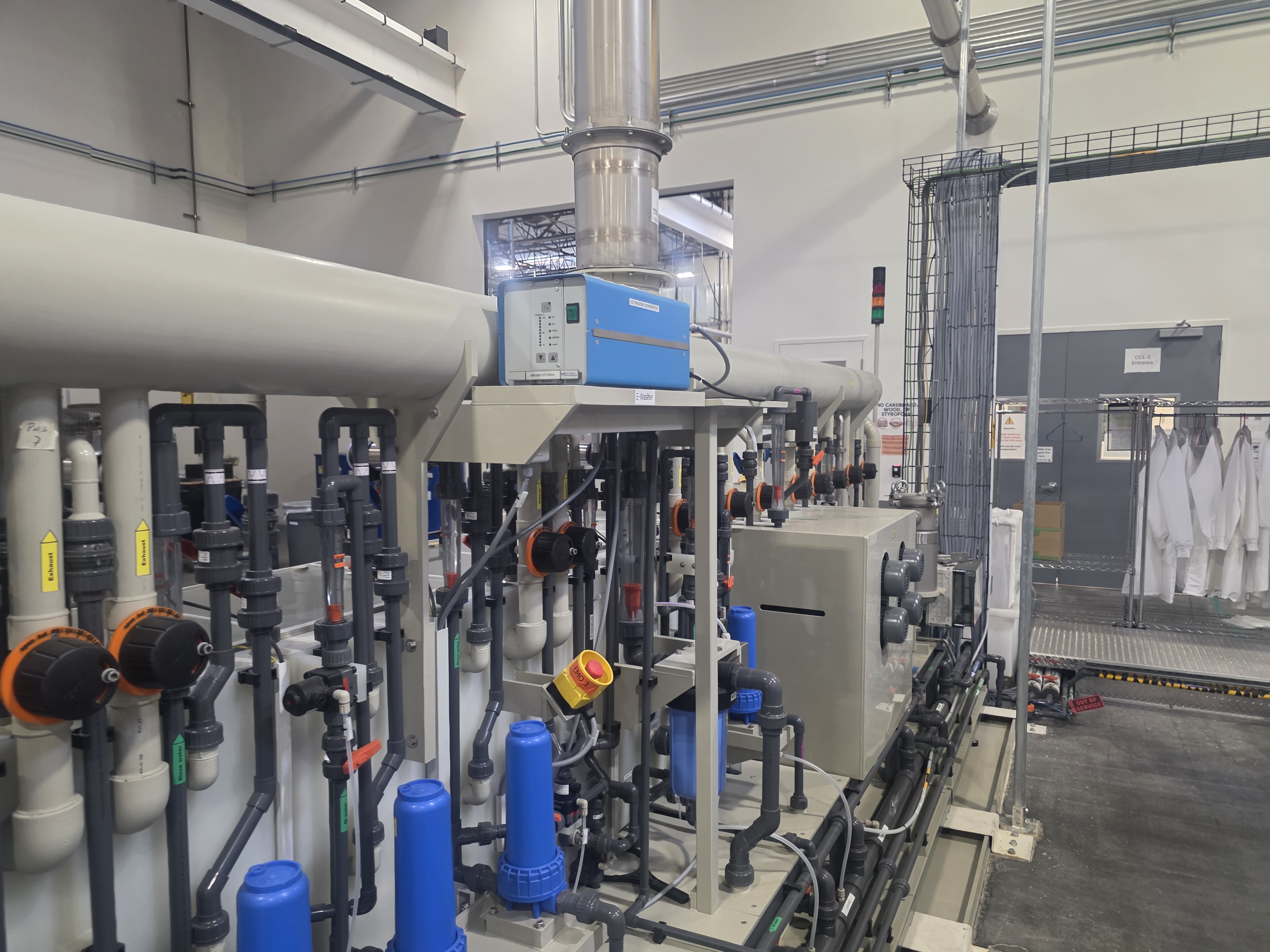

Modular inline wet processing system for high-purity manufacturing. Vintage 2018

Designed for Panel, Display, PCB, PV, battery, semiconductor, and precision component applications

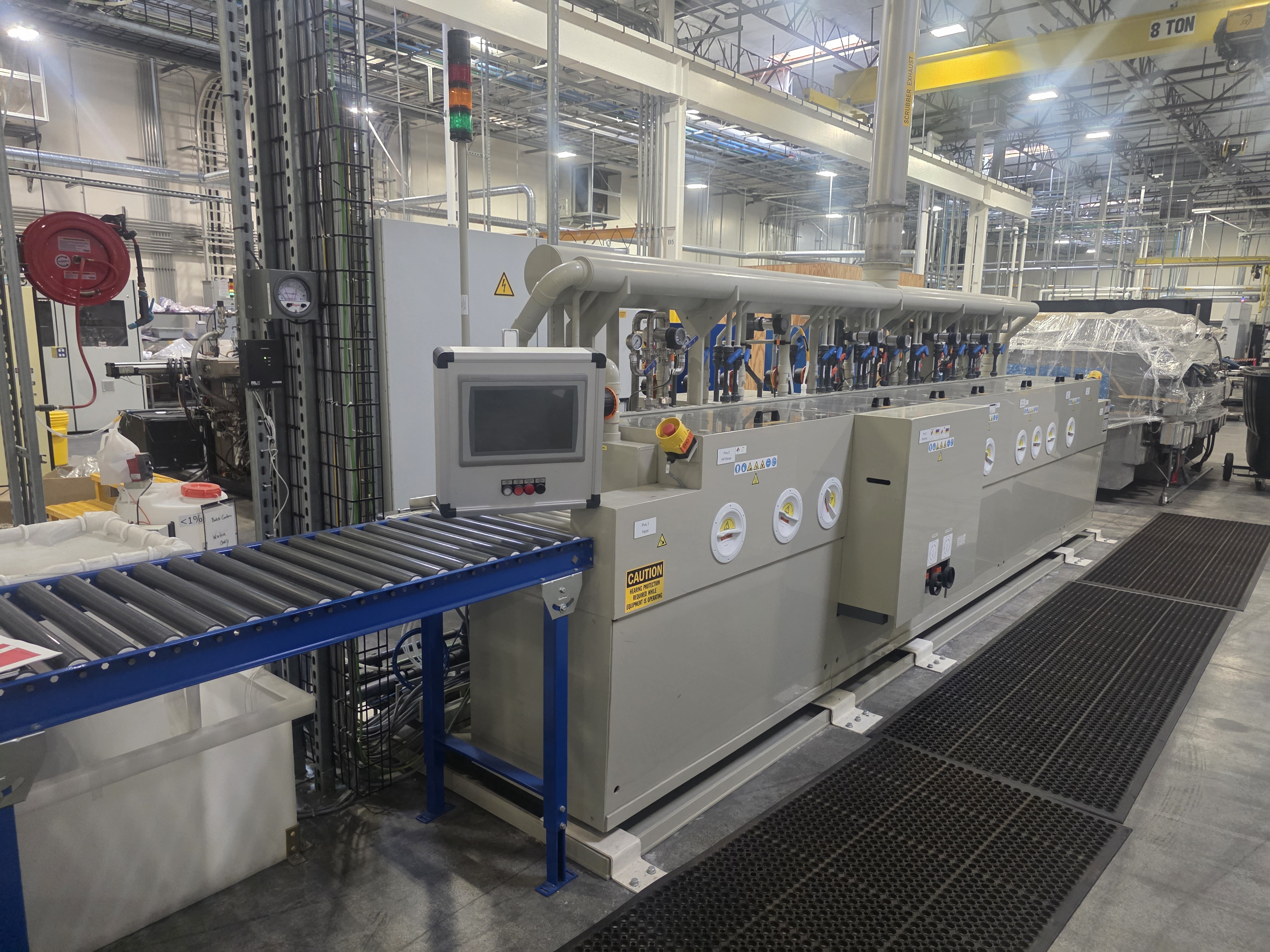

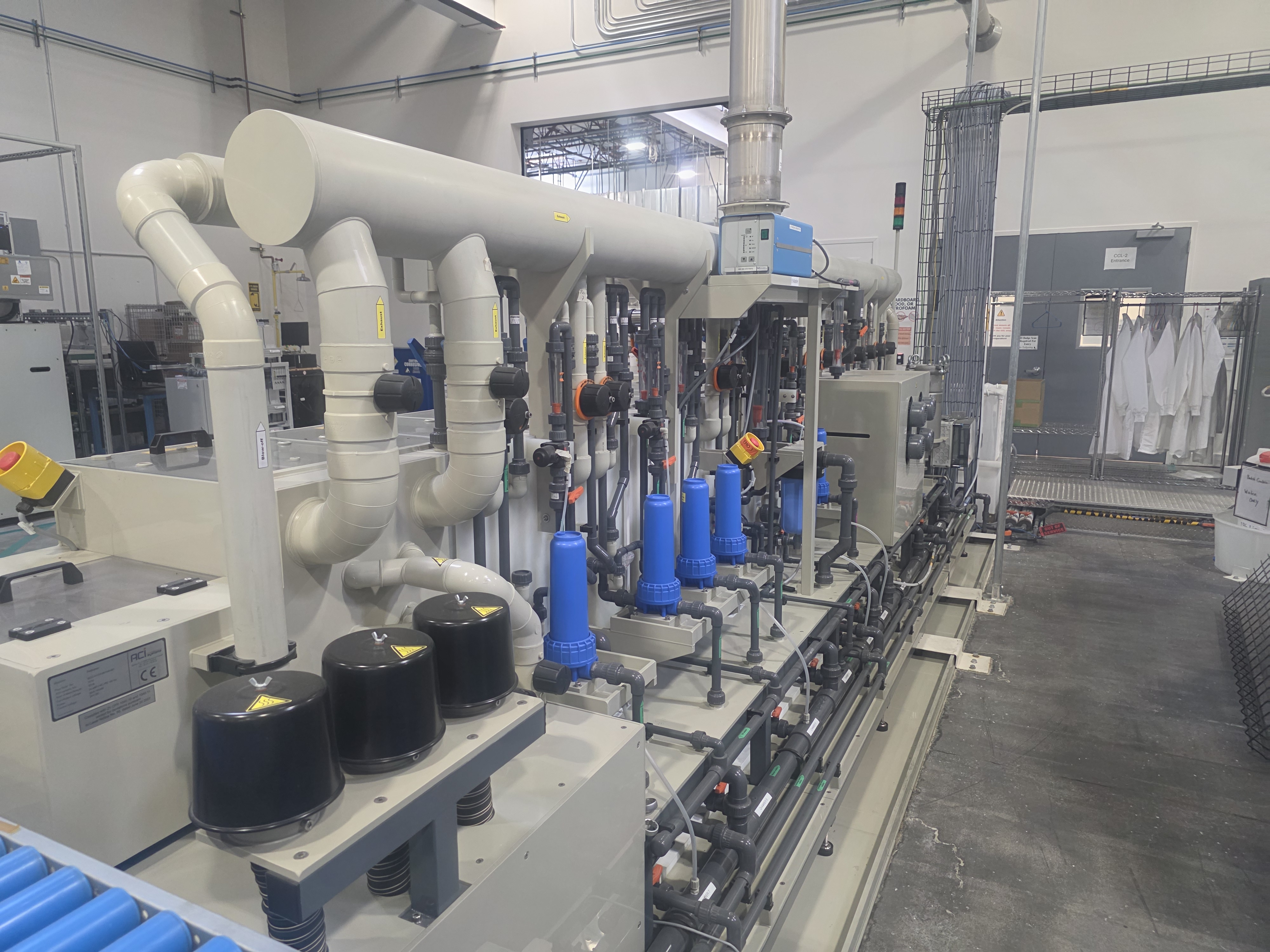

Fully integrated cleaning, rinsing, chemical treatment, and drying line

PLC-controlled with HMI operator interface

PROCESS FLOW:

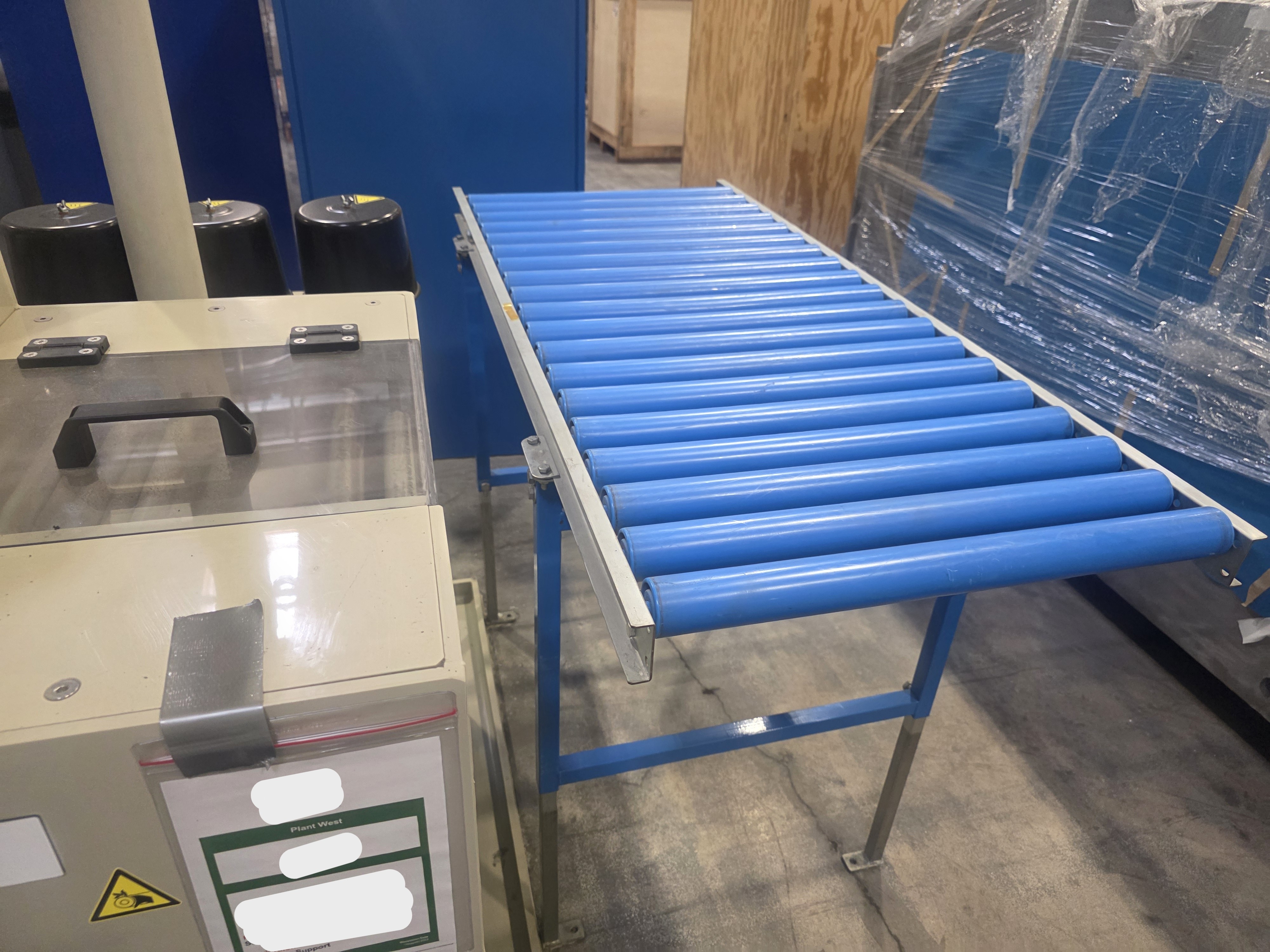

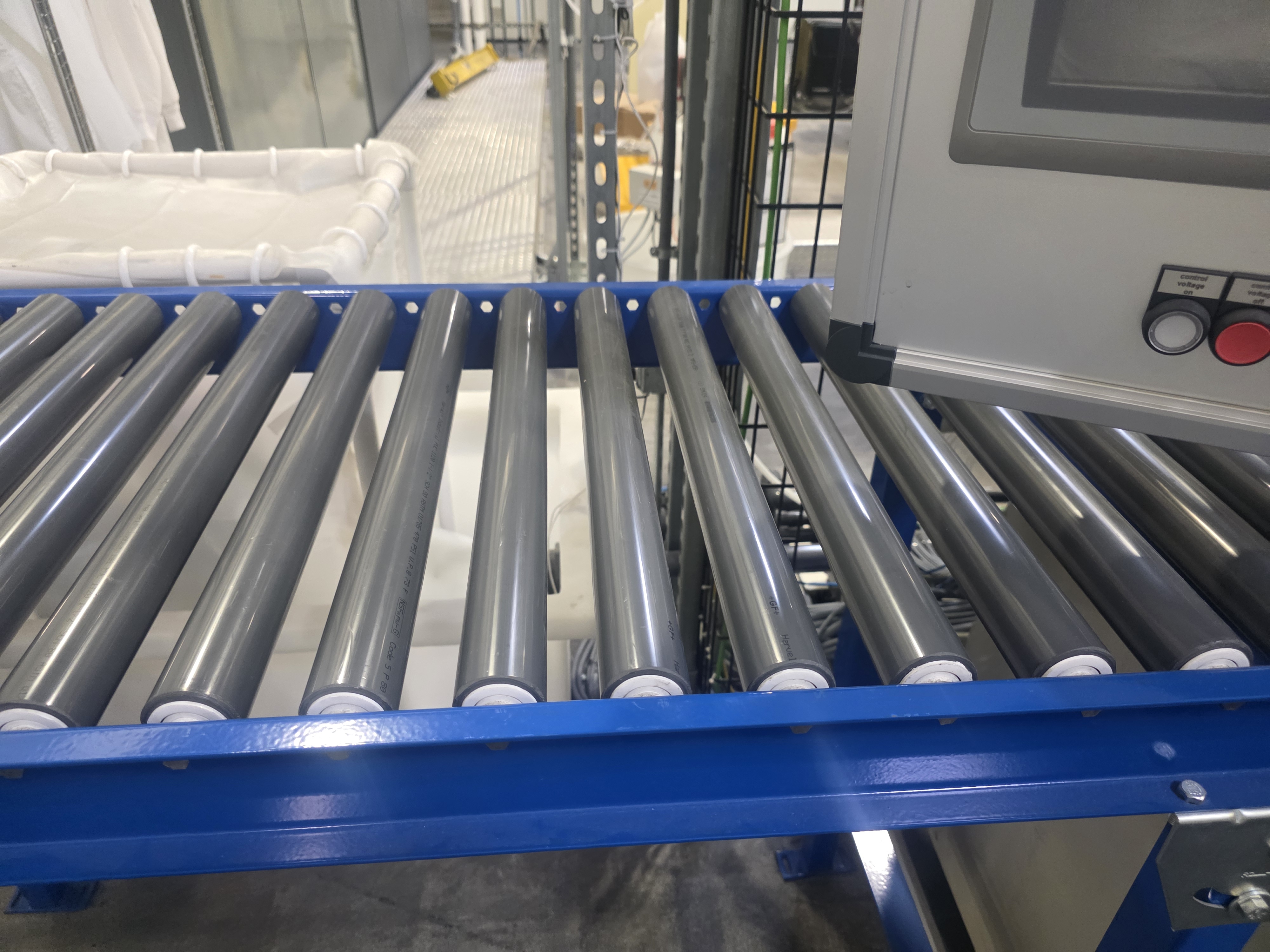

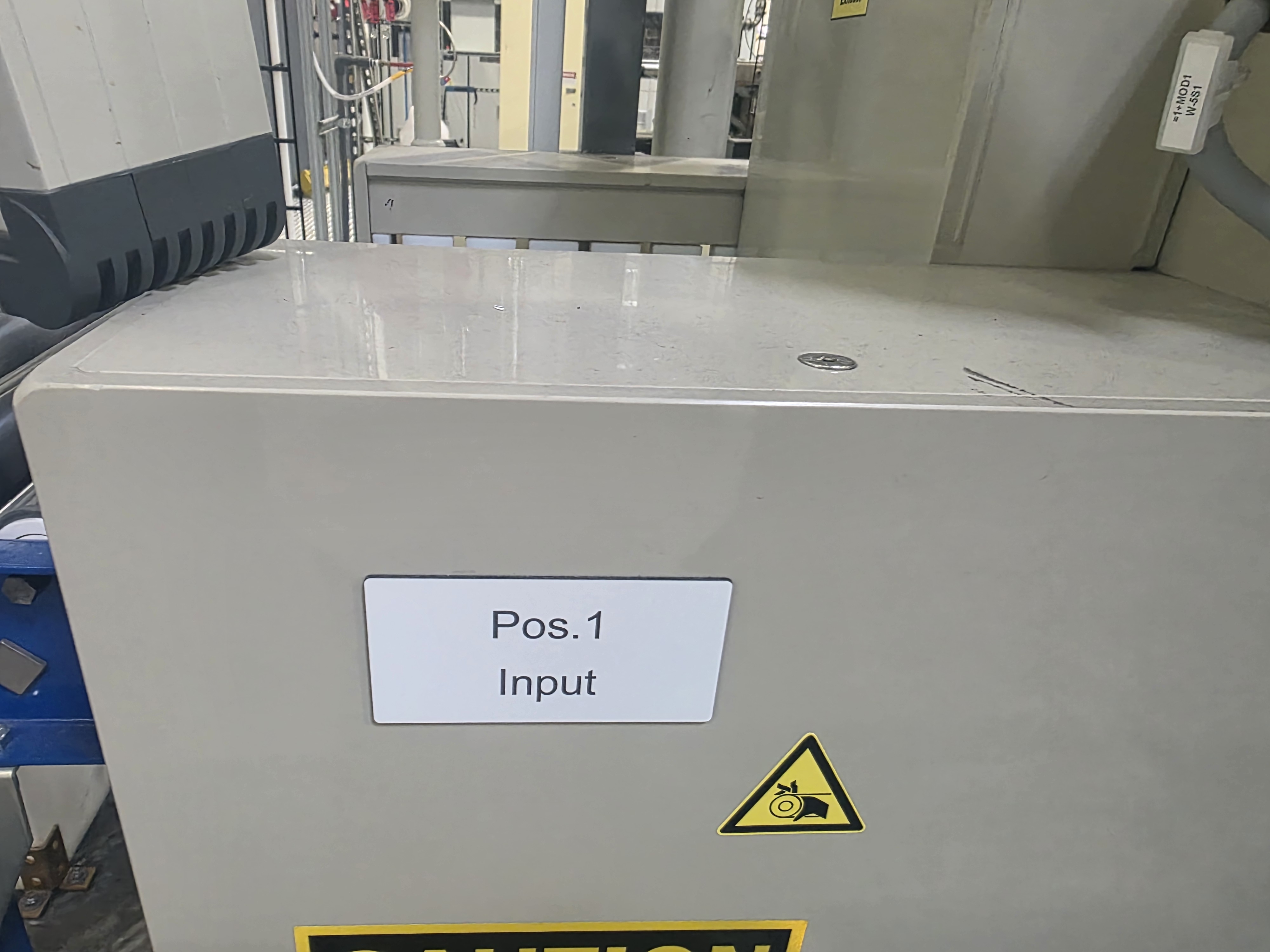

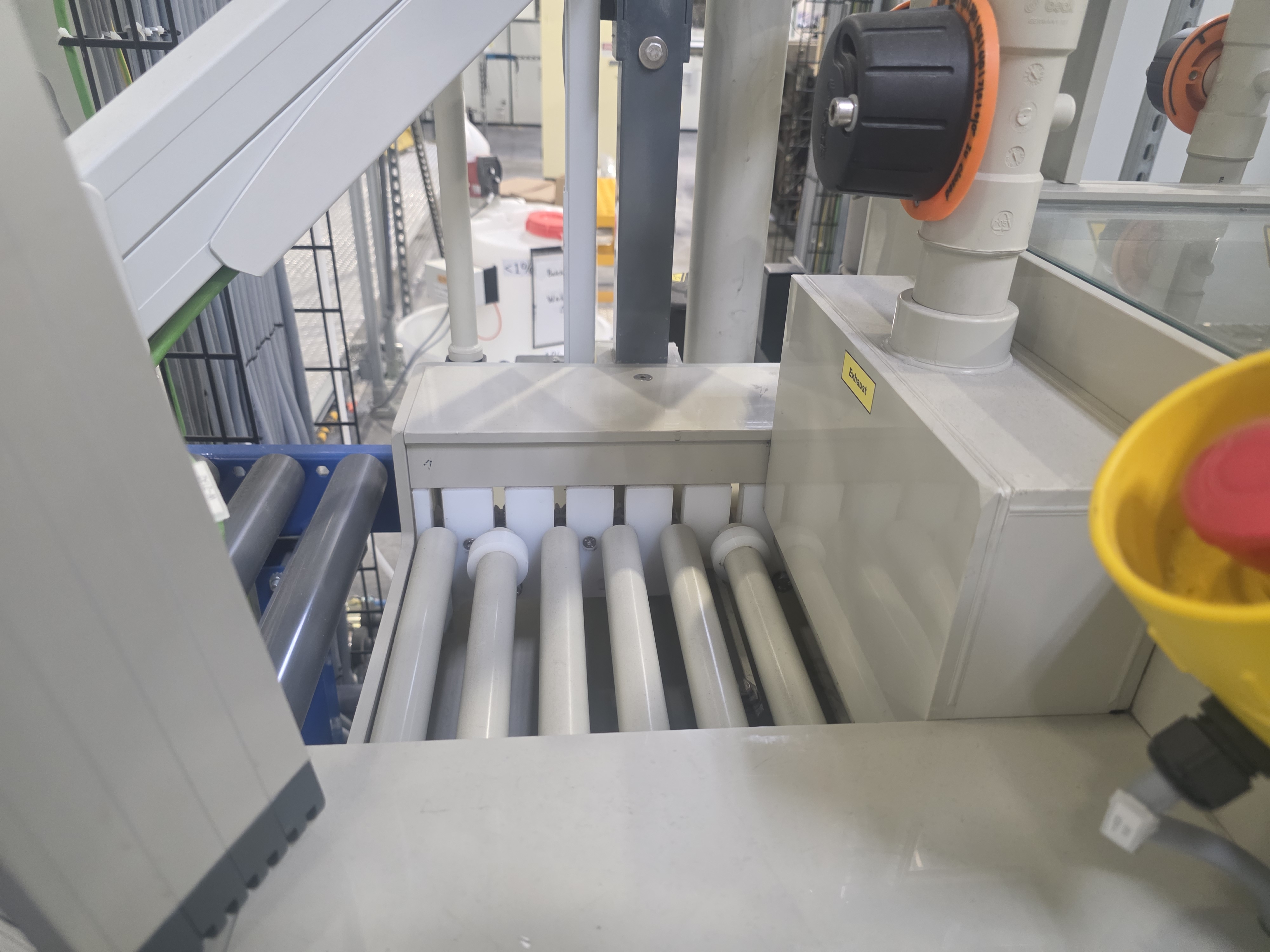

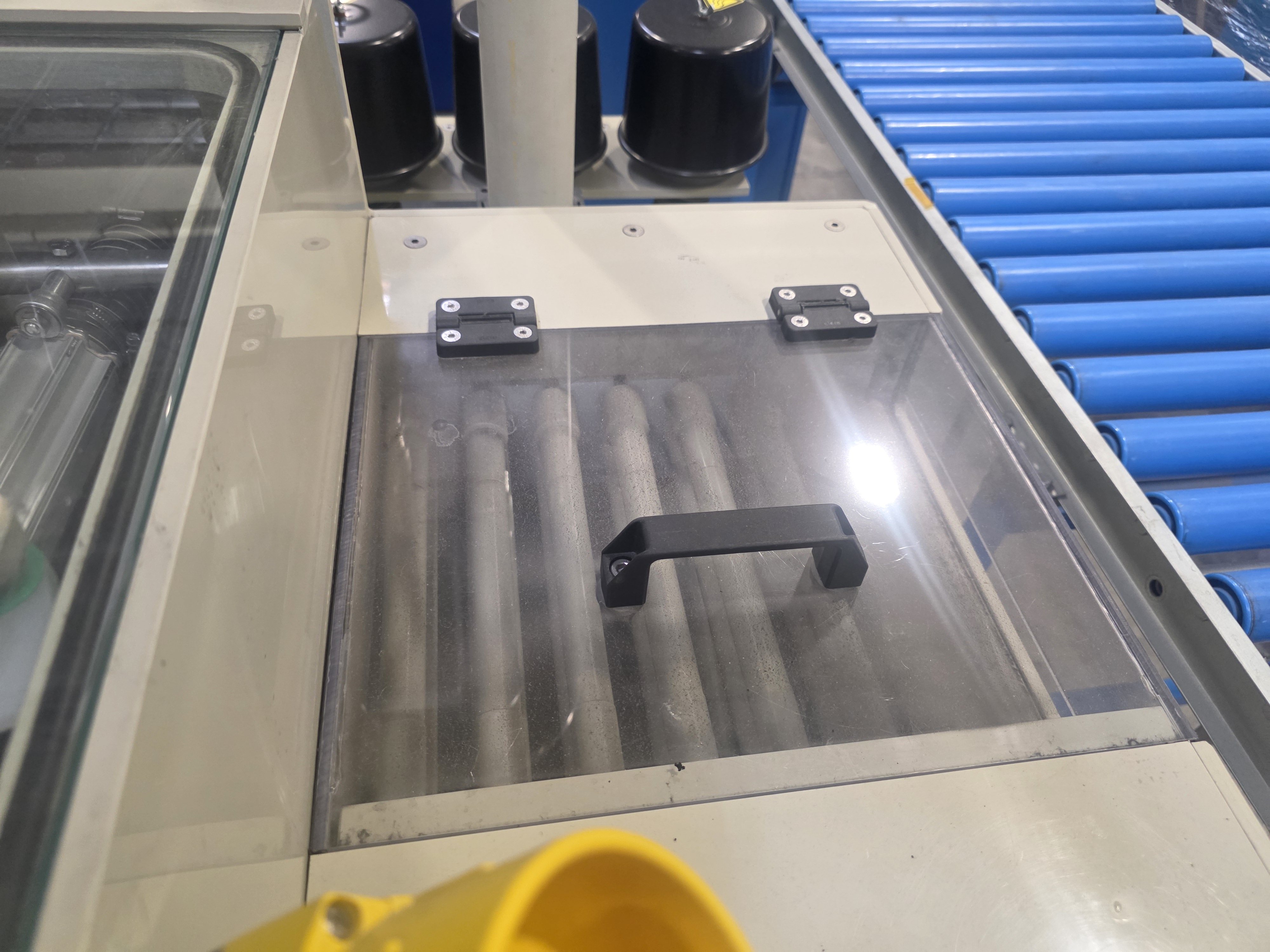

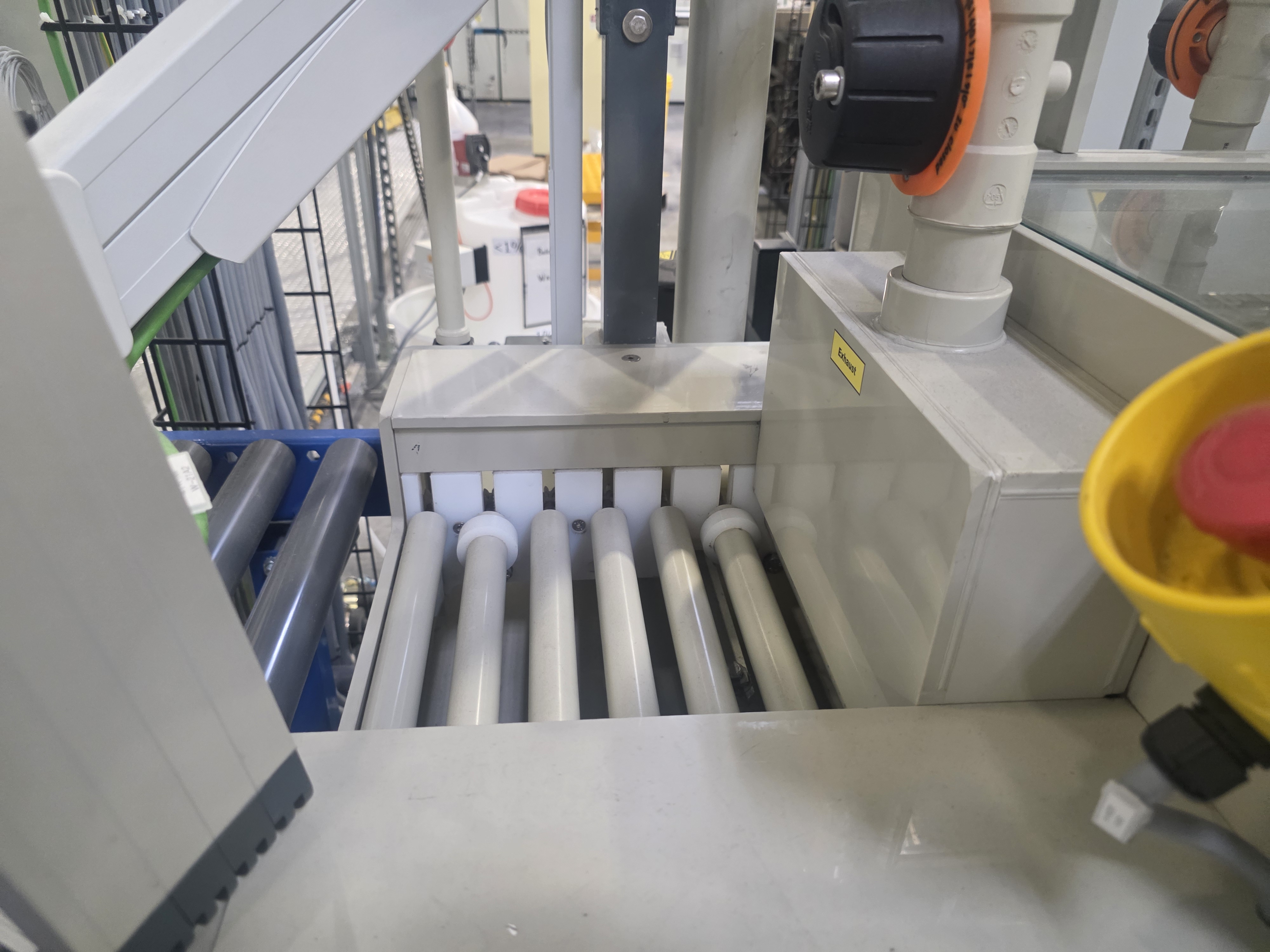

Pos.1 – Input: Roller conveyor loading

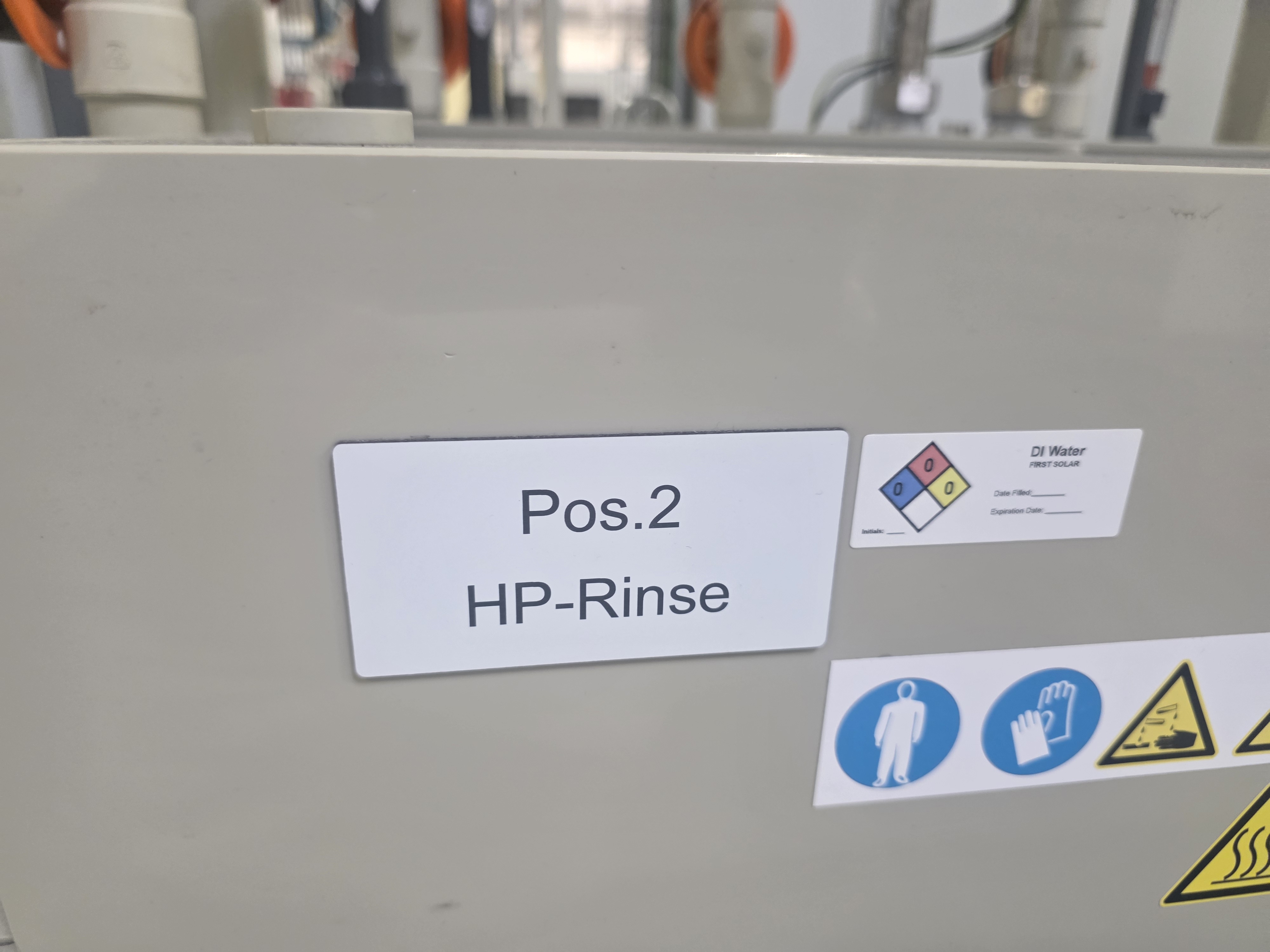

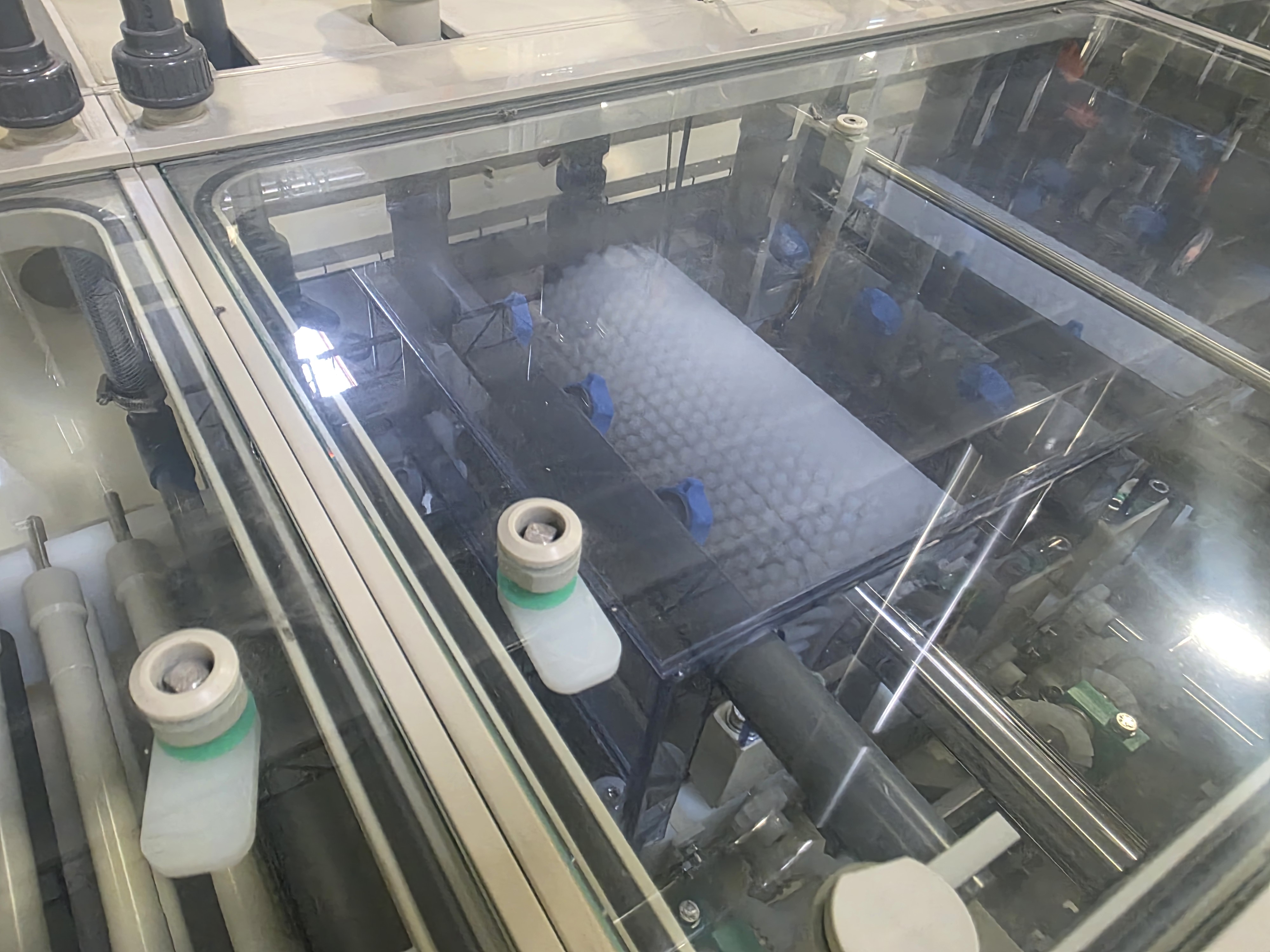

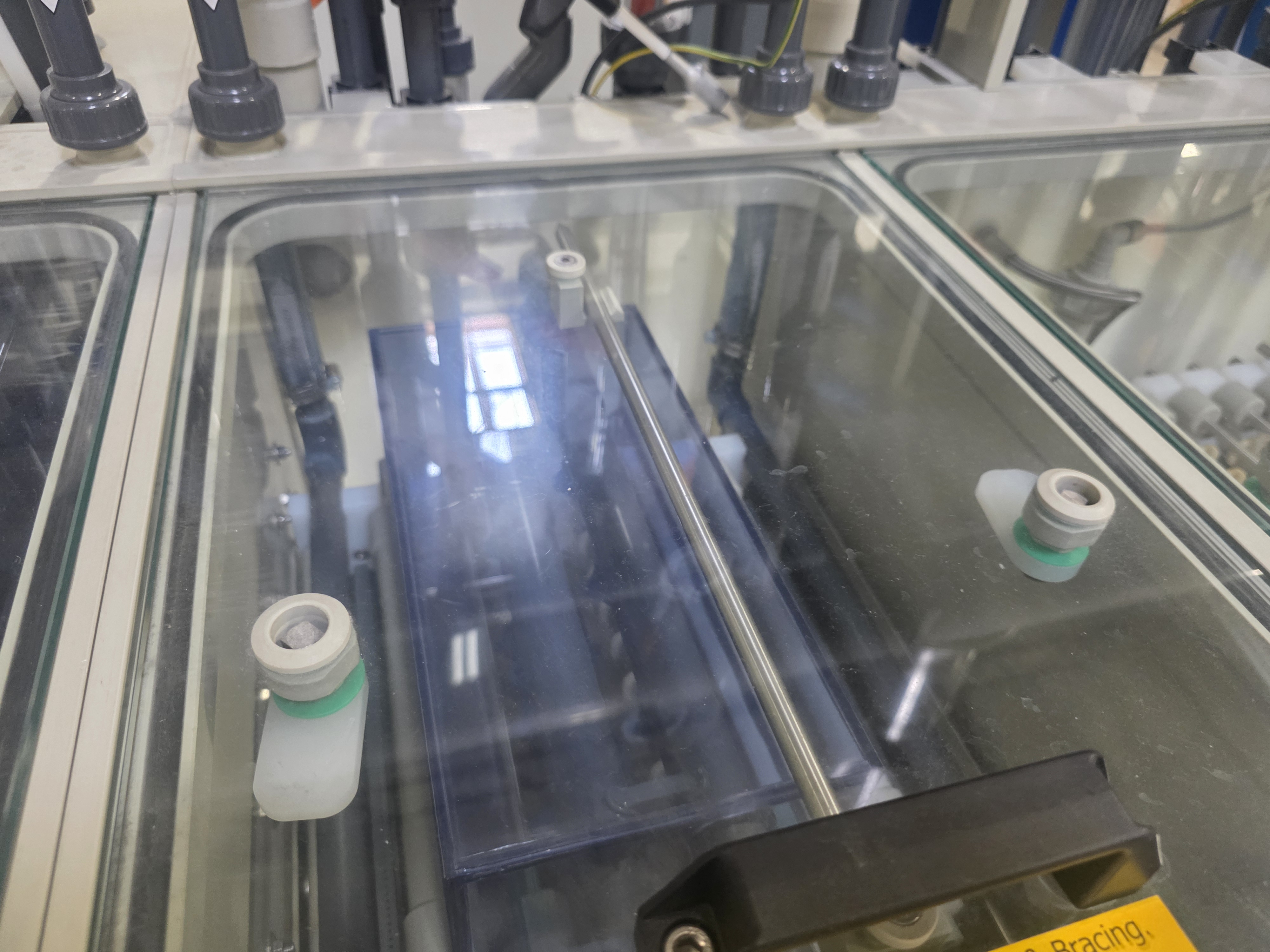

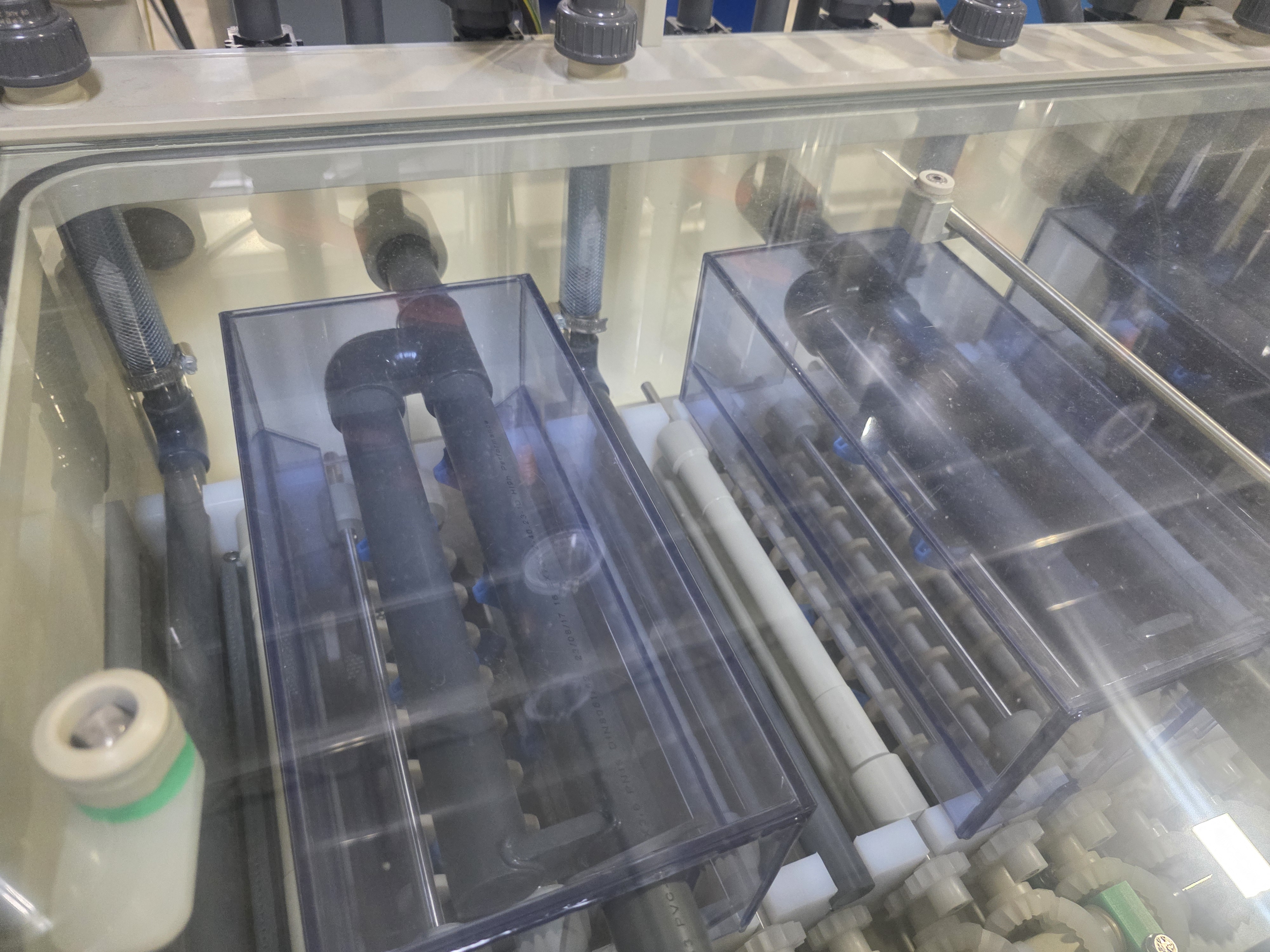

Pos.2 – HP Rinse: High-pressure deionized water rinse, spray contaminant removal

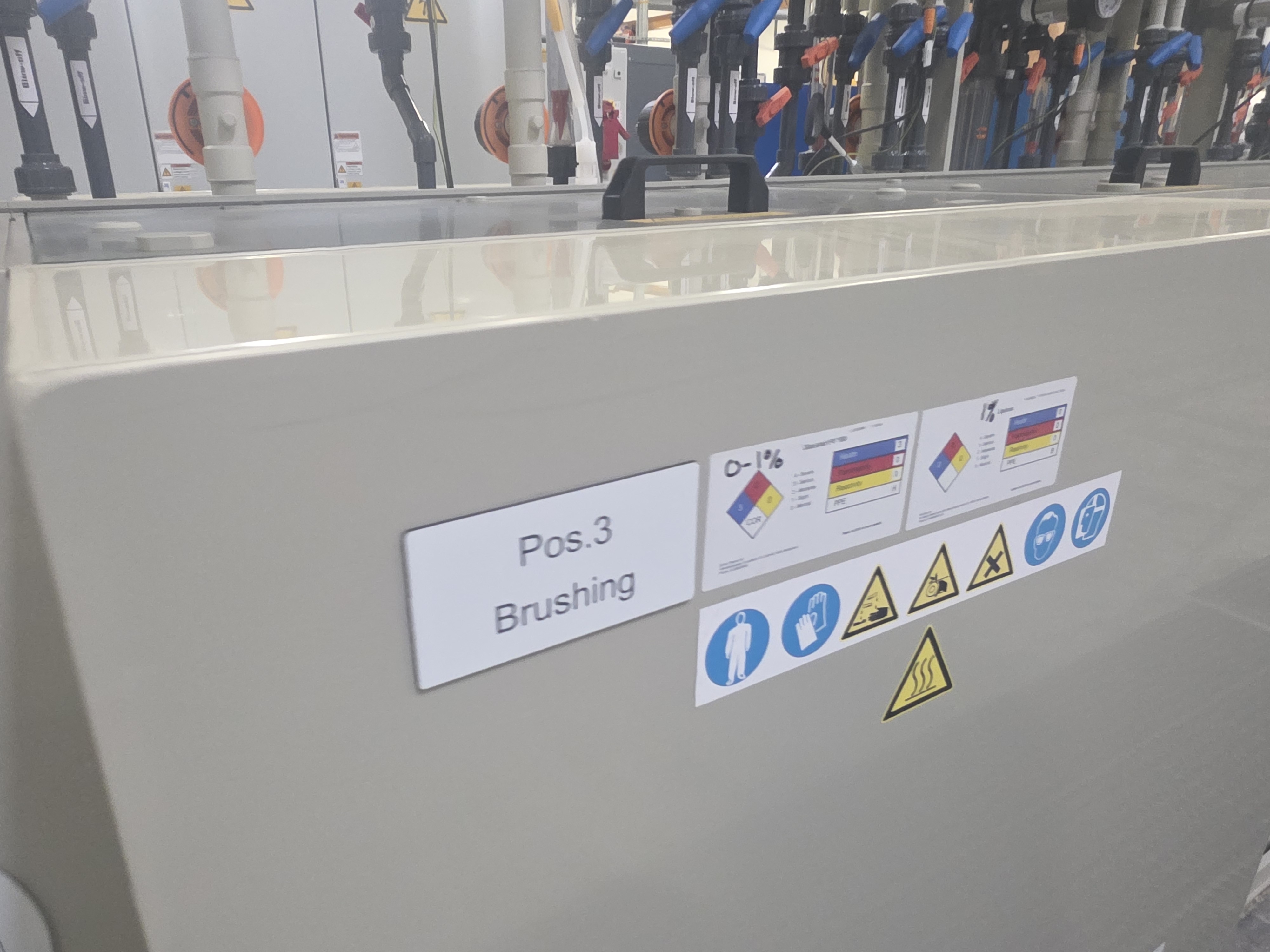

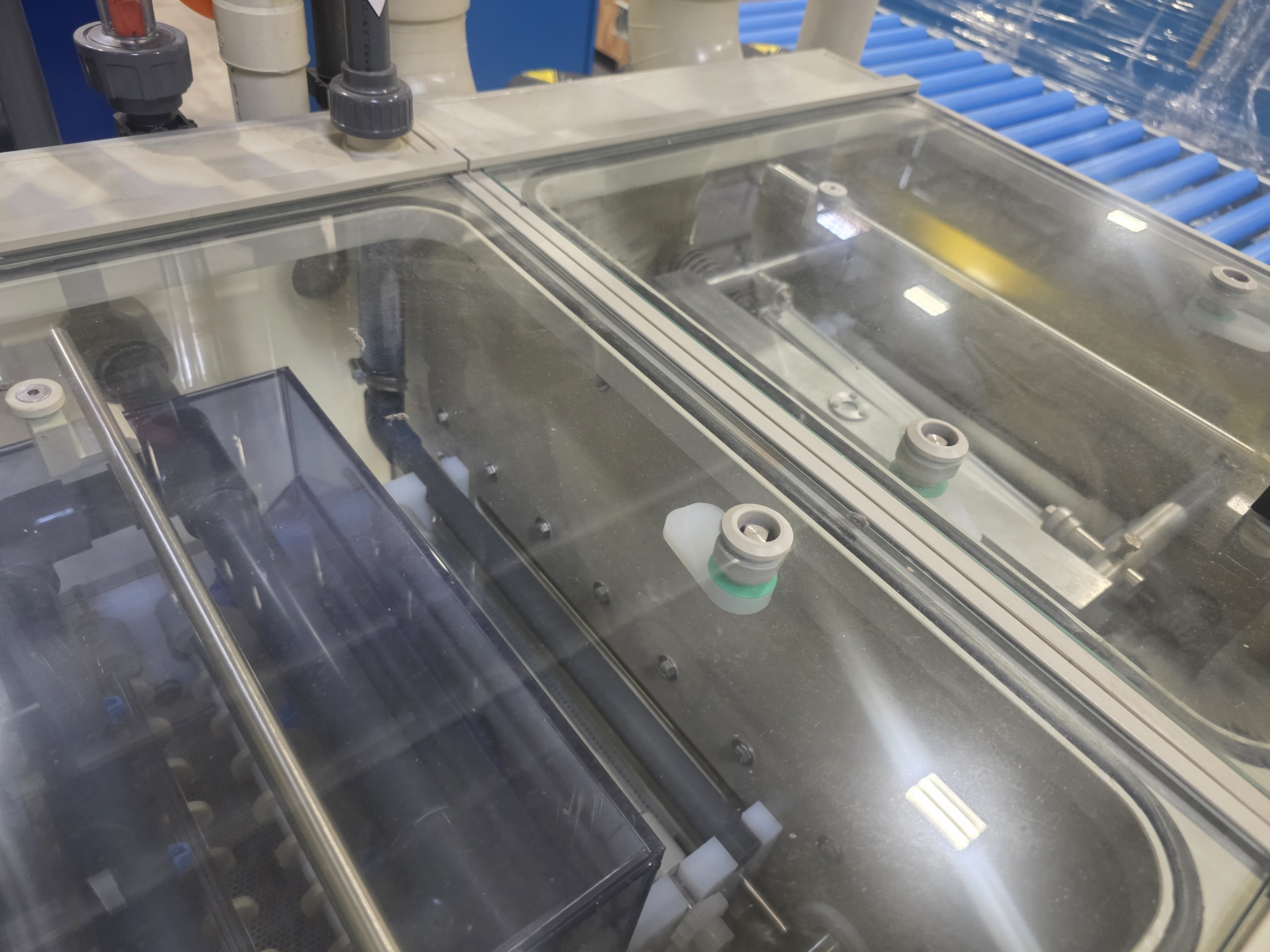

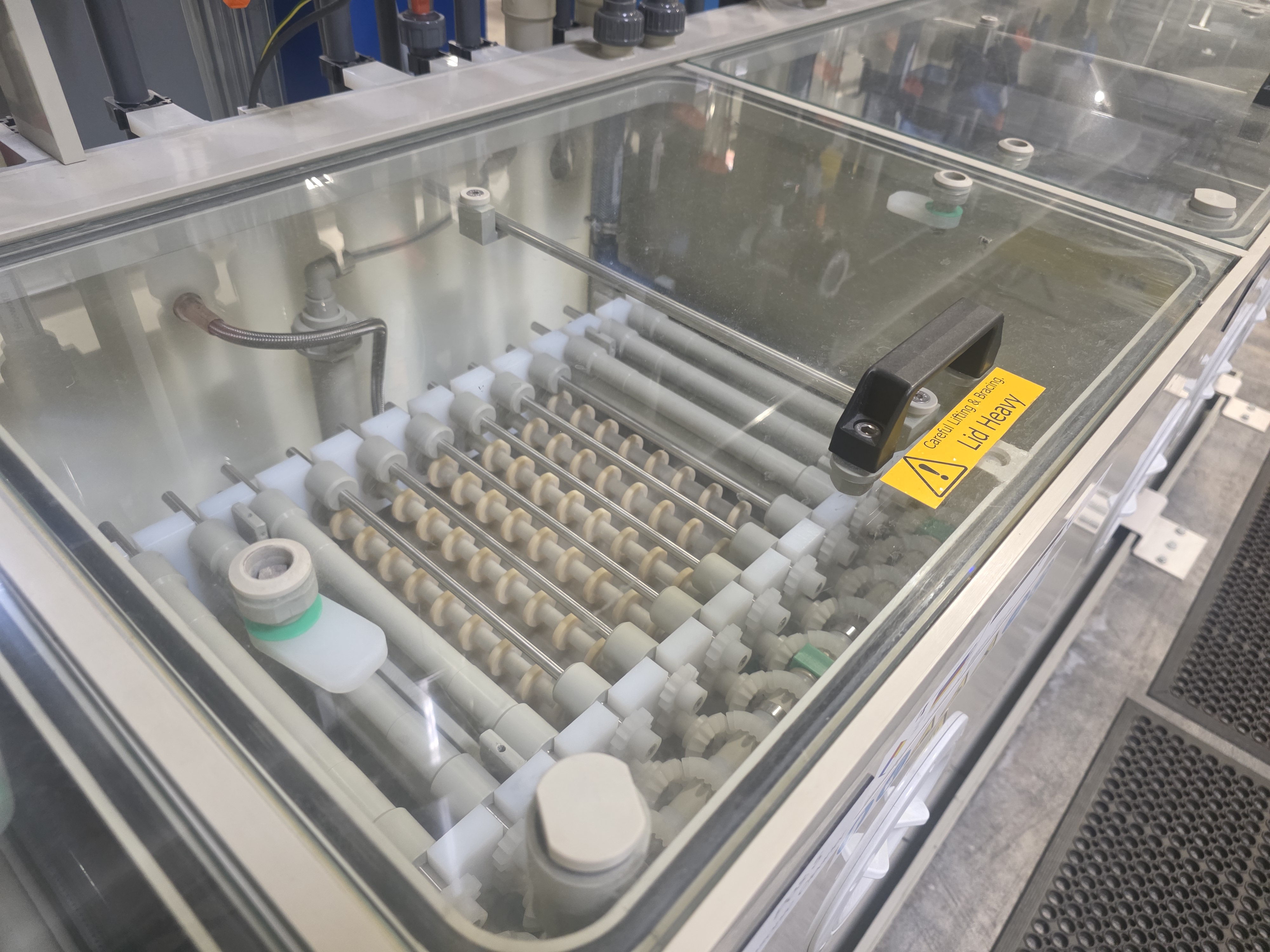

Pos.3 – Brushing: Mechanical surface scrubbing, contaminant removal

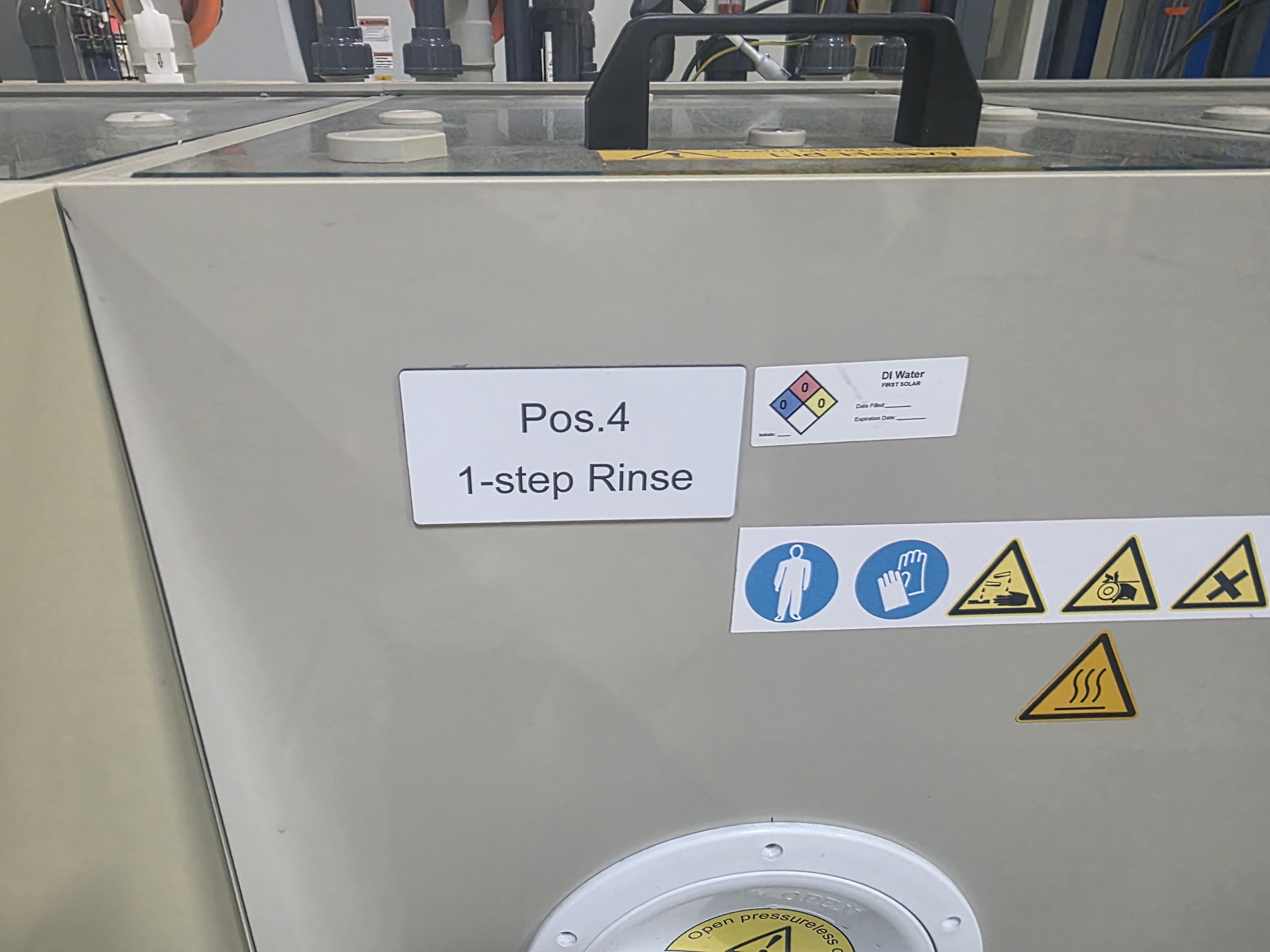

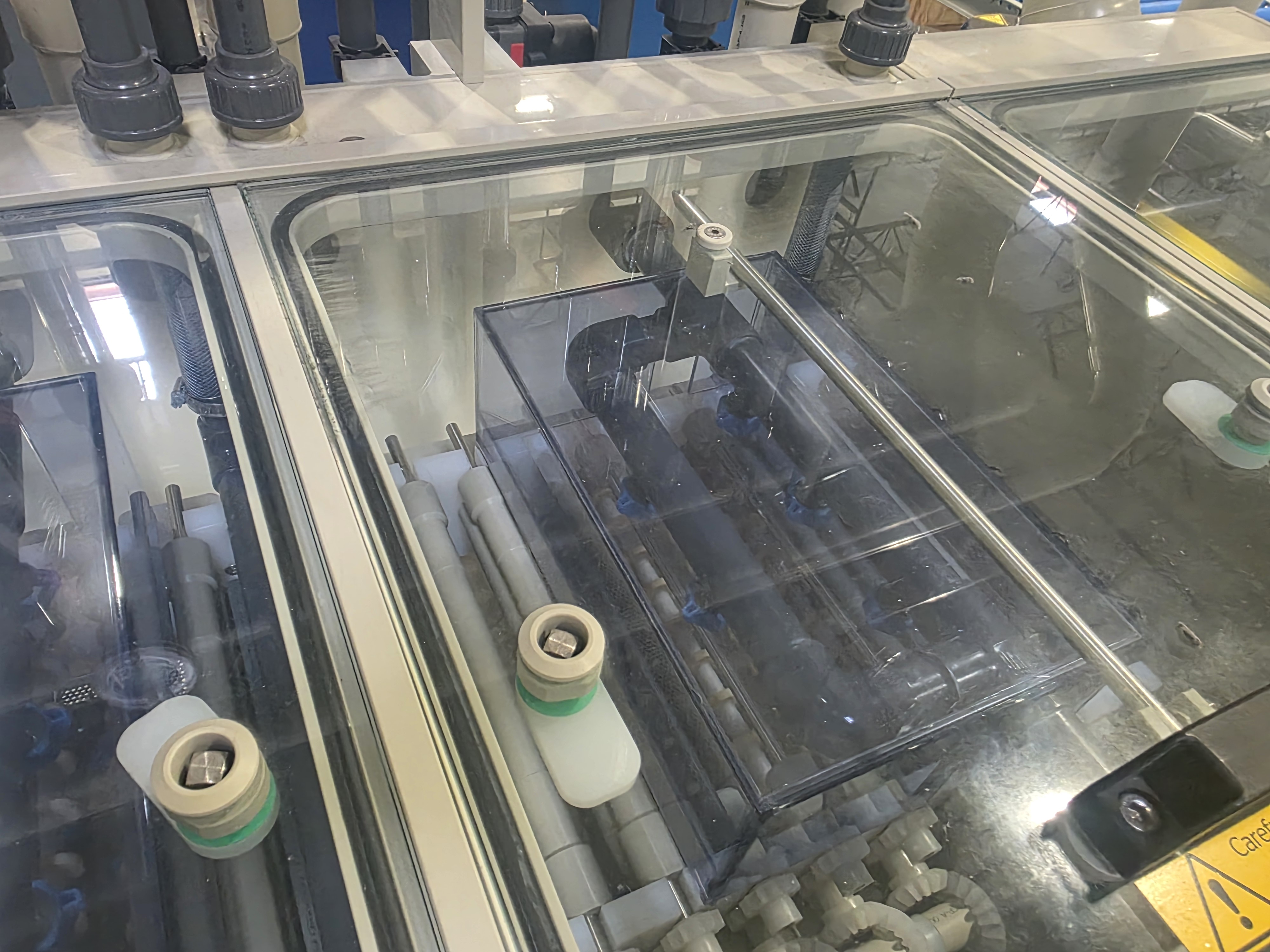

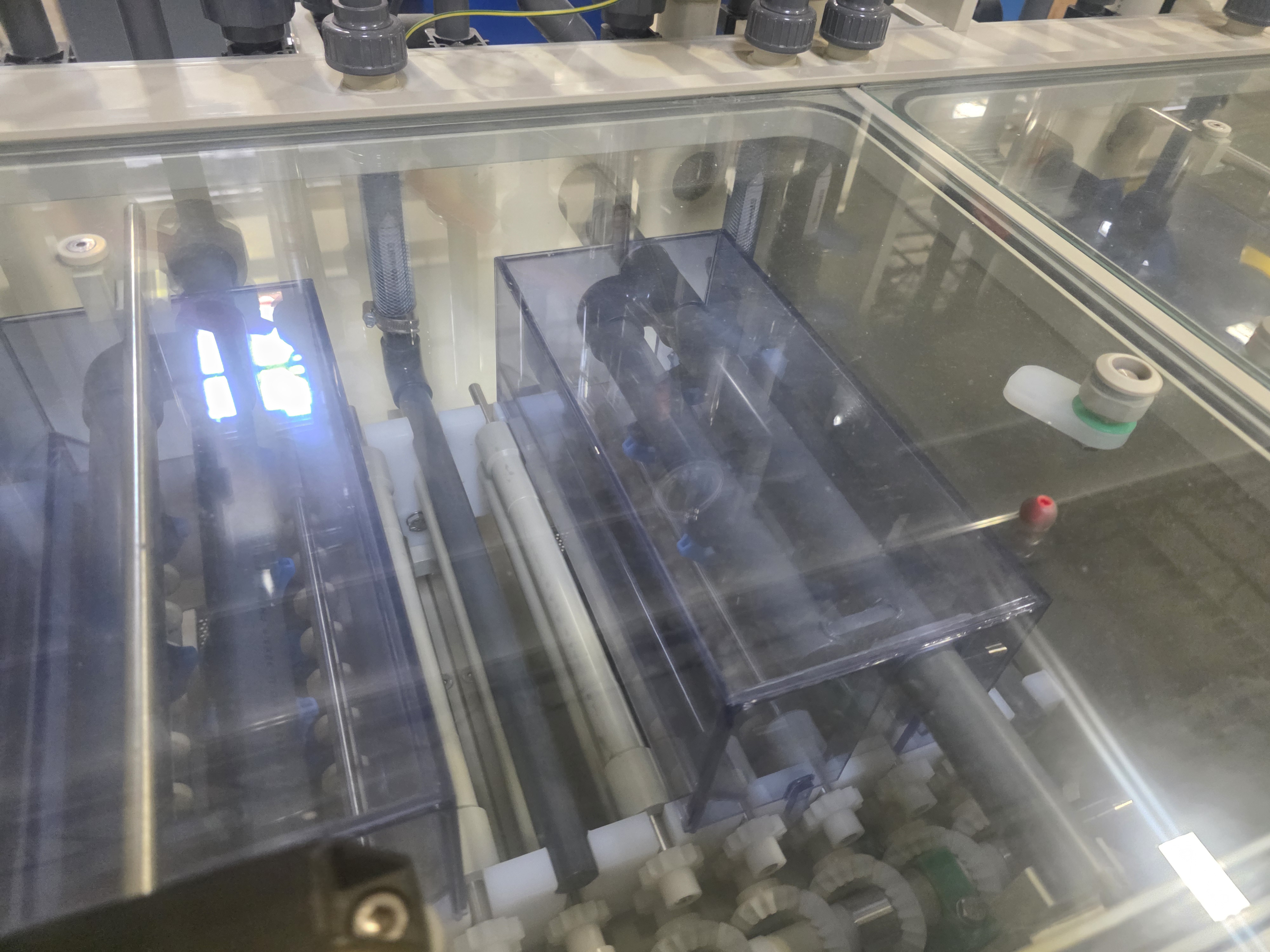

Pos.4 – DI Rinse: deionized water rinse

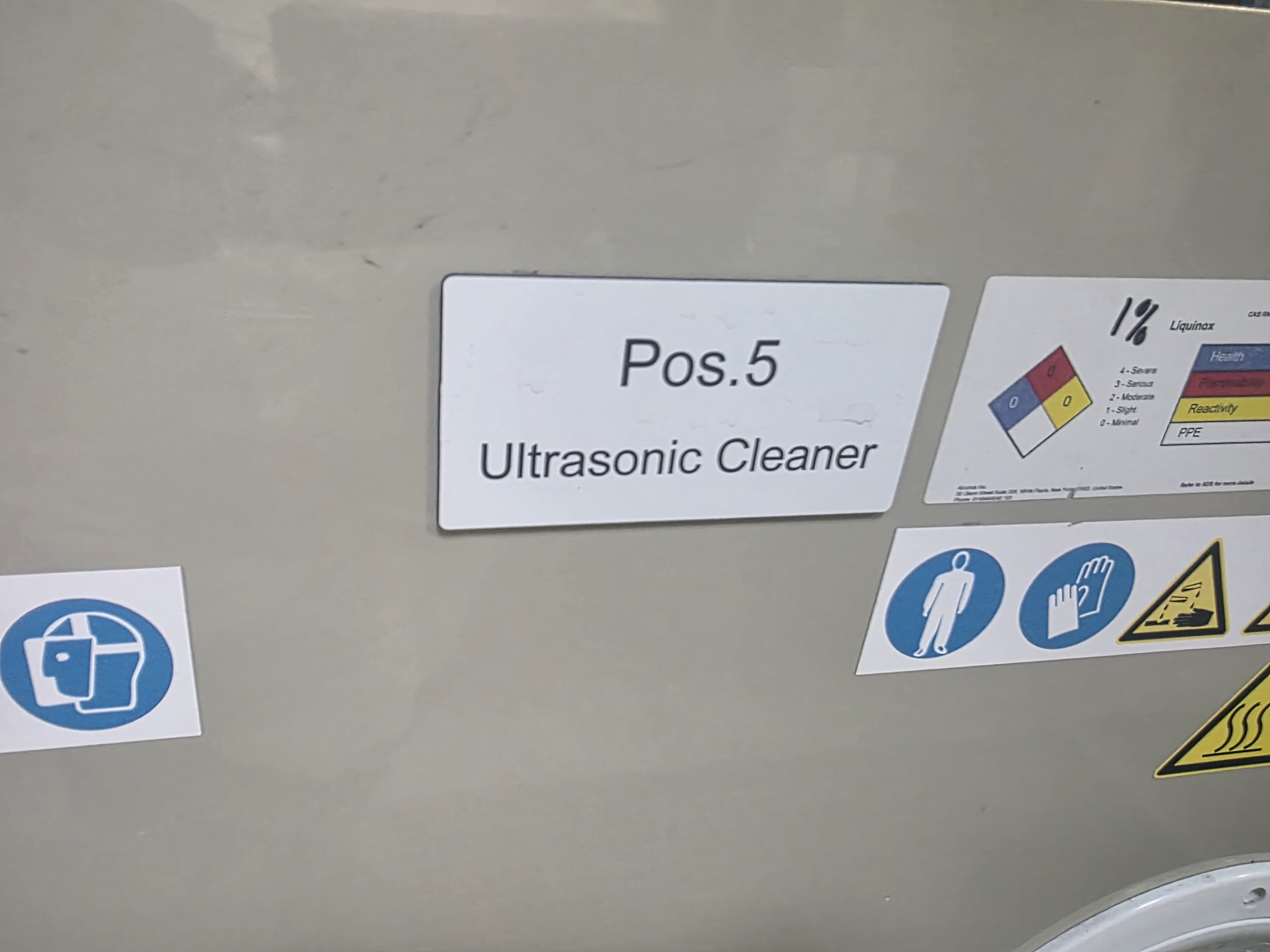

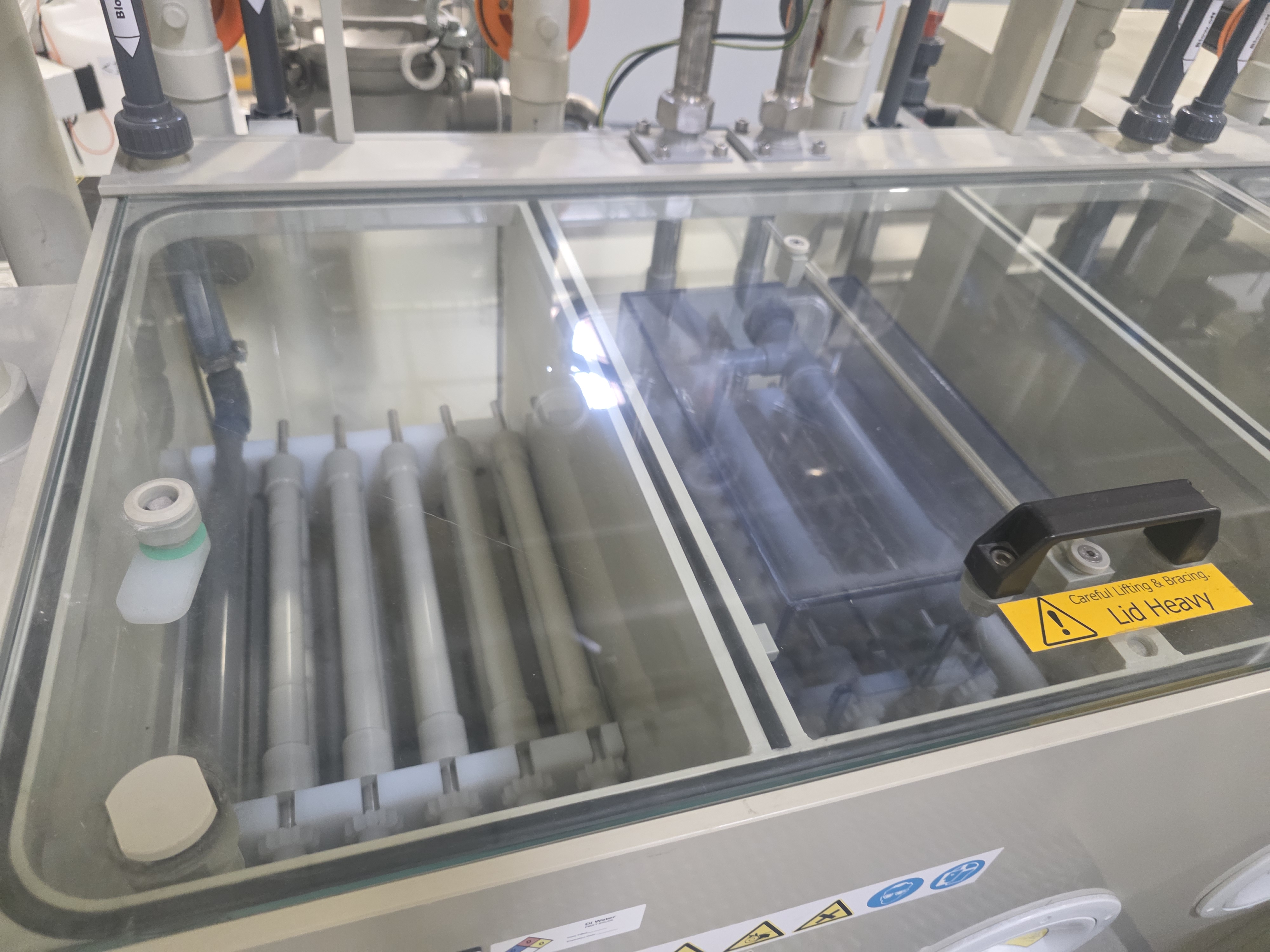

Pos.5 – Ultrasonic Cleaning: Precision cavitation cleaning

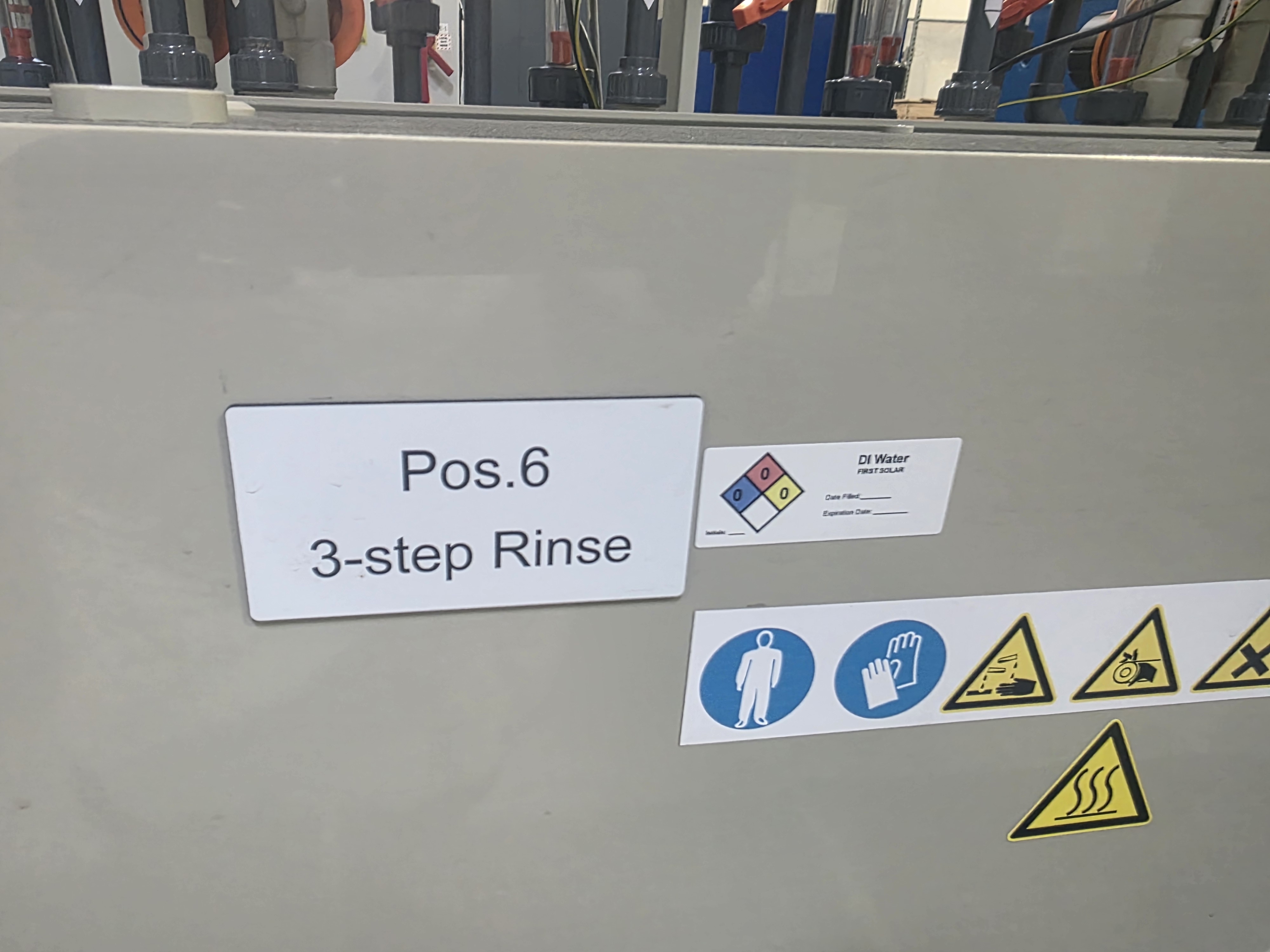

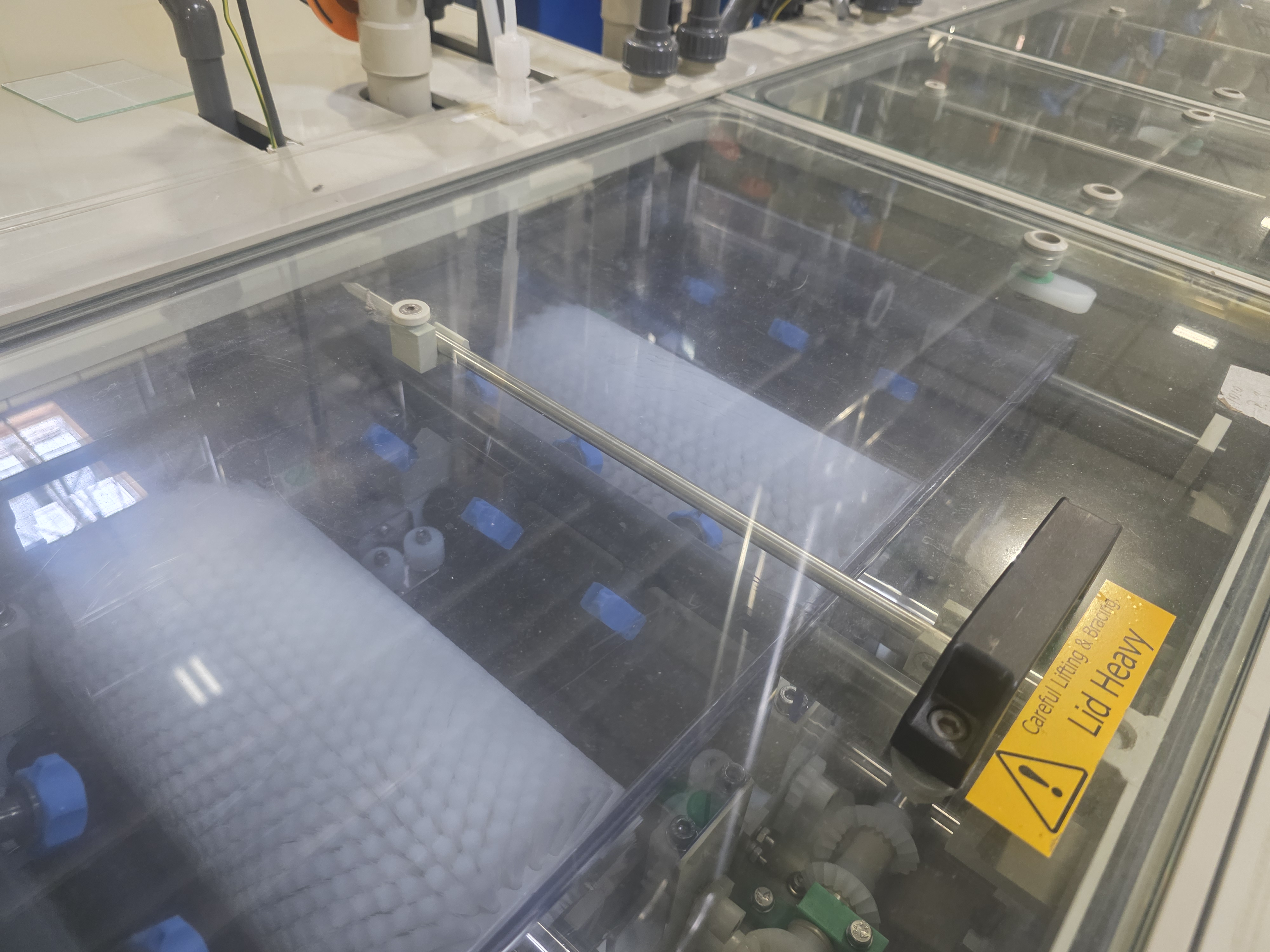

Pos.6 – 3-Stage Rinse: Cascade ultra-pure rinsing

Pos.7 – Doping: Chemical surface treatment / activation

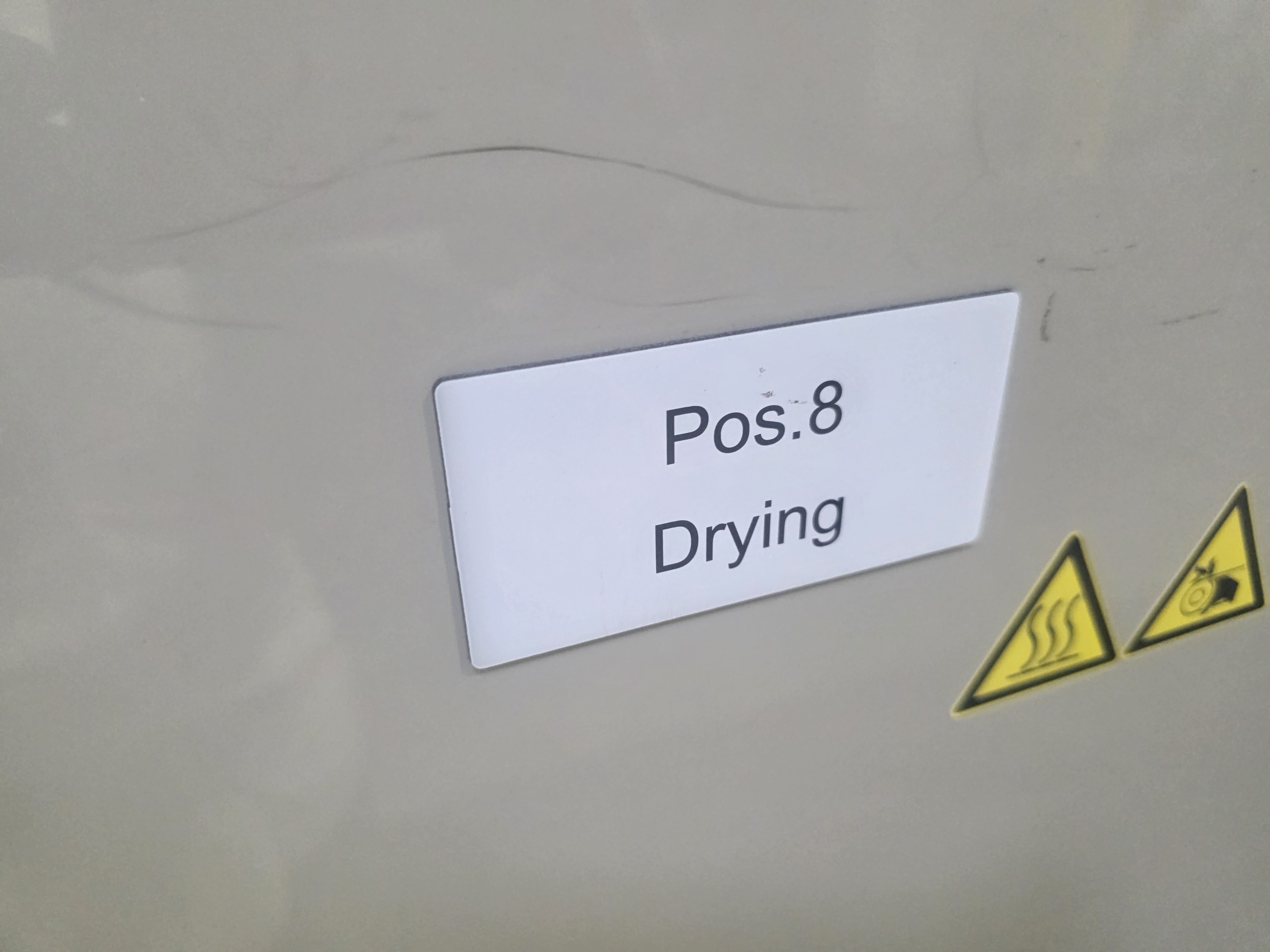

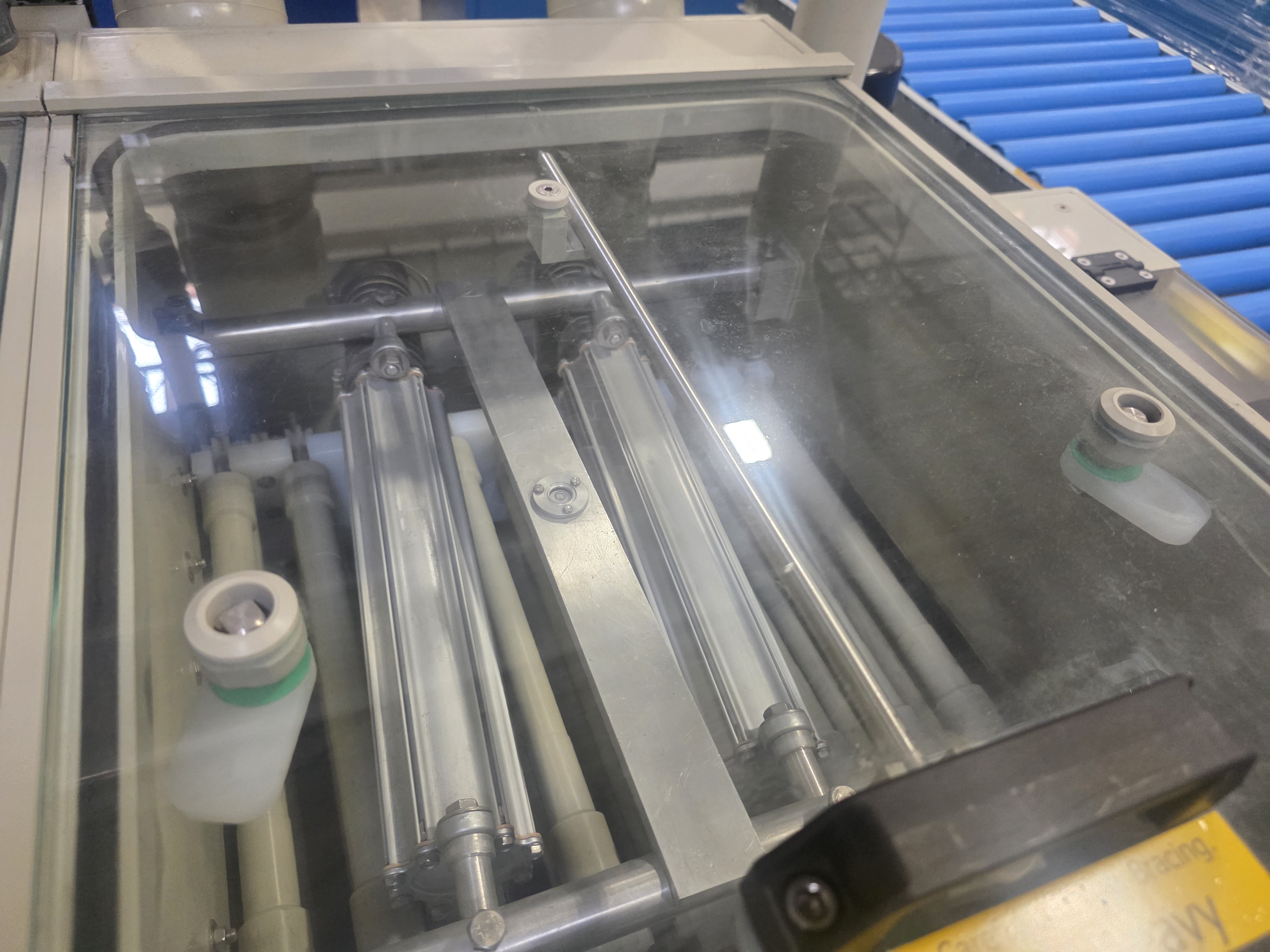

Pos.8 – Drying: Heated, dehumidified air drying

KEY FEATURES:

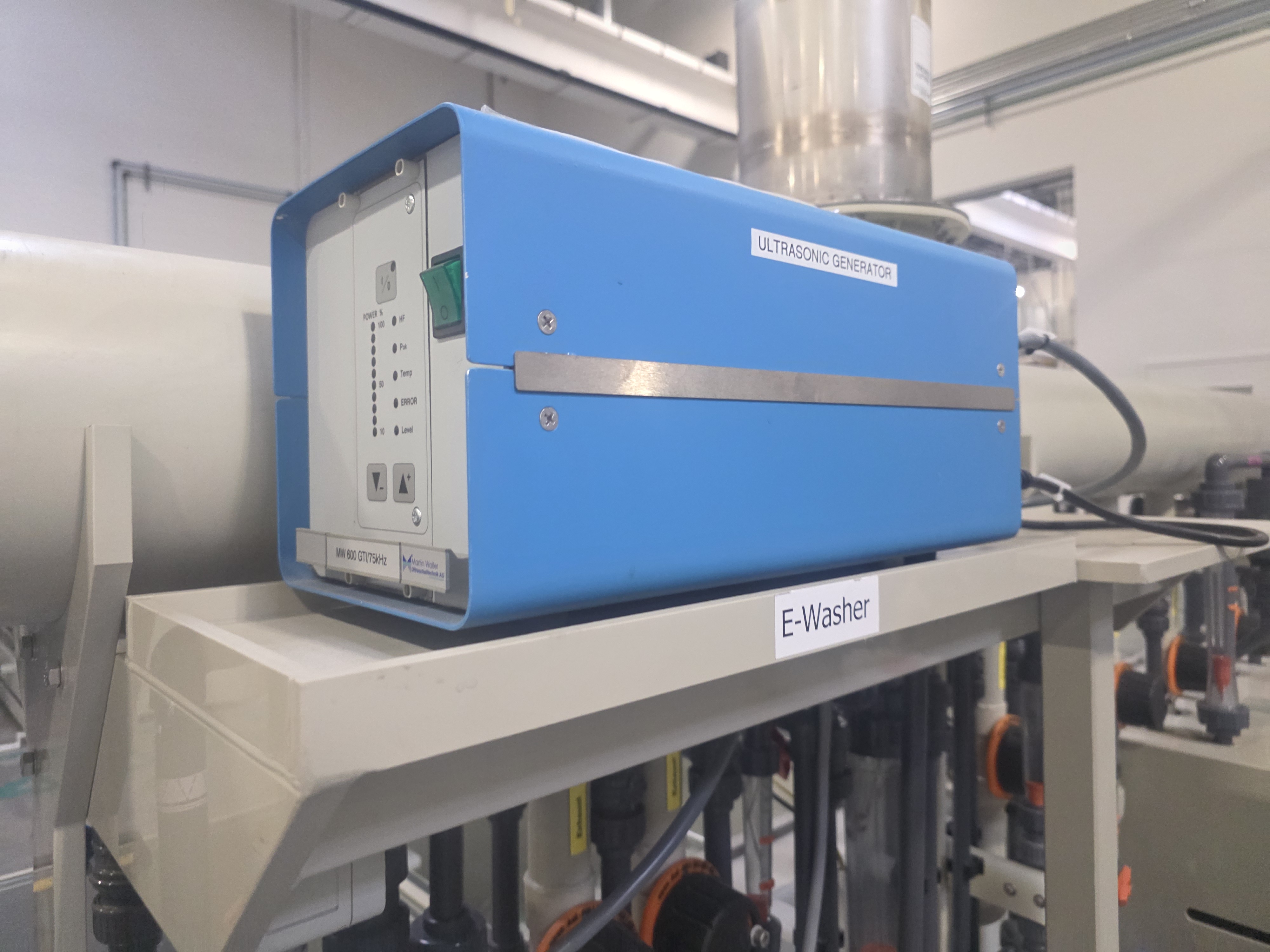

Ultrasonic cleaning system (high-frequency cavitation)

Multi-stage DI rinses for ultra-low contamination

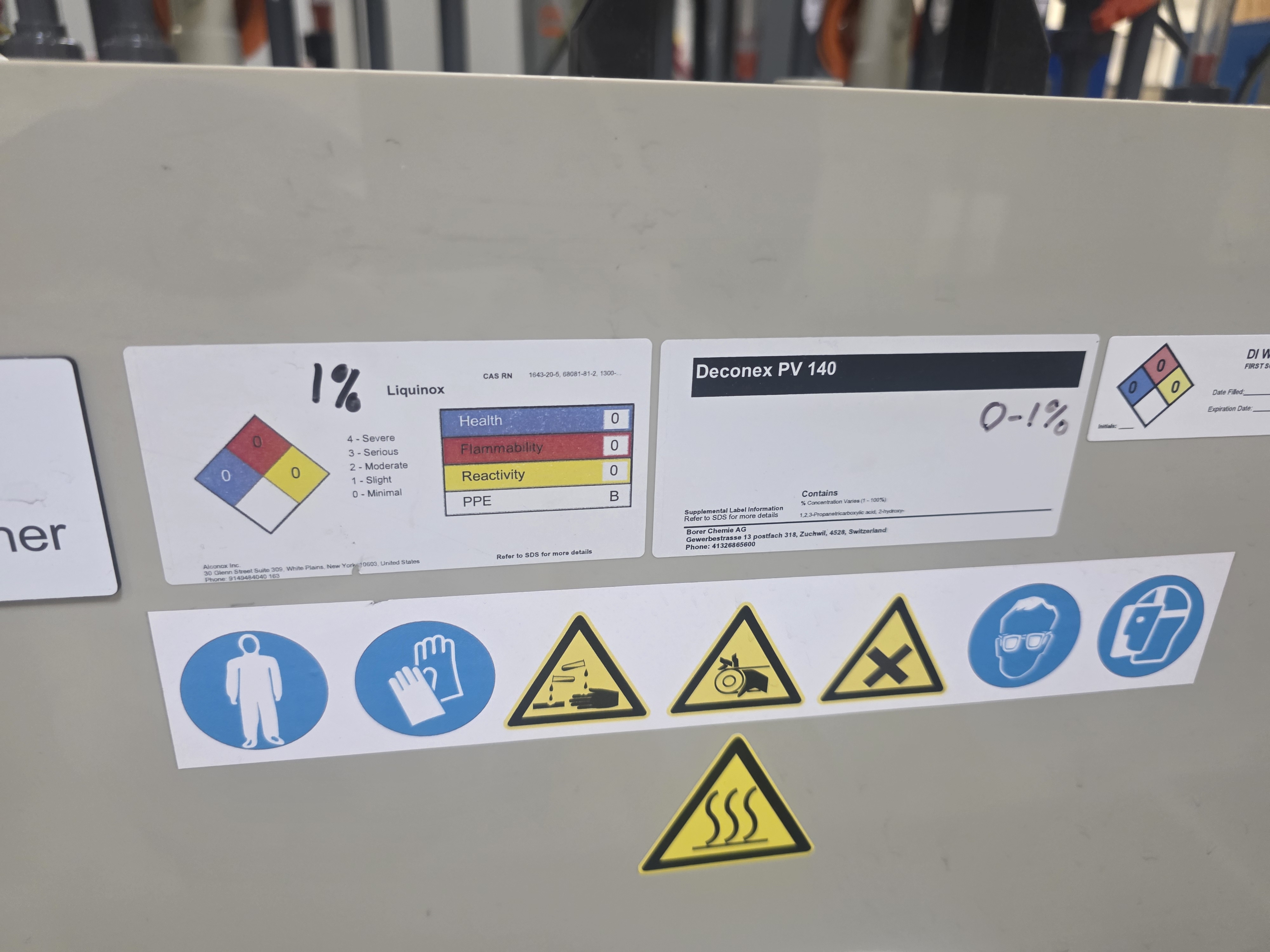

Chemical dosing capability (Liquinox, Deconex, etc.)

Integrated brushing station for mechanical cleaning

Desiccant-assisted drying system for low dew point performance

Overhead exhaust manifold for vapor removal

CONSTRUCTION:

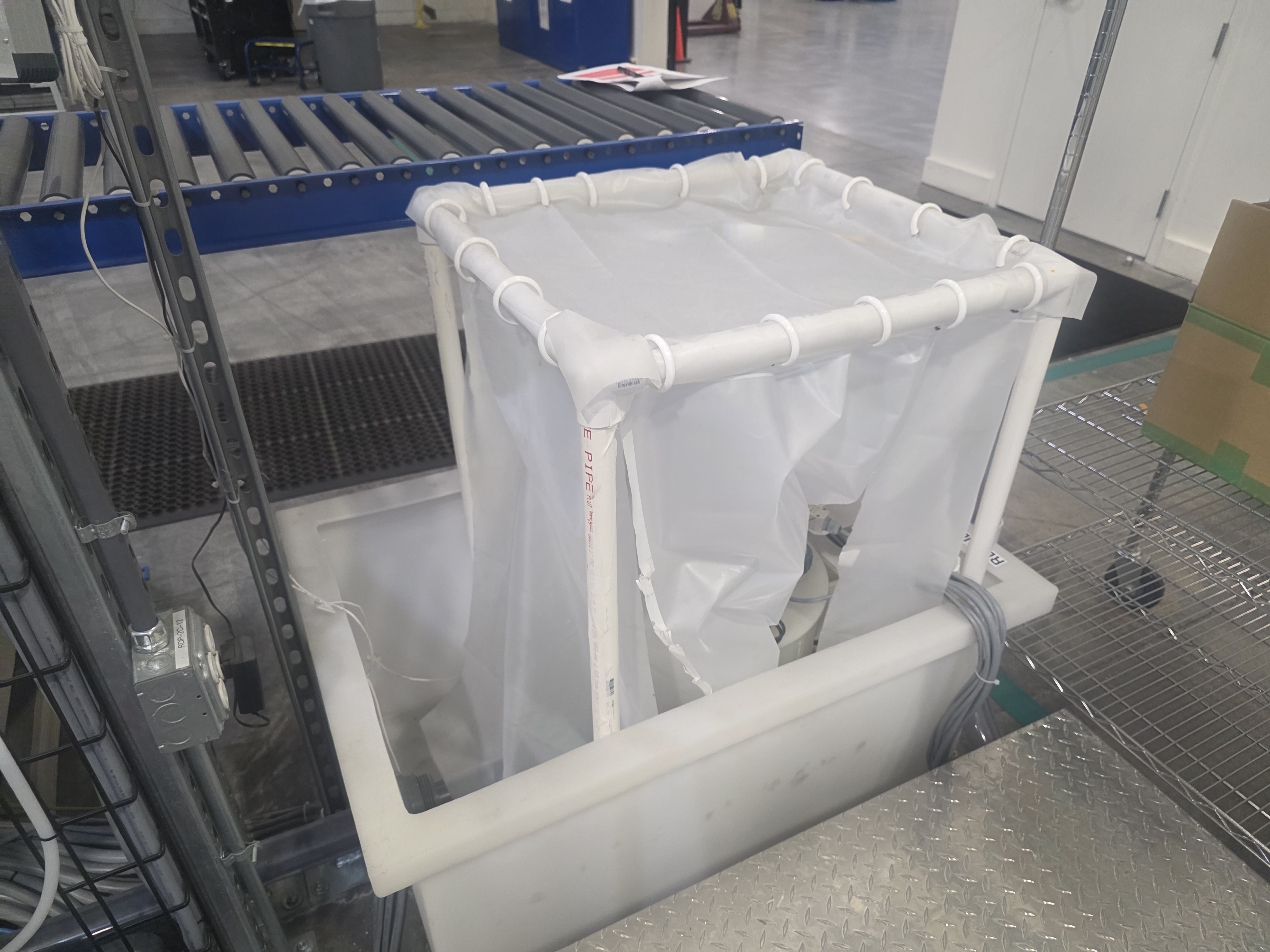

Tanks: Polypropylene / corrosion-resistant materials

Piping: PVC / CPVC / PP

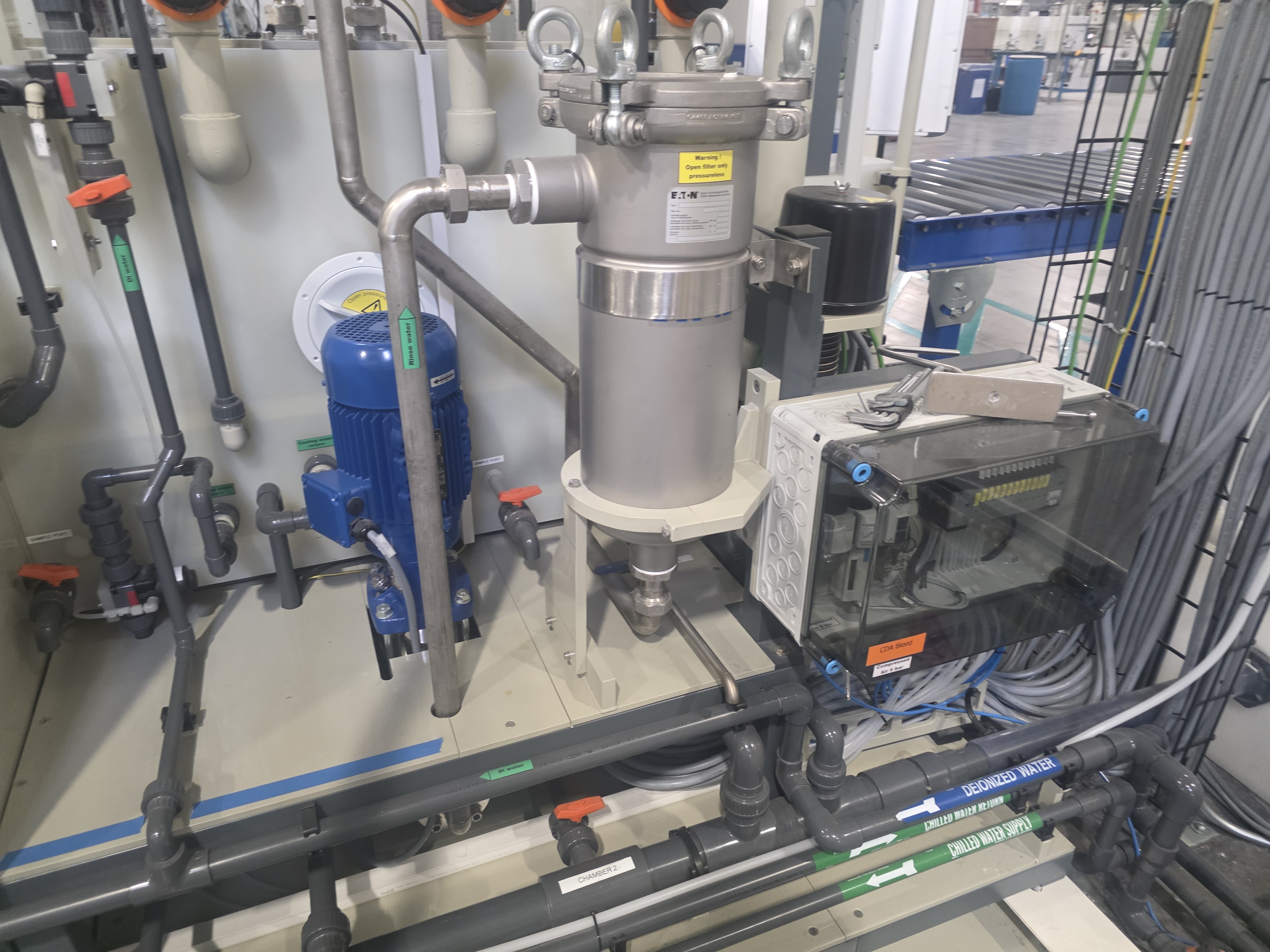

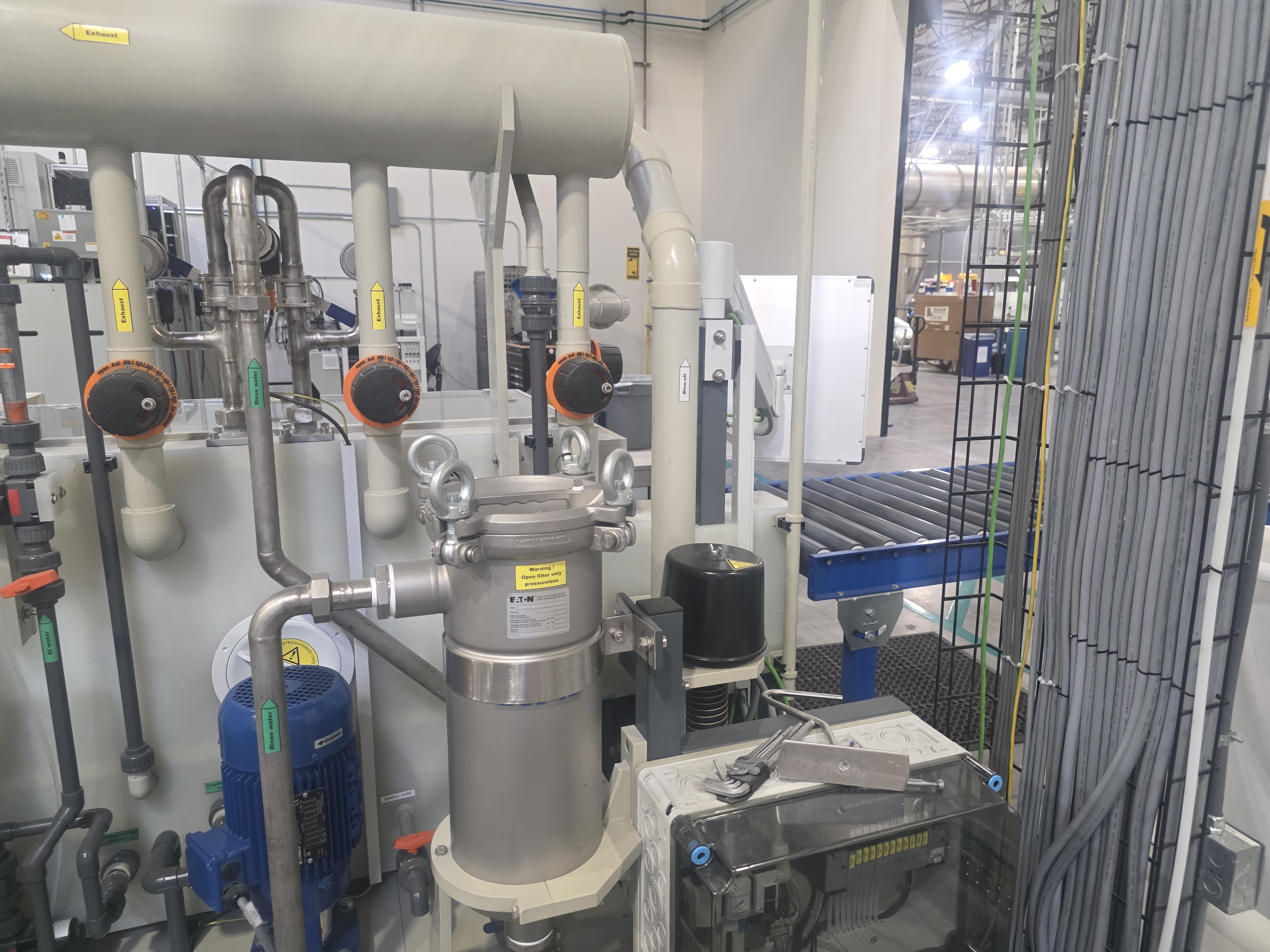

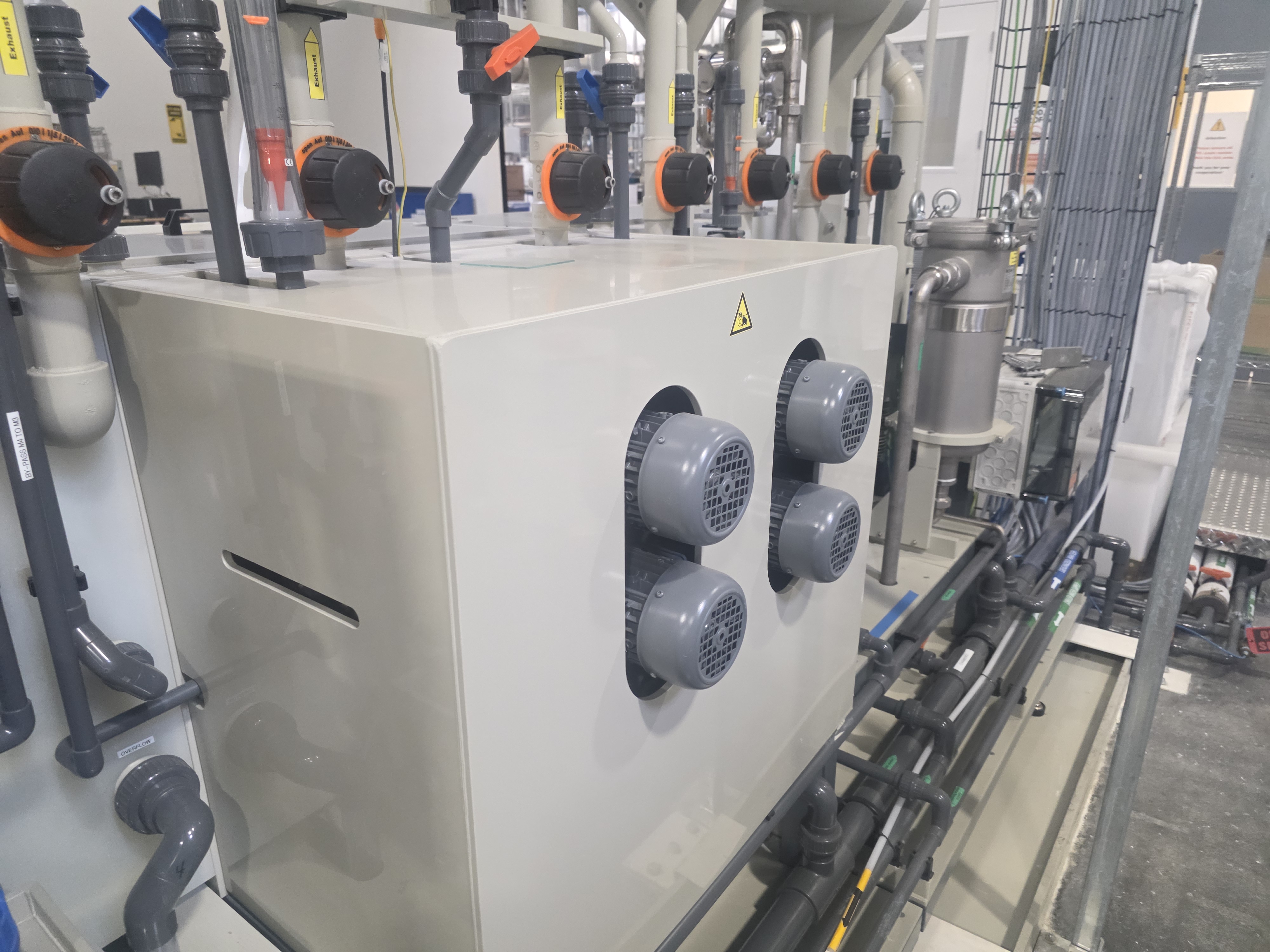

Industrial-grade pumps, heaters, and filtration systems

Floor-mounted modular skid design

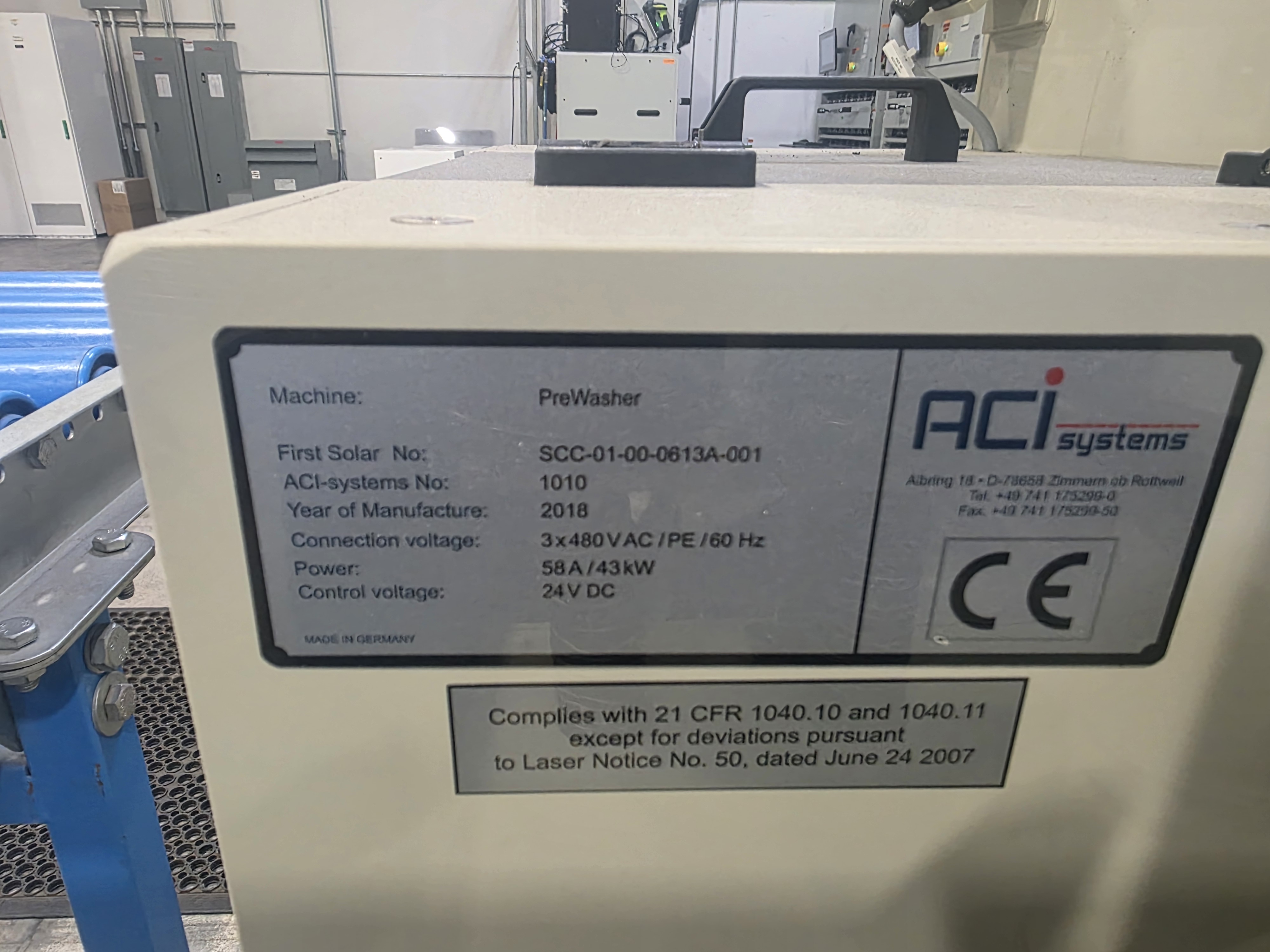

CONTROLS & ELECTRICAL:

PLC-controlled system

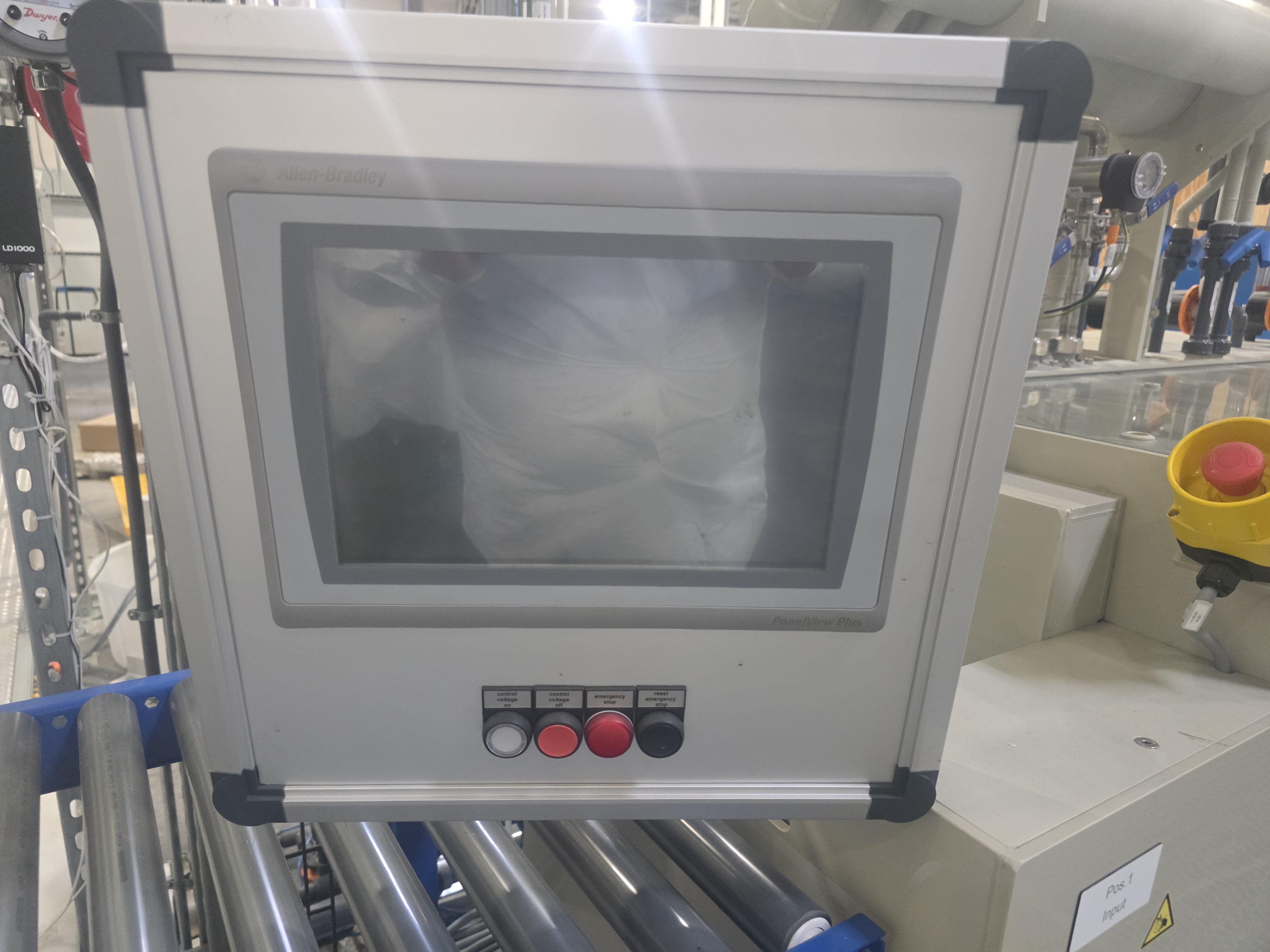

PanelView HMI touchscreen interface

24VDC control system

Emergency stop and safety interlocks

3-phase industrial power

UTILITIES REQUIRED:

DI water supply (high purity)

Electrical power (3-phase)

Facility exhaust connection

Drain / waste system

Compressed air (as required)

APPLICATIONS:

Lithium-ion battery production

Semiconductor processing

Photovoltaic manufacturing

PCB manufacturing

Display manufacturing

Precision metal / component cleaning

Substrate (wafer / panel) cleaning

BENEFITS:

Ensures high surface cleanliness and consistency

Reduces contamination and process defects

Supports critical surface preparation and coating adhesion

Scalable, modular design for industrial integration

High-performance wet processing solution for mission-critical manufacturing environments.
