MBE Epitaxy System

UHV / MBE-Style Deposition System Overview

System ClassificationModular UHV thin-film deposition platform (MBE / PVD hybrid research system).

Core ArchitectureMulti-port radial UHV chamber with ConFlat (CF) flanges enabling integration of multiple sources,diagnostics, and transfer components.

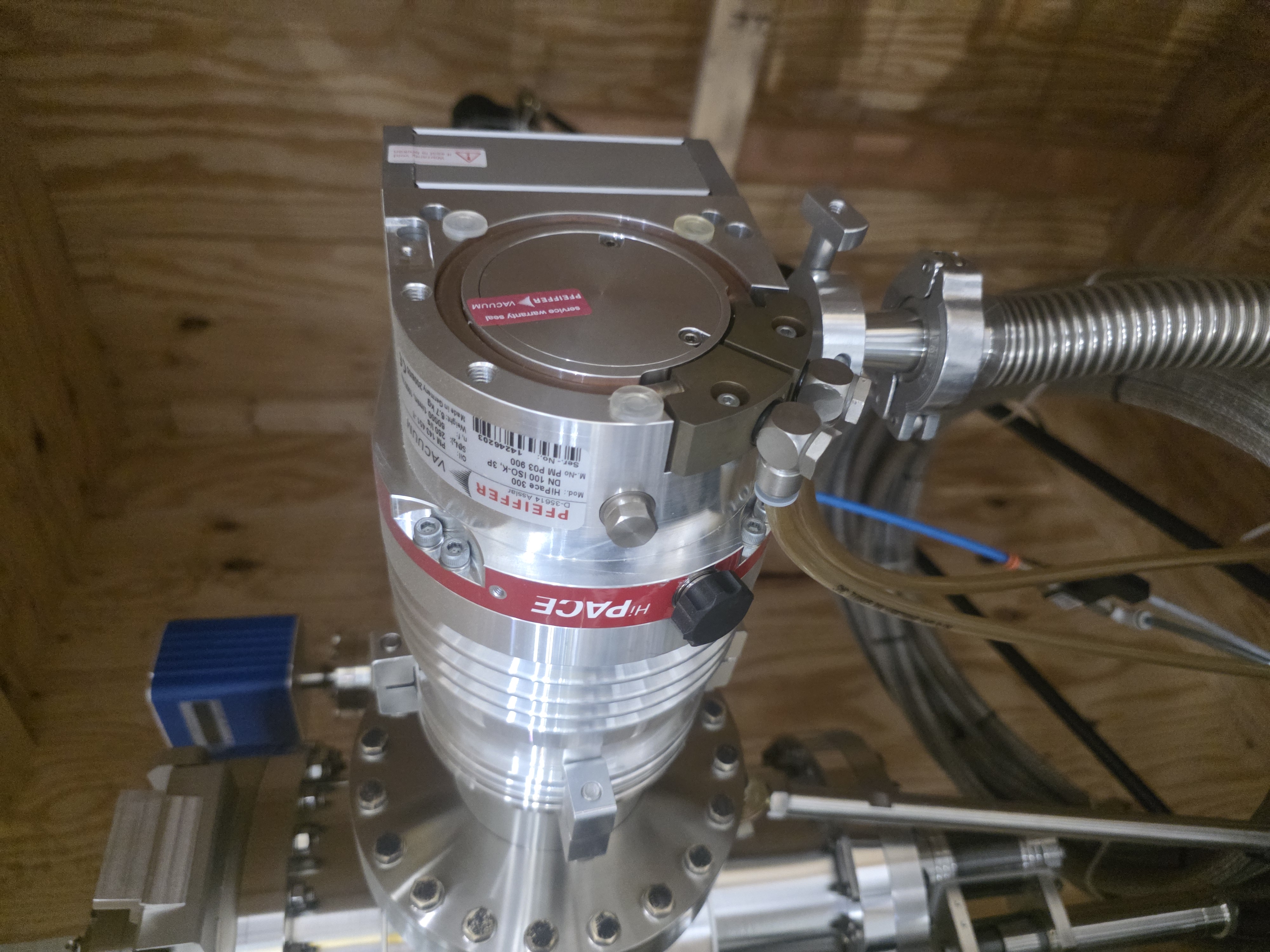

Vacuum SystemHigh-vacuum / ultra-high vacuum capable system using turbomolecular pumping (Pfeiffer HiPaceseries), supported by a backing pump. Designed for pressures in the 10■■Torr range.

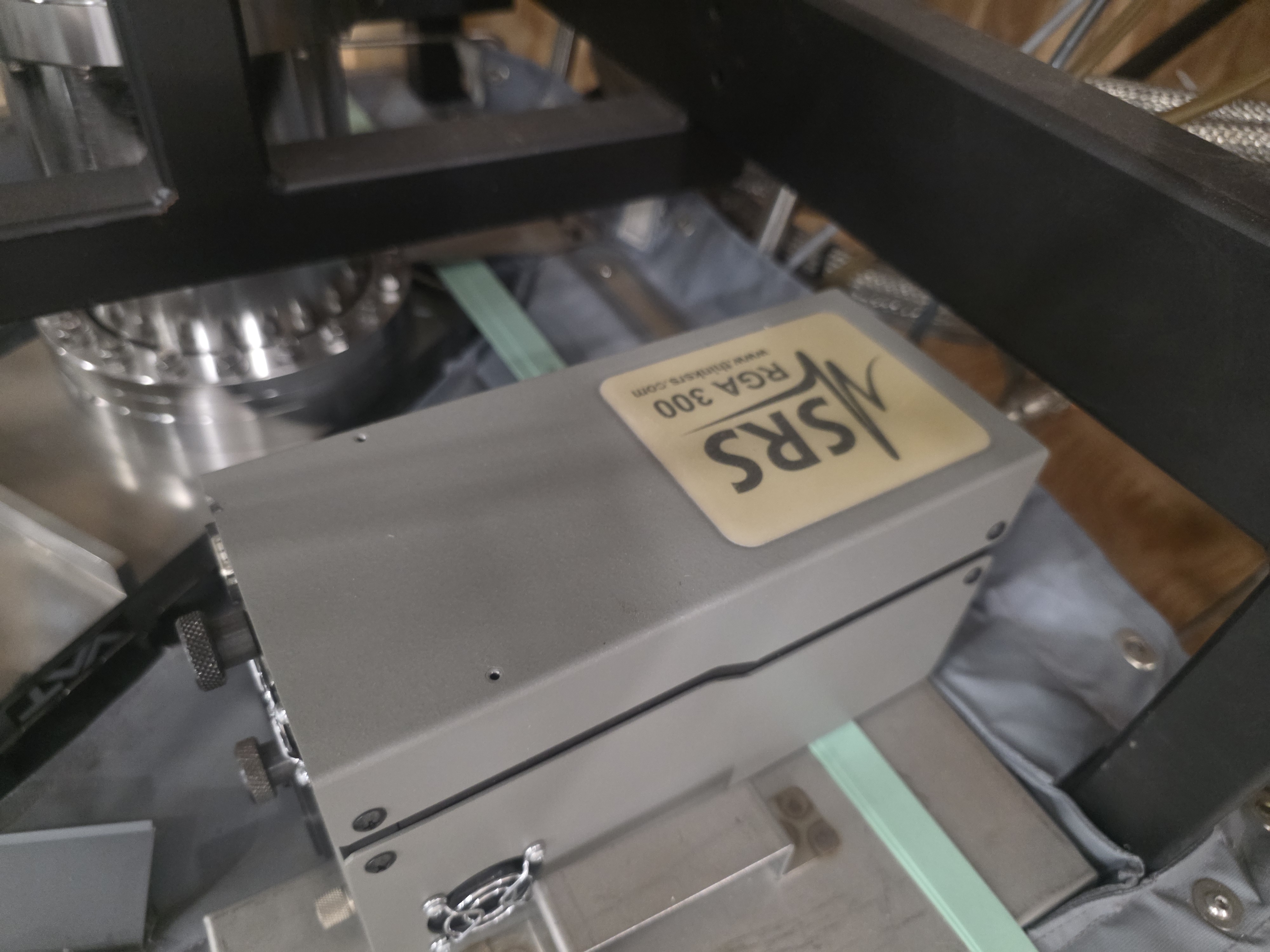

Major Components Identified- Pfeiffer Vacuum turbomolecular pump (HiPace series) - MDC Vacuum Products chamberhardware and feedthroughs - Residual Gas Analyzer (RGA) for process monitoring - Pneumatic gaslines and process control hardware - Stainless steel UHV-compatible chamber and fittings

Functional Capabilities- Thin film deposition (sputtering / evaporation / possible MBE configuration) - Surface scienceexperimentation - Process gas introduction and control - In-situ gas analysis via RGA - Multi-sourcedeposition flexibility

System OriginLikely custom-built or integrator-assembled system using industry-standard UHV components.Common in university or R&D; lab environments.

Typical Applications- Semiconductor R&D; - Materials science and thin film research - Coatings development - Surfacephysics experiments

Market PositioningResearch-grade, non-production system. Value depends on completeness, included sources,control systems, and pump condition
