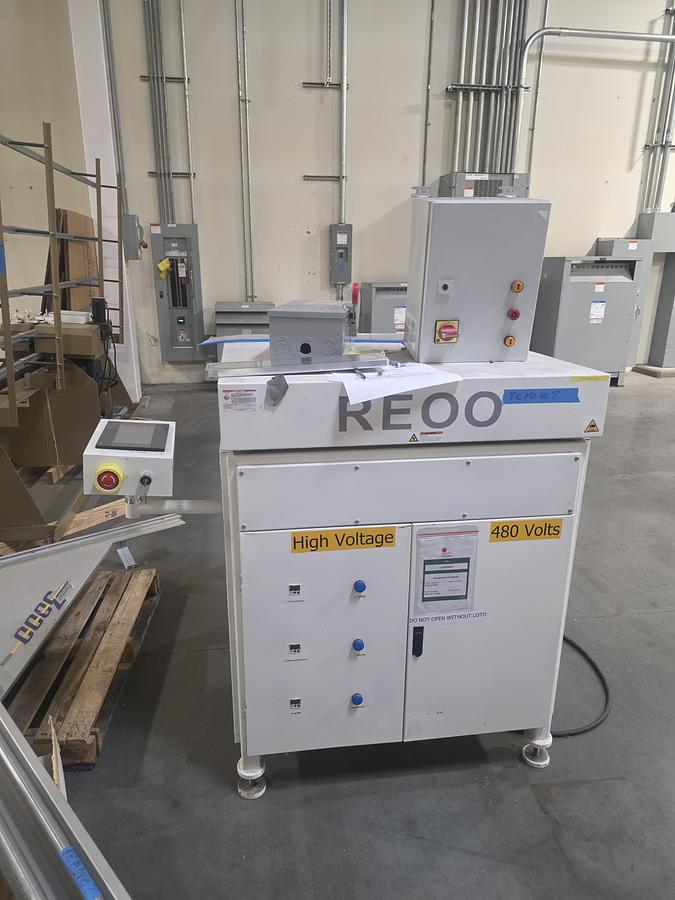

REOO Laminator System

REOO RO-B8

Solar Panel Laminator (500 x 500 mm Format)

SYSTEM OVERVIEW

The REOO RO-B8 is a compact solar panel laminator designed for encapsulating photovoltaic (PV) modules using

heat and vacuum pressure. It is used in solar panel manufacturing to bond layers such as glass, EVA, solar cells,

and backsheet into a durable, sealed module.

PRIMARY APPLICATIONS

• Solar panel manufacturing and assembly

• PV module R&D; and prototyping

• Small-scale or pilot production lines

• Lamination of composite materials

KEY COMPONENTS

Lamination Chamber:

Heated platen with vacuum enclosure

Vacuum System:

Removes air to prevent bubbles and defects

Heating System:

Controlled temperature for EVA curing

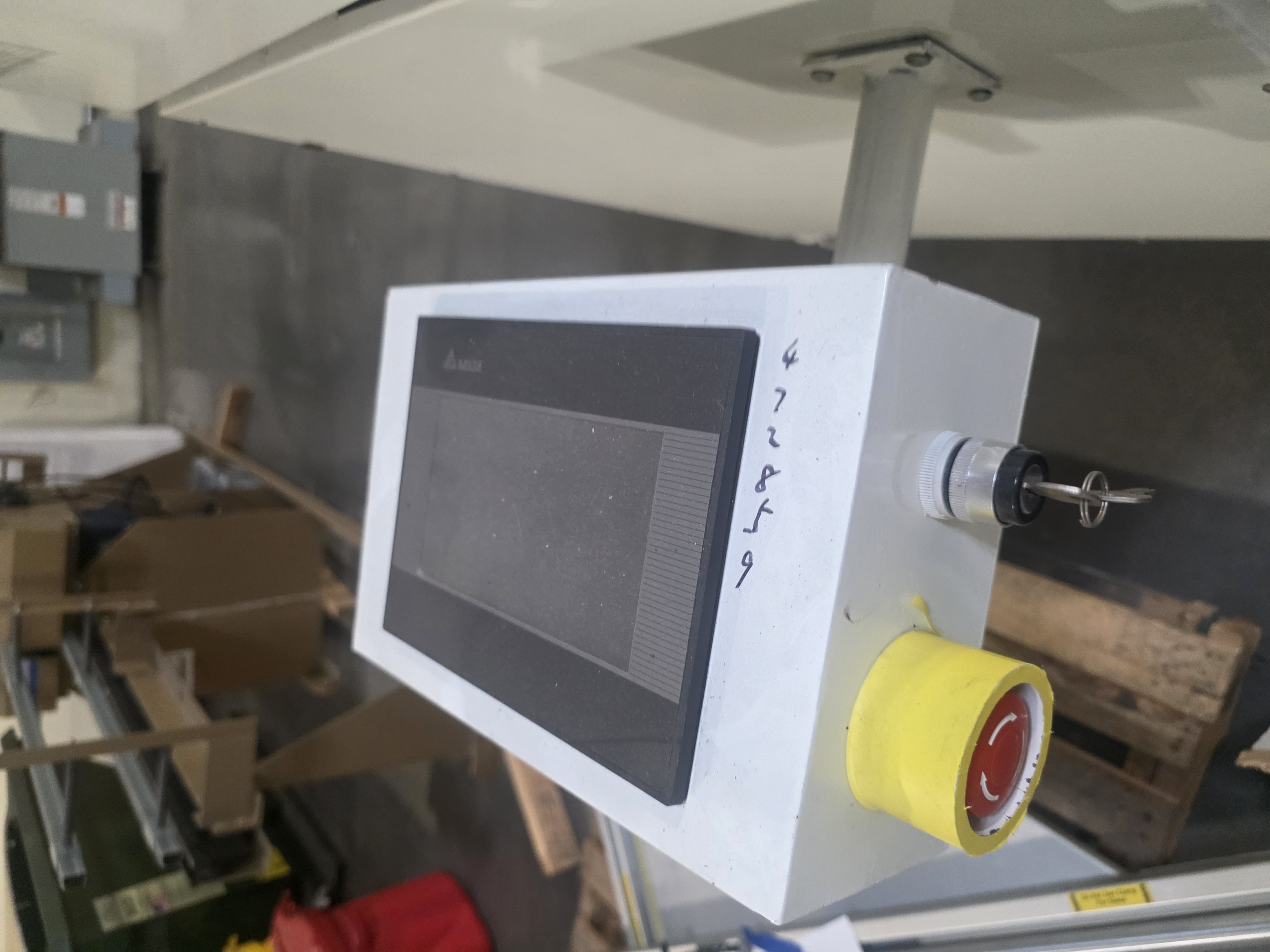

Control Panel:

Cycle control, emergency stop, and operator interface

Electrical Cabinet:

480V power distribution and safety interlocks

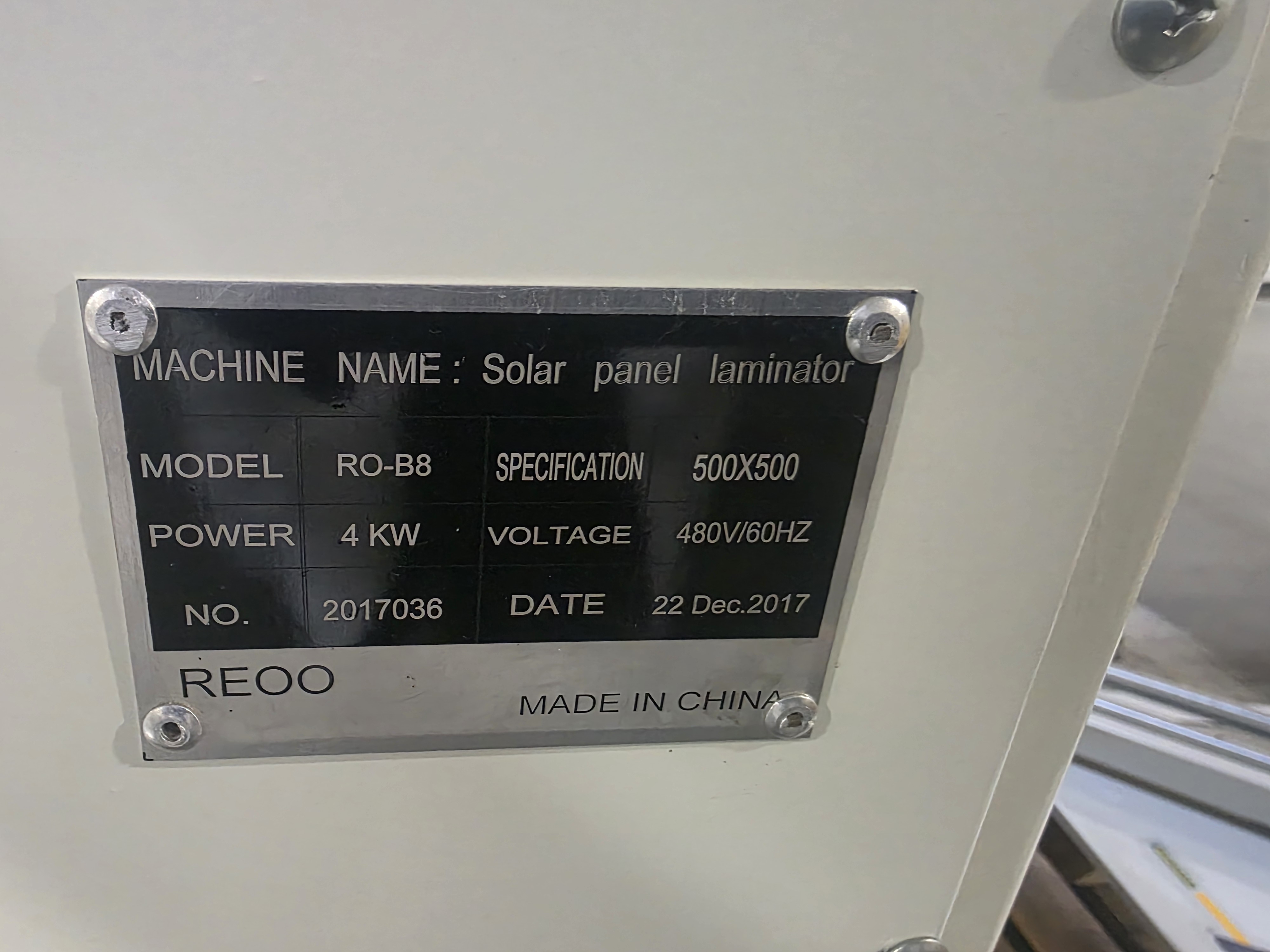

TYPICAL PERFORMANCE

Working Area: 500 x 500 mm

Power: 4 kW

Voltage: 480V / 60Hz

Uniform lamination pressure and temperature control

HOW IT WORKS

1. PV stack (glass/EVA/cells/backsheet) is loaded into chamber

2. Vacuum is applied to remove air and moisture

3. Heat and pressure bond layers together

4. Laminated module is cooled and removed

INSTALLATION REQUIREMENTS

• 480V electrical service

• Compressed air (if pneumatically actuated)

• Ventilation / heat management

• Level industrial floor space

• Operator safety clearance

SUMMARY

The REOO RO-B8 laminator is a compact, industrial-grade solution for solar module lamination, providing

consistent bonding, reliable operation, and suitability for R&D; or small-scale production environments
