UV Exposure System Custom

UV EXPOSURE SYSTEM (CUSTOM LAB UNIT)

High-Intensity UV Processing Platform – Cleanroom Ready

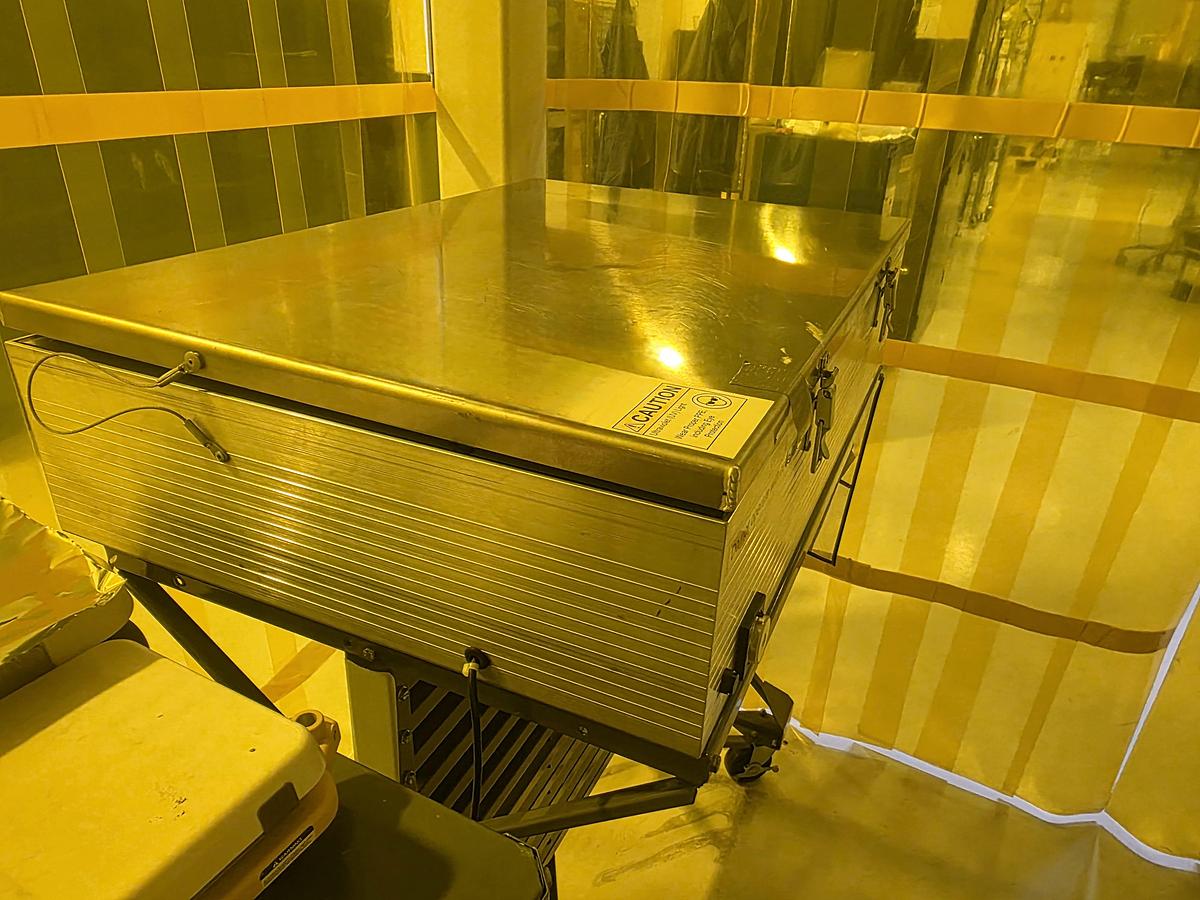

OVERVIEWCustom UV exposure system designed for photolithography, curing, and UV processingapplications. Installed in a cleanroom environment, featuring a large exposure area with integratedUV lamp array.

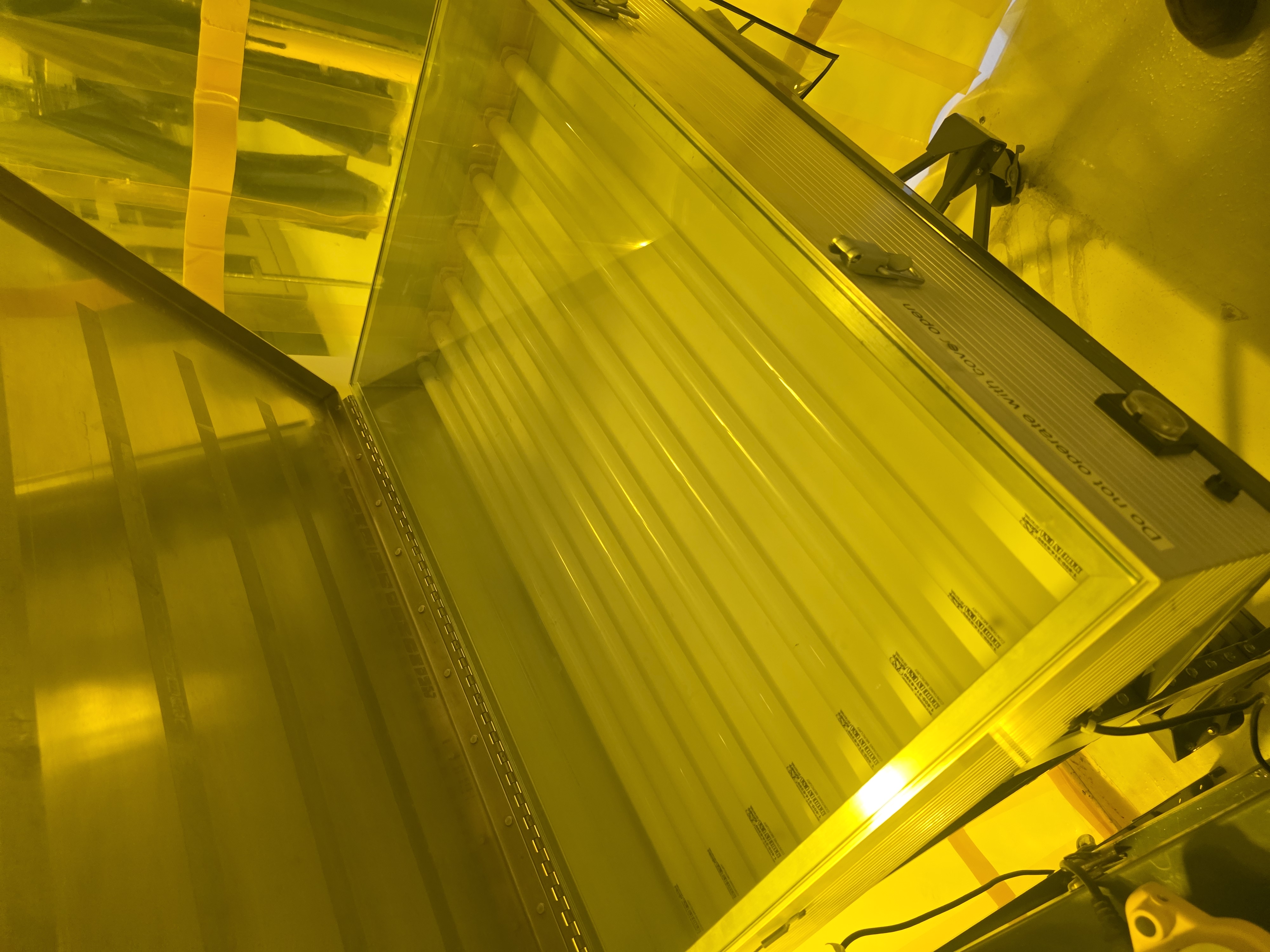

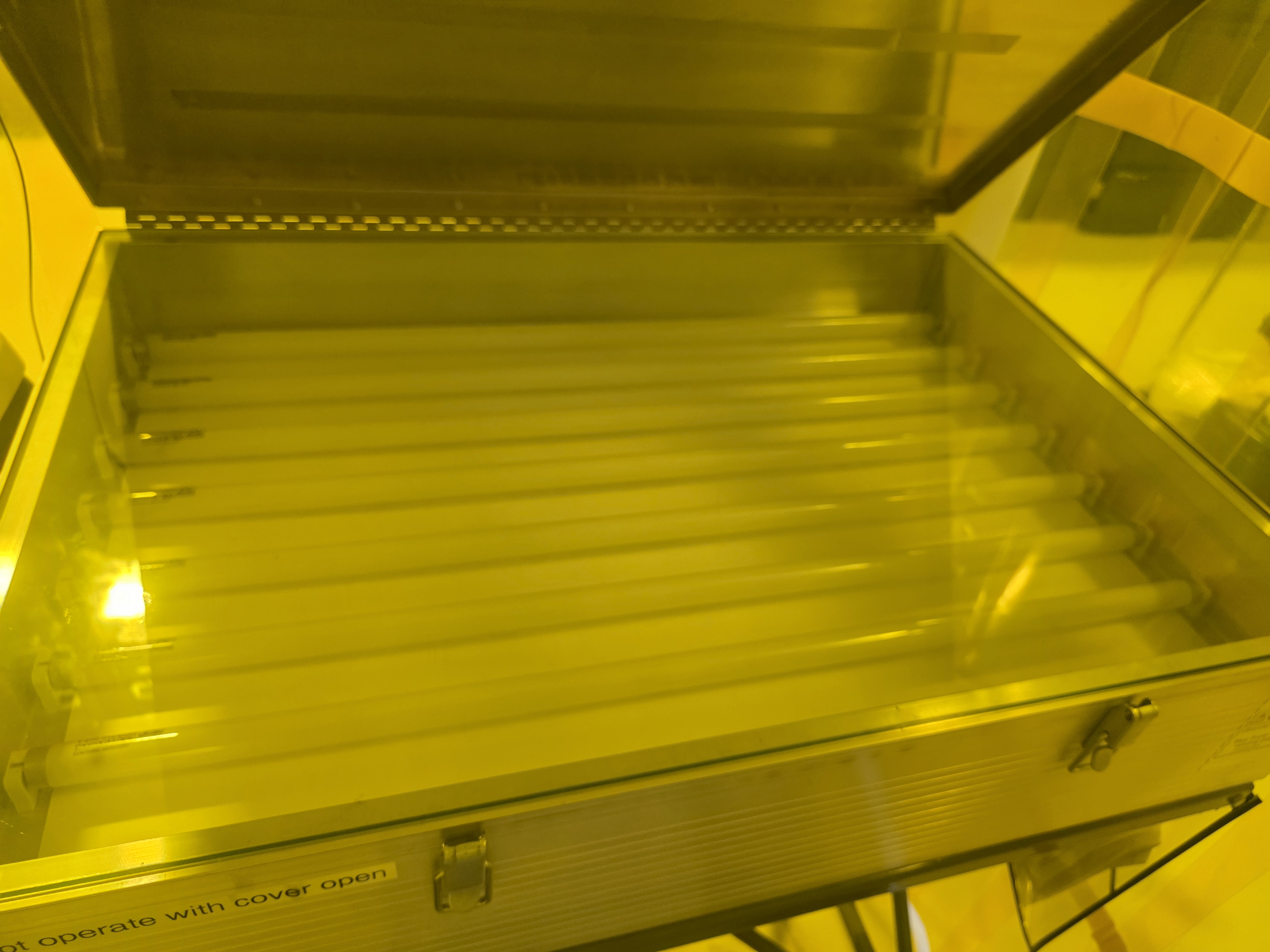

KEY FEATURES- Multi-lamp UV array (linear tube configuration) - Large-area exposure bed - Hinged protective lidwith safety interlock warning - Adjustable timer control - Uniform UV distribution across surface -Cleanroom-compatible construction

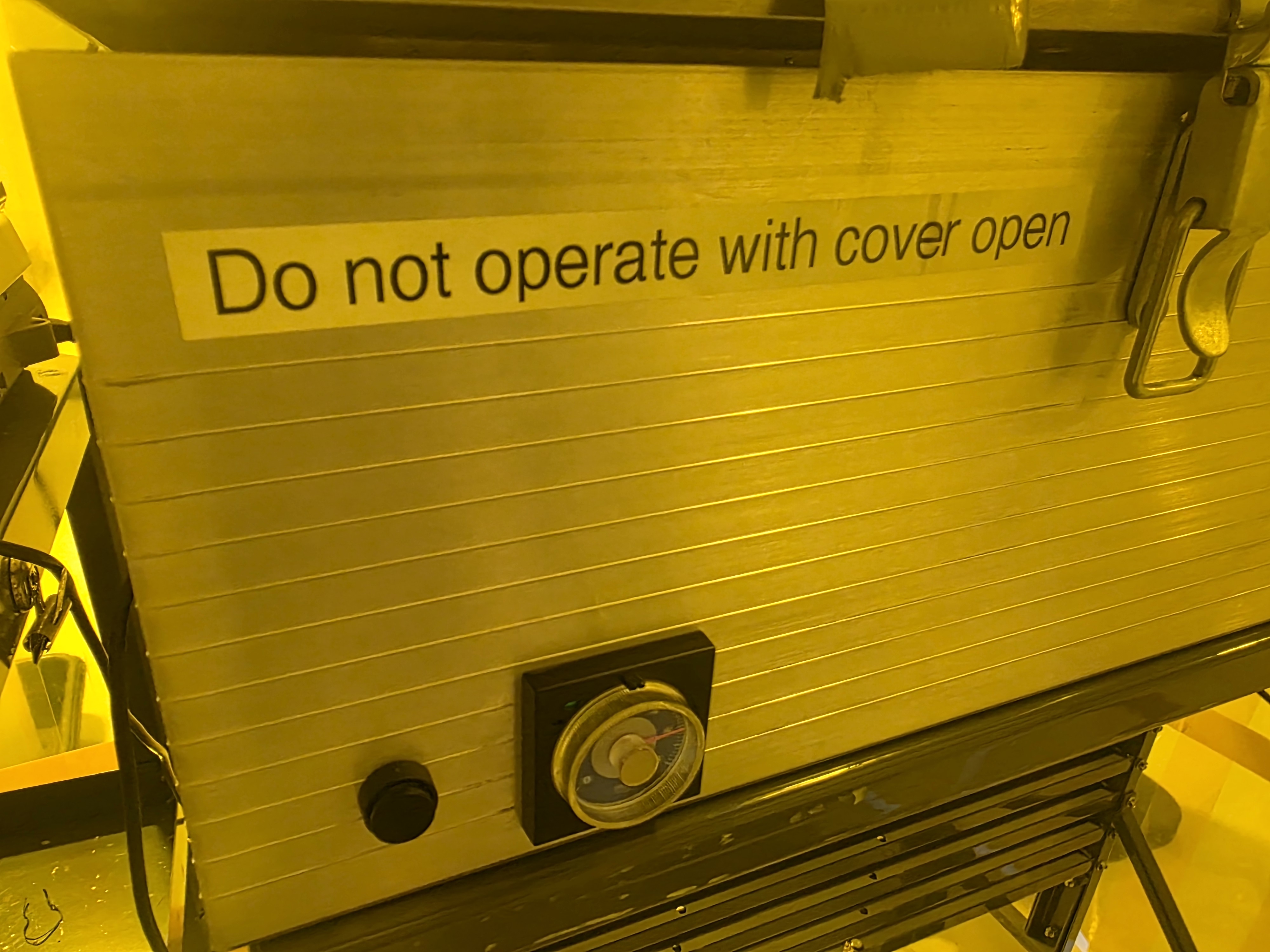

SYSTEM CONFIGURATION- Horizontal exposure chamber - Reflective interior for uniform irradiance - Analog timer controlinterface - Rolling cart / stand mounted

APPLICATIONS- Photolithography (mask exposure) - UV curing (adhesives, coatings) - PCB processing -Semiconductor / microfabrication processes - Materials research

CONDITIONOperational condition assumed. Installed in controlled cleanroom environment. UV tubes present;recommend verifying lamp life and intensity.

NOTESCustom-built or integrator-supplied system. No OEM branding observed. Comparable to standardUV flood exposure systems used in semiconductor and lab environments
