Ling Electronics Electrodynamic Vibration Test System

See attachment for details

This is a legacy industrial vibration test system designed for controlled vibration, durability, reliability, and product qualification testing. Systems of this type are commonly used to simulate vibration exposure for components, assemblies, and products in applications such as aerospace, automotive, electronics, defense, and general industrial testing.

The system includes:

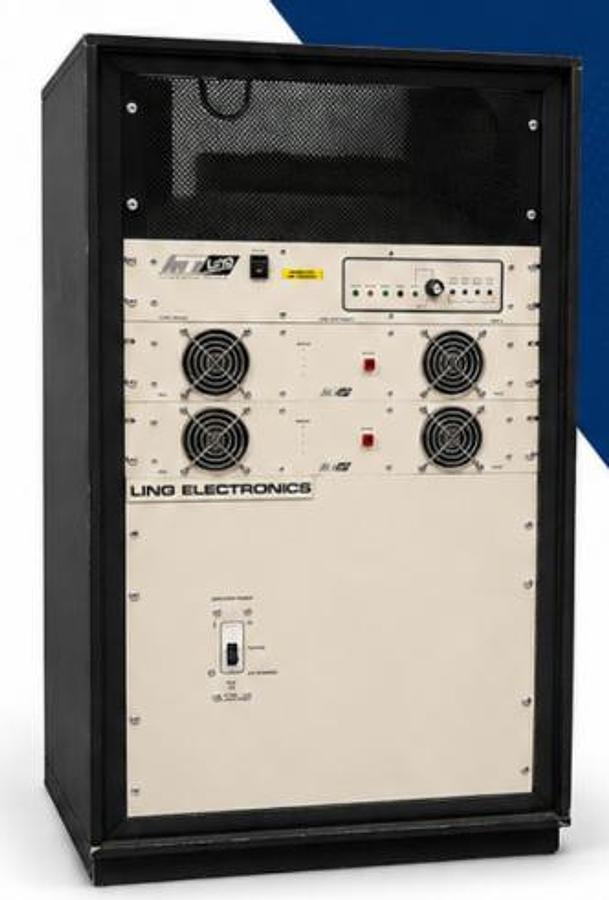

• Ling Electronics power amplifier rack
• Used to drive and control the electrodynamic shaker. The rack includes the Ling Electronics amplifier/control hardware and front-panel cooling modules.

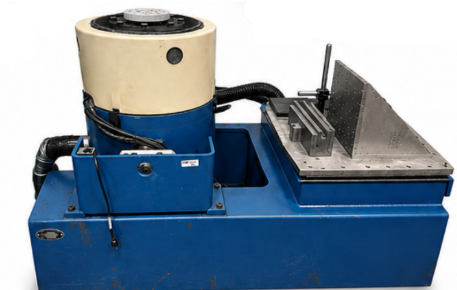

• Electrodynamic shaker / exciter assembly
• Used to generate controlled vibration input for test articles. The shaker is mounted on a heavy-duty industrial base.
• Kimball horizontal slip table / tooling platform
• The Kimball slip table assembly allows horizontal-axis vibration testing and provides a fixture surface for mounting test parts, tooling, or customer-specific fixtures.
• Heavy-duty base and fixturing hardware
• The system includes the blue industrial base, shaker assembly, slip-table platform, and associated tooling shown.

This type of system is typically used for:

• Product qualification testing
• Durability and fatigue testing
• Environmental vibration simulation
• Electronics and component testing
• Automotive and aerospace vibration testing
• General R&D and production validation work
