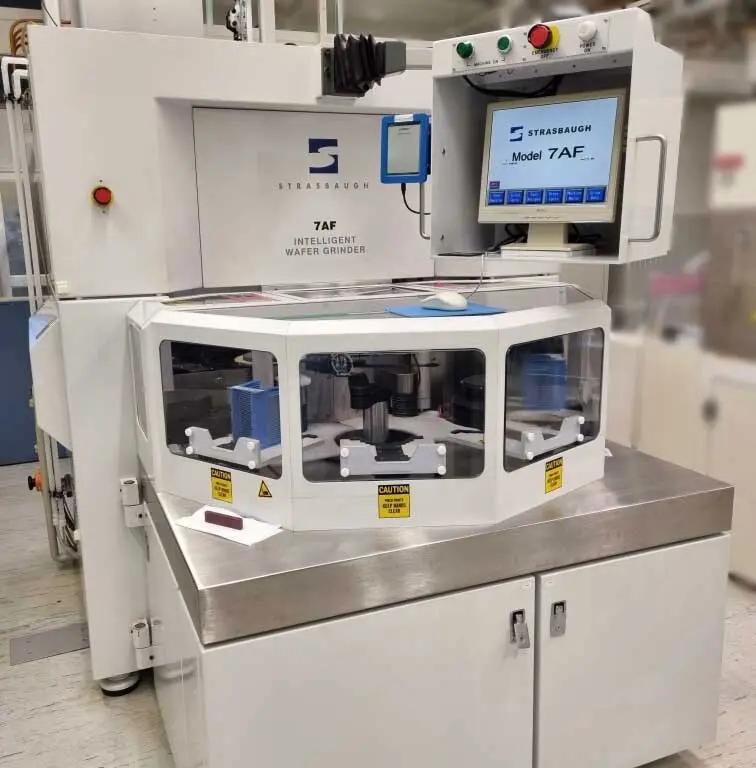

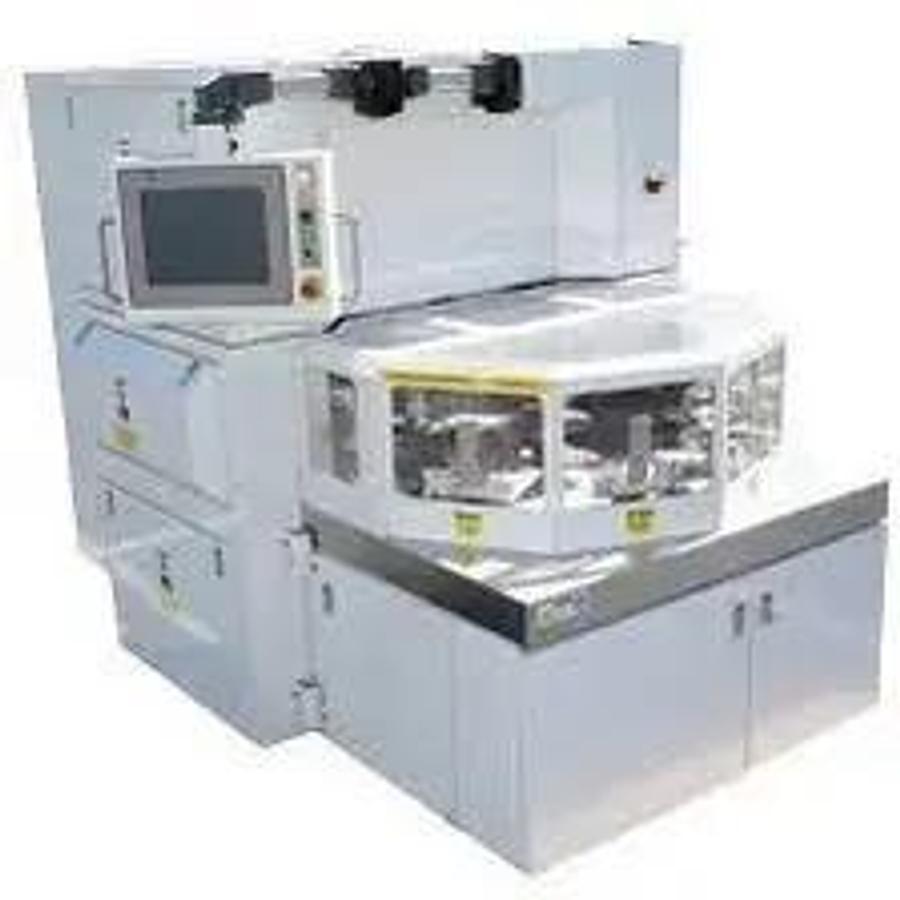

1999 Strasbaugh 7AF

1999 Strasbaugh 7AF

Contact us for price

Description

Weight:

Grinding area section 5200 LBS = 2’358 kg

Handling area section 2300 LBS = 1’043 kg

Total weight 7500 LBS = 3 401 kg


Footprint:

Length: 66 in. (1676.5 mm)

Depth: 84 in. (2133.5 mm)

Height: 76 in. (2032 mm)

Work Height: 39 in. (990.5 mm)


OEM Model Description

"Advanced nTellect Wafer Grinder, 7AF, renowned for reducing sub-surface damage and improving surface finish with repeatable thickness control. The nTellect Grinder boasts high volume wafer throughput at a low cost, utilizing innovative technologies such as tapeless backgrinding, in-feed technology, in-situ thickness control, force adaptive grinding, linear traversing grind spindles, automated process control, and thin wafer handling. Serving a wide array of applications including integrated circuit backgrinding, silicon on insulator, prime wafers, gallium arsenide, lithium niobate, aluminum titanium carbide for read/write heads, glass, sapphire, and quartz, the nTellect Grinder relies on near-frictionless, force-sensitive infeed mechanics and an intelligent control system, which together increase wafer strength and reduce breakage. Its ultra-stiff air bearing spindles and sub-micron feed rates deliver superior surface finishes. The Grinder also features in-situ digital measurement probes and unique linear traversing grind spindles for optimized throughput and accurate, consistent wafer thicknesses. Lastly, with the addition of Tapeless Backgrinding and ultra-fine grit grind wheels, nTellect is poised to revolutionize thin wafer applications.

"

Specifications

ManufacturerStrasbaugh
Model7AF
Year1999
ConditionUsed
Stock NumberBM7194
