FEI Tecnai G2 20 S-TWIN Transmission Electron Microscope TEM System Lab

FEI Tecnai G2 20 S-TWIN Transmission Electron Microscope

The microscope is fully functional and has been maintained under a Thermo Fisher service contract, with the most recent service completed in July 2025. It is currently fitted with a Tungsten filament but is also compatible with LaB6.

The system comprises the following:

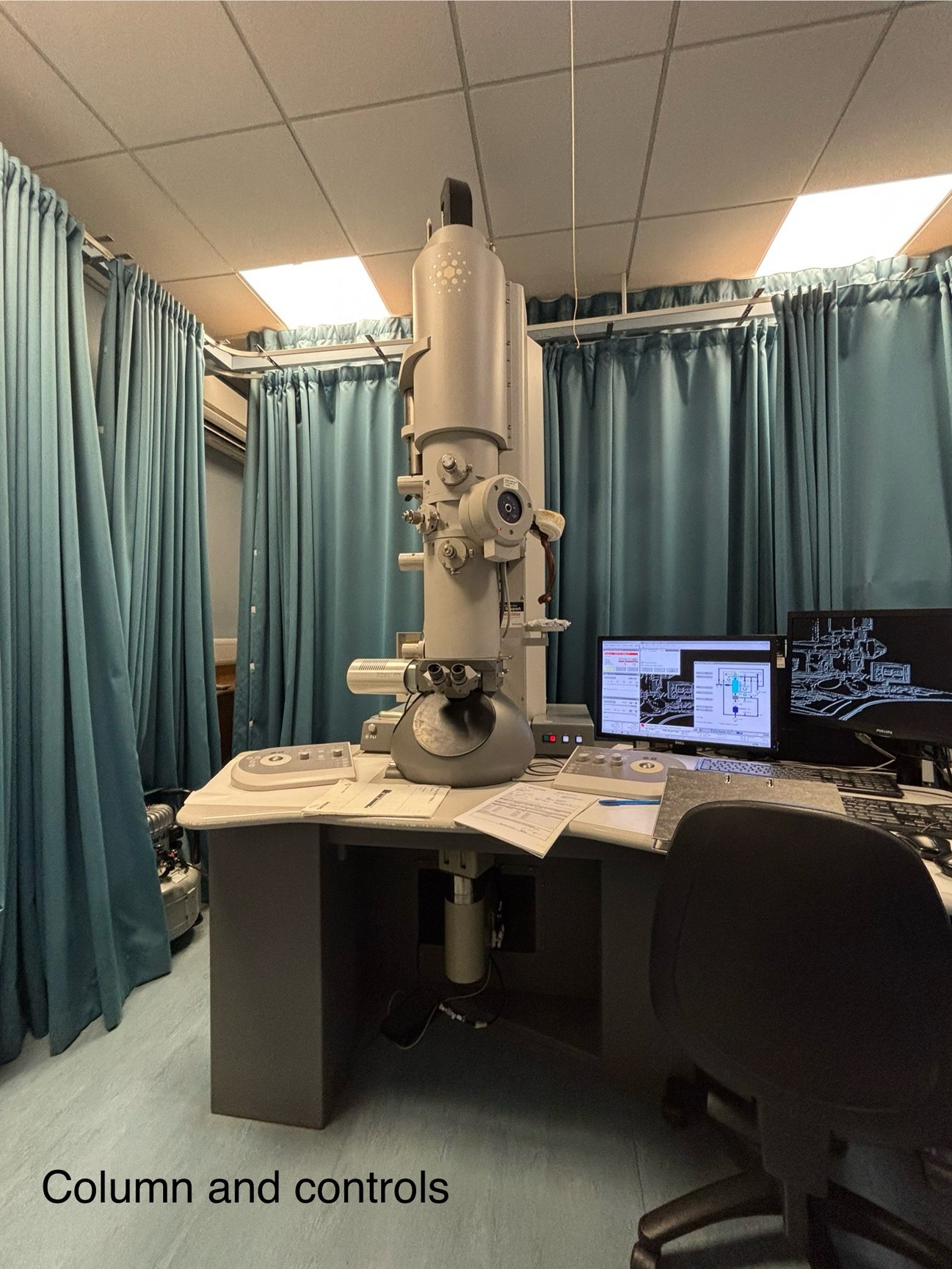

• Tecnai G2 20 S-TWIN microscope column
• Megaview Soft Imaging System III camera

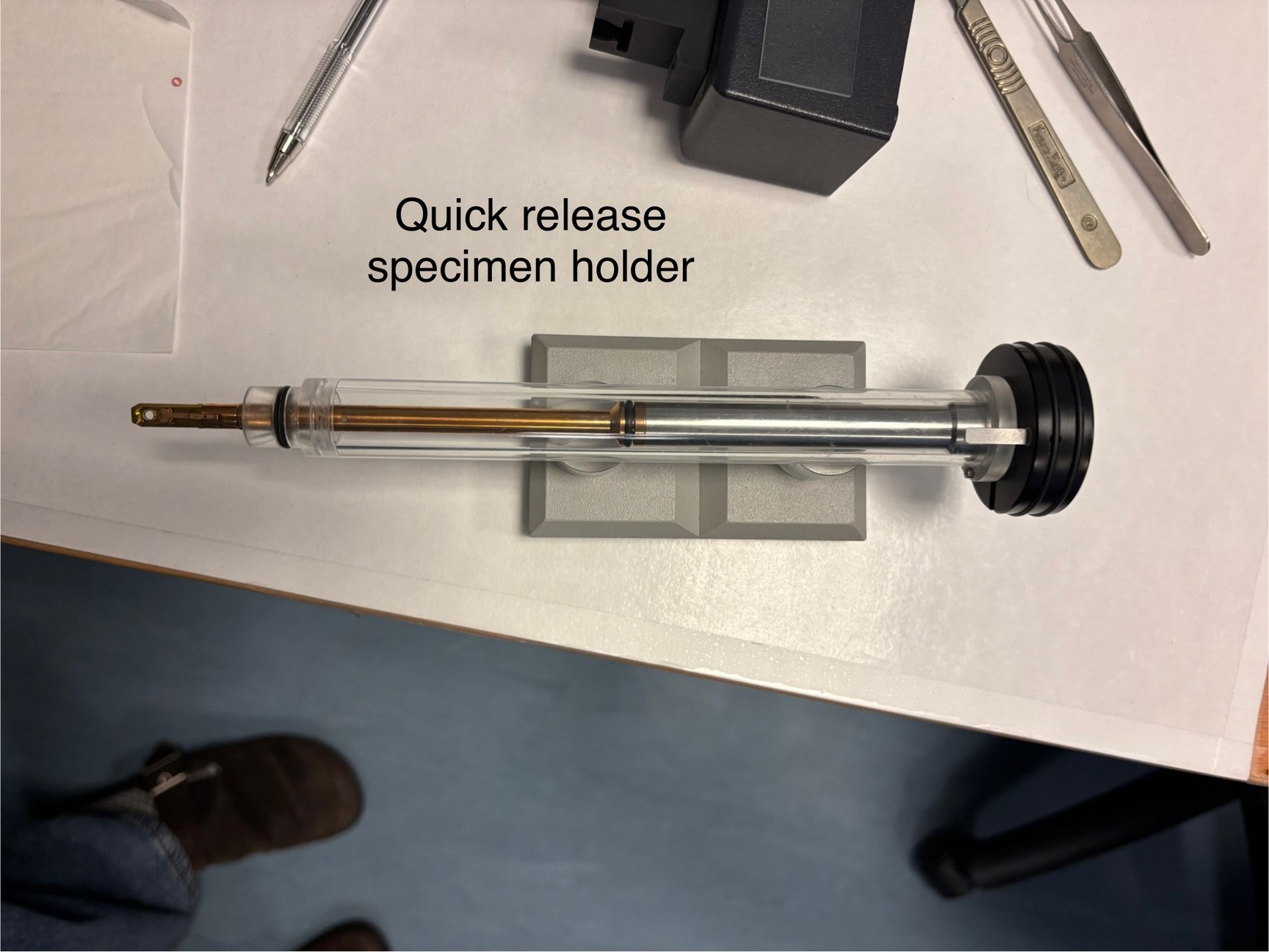

• One standard quick release specimen holder

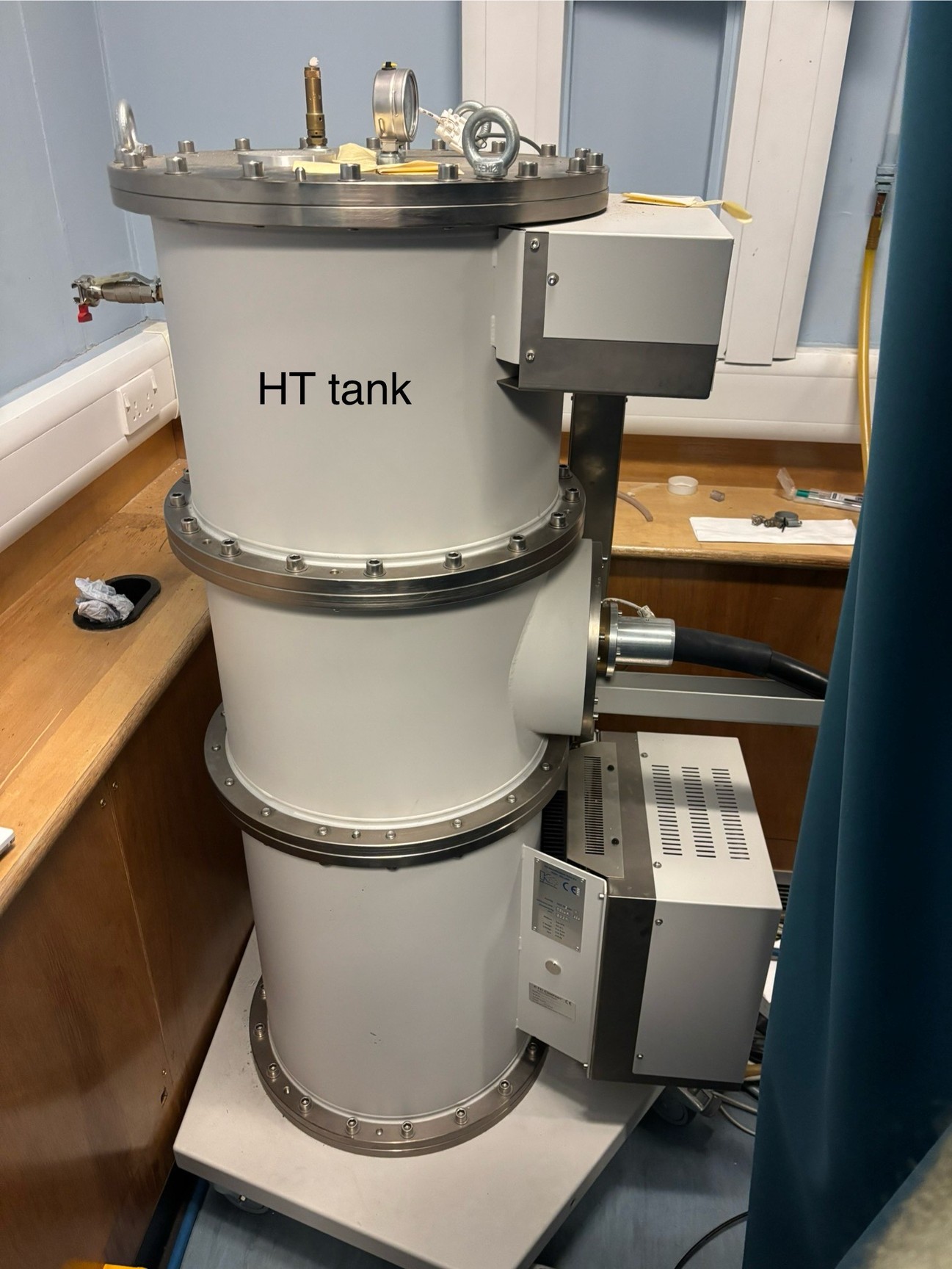

• HT tank
• Turbo, rotary, and oil diffusion pumps
• Auxiliary equipment required for operation (with flexibility on chillers and compressor inclusion by discussion)

Additional details:

• Configured with enhancements for Lorentz microscopy, including a Lorentz lens upgrade for higher magnification imaging in low magnetic field conditions.
• Reversible polarity objective lens for in situ magnetising experiments.
• The standard objective lens is retained, allowing for full routine TEM functionality.
• A Gatan image filter is present but non-functional; the port blank is available and can be supplied in place of the filter.

Item external dimensions (L×W×H): 150 cm × 300 cm × 230 cm

Item weight: 600.0 kg
