Filmetrics F20-UV Thin Film Thickness Measurement System – P/N 205-0673

Manufacturer: Filmetrics

Model: F20-UV

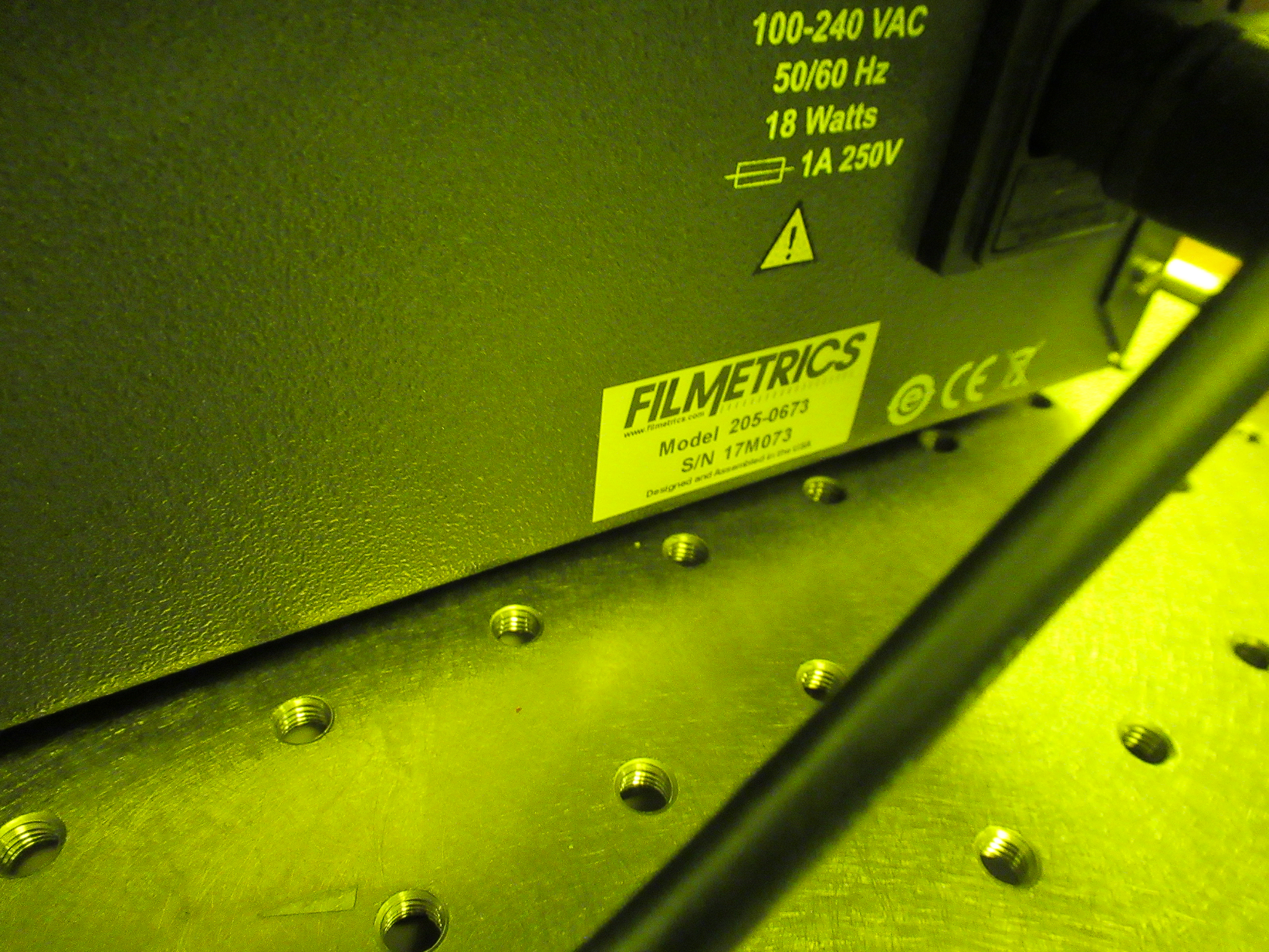

Part Number: 205-0673

Serial Number: 17M073

Vintage: Estimate 2017, unconfirmed

Equipment Type: Thin Film Thickness Measurement / Optical Metrology System

Description

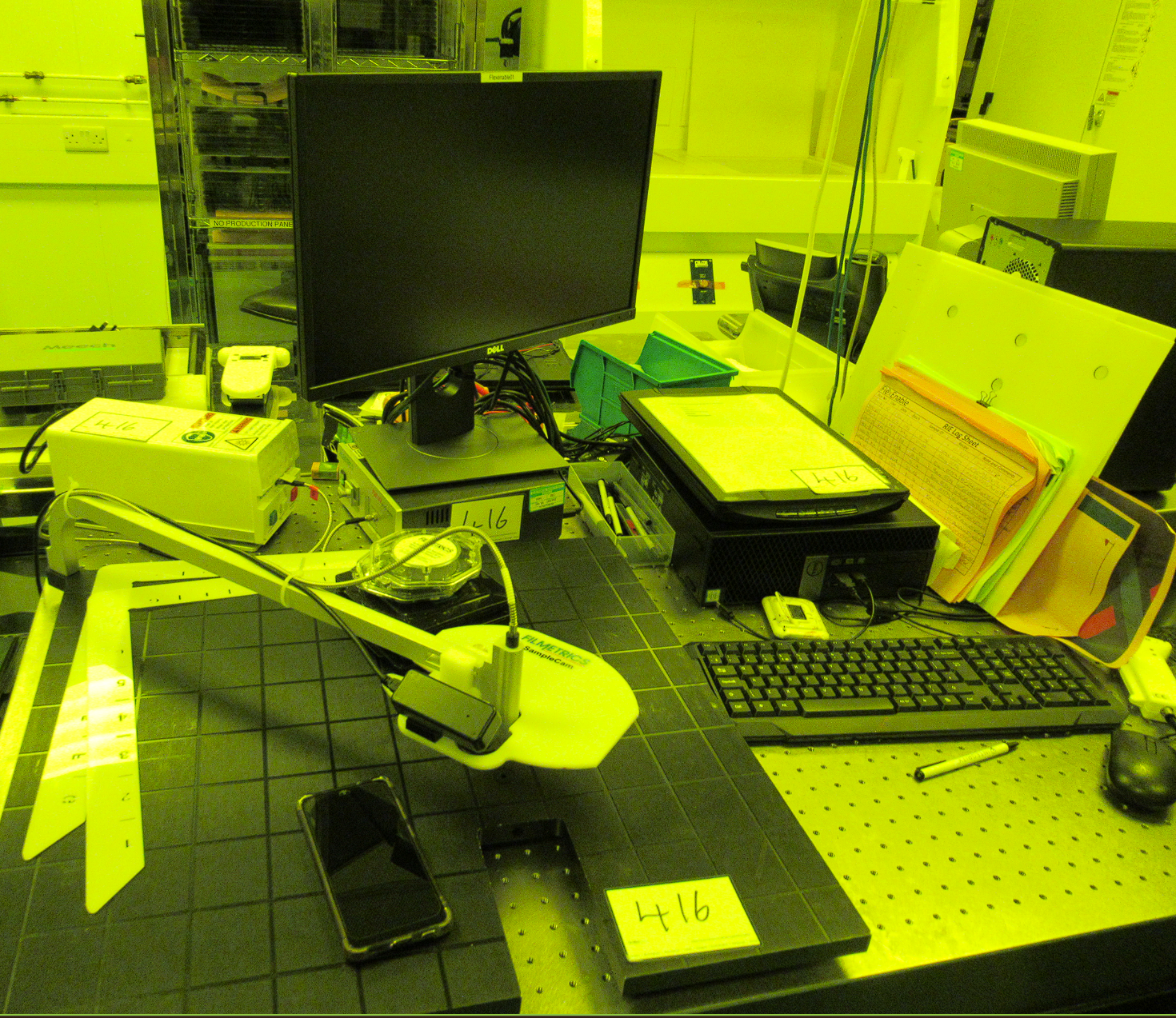

Filmetrics F20-UV Thin Film Thickness Measurement System supplied with LS-DT2 Deuterium-Tungsten-Halogen Light Source, Sample Cam, A4 Desktop Scanner, and Dell OptiPlex 3040 Core i5 Desktop Computer with Keyboard and Mouse.

The Filmetrics F20-UV is a benchtop thin-film metrology system designed for non-destructive measurement of thin-film thickness and optical properties using spectral reflectance technology.

The system is suitable for semiconductor manufacturing, wafer processing, optical coating analysis, materials research, and thin-film process development.

The UV-enhanced measurement capability enables analysis of ultra-thin films, including semiconductor dielectric layers, photoresist, and transparent optical coatings.

Technical Specifications

• Measurement Technology: Spectral Reflectance
• Measurement Range: 1 nm to 40 µm (film-stack dependent)
• Spectral Wavelength Range: 190–1100 nm
• Measurement Type: Non-contact, Non-destructive
• Measurement Parameters: Film Thickness, Refractive Index and Optical Properties
• Measurement Configuration: Benchtop / Single-Spot
• Typical Measurement Applications: Single-Layer and Multilayer Thin Films

Included Equipment

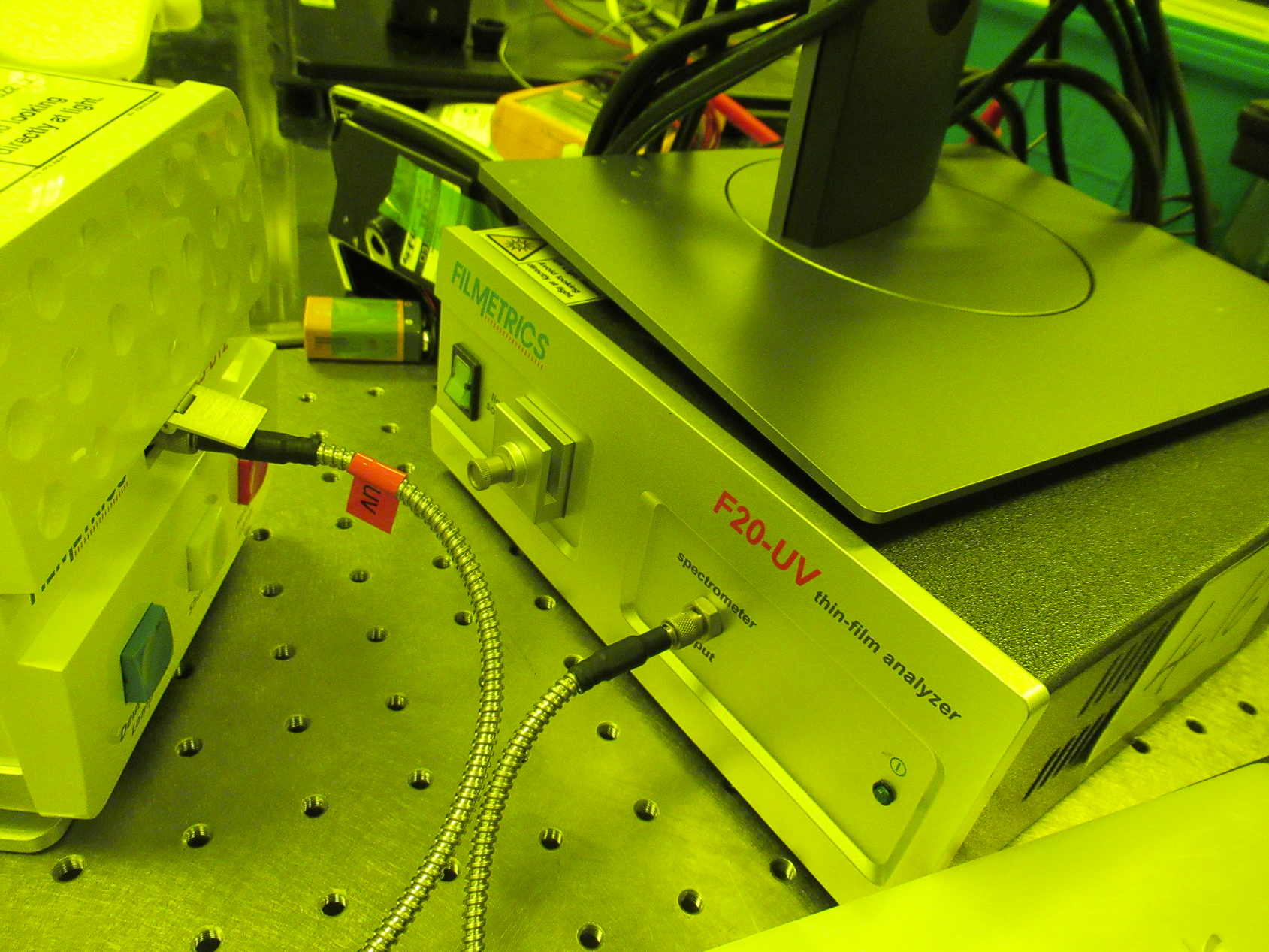

• 1 × Filmetrics F20-UV Thin Film Analyzer – P/N 205-0673

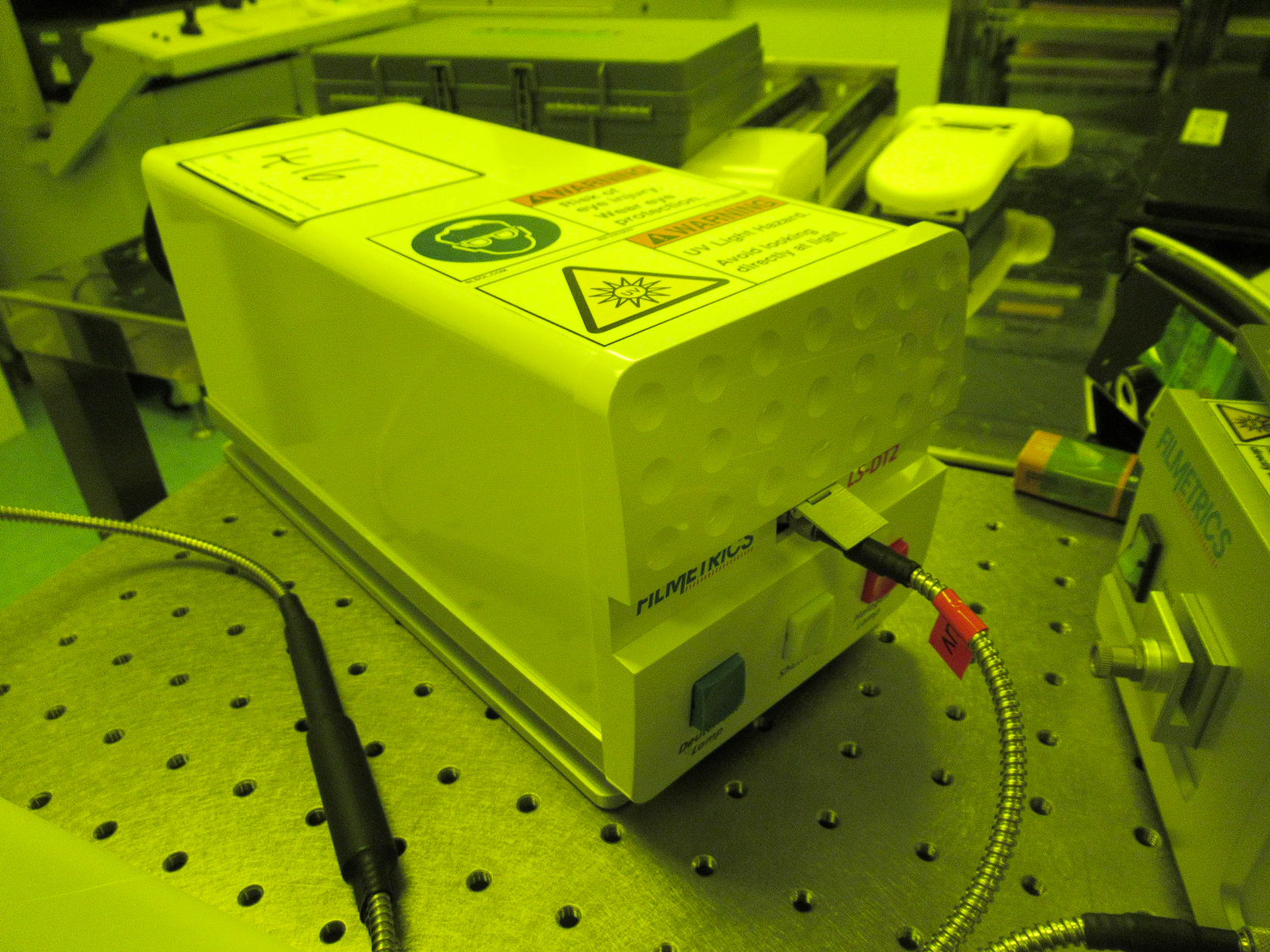

• 1 × LS-DT2 Deuterium-Tungsten-Halogen Light Source – S/N 17B012
• 1 × Filmetrics Sample Cam
• 1 × A4 Desktop Scanner
• 1 × Dell OptiPlex 3040 Core i5 Desktop Computer
• 1 × Keyboard
• 1 × Mouse

System Serial Number: 17M073

Typical Applications

• Semiconductor Thin Film Metrology
• Silicon Dioxide (SiO₂) and Silicon Nitride (SiN) Measurement
• Photoresist Thickness Measurement
• Optical Coating Characterisation
• Thin Film Research and Development
• Thin Film Thickness and Refractive Index Analysis
• Transparent and Semi-Transparent Coating Measurement
• Quality Control and Process Monitoring

The Filmetrics F20-UV provides a compact, versatile solution for laboratories, semiconductor fabrication facilities, universities, and research institutions requiring optical thin-film thickness measurement.

Please contact us for further information, additional photographs, pricing, and availability.
